TORO PM6K Audio Speaker Mid-Range Component Kit User Manual
PM6K Speaker
General Features:
- Custom Cast Aluminum Basket With Thick Powder Coating
- High-Energy Y35 Magnets Assures Sufficient Magnet Force Needed For High Sensitivity And Accurate Sound Reproduction
- Two Piece Custom Paintable Metal Grills
- Ultra Shallow Mounting Depth Fit for All Vehicle Systems
- Laminated Paper Cone With Cloth Surround
- High Quality Cloth Spider With Polyester Fiber
- 1.5″ High Temperature TILL Voice Coil
- Fully Isolated Tinsel Leads To Eliminate Crosstalk
- 4″ Aluminum Bullet Tweeter With Ferro Fluid Cooled 25mm voice Ciol
- Custom Competition Grade 12 dB Crossover With TORO Logo (Kit)
Specification
| Model | PM6K |
| Midbass Size | 6.5″ |
| Voice Coil Size | 25mm Aluminum |
| Frequency Range | 100 Hz-20KHz |
| SPL @ iw | 100dB |
| RMS Power | 140w |
| Max Power | 280w |
| Impedance | 4 ohm |
| Crossover Point | 2.5KHz |
| Frame Diameter | 6.57″ |
| Mounting Depth | 1.99″ |
| Mounting Diameter | 5.63″ |

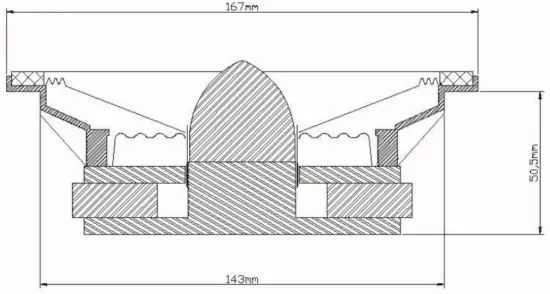

Dimension
PM6/PB6 SPEAKER
General Features:
- Heavy Gauge Steel Powder Coated Basket
- High-Energy Y30 Magnets Assures Sufficient Magnet Force
- Needed For High Sensitivity And Accurate Sound Reproduction
- Fiber Paper Cone with Foam Surround (PM6)
- Fiber Paper Cone with Cloth Surround (PB6)
- High Quality Cloth Spider With Polyester Fiber
- 1.5″ High Temperature KSV Voice Coil
Specifications
| Model# | PM6 | PB6 |
| Znom Ohms | 8 | 8 |
| Revc Ohms | 5.2 | 5.2 |
| Sd m2 | 0.014 | 0.014 |
| Mmd Kg | 0.00645 | 0.0075 |
| Usable Range | 270Hz-10kHz | 115Hz-10kHz |
| Power MAX | 280w | 280w |
| Power RMS | 140w | 140w |
| Peak Power | 300w | 300w |
| Mms Kq | 0.00738 | 0.0082 |
| Cms MN | 85.9 | 0.17 |
| Vas m2 | 2.32 | 4.6 |
| Fo Hz | 270 | 115 |
| Qms | 1.27 | 7.73 |
| Qcs | 0.814 | 0.59 |
| Qts | 0.496 | 0.55 |
| BL T•M | 7.7 | 8.2 |
| SPL 2.83V/1 m | 96dB | 96dB |
| No | 2.2 | 1.25 |
| Physical Measurements in mm | PM6 | PB6 | |
| Mounting depth | A | 74 | 60 |
| Mounting hole diameter | B | 147 | 143 |
| Magnet OD | C | 110 | 115 |
| Outer flange width | D | 166 | 167 |

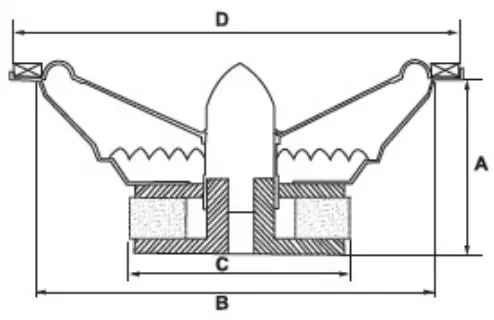

DIMENSION
PM6X/PM69X SPEAKER
General Features:
* Heavy Gauge Steel Powder Coated Basket *High-Energy Y30 Magnets Assures Sufficient Magnet Force Needed For High Sensitivity And Accurate Sound Reproduction • Rugged Construction To Withstand Harsh Mobile Environments *Custom Laminated Paper Cone With Cloth Surround *High Quality Cloth Spider With Polyester Fiber *1.5″ High Temperature TIL Voice Coil *25mm Aluminum Tweeter
SPECIFICATIONS
| Model | PM6X | PM69X |
| Midbass Size | 6,5″ | 6×9″ |
| Tweeter Size | 25mm Aluminum | 25mm Aluminum |
| Frequency Range | 100Hz-22kHz | 80Hz-22kHz |
| SPL @ 2.83V/1m | 95dB | 96dB |
| Watts RMS | 120w | 140w |
| Maximum Power | 240w | 280w |
| Peak Power | 280w | 300w |
| Impedance | 4 Ohm | 4 Ohm |
| Frame Diameter | 6.57″ | 9.25 x 6.5″ |
| Mounting Depth | 3.05″ | 3.46″ |
| Mounting Diameter | 5.79″ | 8.66 x 5.95″ |

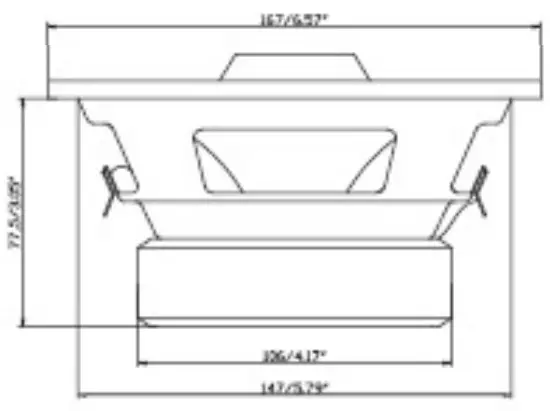

DIMENSION

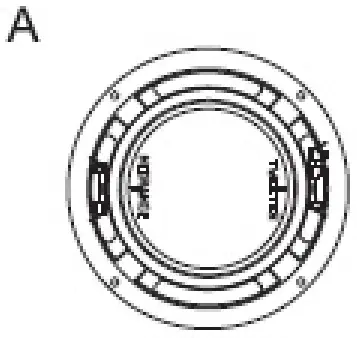

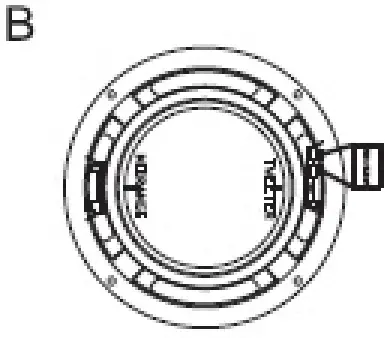

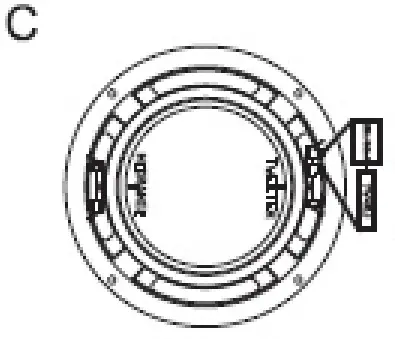

PM6X

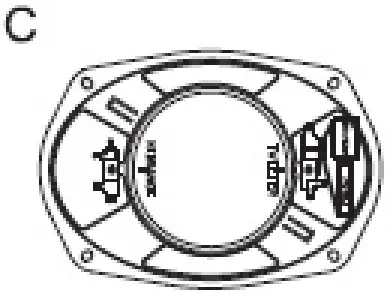

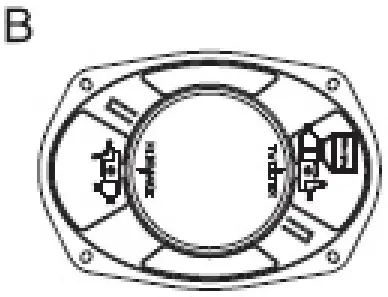

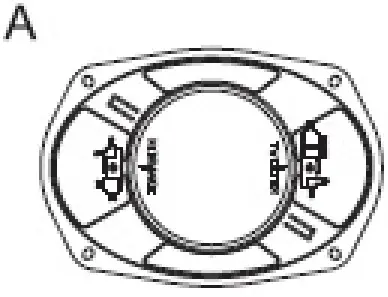

PM69X
