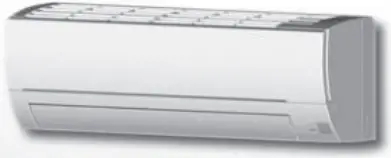

Mitsubishi Electric Msz-hr25vf Split-type Air Conditioners Instruction Manual

SPLIT-TYPE AIR CONDITIONERS

INDOOR UNIT

MSZ-HR25VF   MSZ-HR35VF   MSZ-HR42VF   MSZ-HR50VF

OPERATING INSTRUCTIONS

Manual Download

http://www.mitsubishielectric.com/ldg/ibim/

This manual is brief version. Go to the above website and choose language to download full version OPERATING INSTRUCTIONS and INSTALLATION MANUAL.

SAFETY PRECAUTIONS

Meanings of symbols displayed on indoor unit and/or outdoor unit

	WARNING (Risk of fire)	This unit uses a flammable refrigerant. If refrigerant leaks and comes in contact with fire or heating part, it will create harmful gas and there is risk of fire.
	Read the OPERATING INSTRUCTIONS carefully before operation.
	Service personnel are required to carefully read the OPERATING INSTRUCTIONS and INSTALLATION MANUAL before operation.
	Further information is available in the OPERATING INSTRUCTIONS, INSTALLATION MANUAL, and the like.

• Since rotating parts and parts which could cause an electric shock are used in this product, be sure to read these “Safety Precautions” before use.
• Since the cautionary items shown here are important for safety, be sure to observe them.
• After reading this manual, keep it together with the installation manual in a handy place for easy reference.

Marks and their meanings

WARNING : Incorrect handling could cause serious hazard, such as death, serious injury, etc. with a high probability.

CAUTION : Incorrect handling could cause serious hazard depending on the conditions.

Meanings of symbols used in this manual

: Be sure not to do.
: Be sure to follow the instruction.
: Never insert your finger or stick, etc.
: Never step onto the indoor/outdoor unit and do not put anything on them.
: Danger of electric shock. Be careful.
: Be sure to disconnect the power supply plug from the power outlet.
: Be sure to shut off the power.
: Risk of fire.

WARNING
	Do not connect the power cord to an intermediate point, use an extension cord, or connect multiple devices to a single AC outlet. This may cause overheating, fire, or electric shock.
	Make sure the power plug is free of dirt and insert it securely into the outlet. A dirty plug may cause fire or electric shock.
	Do not bundle, pull, damage, or modify the power cord, and do not apply heat or place heavy objects on it. This may cause fire or electric shock.
	Do not turn the breaker OFF/ON or disconnect/connect the power plug during operation. This may create sparks, which can cause fire. After the indoor unit is switched OFF with the remote controller, make sure to turn the breaker OFF or disconnect the power plug.
	Do not expose your body directly to cool air for a prolonged length of time. This could be detrimental to your health.
	The unit should not be installed, relocated, disassembled, altered, or repaired by the user.  An improperly handled air conditioner may cause fire, electric shock, injury, or water leakage, etc. Consult your dealer. If the power supply cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.
	When installing, relocating, or servicing the unit, make sure that no substance other than the specified refrigerant (R32) enters the refrigerant circuit. Any presence of foreign substance such as air can cause abnormal pressure rise and may result in explosion or injury. The use of any refrigerant other than that specified for the system will cause mechanical failure, system malfunction, or unit breakdown. In the worst case, this could lead to a serious impediment to securing product safety.
	This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
	Children should be supervised to ensure that they do not play with the appliance.
	Do not insert your finger, a stick, or other objects into the air inlet or outlet. This may cause injury, since the fan inside rotates at high speeds during operation.
	In case of an abnormal condition (such as a burning smell), stop the air conditioner and disconnect the power plug or turn the breaker OFF. A continued operation in the abnormal state may cause a malfunction, fire, or electric shock. In this case, consult your dealer.
	When the air conditioner does not cool or heat, there is a possibility of refrigerant leakage. If any refrigerant leakage is found, stop operations and ventilate the room well and consult your dealer immediately. If a repair involves recharging the unit with refrigerant, ask the service technician for details. The refrigerant used in the air conditioner is not harmful. Normally, it does not leak. However, if refrigerant leaks and comes in contact with fire or heating part of such a fan heater, kerosene heater, or cooking stove, it will create harmful gas and there is risk of fire.
	The user should never attempt to wash the inside of the indoor unit. Should the inside of the unit require cleaning, contact your dealer. Unsuitable detergent may cause damage to plastic material inside the unit, which may result in water leakage. Should detergent come in contact with electrical parts or the motor, it will result in a malfunction, smoke, or fire. The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater). Be aware that refrigerants may not contain an odour. Do not use means to accelerate the defrosting process or to clean the appliance, other than those recommended by the manufacturer. Do not pierce or burn.
	The indoor unit must be installed in rooms which exceed the floor space specified. Please consult your dealer.
	This appliance is intended to be used by expert or trained users in shops, in light industry and on farms, or for commercial use by lay persons.
CAUTION
	Do not touch the air inlet or the aluminum fins of the indoor/outdoor unit. This may cause injury.
	Do not use insecticides or flammable sprays on the unit. This may cause a fire or deformation of the unit.
	Do not expose pets or houseplants to direct airflow. This may cause injury to the pets or plants.
	Do not place other electric appliances or furniture under the indoor/ outdoor unit.  Water may drip down from the unit, which may cause damage or malfunction.
	Do not leave the unit on a damaged installation stand. The unit may fall and cause injury.
	Do not step on an unstable bench to operate or clean the unit. This may cause injury if you fall down.
	Do not pull the power cord. This may cause a portion of the core wire to break, which may cause overheating or fire.
	Do not charge or disassemble the batteries, and do not throw them into a fire. This may cause the batteries to leak, or cause a fire or explosion.
	Do not operate the unit for more than 4 hours at high humidity (80% RH or more) and/or with windows or outside door left open. This may cause the water condensation in the air conditioner, which may drip down, wetting or damaging the furniture. The water condensation in the air conditioner may contribute to growth of fungi, such as mold.
	Do not use the unit for special purposes, such as storing food, raising animals, growing plants, or preserving precision devices or art objects. This may cause deterioration of quality, or harm to animals and plants.
	Do not expose combustion appliances to direct airflow. This may cause incomplete combustion.
	Never put batteries in your mouth for any reason to avoid accidental ingestion.  Battery ingestion may cause choking and/or poisoning.
	Before cleaning the unit, switch it OFF and disconnect the power plug or turn the breaker OFF. This may cause injury, since the fan inside rotates at high speeds during operation.
	When the unit will be unused for a long time, disconnect the power plug or turn the breaker OFF. The unit may accumulate dirt, which may cause overheating or fire.
	Replace all batteries of the remote controller with new ones of the same type. Using an old battery together with a new one may cause overheating, leakage, or explosion.
	If the battery fluid comes in contact with your skin or clothes, wash them thoroughly with clean water. If the battery fluid comes in contact with your eyes, wash them thoroughly with clean water and immediately seek medical attention.
	Ensure that the area is well-ventilated when the unit is operated together with a combustion appliance. Inadequate ventilation may cause oxygen starvation.
	Turn the breaker OFF when you hear thunder and there is a possibility of a lightning strike. The unit may be damaged if lightning strikes.
	After the air conditioner is used for several seasons, perform inspection and maintenance in addition to normal cleaning. Dirt or dust in the unit may create an unpleasant odor, contribute to growth of fungi, such as mold, or clog the drain passage, and cause water to leak from the indoor unit. Consult your dealer for inspection and maintenance, which require specialized knowledge and skills.
	Do not operate switches with wet hands. This may cause electric shock.
	Do not clean the air conditioner with water or place an object that contains water, such as a flower vase, on it. This may cause fire or electric shock.
	Do not step on or place any object on the outdoor unit. This may cause injury if you or the object falls down.

To use this unit correctly and safely, be sure to read these operating instructions before use.

For installation

WARNING
	Consult your dealer for installing the air conditioner. It should not be installed by the user since installation requires specialized knowledge and skills. An improperly installed air conditioner may cause water leakage, fire, or electric shock.
	Provide a dedicated power supply for the air conditioner. A non-dedicated power supply may cause overheating or fire.
	Do not install the unit where flammable gas could leak. If gas leaks and accumulates around the outdoor unit, it may cause an explosion.
	Earth the unit correctly. Do not connect the earth wire to a gas pipe, water pipe, lightning rod, or a telephone earth wire. Improper earthing may cause electric shock.
CAUTION
	Install an earth leakage breaker depending on the installation location of the air conditioner (such as highly humid areas). If an earth leakage breaker is not installed, it may cause electric shock.
	Ensure that the drain water is properly drained. If the drain passage is improper, water may drip down from the indoor/ outdoor unit, wetting and damaging the furniture.

In case of an abnormal condition

Immediately stop operating the air conditioner and consult your dealer.

DISPOSAL

Fig. 1

To dispose of this product, consult your dealer.

Note:

This symbol mark is for EU countries only.
This symbol mark is according to the directive 2012/19/ EU Article 14 Information for users and Annex IX, and/ or to the directive 2006/66/EC Article 20 Information for end-users and Annex II.

Your MITSUBISHI ELECTRIC product is designed and manufactured with high quality materials and components which can be recycled and/or reused.
This symbol means that electrical and electronic equipment, batteries and accumulators, at their end-of-life, should be disposed of separately from your household waste.
If a chemical symbol is printed beneath the symbol (Fig. 1), this chemical symbol means that the battery or accumulator contains a heavy metal at a certain concentration. This will be indicated as follows:
Hg: mercury (0.0005%), Cd: cadmium (0.002%), Pb: lead (0.004%)
In the European Union there are separate collection systems for used electrical and electronic products, batteries and accumulators.
Please, dispose of this equipment, batteries and accumulators correctly at your local community waste collection/recycling centre.
Please, help us to conserve the environment we live in!

NAME OF EACH PART

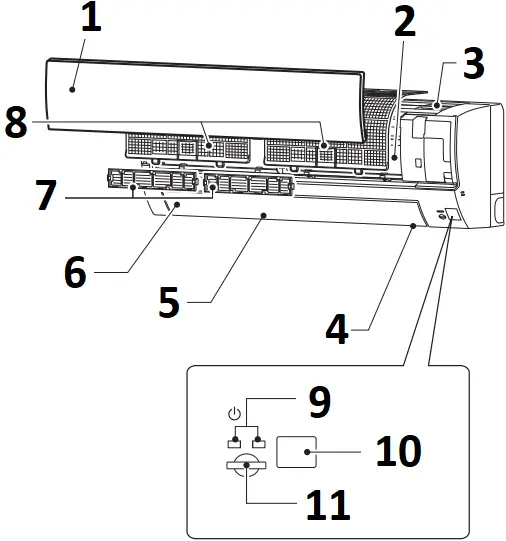

Indoor unit

1. Front panel
2. Heat exchanger
3. Air inlet
4. Spec name plate *1
5. Air outlet
6. Horizontal vane
7. Air cleaning filter (Silver-ionized air purifier filter, option)
8. Air filter
9. Operation indicator lamp
10. Remote control receiving section
11. Emergency operation switch *2

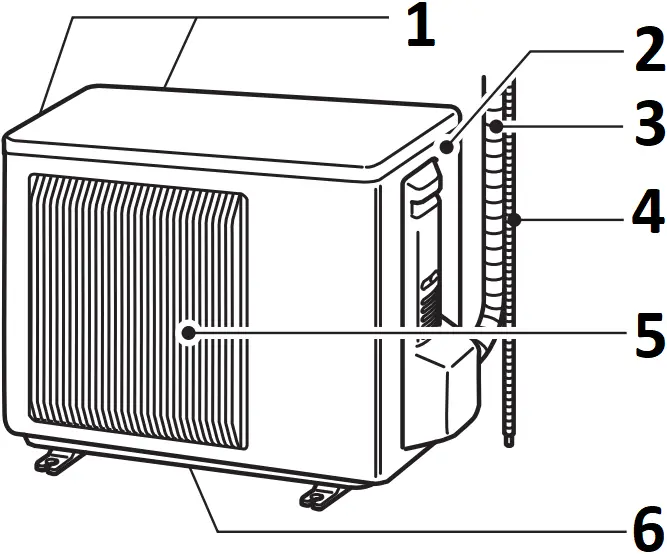

Outdoor unit

1. Air inlet (back and side)
2. Spec name plate *1
3. Refrigerant piping
4. Drainage hose
5. Air outlet
6. Drain outlet

Outdoor units may be different in appearance.

*1 The manufacturing year and month are indicated on the spec name plate.

*2 When the remote controller cannot be used…

Emergency operation can be activated by pressing the emergency operation switch (E.O. SW) on the indoor unit.

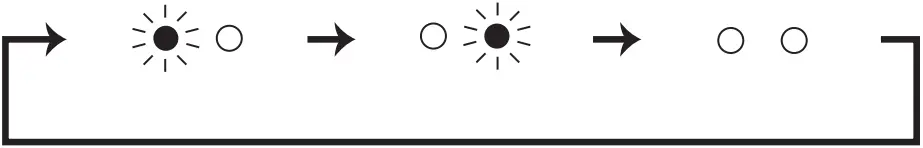

Each time the E.O. SW is pressed, the operation changes in the following order:

Emergency     Emergency
COOL             HEAT              Stop

   : Lit
      : Not lit

Set temperature : 24°C
Fan speed : Medium
Horizontal vane : Auto

PREPARATION BEFORE OPERATION

Before operation: Insert the power supply plug into the power outlet and/or turn the breaker on.

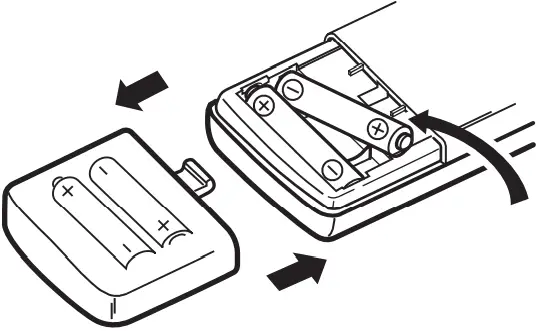

Installing the remote controller batteries

1. Remove the back lid.

 2. Insert the negative pole of AAA alkaline batteries first.

3. Install the back lid.

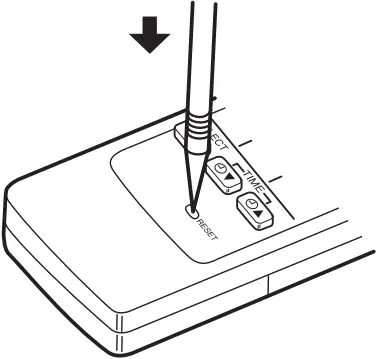

4. Press RESET.

• OPERATING INSTRUCTIONS •

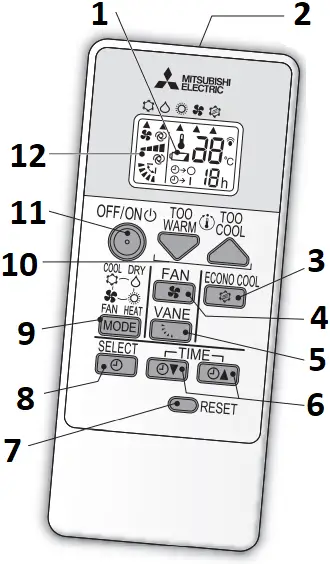

Remote controller

1. Battery replacement indicator
2. Signal transmitting section Distance of signal : About 6 m
   Beep(s) is (are) heard from the indoor unit when the signal is received.
3. ECONO COOL button
4. FAN speed control button
5. VANE control button
6. TIME set buttons
7. RESET button
8. TIMER mode select button
9. Operation select button
10. Temperature buttons
11. OFF/ON (stop/operate) button
12. Operation display section

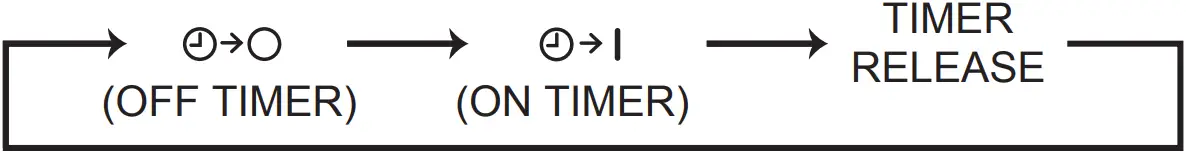

TIME, TIMER set button

Press during operation to set the timer.

Press to set the time of timer.

OFF/ON (stop/operate) button

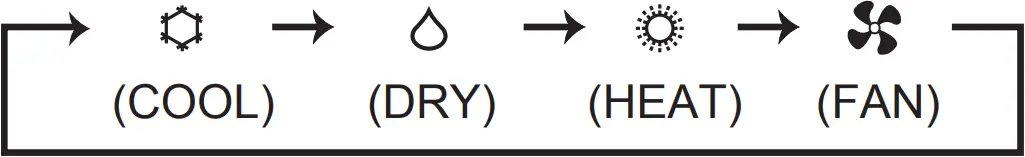

Operation select button

Temperature buttons

Each press raises or lowers the temperature by 1°C.

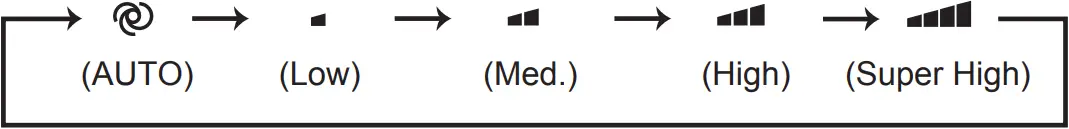

FAN speed control button

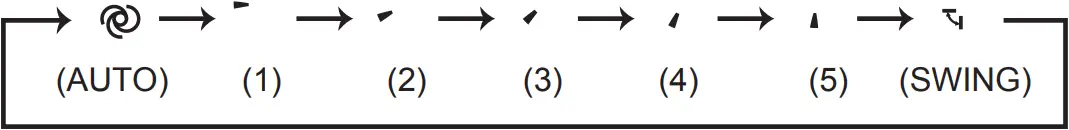

Up-down airflow control button

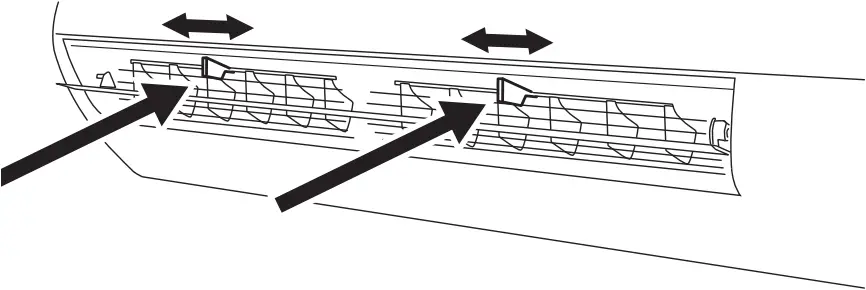

Left-right airflow direction

Move the vertical vane manually before starting operation.

ECONO COOL button

The set temperature and the airflow direction are automatically changed by the microprocessor.

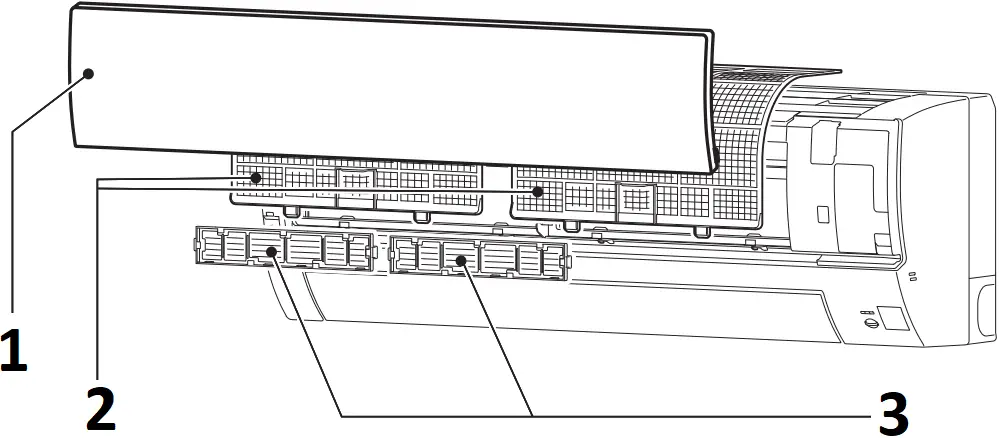

CLEANING

Instructions:

• Switch off the power supply or turn off the breaker before cleaning.
• Be careful not to touch the metal parts with your hands.
• Do not use benzine, thinner, polishing powder, or insecticide.
• Use only diluted mild detergents.
• Do not use a scrubbing brush, a hard sponge, or the like.
• Do not soak or rinse the horizontal vane.
• Do not use water hotter than 50°C.
• Do not expose parts to direct sunlight, heat, or fire to dry.
• Do not apply excessive force on the fan as it may cause cracks or breakage.

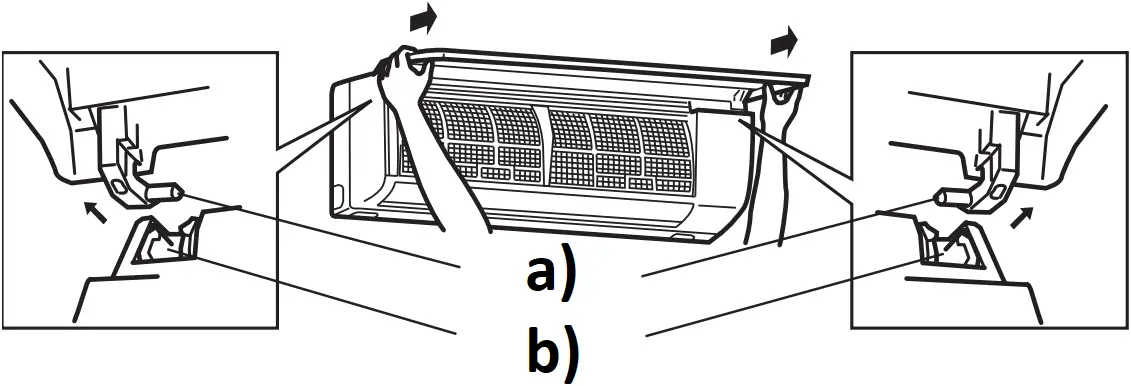

1 Front panel

a)Hinge
b) Hole

1. Lift the front panel until a “click” is heard.
2. Hold the hinges and pull to remove as shown in the illustration above.
   • Wipe with a soft dry cloth or rinse it with water.
   • Do not soak it in water for more than two hours.
   • Dry it well in shade before installing it.
3. Install the front panel by following the removal procedure in reverse. Close the front panel securely and press the positions indicated by the arrows.

2 Air filter (Air purifying filter)

• Clean every 2 weeks
• Remove dirt by a vacuum cleaner, or rinse with water.
• After washing with water, dry it well in shade.

3 Air cleaning filter
(Silver-ionized air purifier filter, option)

Every 3 months:

• Remove dirt by a vacuum cleaner.

When dirt cannot be removed by vacuum cleaning:

• Soak the filter and its frame in lukewarm water before rinsing it.
• After washing, dry it well in shade. Install all tabs of the air filter.

Every year:

• Replace it with a new air cleaning filter for best performance.
• Parts Number MAC-2370FT-E

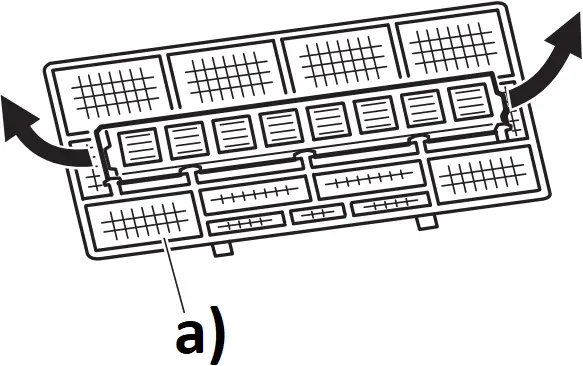

a) Pull to remove from the air filter

This information is based on REGULATION (EU) No 528/2012

WHEN YOU THINK THAT TROUBLE HAS OCCURRED

In the following cases, stop using the air conditioner and consult your dealer.

• When water leaks or drips from the indoor unit.
• When the operation indicator lamp blinks.
• When the breaker trips frequently.
• The remote control signal is not received in a room where an electronic ON/OFF type fluorescent lamp (inverter-type fluorescent lamp, etc.) is used.
• Operation of the air conditioner interferes with radio or TV reception. An amplifier may be required for the affected device.
• When an abnormal sound is heard.
• When any refrigerant leakage is found.

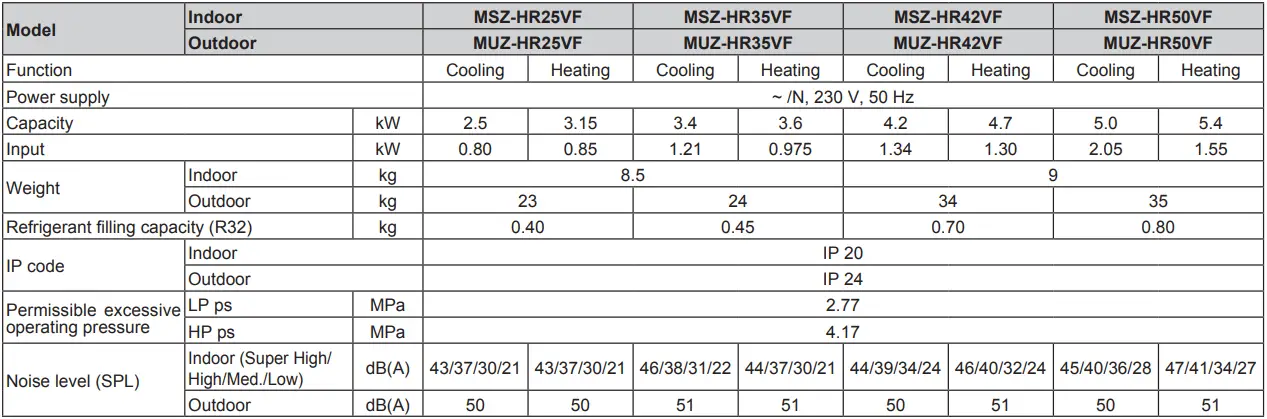

SPECIFICATIONS

Guaranteed operating range

DB: Dry Bulb
WB: Wet Bulb

Note:

Rating condition
Cooling — Indoor:  27°C DB, 19°C WB
Outdoor:                 35°C DB
Heating — Indoor:  20°C DB
Outdoor:                  7°C DB, 6°C WB

Name of Importer:
Mitsubishi Electric Europe B.V.
Capronilaan 46, 1119 NS, Schiphol Rijk, The Netherlands

French Branch
25, Boulevard des Bouvets, 92741 Nanterre Cedex, France

German Branch
Mitsubishi-Electric-Platz 1, 40882 Ratingen, Germany

Belgian Branch
Autobaan 2, 8210 Loppem, Belgium

Irish Branch
Westgate Business Park, Ballymount, Dublin 24, Ireland

Italian Branch
Centro Direzionale Colleoni, Palazzo Sirio-Ingresso 1
Viale Colleoni 7, 20864 Agrate Brianza (MB), Italy

Norwegian Branch
Gneisveien 2D, 1914 Ytre Enebakk, Norway

Portuguese Branch
Avda. do Forte, 10, 2799-514, Carnaxide, Lisbon, Portugal

Spanish Branch
Carretera de Rubi 76-80 – Apdo. 420 08173 Sant Cugat del Valles (Barcelona), Spain

Scandinavian Branch
Hammarbacken 14, P.O. Box 750 SE-19127, Sollentuna, Sweden

UK Branch
Travellers Lane, Hatfield, Herts., AL10 8XB, England, U.K.

Polish Branch
Krakowska 50, PL-32-083 Balice, Poland

MITSUBISHI ELECTRIC TURKEY ELEKTRİK ÜRÜNLERI A.Ş
Şerifali Mah. Kale Sok. No:41 34775 Ümraniye, İstanbul/Turkey

EC DECLARATION OF CONFORMITY

MITSUBISHI ELECTRIC AIR CONDITIONING SYSTEMS MANUFACTURING TURKEY JOINT STOCK COMPANY.
Manisa OSB 4.Kisim Kecilikoyosb Mah.
Ahmet Nazif Zorlu Bulvari No:19 Yunusemre – Manisa.

hereby declares under its sole responsibility that the air conditioners and heat pumps described below for use in residential, commercial and light-industrial environments:

MITSUBISHI ELECTRIC, MSZ-HR25VF/MUZ-HR25VF
MSZ-HR35VF/MUZ-HR35VF
MSZ-HR42VF/MUZ-HR42VF
MSZ-HR50VF/MUZ-HR50VF

Note: Its serial number is on the nameplate of the product.

Directives

2014/35/EU: Low Voltage Directive
2006/42/EC: Machinery Directive
2014/30/EU: Electromagnetic Compatibility Directive
2009/125/EC: Energy-related Products Directive and Regulation (EU) No 206/2012
2011/65/EU: RoHS

Issued:            1 September, 2018             Selin Dömekeli

TURKEY                                                  Quality Assurance Department

MITSUBISHI ELECTRIC CORPORATION

HEAD OFFICE: TOKYO BUILDING, 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN

JG79Y423L01

References

• MITSUBISHI ELECTRIC
