WIRELESS BONE CONDUCTION
OPEN-EAR HEADPHONE
User Manual
BCH-20

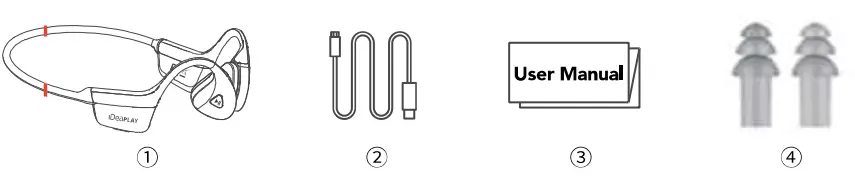

PACKAGE CONTENTS
- IDEAPLAY Bone Conduction Headphone
- Type-C Charging Cable
- User Manual
- Earplugs
WARNING A
- The headphone should be stored in a cool and dry place. M. DO NOT use the headphone while driving or riding.
- High volume when listening to music may damage your hearing.
- Workin temperature should be between 32°F – 113°F (0°C – 32°C).
- Clean t e headphone with a soft, dry cloth.
- Children should use this device under the supervision of adults. This product is not a toy.

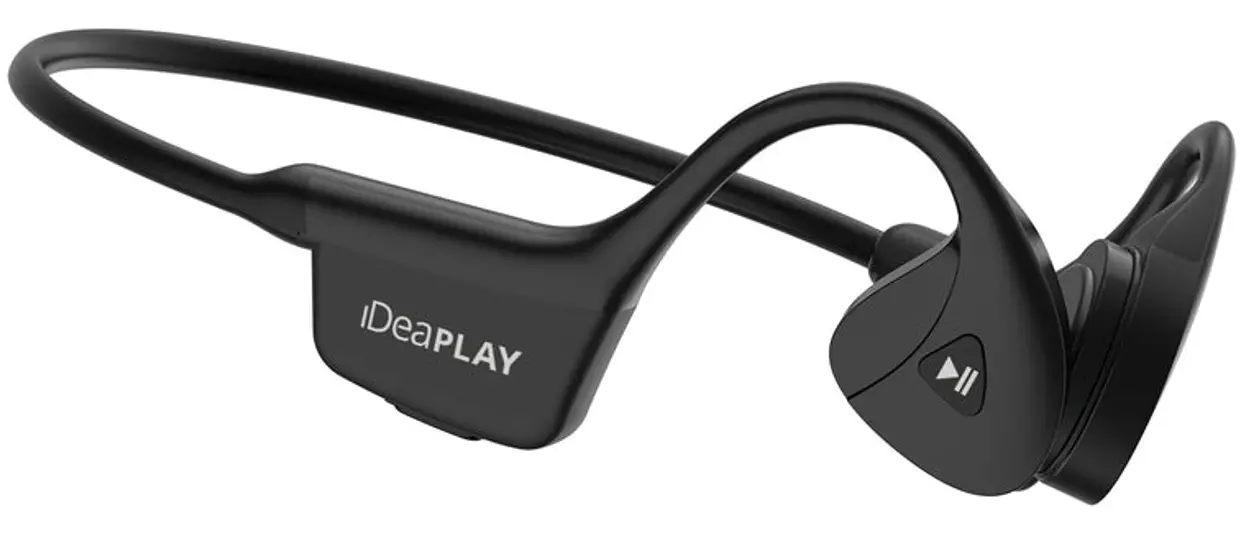

PRODUCT OVERVIEW
Function Key
| Function | Operation | Promot | |
 Power ON | Tap MFB Key For 2s | Speech | |
 Power OFF | Tap MFB Key For 3s | Speech | |
 Pairing | Tap MFB Key For 5s | Speech | |
 Play Pause | Tap MFB Key Once In Music Mode | Speech | |
 Reject A Call | Tap MFB Key 2s In Music Mode | Tone | |
 Accept A Call | Tap MFB Key Once With Incoming | Tone | |
 End A Call | Tap MFB Key Once During A Call | Tone | |
 Redial | Tap MFB Key Twice In Standby Mode | Tone | |
 Voice Assistant | Tap MFB Key Thrice Times In Standby Mode | Beep | |
 Previous Song | Tap MFB Key Twice In Music Mode | Tone | |
 Next Song | Tap MFB Key Trice In Music Mode | Tone | |
LED Indicator
| Color Red Blink Once Every 3S | Operation Battery Low |
| Constant Red | Charging |
| Constant Blue | Charging Complete |
| Blue Blinks | Incoming Call |
| Red And Blue Blink Alternately | Pairing Mode / Multi-Point Connection |
| Blue Blink Once Every 5s | Connection Successful |
TYPE C Recharge Port
Microphone
SAFETY
Federal Communications Commission (FCC) Disclaimer
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy. If it is not insta ed and used in accordance with the instructions it may cause harmful interference to radio communications. However, there is no guarantee that interference will occur in a .articular installation.
If this equipment does cause harmful interference to radio or television reception, ur can try to correct the interference by one or more of the following measures:
- Reorientate or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment to an outlet on a circuit different from that to which the rec iver is connected.
- Consult the dealer or an experienced radio/TV technician for assistance.
FCC CAUTION
Any change or modifications to this device not expressly approved by the manufacturer would void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)The device may not cause harmful interference.
(2)This device must accept any interference received, including interference that may cause undesired operation.
Declaration of Conformity for EU Countries
(1)EMC Directive 2014/30/EU (including amendments).
(2)Low Voltage Directive14/35/EU.
(3)Red Directive 2014/53/EU (If Product has RF function).
WEEE Disposal Instructions:
DO NOT throw this electronic device into the trash. When discarding, to minimize pollu ion and ensure utmost protection of the global environment, please recycle it.
| Genera Product Name | IDEAPLAY Wireless Bone Conduction Open-Ear Headphones |
| Brand | IDEALLY |
| Additional Accessories Included | Type-C Charging Cable, User Manual, Earplugs |
| Model Number | BCH- 20 |
| Color | Black |
| Color Category | Black |
| Ear Cushions | NO |
Audio | |
| Sound Isolating | |
| Environmental Noise Control | No |
| Minimum Frequency Response | 20 hertz |
| Maximum Frequency Response | 20 kilohertz |
| Impedance | 8 ohms |
| Sensitivity | 87dB ±3dB |
| Integrated Amplifier | No |
| Audio | |
| Sound Mode | SBC AAC |
| Compatible profiles | Supports MP2, MP3, WMA, APE, FLAC, AAC, MP4, M4A, WAV, AI F, AIFC audio decoding |
| Noise Cancelling (Active) | No |
Connectivity | |
| Connection Type | Wireless |
| Wireless Connectivity | Bluetooth |
| True Wireless | NO |
| Bluetooth Version | V5.1 |
| Maximum Wireless Range | 33 feet |
| Bluetooth IC | AC6956A |
| Features | |
| Built-In Microphone | YES |
| Carrying Case | NO |
| Controls | Call, Track selection |
| Bone Conducting Technology | YES |
| Maximum Talk Time | 6 Hours |
| Stand-By Time | 200 Hours |
| Water-Resistant | IP55 |
| Design | |
| Headphone Fit | Open-Ear, Behind the neck |
| Style | Sports and Exercise |
| Foldable Design | No |
| Adjustable Headband | No |
| Power | |
| Rechargeable | YES |
| Battery Life | 500 Times Cycle |
| Battery Life Per Charge | 6 Hours |
| Battery Charge Time | 2 Hours |
| Charging Accessory Included | Type-C Port |
| Fast Charging | NO |
| Charging Interface(s) | USB-C |
| Battery Capacity | 180mAh |
| Other | |
| UPC 810052541396 |
| Compatibility | |
| Compatible Device System | 10S, Android, Window |
| Voice Assistant Built-in | YES |
| Dimension | |
| Product Size | 5.47 “*4.33″*1.9” |
| Product Weight | 1.31 oz |
| Product Package Size | 4.5″*2.64″*4.53″ |
| Product Package Weight | 0.42Ib |
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help.
This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter.
Radiation Exposure Statement
The device has been evaluated to meet general RF exposure requirements. in portable exposure conditions without restriction.
IP-HPBCH22AHHZ1-BK
