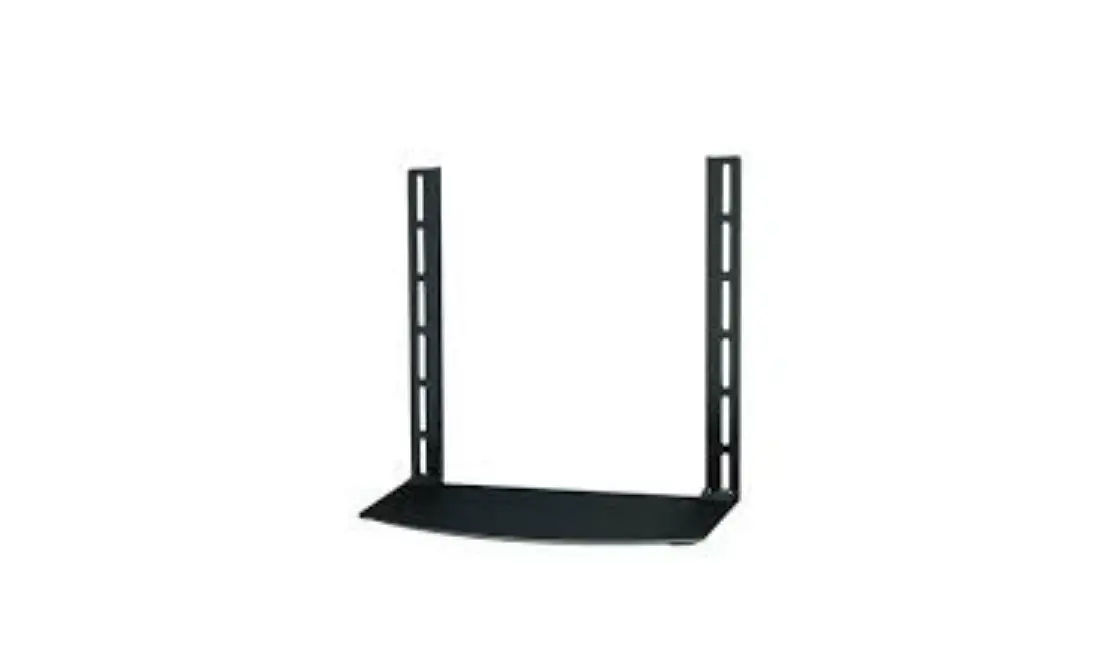

AWL-440BL Multimedia Holder
Product Information
The product is the AWL-440BL, a mounting bracket designed for
securely attaching a device to a wall or other flat surface. It is
compatible with devices that have a VESA hole diameter of 5mm. The
product dimensions are 128mm x 140mm x 127mm, with a weight
capacity of 0-5 kg. The package includes the necessary parts for
installation.
Product Usage Instructions
- Step 1: Assemble the Parts
a. Attach part A to the desired location on the wall or
surface.
b. Attach part B to part A.
c. Attach parts C to part B.
d. Attach parts D to part C.
e. Use the provided M4x14 screw to secure part E to part D.
f. Use the provided M5x14 screw to secure part F to part D.
g. Attach part G to parts A, B, and C.
- Step 2: Mount the Device
Place the device with the VESA holes onto the assembled bracket,
aligning the holes with the provided screws.
- Step 3: Adjust the Position
Use the provided screws to adjust the position of the device on
the bracket. The minimum and maximum distance between the device
and the wall or surface should be within the range of 32mm to
46mm.
Please note that stone/concrete and wood are suitable surfaces
for mounting. Ensure that any additional materials required for
installation, such as screws or anchors, are not included in the
package and should be obtained separately.
INSTRUCTION MANUAL
128mm
140mm 127mm 40mm
min32mm-max46mm
AWL-440BL
EN Multimedia holder NL Multimedia-houder DE Multimedia-Halterung FR Support multimédia IT Supporto multimediale ES Soporte multimedia PT Suporte Multimédia DK Multimedieholder
NO Multimedieholder SE Multimedia-hållare FI Multimediateline PL Uchwyt multimedialny CS Multimediální drzák SK Multimediálny drziak RO Suport multimedia
WWW.NEOMOUNTS.COM
AWL-440BL
0-5 kg
PARTS
A. (x1)
STEP 1 A
B. (x1)
C. (x2)
D. (x2)
E. M4x14 (x1)
F. M5x14 (x1)
G. (x3)
STEP 1 B
Stone/ concrete
Wood
X
C
D C
Stone/ concrete
Wood
STEP 1 C
Diameter VESA hole 5mm
* Not Included
STEP 1 D
* Not Included
EF
STEP 2
G
STEP 3
min32mm-max46mm
-+
Neomounts
