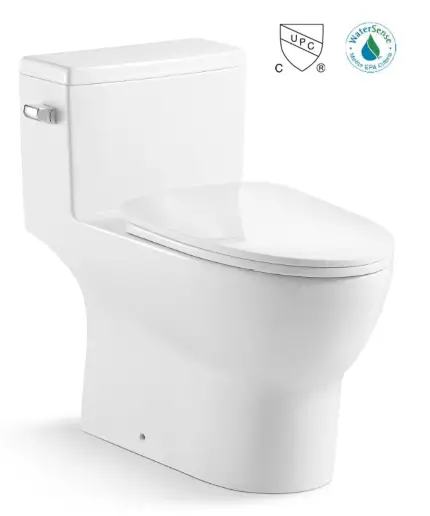

Model: 81171
BEFORE INSTALLATION
Please make sure the following requirements are met.
- The minimum distance between the finished wall and the center of the floor drain should be 12”.

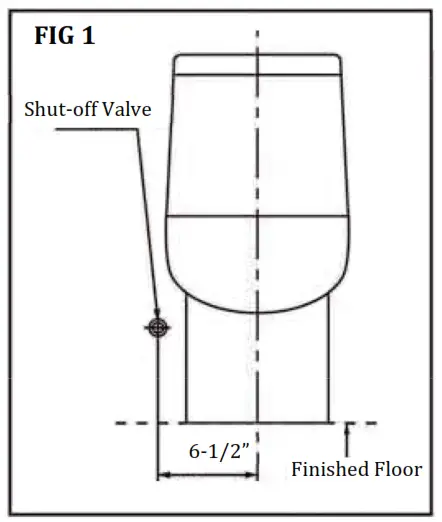

- The minimum distance between the center of the shut-off valve to the center of the drain should be 6-1/2” (FIG 1).
Specification Guide
FEATURES
- Vitreous china
- One-piece decorative toilet
- High efficiency, low water consumption – Single flush (4.8 LPF/1.27 GPF)
- Elongated front bowl
- Soft-closing seat
- 16-3/4” rim height
- Chrome plated side-mount push button actuator
- Fully glazed 2” Trapway
- 12” rough-in
- 100% factory flush tested
- Floor mount
COLOR/FINISH
White
NOMINAL DIMENSIONS
28-7/8″ (L) x 16-3/8” (W) x 30-1/8” (H)
COMPONENTS
The product includes: One-piece Toilet, Tank Cover, Seat w/soft-closing, Wax Ring, Floor Mounting Hardware
COMPLIANCE
- cUPC
(ASME A112.19.2-2013/CSA B45.1-13) - EPA WaterSense
- California Energy Commission (Title 20)
WARRANTY
1-Year limited warranty

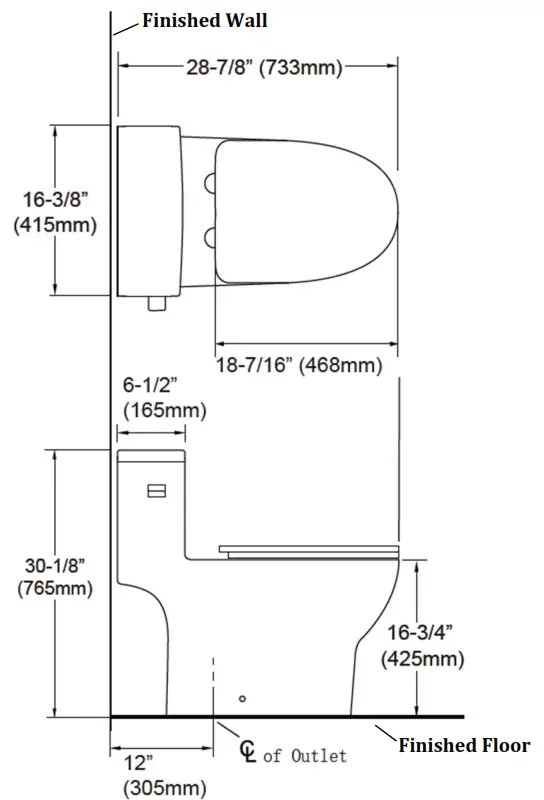

DIMENSIONS*
*Dimensions are for reference only.
We reserve the right to change any of the specifications without prior notice.
14530 Best Ave, Santa Fe Springs, CA 90670 TEL: (866) 479-8076
