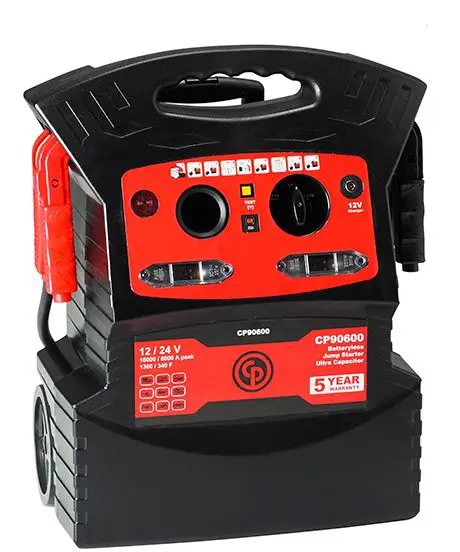

Chicago Pneumatic CP90600 Batteryless Jump Starter Ultra Capacitor
PRODUCT DESCRIPTION

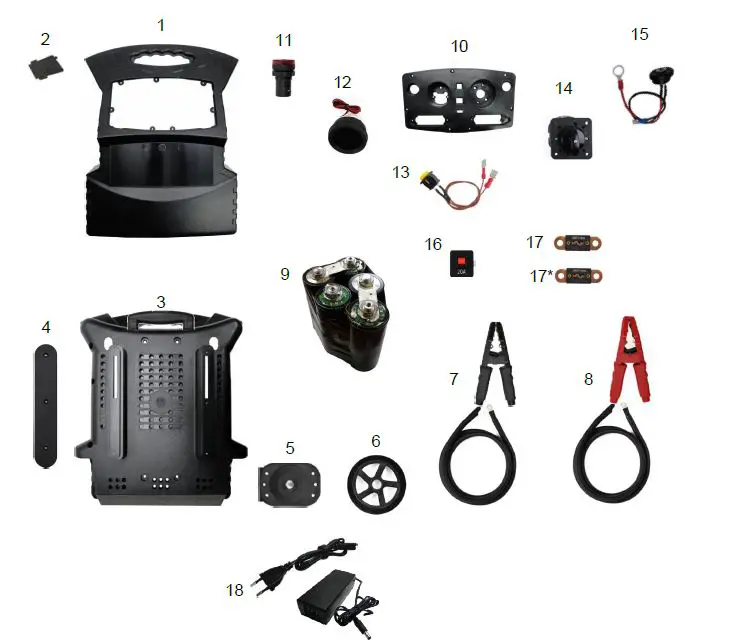

| Index Parts No. Description Qty No. | |||
| 1 | 8940175531 | Front housing | 1 |
| 2 | 8940175532 | Clamp holder | 2 |
| 3 | 8940175533 | Rear housing | 1 |
| 4 | 8940175534 | Cable holder | 2 |
| 5 | 8940175535 | Wheel holder | 2 |
| 6 | 8940175536 | Wheel | 2 |
| 7 | 8940175537 | Negative (black) clamp with cable | 1 |
| 8 | 8940175538 | Positive (red) clamp with cable | 1 |
| 9 | Ultracapacitor unit | 1 | |
| 10 | 8940175540 | Front cover | 1 |
| Index Parts No. Description Qty No. | |||
| 11 | 8940174811 | Buzzer alarm | 1 |
| 12 | 8940175541 | Voltmeter unit | 1 |
| 13 | 8940167805 | Test button | 1 |
| 14 | 8940175542 | Main switch – 12V/24V selector | 1 |
| 15 | 8940174810 | Power socket – 12V | 1 |
| 16 | 8940175543 | Circuit breaker – 20A | 1 |
| 17 | 8940174812 | Fuse 500 A | 2 |
| 17* | 8940177160 | Fuse 1000 A (optional) | 1 |
| 18 | 8940176786 | Charger (optional) | 1 |
| 8940175545 | Screws kit | 1 | |
Spare parts without part number are not sold separately – High wear parts underlined Contact us at www.cp.com
