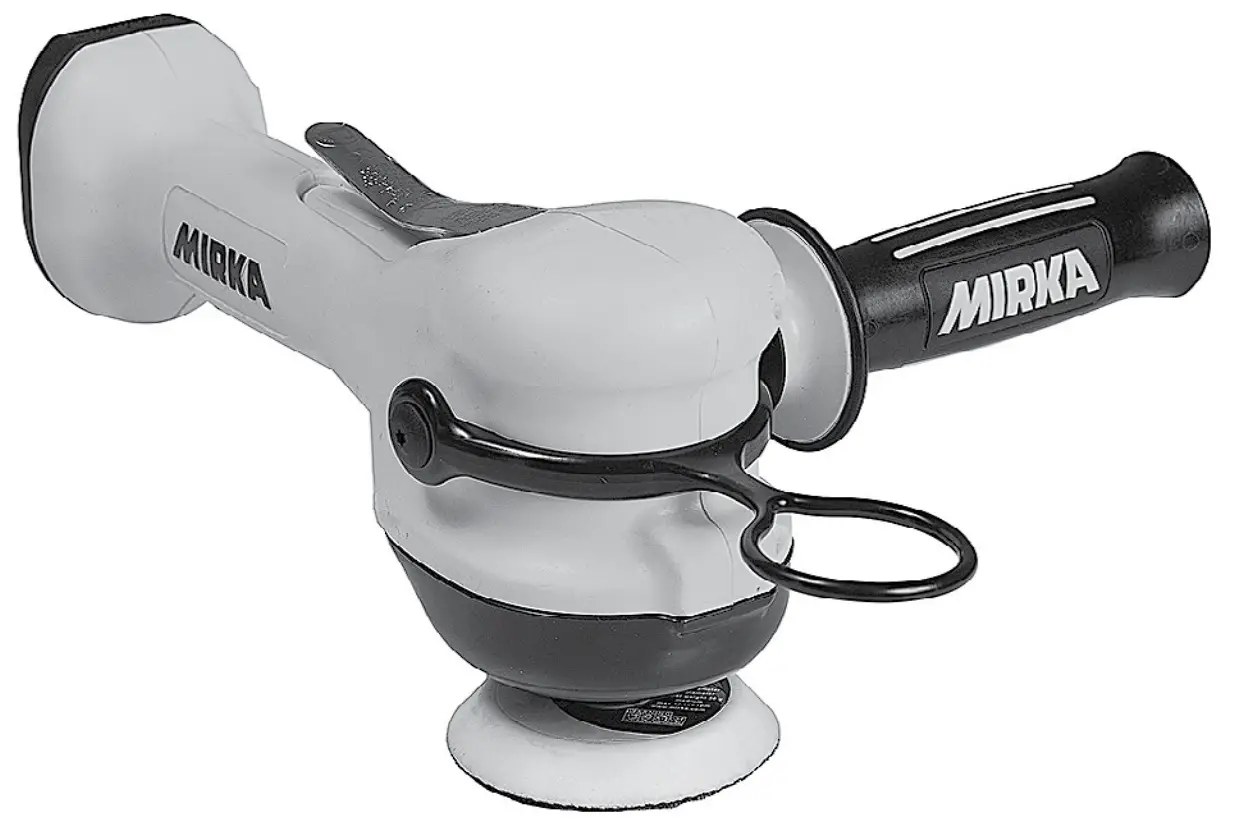

MIRKA ROP2 Handed Rotary Polisher
MIRKA ROP2 Handed Rotary Polisher
ROP2 77 & 125 mm Spare Part kits
| Mirka Code | Item | Description | Kit | QTY | Part No |
| 8994226011 | 26 51 | Muffler kit (CV & NV) Muffler Insert Muffler (CV & NV) | A | 2 2 | MPA2348 MPA0068 MPA0776 |
| MIE3521411 | 64 65 66 67 68 | Spindle Bearing kit for 77mm Retaining Ring Bearing Belleville Washer Spindle 77 mm Retaining Ring | B1 | 1 1 1 1 1 | |
| 8994021811 | 17 18 19 20 22 63 | Bearing kit for 125 mm Retaining Ring Double Row Bearing Spacer Belleville Washer Retaining Ring Dust Shield | B2 | 1 1 1 1 1 1 | MPA2186 MPA0090 MPA0751 MPA1767 MPA1024 MPA1025 MPA2540 |
| 8994024011 | 37 38 39 40 41 42 | Air Inlet kit Valve Stem Assembly Valve Sleeve Valve Seat Valve Valve Spring Airline Seal Assembly | C | 1 1 1 1 1 1 | MPA2216 MPA0655 MPA0015 MPA0009 MPA0007 MPA0014 MPA0730 |
| 8993019811 | 1 2 10 62 | Endplate Bearing kit Retaining Ring Bearing Bearing Dust Shield | D | 1 1 1 1 | MPA0799 MPA0040 MPA0021 MPA0019 MPA2541 |
| 8994025511 | 59 60 61 | Speed Valve kit O-Ring Speed Valve Retaining Ring | E | 1 1 1 | MPA2218 MPA0043 MPB0183 MPA0039 |
| 8994020611 | 4 5 6 | Rotor, Vanes and Key kit Rotor Vanes Key | F | 1 5 2 | MPA2220 MPB0118 MPA0445 MPA0041 |
| 8993007911 | 11 12 | Lock Ring and O-Ring kit O-Ring 39.4 x 3.1 mm Lock Ring | G | 1 1 | MPA0993 MPA0045 MPA0001 |
| 8994012911 | 27 28 | Housing Seal kit Top Housing Seal Lower Housing Seal (to be modified from MPB0290 seal) – (NV) | H | 1 1 | MPA2531 MPA1218 MPA1255 |
| 8994020411 | 7 8 | Cylinder and O-Ring kit O-Ring 5 x 2 mm Cylinder | I | 1 1 | MPA2593 MPA0042 MPA0441 |
| 8994221311 | 13 14 15 16 | Shaft Balancer kit 77 mm/12,0 Shaft Balancer 77 x 12.0 mm (3 x 1/2 In.) Filter Check Valve Retainer | J | 1 1 1 1 | MPA2922 MPB0203 MPA0122 MPA0121 MPA0120 |
| 8994221411 | 13 14 15 16 | Shaft Balancer kit 125 mm/12,0 Shaft Balancer 125 x 12 mm (5 x 1/2 In.) Filter Check Valve Retainer | J | 1 1 1 1 | MPA3089 MPC0381 MPA0122 MPA0121 MPA0120 |
| 8994222511 | 25 29 | Lever kit 12,0 mm Lever 12.0 mm (1/2 In.) Cylinder Spring Pin | K | 1 1 | MPA3099 MPA2073 MPA0004 |
| 8994023111 | 30 31 | Hanger and Spacer Ring kit Spacer Ring Hanger – Black | L | 2 1 | MPA2832 MPA1865 MPB0420 |
| 8994244311 | 43 44 | Exhaust Nozzle and Gasket kit – (CV & NV) Exhaust Gasket Exhaust Nozzle – (CV & NV) | M | 1 1 | MPA2924 MPA0500 MPB0182 |
| 8994025311 | 54 57 | Housing Screw kit Screw Screw | N | 4 7 | MPA2928 MPA1398 MPA1430 |
| 8994225311 | 49 50 52 53 | End Cap kit – (NV) Inlet Captive Ring O-Ring O-Ring (CV & NV) Exhaust End Cap Assembly – (NV) | O | 1 1 1 1 | MPA2926 MPA0510 MPA0509 MPA0628 MPA0731 |
Separate spare parts on next page.
| Mirka Code | Item | Description | Kit | QTY | Part No |
| 1 | Retaining Ring | D | 1 | MPA0040 | |
| 2 | Bearing | D | 1 | MPA0021 | |
| 8993009311 | 3 | Rear Endplate | 1 | MPB0017 | |
| 4 | Rotor | F | 1 | MPB0118 | |
| 5 | Vanes | F | 5 | MPA0445 | |
| 6 | Key | F | 2 | MPA0041 | |
| 8993008211 | 7 | O-Ring 5 x 2 mm | I | 1 | MPA0042 |
| 8 | Cylinder | I | 1 | MPA0441 | |
| 8993009411 | 9 | Front Endplate | 1 | MPB0016 | |
| 10 | Bearing | D | 1 | MPA0019 | |
| 11 | O-Ring | G | 1 | MPA0045 | |
| 12 | Lock Ring | G | 1 | MPA0001 | |
| 13 | Shaft Balancer 77 x 12 mm (3 x 1/2 In.) | J | 1 | MPB0203 | |
| 13 | Shaft Balancer 125 x 12 mm (5 x 1/2 In.) | J | 1 | MPC0381 | |
| 14 | Filter | J | 1 | MPA0122 | |
| 15 | Check Valve | J | 1 | MPA0121 | |
| 16 | Retainer | J | 1 | MPA0120 | |
| 17 | Retaining Ring | B2 | 1 | MPA0090 | |
| 18 | Double Row Bearing | B2 | 1 | MPA0751 | |
| 19 | Spacer | B2 | 1 | MPA1767 | |
| 20 | Belleville Washer | B2 | 1 | MPA1024 | |
| 8994012111 | 21 | Spindle 125 mm | 1 | MPB0208 | |
| 22 | Retaining Ring | B2 | 1 | MPA1025 | |
| 8994602511 | 23 | Threaded Plug | 2 | MPA1711 | |
| 8994213111 | 24 | Housing RH | 1 | MPB0401 | |
| 25 | Lever 12.0 mm (1/2 In.) | K | 1 | MPA2073 | |
| 26 | Muffler Insert | A | 2 | MPA0068 | |
| 27 | Top Housing Seal | H | 1 | MPA1218 | |
| 28 | Lower Housing Seal (to be modified from MPB0290 seal) – (NV) | H | 1 | MPA1255 | |
| 29 | Cylinder Spring Pin | K | 1 | MPA0004 | |
| 30 | Spacer Ring | L | 2 | MPA1865 | |
| 31 | Hanger – Black | L | 1 | MPB0420 | |
| 8994013311 | 32 | Motor Housing | 1 | MPB0356 | |
| 8994014811 | 33 | Shroud 77 mm (3 In.) | 1 | MPC0228 | |
| 8994213311 | 33 | Shroud 125 mm (5 In.) | 1 | MPA2080 | |
| 8993008012 | 34 | Pad Wrench 17 mm (supplied with each 77 mm (3 In.) tool) | 1 | MPA0146 | |
| 8995604121 | 34 | Pad Wrench 24mm (supplied with each 125 mm (5 In.) tool) | 1 | MPP0412 | |
| 8294791311 | 35 | Backing Pad 77mm 1/4″ Grip Medium | 1 | ||
| 8295191511 | 35 | Backing Pad 125mm 5/16″ Grip Medium | 1 | ||
| 37 | Valve Stem Assembly | C | 1 | MPA0655 | |
| 38 | Valve Sleeve | C | 1 | MPA0015 | |
| 39 | Valve Seat | C | 1 | MPA0009 | |
| 40 | Valve | C | 1 | MPA0007 | |
| 41 | Valve Spring | C | 1 | MPA0014 | |
| 42 | Airline Seal Assembly | C | 1 | MPA0730 | |
| 43 | Exhaust Gasket | M | 1 | MPA0500 | |
| 44 | Exhaust Nozzle (CV & NV) | M | 1 | MPB0182 | |
| 8994804411 | 45 | Screw | 3 | MPA0664 | |
| 8994014511 | 46 | Exhaust Tubing – (CV & NV) | 1 | MPA0517 | |
| 8994215711 | 47 | Tubing Clamp – (CV & NV) | 1 | MPA0516 | |
| 8994014711 | 48 | Inlet Tubing | 1 | MPA0511 | |
| 49 | Inlet Captive Ring | O | 1 | MPA0510 | |
| 50 | O-Ring | O | 1 | MPA0509 | |
| 51 | Muffler – (CV & NV) | A | 2 | MPA0776 | |
| 52 | O-Ring – (CV & NV) | O | 1 | MPA0628 | |
| 53 | Exhaust End Cap – (NV) | O | 1 | MPA0731 | |
| 54 | Screw | N | 4 | MPA1398 | |
| 8993009511 | 55 | Inlet Bushing assembly (1/4-18 Npt) | 1 | MPA0013 | |
| 8994216211 | 56 | Housing LH | 1 | MPB0402 | |
| 57 | Screw | N | 7 | MPA1430 | |
| 8994605011 | 58 | Side Handle – Mirka | 1 | MPA1981 | |
| 59 | O-Ring | E | 1 | MPA0043 | |
| 60 | Speed Valve | E | 1 | MPB0183 | |
| 61 | Retaining Ring | E | 1 | MPA0039 | |
| 62 | Dust Shield | D | 1 | MPA2541 | |
| 63 | Dust Shield | B2 | 1 | MPA2540 | |
| 64 | Retaining Ring | B1 | 1 | ||
| 65 | Bearing | B1 | 1 | ||
| 66 | Belleville Washer | B1 | 1 | ||
| 67 | Spindle 77 mm | B1 | 1 | ||
| 68 | Retaining Ring | B1 | 1 | ||
Please Read and Comply with
1) General Industry Safety & Health Regulations, Part 1910, OSHA 2206, available from: Superintendent of Documents; Government Printing Office; Washington DC 20402
2) Safety Code for Portable Air Tools, ANSI B186.1 available from: American National Standards Institute, Inc.; 1430 Broadway; New York, New York 10018
3) State and Local Regulations.
Proper Use of Tool
This grinder/polisher is designed for sanding all types of materials i.e. metals, wood, stone, plastics, etc. using abrasive designed for this purpose. Do not use this grinder/polisher for any other purpose than that specified without consulting the manufacturer or the manufacturer’s authorized supplier. Do not use backing pads that have a working speed less than 10,000 rpm free speed.
Work Stations
The tool is intended to be operated as a hand-held tool. It is always recommended that the tool be used when standing on a solid floor. It can be used in any position but before any such use, the operator must be in a secure position and have a firm grip and footing, and be aware that the polisher can develop a torque reaction. See the section “Operating Instructions”.
Putting the Tool into Service

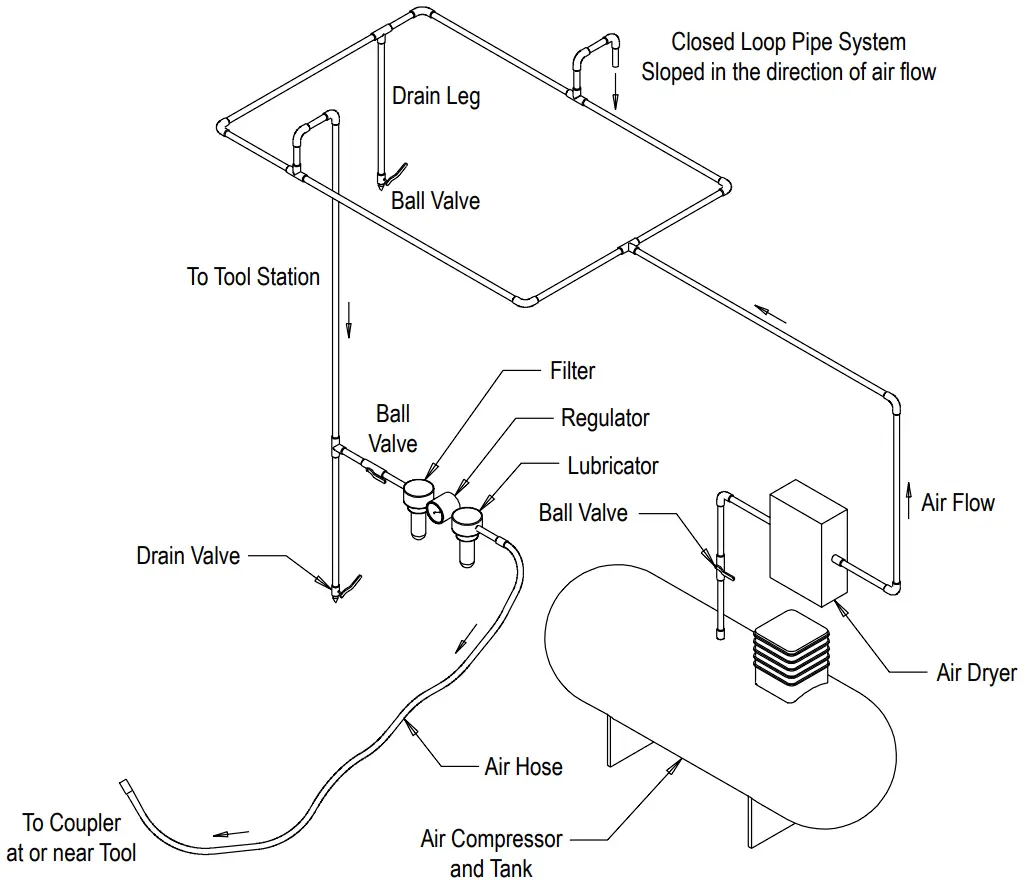

Use a clean lubricated air supply that will give a measured air pressure at the tool of 6.2 bar )90 psig( bar when the tool is running with the lever fully depressed. It is recommended to use an approved 10 mm (3/8 in.( x 8 m )25 ft) maximum length airline. It is recommended that the tool be connected to the air supply as shown in Figure 1.
Do not connect the tool to the airline system without incorporating an easy to reach and operate air shut-off valve. The air supply should be lubricated. It is strongly recommended that an air filter, regulator and lubricator )FRL( be used as shown in Figure 1 as this will supply clean, lubricated air at the correct pressure to the tool. Details of such equipment can be obtained from your supplier. If such equipment is not used then the tool should be manually lubricated.
To manually lubricate the tool, disconnect the airline and put 2 to 3 drops of suitable pneumatic motor lubricating oil such as Fuji Kosan FK-20, Mobil ALMO 525 or Shell TORCULA® 32 into the hose end )inlet( of the machine. Reconnect the tool to the air supply and run the tool slowly for a few seconds to allow air to circulate the oil. If the tool is used frequently, lubricate it on a daily basis or lubricate it if the tool starts to slow or lose power. It is recommended that the air pressure at the tool is 6.2 bar )90 psig( while the tool is running. The tool can run at lower pressures but never higher than 6.2 bar )90 psig(.
Operating Instructions
- Read all instructions before using this tool. All operators must be fully trained in its use and be aware of these safety rules. All servicing and repairs must be carried out by trained personnel.
- Make sure the tool is disconnected from the air supply. Select a suitable abrasive and secure it to the backing pad. Take care to center the abrasive on the backing pad.
- Always wear the required safety equipment when using this tool.
- When sanding always place the tool on the work then start the tool. Always remove the tool from the work before stopping. This will prevent gouging of the work due to excess speed of the abrasive.
- Always disconnect the air supply from the polisher before fitting, adjusting or removing the abrasive or backing pad.
- Always adopt a firm footing and/or position and be aware of the torque reaction developed by the polisher.
- Use only correct spare parts.
- Always ensure that the material to be sanded is firmly fixed to prevent its movement.
- Check the hose and fittings regularly for wear. Do not carry the tool by its hose; always be careful to prevent the tool from being started when carrying the tool with the air supply connected.
- Do not exceed the maximum recommended air pressure. Use safety equipment as recommended.
- The tool is not electrically insulated. Do not use where there is a possibility of coming into contact with live electricity, gas pipes, water pipes, etc. Check the working area before operation.
- Take care to avoid entanglement of the moving parts of the tool with clothing, ties, hair, cleaning rags, etc. If entangled, it will cause the body to be pulled towards the work and moving parts of the machine, which can be very dangerous.
- Keep hands clear of the spinning pad during use.
- If the tool appears to malfunction, remove from use immediately and arrange for servicing and repair.
- Do not allow the tool to free-speed without taking precautions to protect any persons or objects from the loss of the abrasive or pad.
Technical data
| Mirka® ROP2 | 312NV | 512NV |
| Recommended Airline Size – Minimum | 10 mm 3/8 in | |
| Recommend Maximum Hose Length | 8 meters 25 feet | |
| Air Pressure – Maximum Working Pressure | 6.2 bar 90 psig | |
| Air Pressure – Recommended Minimum | NA | |
Product Configuration/Specifications: 10,000 rpm Random Orbital Polisher
| Orbit | Pad Size mm (in.) | Model Number | Product Net Weight kg (pounds) | Height mm (in.) | Length mm (in.) | *Noise Level dBA | Power watts (hp) | Air Consumption LPM (scfm) | **Vibration Level m/s2 | **Uncertainty Factor |
| 12.0 mm (1/2 in.) | 77 (3) | ROP2-312NV | 1.18 (2.60) | 108.2 (4.26) | 251.9 (9.9) | 80.5 | 276 (0.37) | 538 (19) | 4.47 | 0.94 |
| 125 (5) | ROP2-512NV | 1.23 (2.71) | 109.6 (4.31) | 277.0 (10.9) | 81.0 | 343 (0.46) | 594 (21) | 7.46 | 1.23 | |
| The noise test is carried out in accordance with EN ISO 15744:2008 – Hand-held non-electric power tools – Noise measurement code – Engineering method )grade 2( and EN ISO 11203:2009 Acoustics – Noise emitted by machinery and equipment – Determination of emission sound pressure levels at a work station and other specified positions from the sound power level. The vibration test is carried out in accordance with EN ISO 28927-3, Hand-held portable power tools – Test method for evaluation of vibration emission – Part 3: Polishers and rotary , orbital and random orbital sanders. | ||||||||||
Specifications subject to change without prior notice.
* The values stated in the table are from laboratory testing in conformity with stated codes and standards, and are not sufficient for risk evaluation. Values measured in a particular work place may be different from the declared values. The actual exposure values and amount of risk r harm experienced by an individual are unique to each situation and depend upon the surrounding environment, the way in which the individual works, the particular material being worked, work station design as well as upon the exposure time and the physical condition of the user. Mirka, Ltd. cannot be held responsible for the consequences of using declared values instead of actual exposure values for any individual risk assessment.
Further occupational health and safety information can be obtained from the following websites:
https://osha.europa.eu/en (Europe)
http://www.osha.gov (USA)
Troubleshooting Guide
| Symptom | Possible Cause | Solution |
| Low power and/or low free speed. | Insufficient air pressure. | Check air line pressure at the inlet of the Polisher while the tool is running at free speed. It must be 6.2 Bar (90 psig/620 kPa). |
| Clogged Muffler)s(. | See the “Housing Disassembly” section for Muffler removal. The item 51 Muffler can be back-flushed with a clean, suitable cleaning solution until all con- taminants and obstructions have been removed. If the Muffler cannot be properly cleaned then replace it. (See the “Housing Assembly” Section). | |
| Plugged Inlet Screen. | Clean the Inlet Screen with a clean, suitable cleaning solution. If the Screen cannot be cleaned, replace it. | |
| One or more worn or broken Vanes. | Install a complete set of new Vanes )all vanes must be replaced for proper operation(. Coat all vanes with quality pneumatic tool oil. See “Motor Disas- sembly” and “Motor Assembly”. | |
| Internal air leakage in the Motor Housing indicated by higher than normal air con- sumption and lower than normal speed. | Check for proper Motor alignment and Lock Ring engagement. Check for damaged O-Ring in Lock Ring groove. Remove Motor Assembly and rein- stall the Motor Assembly. See “Motor Disassembly” and “Motor Assembly”. | |
| Motor parts worn. | Overhaul Motor. Contact authorized Mirka Service Center. | |
| Worn or broken Spindle Bearings. | Replace the worn or broken Bearings. See “Shaft Balancer and Spindle Disassembly” and “Spindle Bearings, AirSHIELD™ and Shaft Balancer As- sembly”. | |
| Air leakage through the Speed Control and/or Valve Stem. | Dirty, broken or bent Valve Spring, Valve or Valve Seat. | Disassemble, inspect and replace worn or dam- aged parts. See steps 2 and 3 in “Housing Disas- sembly” and steps 2 and 3 in “Housing Assembly”. |
| Vibration/rough operation. | Incorrect Pad | Only use Pad sizes and weights designed for the machine. |
| Addition of interface pad or other material. | Only use abrasives and/or interfaces designed for the machine. Do not attach anything to the Polisher Pad face that was not specifically designed to be used with the Pad and Polisher. | |
| Improper lubrication or buildup of foreign debris. | Disassemble the Polisher and clean in a suitable cleaning solution. Reassemble the Polisher. (See “Service Manual”.) | |
| Worn or broken rear or front Motor Bearing)s(. | Replace the worn or broken Bearings. See “Motor Disassembly” and “Motor Assembly”. |
Declaration of conformity | ||||
Jeppo 04.06.2020 |  |  | ||
Place and date of issue | Company | Stefan Sjöberg, CEO | ||
| Operator Instructions Includes – Parts Page, Parts List, Polisher Spare Parts Kits, Please Read and Comply, Proper Use of Tool, Work Stations, Putting the Tool Into Service, Operating Instructions, Product Configuration/Specifications Tables, Trouble Shooting Guide | Important Read these instructions carefully before installing, operating, servicing or repairing this tool. Keep these instructions in a safe accessible location. |  | ||
| Manufacturer/Supplier Mirka Ltd. 66850 Jeppo, Finland Tel: + 358 20 760 2111 |  | Required Personal Safety Equipment | ||
WARNING
Always wear required personal safety protection in accordance with manufacturer’s instructions and local/national standards while using this tool.
- Do not use a power tool if you are tired or under the influence of drugs, alcohol or medication.
- Read the Materials Safety Data Sheet )MSDS( for the working surface.
- Use the tool with dust extraction. A suitable dust extraction unit will reduce hazardous dust.
- Do not overreach. Keep proper footing and balance at all times.
- Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
- If any physical hand/wrist discomfort is experienced, stop working and seek medical attention.
Hand, wrist and arm injury may result from repetitive work, motion and overexposure to vibrations. - Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
- The tool is not electrically insulated. Check work area for live electricity, gas pipes, etc. before operation.
CAUTION
- Prevent unintentional starting.
- Remove pad wrench before connecting the tool to the air supply.
- Keep work area clean and well lit.
- Always ensure that the work piece to be sanded is firmly fixed.
- Before changing abrasive always disconnect the air supply.
Additional safety warnings
- Read all instructions before using this tool. All operators must be fully trained in usage and safety of this tool.
- All maintenance must be carried out by trained personnel. For service, contact Mirka authorized service centre!
- Always wear required safety equipment )see warnings(.\
- The operator must be in a secure position and have a firm grip and footing on a solid floor.
- Always ensure that the work piece to be sanded is firmly fixed.
- Check tool, backing pad, hose and fittings regularly for wear.
- Always take care to ensure your safety at work; never carry, store or leave the tool unattended with the air supply connected.
- Vacuum unit dust collection bag should be cleaned or replaced daily. Dust can be highly combustible. Cleaning or replacing of bag also assures optimum performance.
- Do not exceed maximum recommended air pressure of 6.2 bar )90 psi(.
- Take care to avoid entanglement of the moving parts of the tool with clothing, ties, hair, cleaning rags, etc.
- Keep hands clear of the spinning pad during use.
- If the tool appears to malfunction, remove from use immediately and arrange for service and repair.
- Before changing abrasive always disconnect the air supply. Take care to properly attach and centre the abrasive on the backing pad.
| Declaration of conformity Mirka Ltd. 66850 Jeppo, Finland declare on our sole responsibility that the products 77 mm )3 in.( and 125 mm )5 in.( 10,000 rpm Two-handed Random Orbital Polisher )see “Product Configuration/Specifications” table for particular model( to which this declaration relates are in conformity with the following standard)s( or other normative document)s(: EN ISO 12100:2010, EN ISO 11148-8:2011, EN ISO 15744:2008 & EN ISO 28927-3:2009 in accordance with the regulation 2006/42/EC. | ||||
Jeppo 04.06.2020 | | | ||
Place and date of issue | Company | Stefan Sjöberg, CEO | ||
| Operator Instructions Includes – Parts Page, Parts List, Polisher Spare Parts Kits, Please Read and Comply, Proper Use of Tool, Work Stations, Putting the Tool Into Service, Operating Instructions, Product Configuration/Specifications Tables, Trouble Shooting Guide | Important Read these instructions carefully before installing, operating, servicing or repairing this tool. Keep these instructions in a safe accessible location. | Importer Information Mirka (UK) Ltd
| ||
| Manufacturer/Supplier Mirka Ltd. 66850 Jeppo, Finland Tel: + 358 20 760 2111 | | Required Personal Safety Equipment | ||
This chapter is an addition to the English language chapter of the manual in order to fulfill the UKCA regulation requirements.
Please refer to the English language chapter for more information about your product.
