LWIR1-FOV Athermalized Manual Focus
User Manual

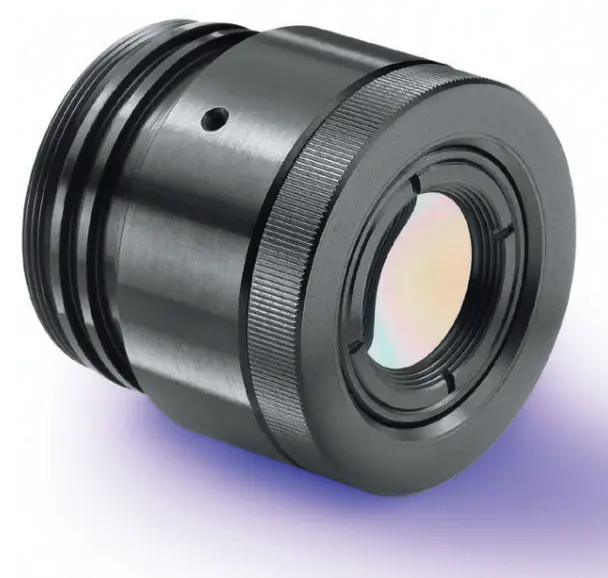

SupIR 11mm f/1.05,
Athermalized Manual Focus 680021

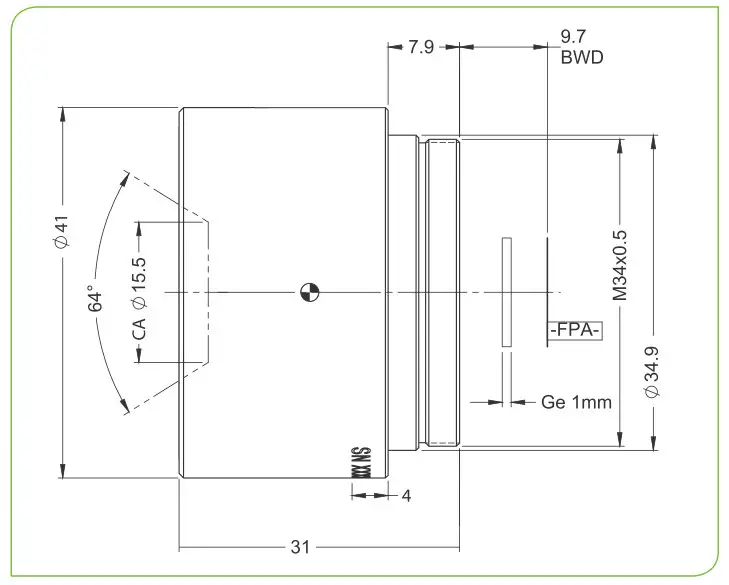

TYPICAL ICD
| HFOV | 160×120 | 320×240 | 384×288 | 640×480 |
| 25μ | 20.5° | 41.4° | 50.1° | |
| 17μ | 13.9° | 27.9° | 33.6° | 57.3° |
| 12μ | 9.8° | 19.6° | 23.6° | 39.7° |
| Property | Value |
| Optical | |
| Focal Length | 11mm |
| F/# | 1.05 |
| Average Transmission (8-12µm) | 94% (HD) |
| Back Focal Length | 12.48mm in air |
Mechanical
| Focus Mechanism | Manual |
| Focus Range | 0.2m to infinity |
| Depth of Field | 2.4m to infinity |
| Weight | 87gr |
| Max. Dimensions | Ø22.4mm x 25.12mm |
Environmental
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -50°C to+110°C |
| Sealing | IP 68 front element only |
Configurations
| 680021-004 | High Durability |
| 680021-006 | Hard Carbon |
For latest updates please visit our website: www.ophiropt.com/infrared
