Seltec 12104-16 Ceiling Led Panel Instruction Manual

Seltec 12104-16 Ceiling Led Panel Instruction Manual

seltec-logo

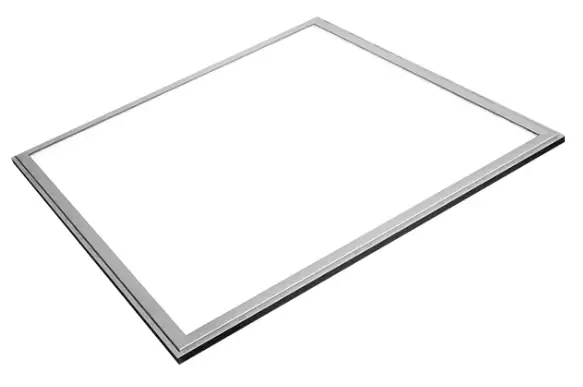

seltec 12104-16 Ceiling LED Panel

seltec-12104-16-Ceiling-LED-Panel-product

This product contains light sources of energy efficiency class <E>.

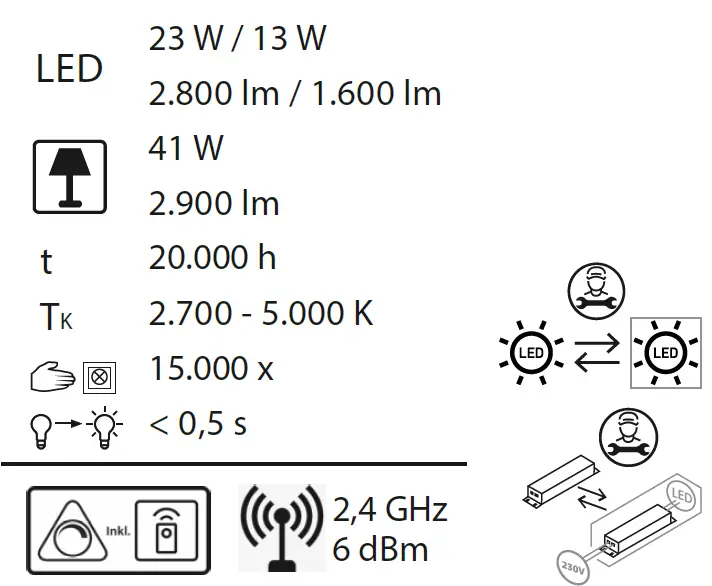

Feature

seltec-12104-16-Ceiling-LED-Panel-fig-1

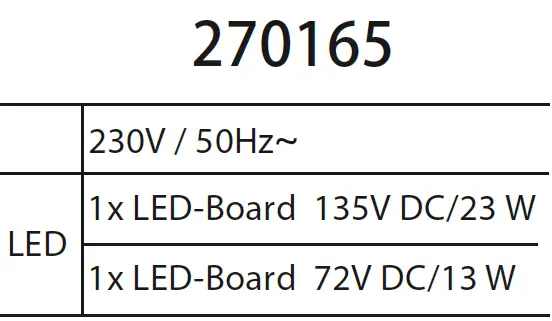

Specifications

seltec-12104-16-Ceiling-LED-Panel-fig-2

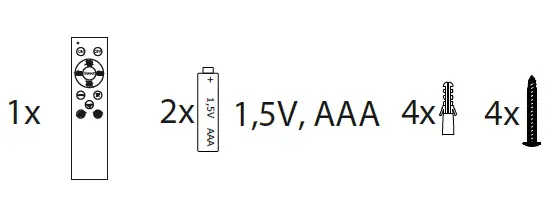

Tools

seltec-12104-16-Ceiling-LED-Panel-fig-4

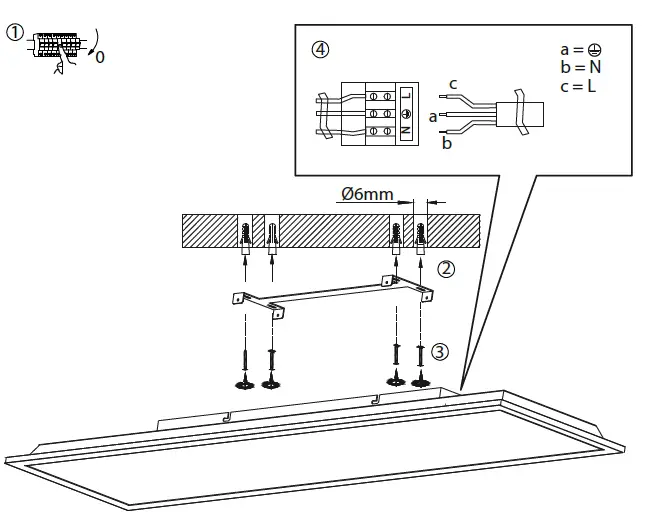

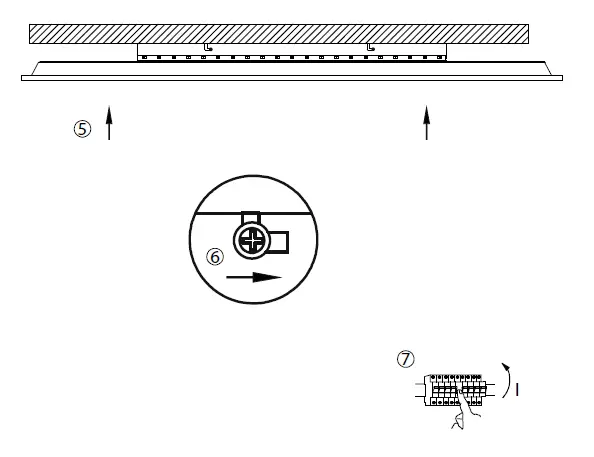

Installations

seltec-12104-16-Ceiling-LED-Panel-fig-3seltec-12104-16-Ceiling-LED-Panel-fig-5

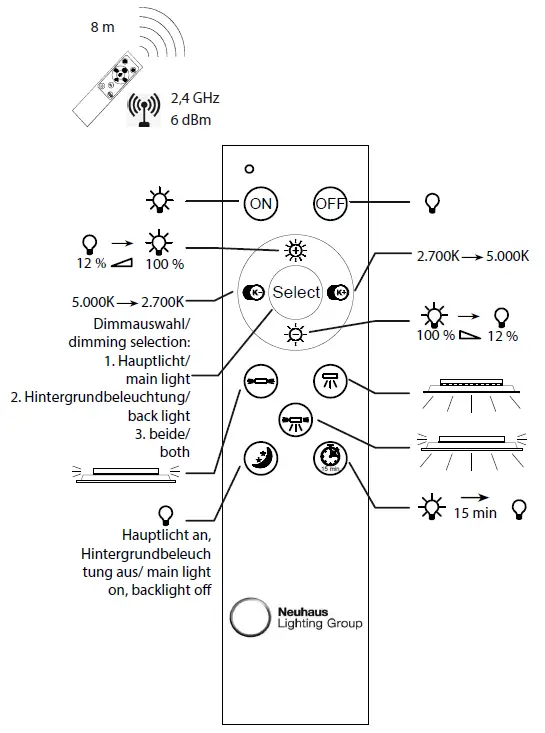

Remote Control Overview

seltec-12104-16-Ceiling-LED-Panel-fig-6

Instructions for use
If your light is not assigned to the enclosed remote control, assign the remote control to the light as follows.

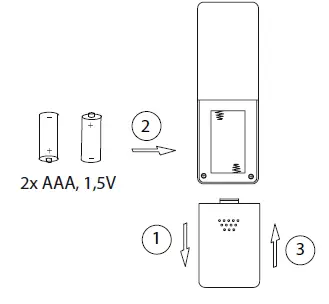

Insert Battery

seltec-12104-16-Ceiling-LED-Panel-fig-7

References

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
