TKH XSNET 3100EOC Ethernet over Coax Adapter
Product Brief
Product Brief
XSNET 3100EOC is fully complying with IEEE P1901 standard, supporting HD video and high-speed data transmission over twisted pair. Its advantages include long-distance transmission, high MAC data throughput, multimedia support, and various topology configurations.

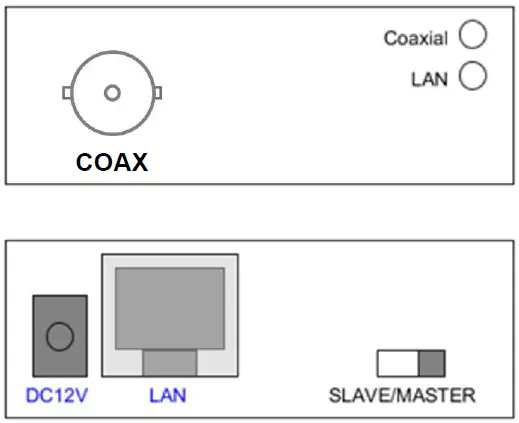

Product Interface
Panel I
- Coax BCN (75) for the ethernet over coax connection.
- Two LED indicators:
- Coaxial: Physical link connectivity indicator: indicator light is on and solid after adapter setup connection over 2-wire.
- LAN: Ethernet connectivity/activity indicator: when an Ethernet connection has been established, the indicator light will be solid; when data is transmitted on the Ethernet connection, the indicator light will blink.
Panel II
- DC 12V IN: 12V DC power supply.
- LAN: Ethernet port.
- SLAVE/MASTER Switch: Switch Slave/Master role, must power cycle adapter to make new role take effect.
Installation
There should be only one Master in a domain, however, multiple Slaves are allowed.
Network Topology
Topology with Single Domain
Example of topology with single domain (one Master, one Slave).

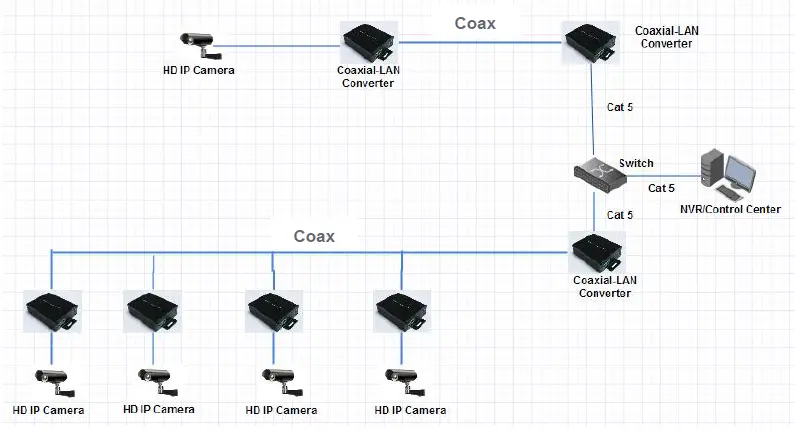

Topology with Multiple Domains
Example of topology with two domains (Upper domain: one Master, one Slave; Lower domain: one Master, four Slaves).
