Ablerex 6000VA – 10000VA MARS III Tower
6000VA – 10000VA
The ability to install up to four units in parallel means that the maximum redundancy level is always guaranteed
FEATURES
- Maximum power availability: kVA=kW.
- Up to 4 units in parallel, 3 + 1 redundancy possible with parallel kit.
- Low running costs: the high efficiency VFI and ECO features minimise energy consumption.
- User-friendly monitoring software can be downloaded free and is compatible with the main operating systems, for: monitoring functions, diagnostics, controlled shutdown of loads in the event of faults.
- Cold start.
- Wide input voltage and frequency ranges reduce battery switching, thereby increasing battery life and efficiency.
- Flexible battery configuration to suit your uptime requirements.
- Accurate calculated remaining uptime is shown on the display.
- Hot-swappable batteries: the batteries can be replaced while the UPS is running.
- Firmware can be upgraded easily to implement new features.
- EPO and On/Off, with remote option.
- 6-step operation test that can be activated manually.
- RS232 and USB ports, slots for optional communication cards.
KEY OPTIONS
- Cards: RS485, SNMP/web and relay card with dry contacts to send the UPS status to various systems, such as BMS, PLC, SCADA and AS400
- Parallel kit.
- External battery cabinets.
- External manual bypass with additional sockets.

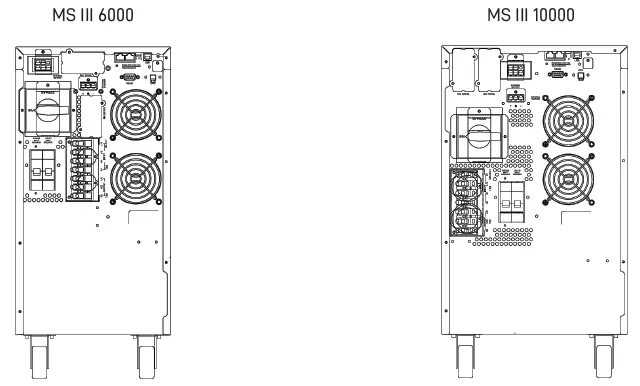

BACK PANEL
MARS III TOWER TECHNICAL DATA SHEET
| MODEL | MS III 6000 | MS III 10000 | ||
| POWER | VA | 6000 | 10000 | |
| W | 6000 | 10000 | ||
|
INPUT | Rated voltage* | 110–280 Vac | ||
| Frequency | 45–70 Hz | |||
| Power factor | >0.99 | |||
|
OUTPUT | Rated voltage | 200/208/220/230/240 Vac selectable | ||
| Voltage distortion | <2% with linear load, <7% with distorting load | |||
| Voltage stability | ±1% | |||
| Frequency | 50/60 Hz (selectable) | |||
| Frequency stability | £ 0.2% (free running) | |||
| Power factor | 1 | |||
| Crest factor | 3:1 | |||
| Waveform | Pure sine wave | |||
| Output connection | Terminal blocks | |||
| EFFICIENCY | VFI mode | Up to 94% | ||
| ECO mode | Up to 98% | |||
|
GENERAL | Dimensions (WxDxH) mm | 240x700x513 | 288x700x513 | |
| Weight (kg) | 53 | 78 | ||
| Alarms | Audible and visual alarm alerts for: power failure, low battery, bypass transfer, and UPS fault. | |||
| Protection | Overload, overheating, short circuit, deep discharge, battery overcharging. | |||
| Operating mode | Multi-mode: VFl, ECO, frequency converter (CVCF) | |||
| Cold start from the battery without mains power | Included | |||
| Parallel connection | Up to 4 units for 3+1 redundancy | |||
|
BATTERY | Battery type | 12V VRLA, AGM (maintenance-free lead) | ||
| Uptime with internal battery (in minutes). | 50% load | 12 | 11 | |
| 100% load | 4 | 4 | ||
| Charging time (90%) | 4–6 hours | |||
| Battery expansion module dimensions (WxDxH) ** | 288x663x661 | |||
|
ENVIRONMENTAL PARAMETERS | Operating temperature*** | 0–40°C | ||
| Relative humidity | 0%–90% (non-condensing) | |||
| Altitude (a.s.l.) | <1000 m with no power derating, >1000 m with 1% derating for every 100 m. | |||
| Audible noise at 1 m. | £60 dBA | |||
|
CONNECTIVITY | Built-in communication ports | USB, RS232, EPO On/Off contact, and additional slots for optional cards | ||
| User interface | LCD and function keys (parameters: voltage, frequency, load percentage, battery voltage, output voltage, estimated uptime, UPS temperature). | |||
| Optional accessories | Cards: SNMP, RS485 ModBus, dry relay contacts | |||
| Compatible software platforms | Microsoft Windows, Linux, Mac OS, VMware | |||
| REGULATIONS | Standards | IEC EN 62040-1, IEC EN 62040-2, IEC EN 62040-3 | ||
| Marking | CE | |||
Data may be subject to change without notice due to our commitment to continuous innovation – rev 22_06
- Depending on the load
- Battery weight and configuration depends on the required uptime
- To be verified according to the battery parameters
