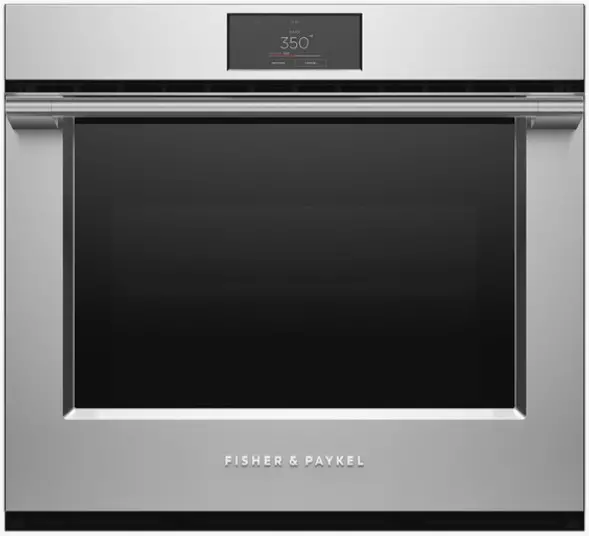

Fisher Paykel Ob30spptx1 Self-cleaning Oven User Guide (+ PDF)

QUICK REFERENCE GUIDE > OB30SPPTX1
Oven, 30”, 4.1 cu ft, 17
Function, Self-cleaning

Series 9 | Professional
Stainless Steel

With professional styling, advanced cook functions, and a touchscreen, this large-capacity oven is a highlight of our collection.

Guided cooking using your touchscreen makes it simple to cook my food, function, or recipe.
4.1 cu ft total capacity, with 17 oven functions including Aero™
Pastry and Roast, Air Fry and Dehydrate
Non-tip, full-extension sliding shelves for safe removal of hot dishes
Accessories include a food probe, smokeless grill tray, and more

Contents hide

1 DIMENSIONS

2 FEATURES & BENEFITS

3 SPECIFICATIONS

4 Documents / Resources

4.1 References

5 Related Posts

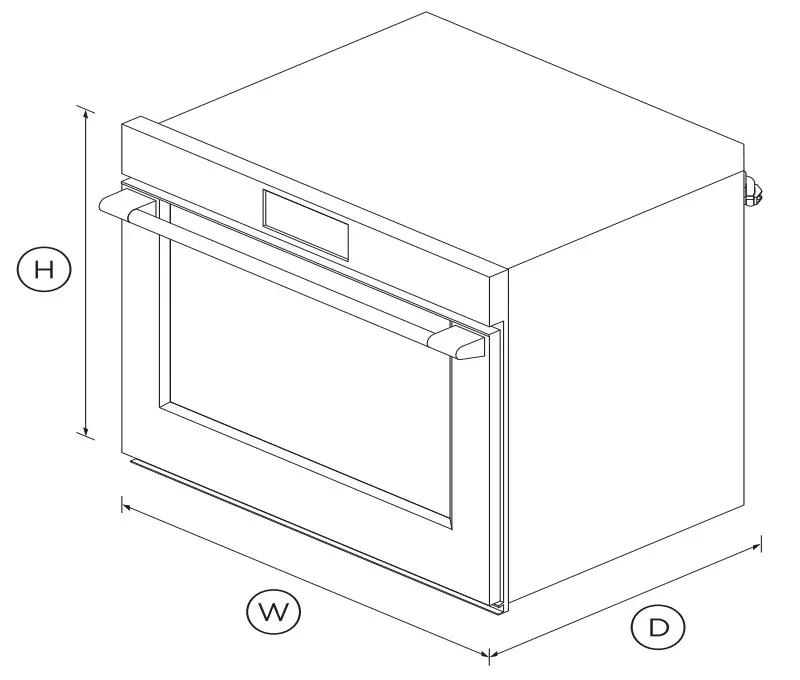

DIMENSIONS

Height	27 1/16″
Width	29 29/32″
Depth	23 29/32″

FEATURES & BENEFITS

Cook with confidence
Our touchscreen interface provides an intuitive guided cooking experience that helps deliver perfect results, whether you’ve been cooking all your life or just starting out. Cook with a favorite method, a hero ingredient, or a go-to cooking function or recipe.
Generous capacity
With its 4.1 cu ft total capacity, you can create several perfectly cooked dishes at once using multiple shelves.
Multi-function flexibility
The cooking functions have each been tailored, tested, tweaked, and perfected to ensure that no matter what you’re cooking, you’ve got the right heat to match. A food probe precisely monitors cooking in real time, giving you complete control.
Exceptional performance
AeroTech circulates heat evenly for a consistent temperature throughout the cavity, helping you ensure perfect results even when cooking on multiple shelves.
Self-cleaning
Our self-clean technology breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth. The enamel-coated side racks don’t need to be removed when using this function.
Design freedom
Designed to fit seamlessly into your kitchen, this built-in oven features premium materials and elegant styling to support a cohesive, considered kitchen design.

SPECIFICATIONS

Accessories

Broil rack	1 set
Food probe	1
Full-extension sliding shelves	3 sets
Full extension telescopic	•
Roasting pan	1
Self-cleaning side runners	1 set

Capacity

Shelf positions	8
Total capacity	4.1cu ft
Usable capacity	3.6cu ft

Cleaning

Acid-resistant graphite enamel	•
Removable oven door	•
Removable shelf runners	•
Self-cleaning side runners	•

Controls

Adjustable audio and display	•
Automatic cooking/minute	•
Automatic pre-set	•
Celsius/Fahrenheit	•
Connected Fisher and Paykel	•
Electronic clock	•
Electronic oven control	•
Food probe	•
Guided cooking by food type	•
Intuitive touchscreen display	•
Multi-language display	UK English, US English,
Precise electronic temperature	•
Sabbath mode with Star K	•

Functions

Aero Bake	•
Aero Broil	•
Air fry	•
Bake	•
Broil	•
Classic bake	•
Dehydrate	•
Maxi Broil	•
Number of functions	17
Pastry Bake	•
Pizza bake	•
Rapid proof	•
Roast	•
Self-clean function	•
Slow cook	•
True Aero	•
Vent bake	•
Warm	•

Performance

AeroTech™ technology	•
Automatic rapid pre-heat	•
Broil power	4400W
Number of passes on Maxi	12
Number of passes on broil	10
Power requirements
Supply voltage	208 – 240V
Product dimensions
Depth	23 29/32″
Height	27 1/16″
Width	29 29/32″

Safety

Advanced cooling system	•
Balanced oven door	•
Catalytic venting system	•
Control panel key lock	•
CoolTouch door	•
Full-extension sliding shelves	•
Non-tip shelves	•
SKU	81921

TEST The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
