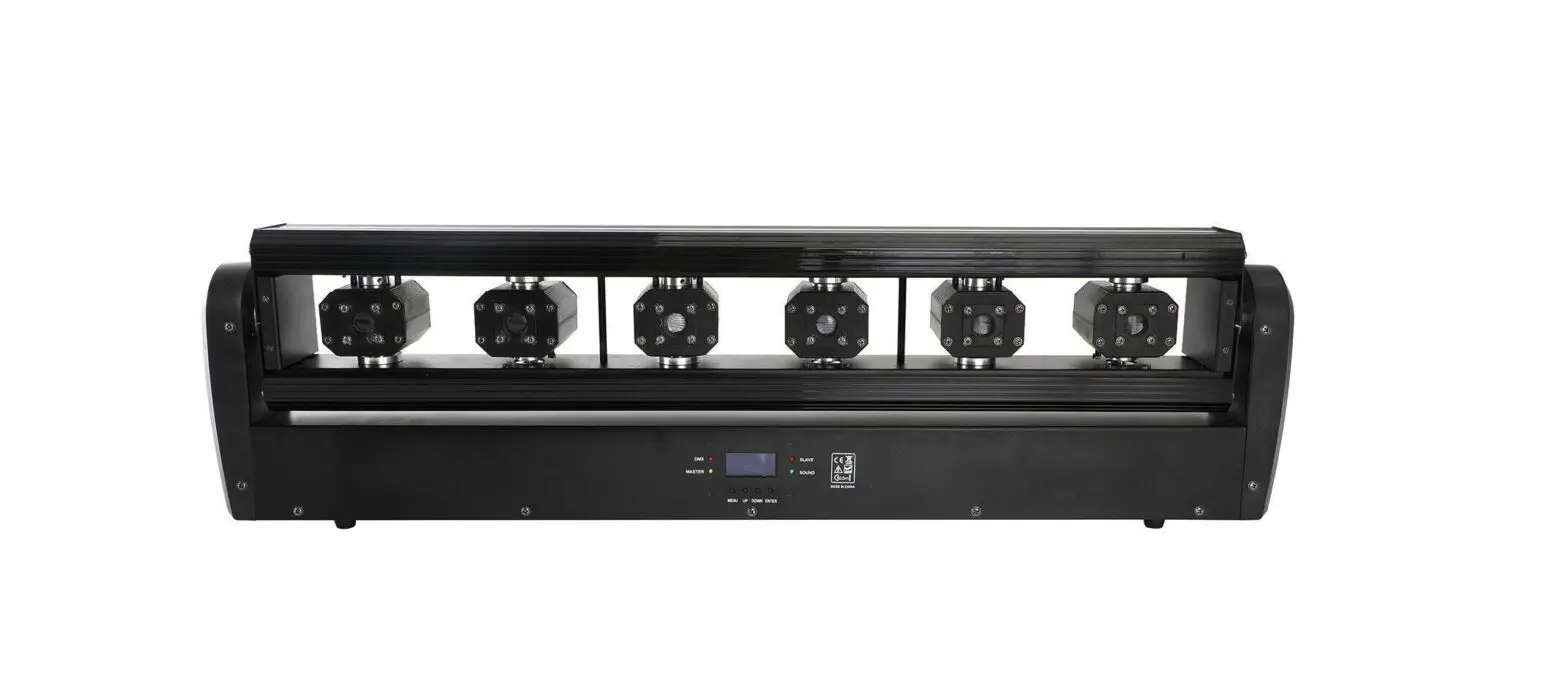

CONIC DESIGNS LB612FC Laser Bar Full Color User Manual

Introduction

Thank you for purchasing this product.
To ensure proper operation, please read this manual carefully before using the product.
After reading it, keep it in a safe place for future reference.

This product has been tested at our factory before shipping to you, there is no assembly required.
Once after receiving this product, please take and put carefully. And check cautiously that whether the product was damaged or not during the transportation.

Checking Parts

Please check if the following parts are included:

1 x Light
1 x Power cable
1 x User manual
Danger Light Radiation!
Avoid direct eye exposure!

Light radiation can cause eye damage or skin damage All protective measures for a safe operation of this light must be applied.

Installation

1. Please check the voltage whether is the same with the one showed on the equipment.
2. It must ask for the technical person and set the light safety when installation. And let the light beam at the suitable angle.
3. When install this equipment please make sure there’s no flammable surfaces (decorated things, etc) within at least 2.5M and maintain minimum distance of 0.5M from the equipment to the walls.
4. Please make sure that there’s no other equipment or decorating materials obstructed the exhaust fan and the vent-pipe.
5. Products should be install immobility.
6. In case of safety, it’s very important that to connect ground wire.

Attention

1. Please do not open the bottom cover yourself without permission. Operate it accord the user manual. Call the technician when the machine breaks down.
2. Please do not see the light beam directly to avoid any damage.
3. Before connect or disconnect the power, please adjust the luminance of the light diode to the least to avoid any damage to the light diode.
4. This unit should be keep dry, do not use in the rain and dusty environment. It can be use in the outdoor with the water-proof cover .
5. Set the light immobility and try to avoid strong shake or hit.
6. Prevent dust into the equipment to avoid problems.
7. Please keep that there’s no other equipment or decorating materials obstructed the exhaust fan and the vent-pipe when the equipment was working.
8. Before connect power, check the plug is immobility or not, power cable should be connect well.
9. Please do not open or close the equipment frequently that’s to avoid any affect to the life span of the light diode, and try the best to avoid the long time working.
10. Due to the characteristic of the light diode, after four hours working, it should be close at least 25 minutes until the light diode cooling then work again.
11. Don’t touch the light or draw the power line when your hand was wet. And do not pull the electronic power line.
12. Maintain the distance at least 3M above from the equipment to the object.
13. This equipment does not have any parts can repair for the users, please do not open the equipment.
14.  When the light diode became dim or damaged please contact the dealer timely.
15. When you want to re-transfer the product, you’d better use the original package to shockproof.

LCD Function Menu

DMX Setting

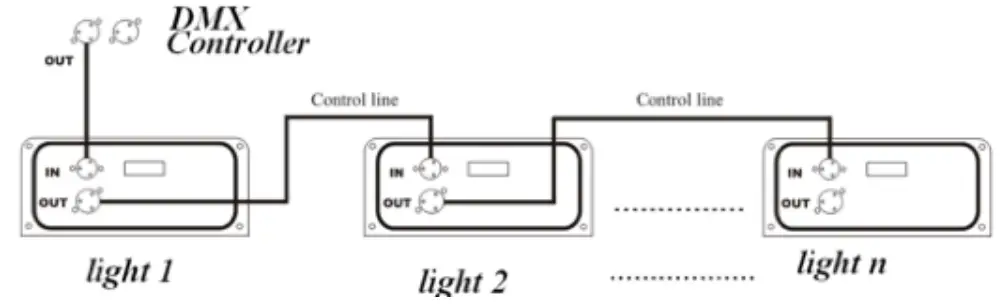

Input DMX signal, DMX daisy chain picture as follow

DMX control, each light should has its own address. The fist light address is 1, the second light address 15 or 36 or 43 (the first light address 1 plus 14 or 35 or 42 channel), the third light address 29 or 71 or 85.
DMX – 512 control mode as following :

Master-slave Setting

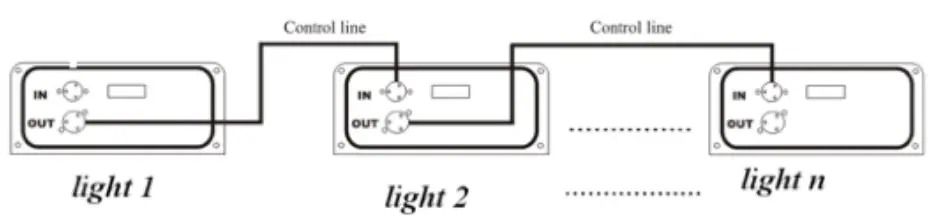

Link the lights as the following picture (the light which does not receive signal, only output signal, will be the master light)，

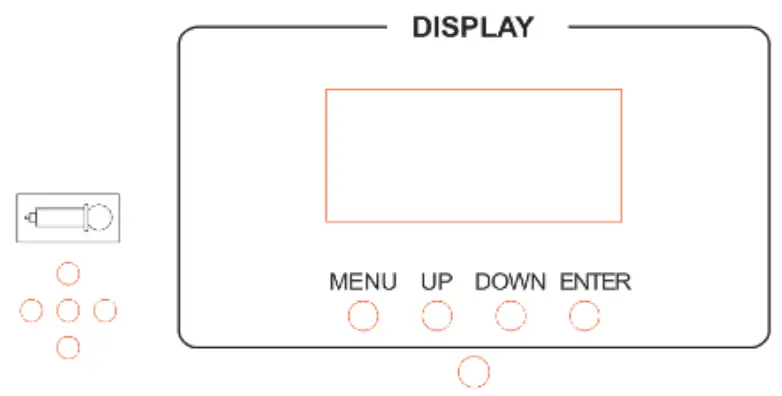

LCD display panel, as following：

Operation: Press “MENU” will cycle fourteen different effect.. Press” UP”, ”DOWN” to select different features. Press ”ENTER” to confirm.

• Using before please must be check power supply link with earth wire correctly.

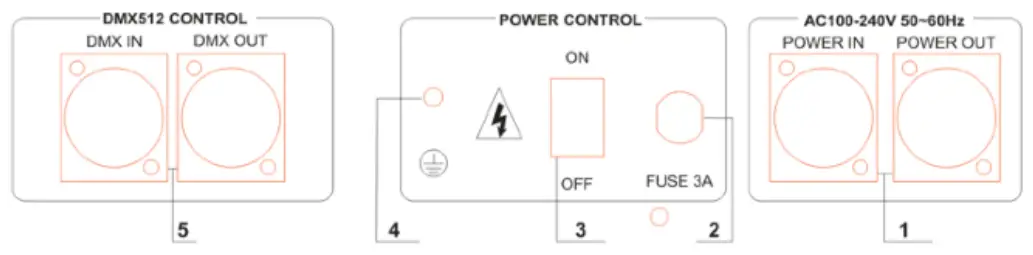

• The specification of the front and rear panel:

1. Input rated voltage
2. Fuse
3. Power switch button
4. Ground marking
5. DMX IN/ DMX OUT: DMX signal output and input

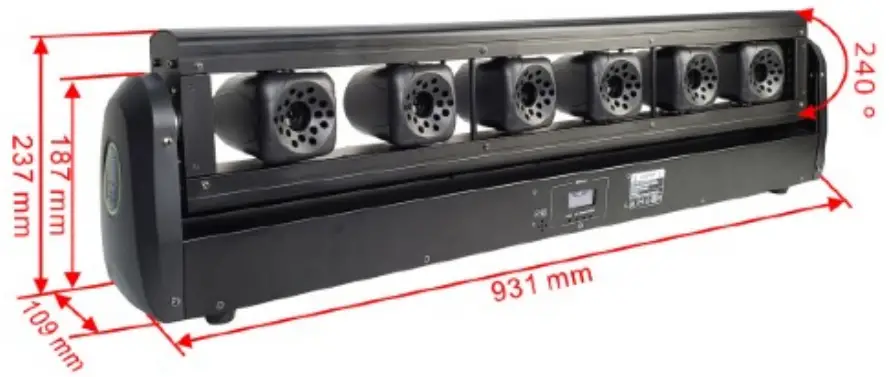

Dimension

Technical Specifications

1. Power Supply: AC100~240V 50/60Hz
2. Rated Power: 250W
3. light color:
   W2000C（R500mW+G500mW+B1000Mw)*6
   W500C(R200Mw+G100Mw+B200Mw)*6
4. Y axis rotation angle: 0-240°
5. Z axis rotation angle: 0-140°
6. Working Mode: Sound/Automatic/DMX512/Master-Slave
7. Auto mode: 16 kinds of automatic dynamic effect/ 16 kinds of sound trigger dynamic effect
8. DMX Control Channel: 14CH/35CH/42CH
9. Cool system: forced air cooling system
10. Working temperature: 0℃ – 35℃
11. N.W./G.W.: 27kg / 31kg
12. Package size: 101 x 46 x 33cm

DMX-512 Channel Introduction
35CH / 42CH mode as following

The difference between 35CH and 42CH in same channel

14CH mode as following

Maintenance

Maintenance should be performed every 15day period, by using a sponge which is dipped with alcohol, rather than wet cloth or other chemical liquid, to clean the mirror.
Always disconnect from the power when the device is not in use or before cleaning it.

Warning
Power must be disconnected before maintenance or repair. Do not look at the light source directly

Declaration
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual.

We cannot be made liable for damages caused by incorrect installations and unskilled operation!
