FORTE logoDURV521L-C818
Assembling instruction
FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - icon

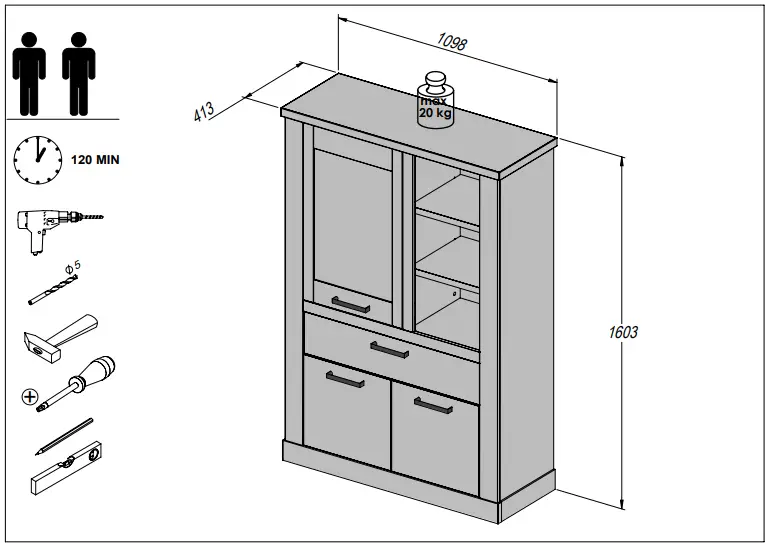

DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors

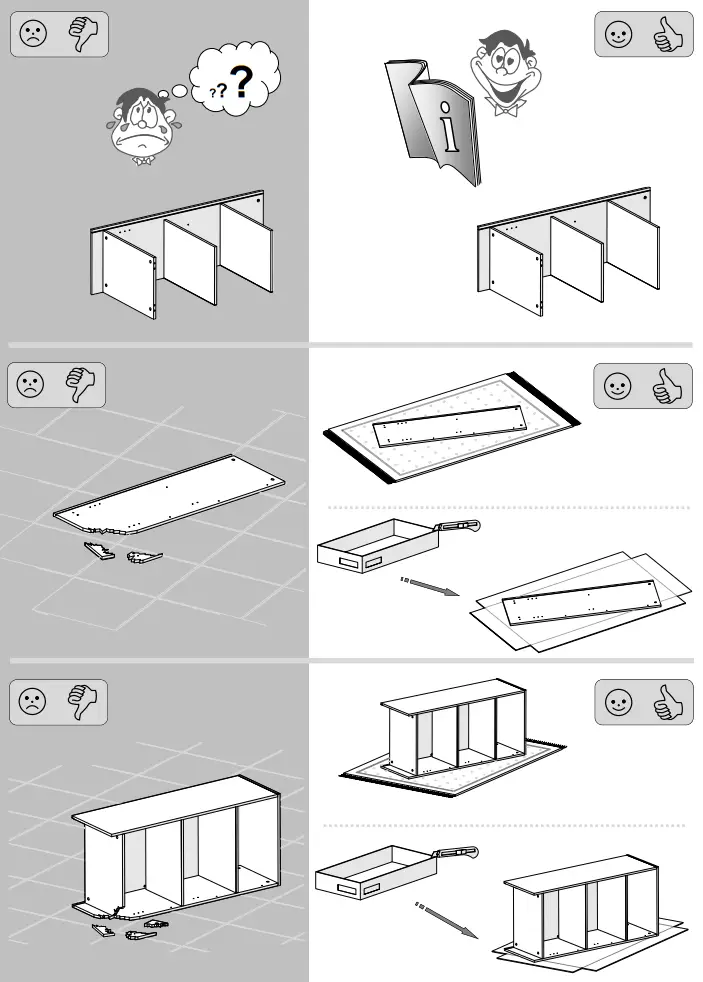

FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors -Follow the manufacturer’s assembly instructions, otherwise danger may occur.

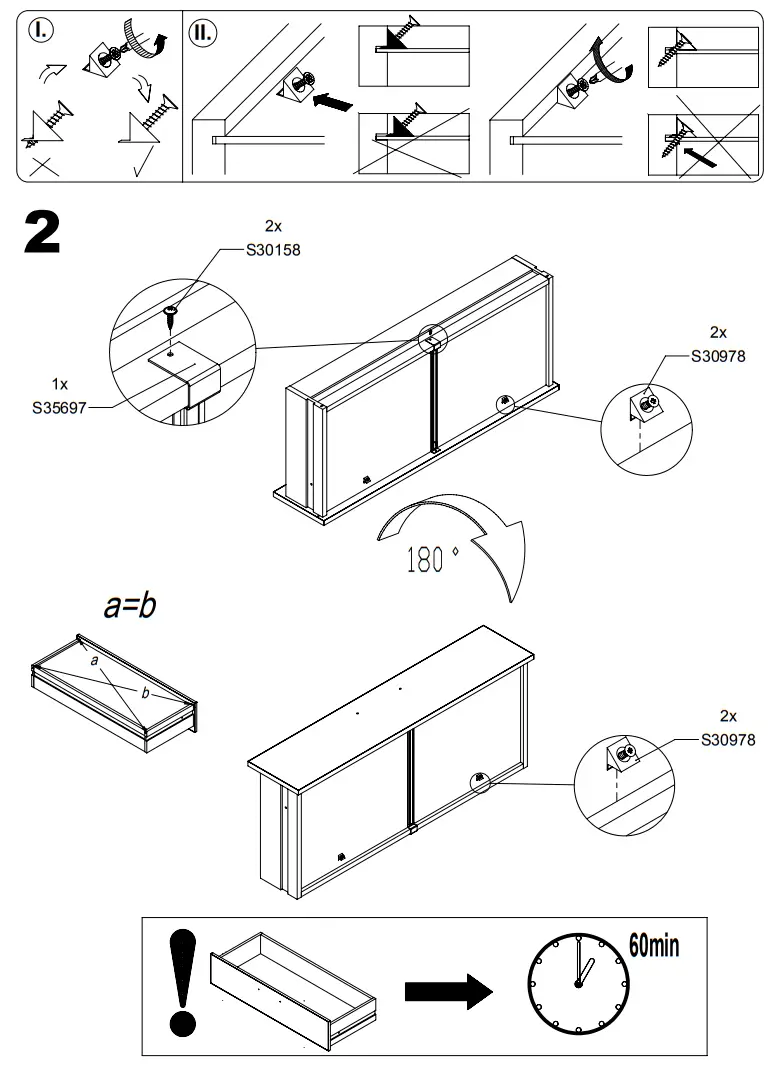

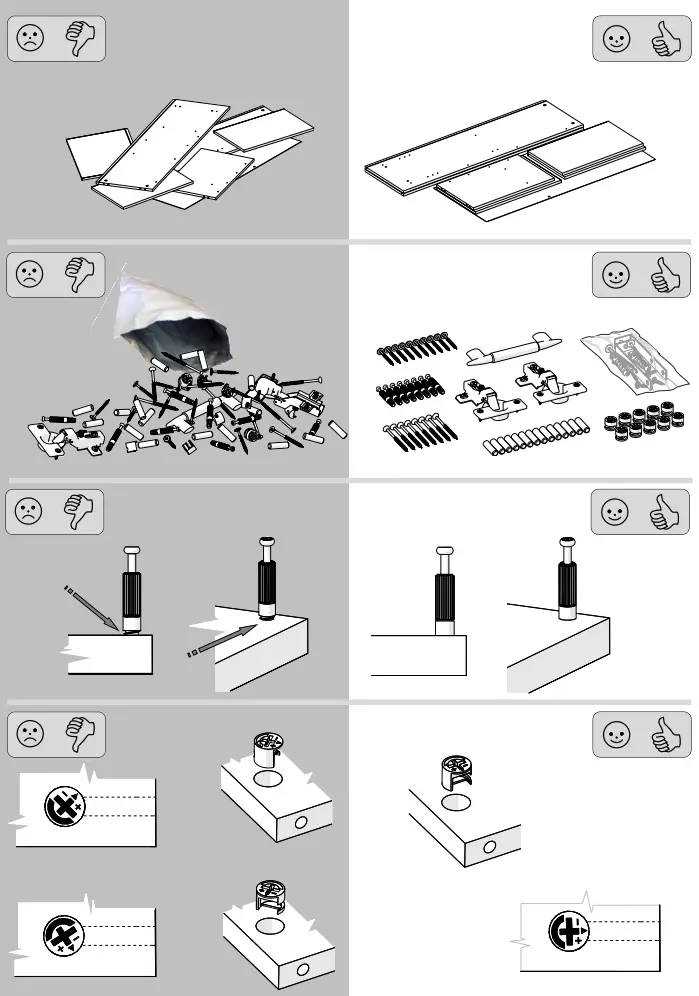

FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - fig 1FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - fig 2

Service

Name___________
No_____________
Type____________

FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - icon2

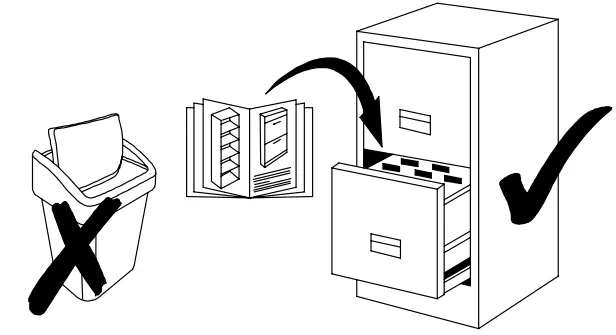

FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - fig 3

CODEDIMENSIONSCorn -0001CoIli -0002
2287586x821x21
2288457x821x21
22891044x666x21
1303111560x386x231
130312
130321
1560x386x231
216x372x151
130322216x372x151
130325811x372x151
3249861098x413x381
3249981034x372x151
3249991034x372x151
41148442x370x282

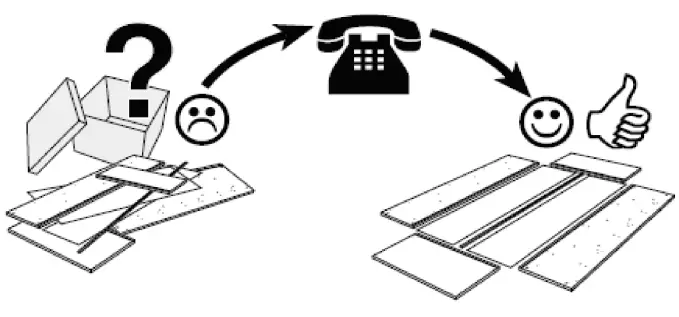

FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - fig 4

CODEDIMENSIONSCoIli -0001CoIli -0002
41149573x350x281
519571082x90x251
53038967x368x222
530394886x50x181
530395810x50x181
5304011470x90x181
5304021470x90x181
62592806x496x181
62594440x413x152
71341882x189x151
80074LN350x138x151
80074PN350x138x151
80192TN832x138x151
90507849x348x21

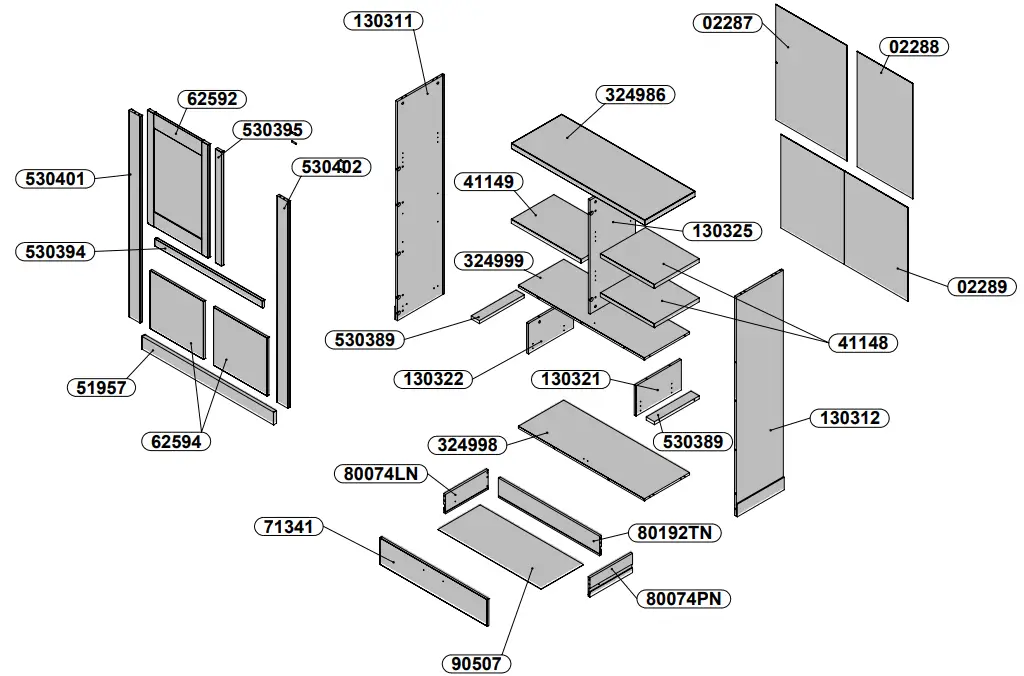

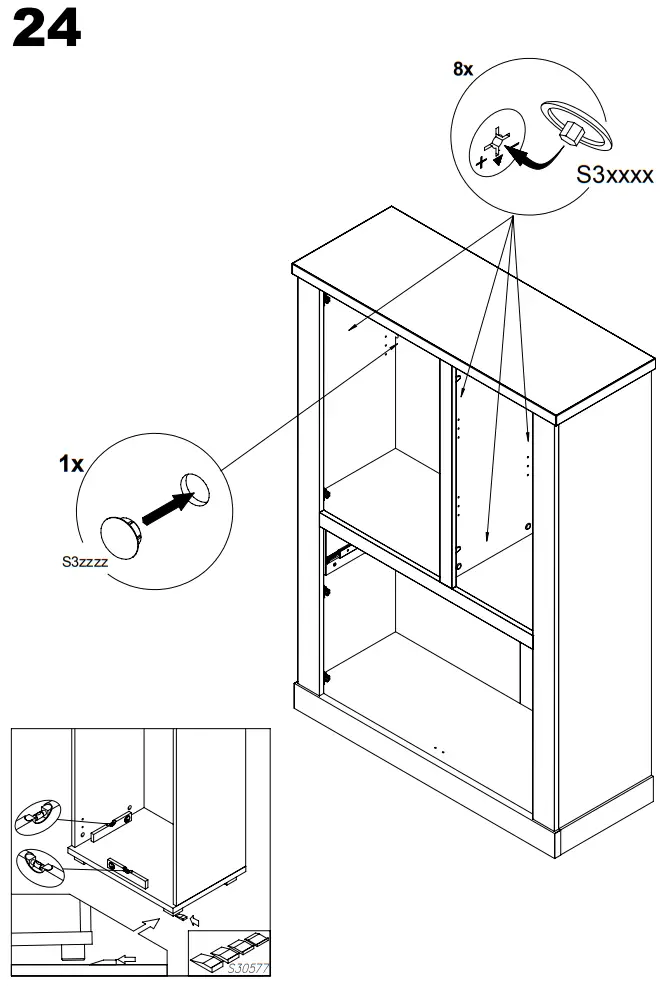

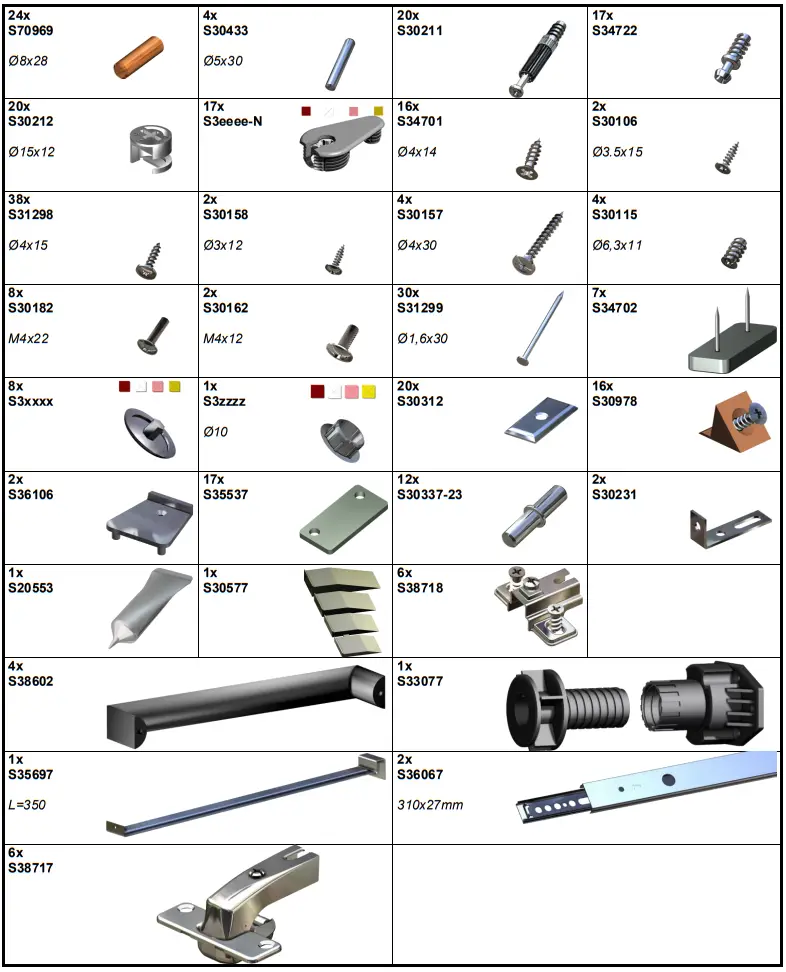

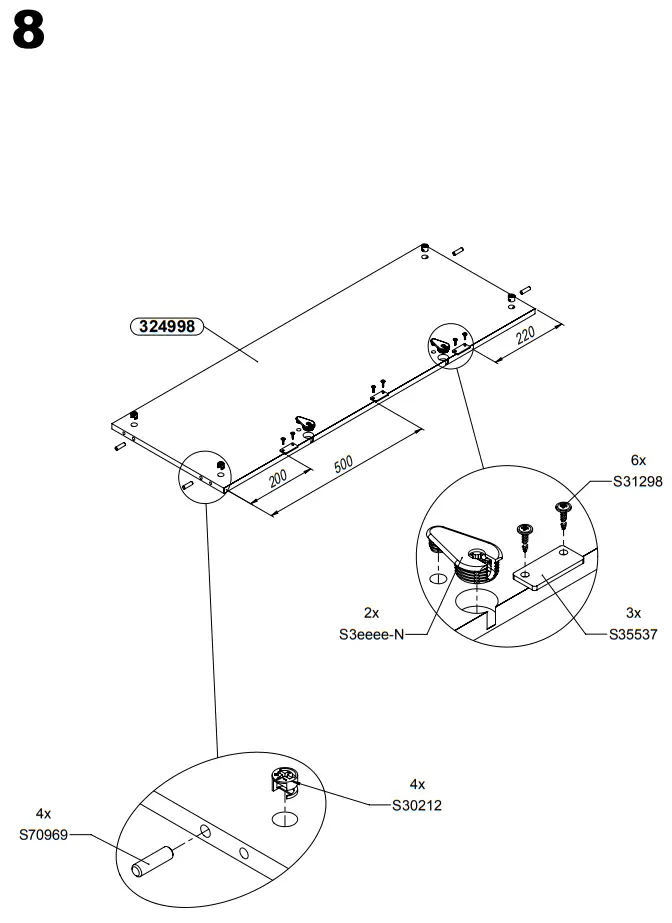

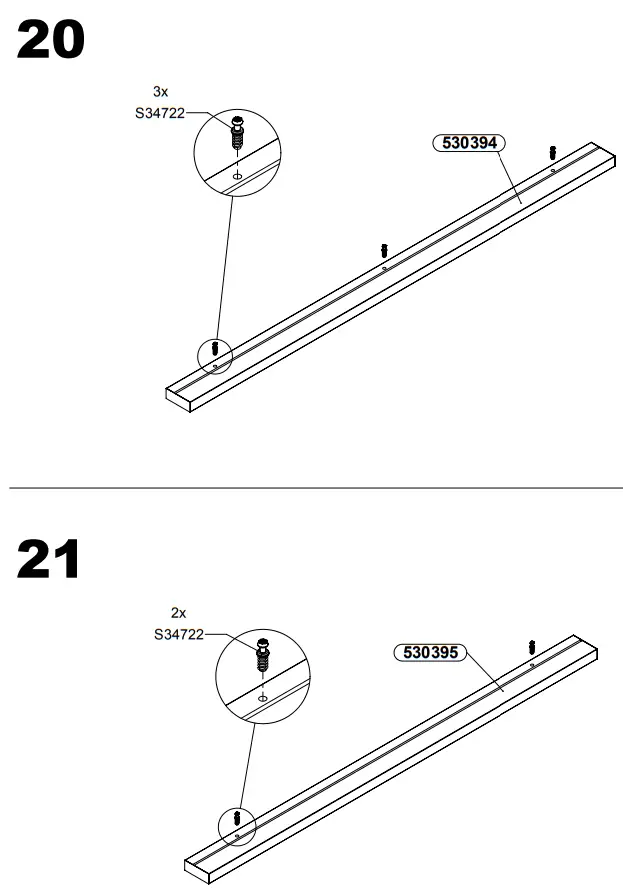

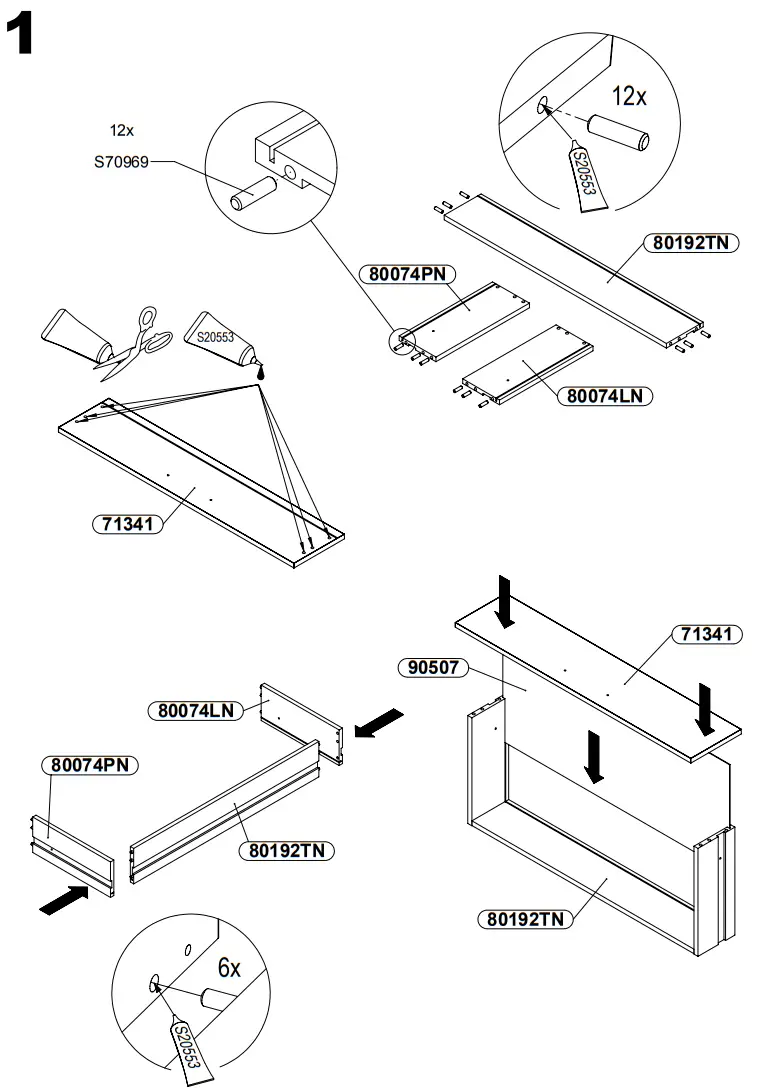

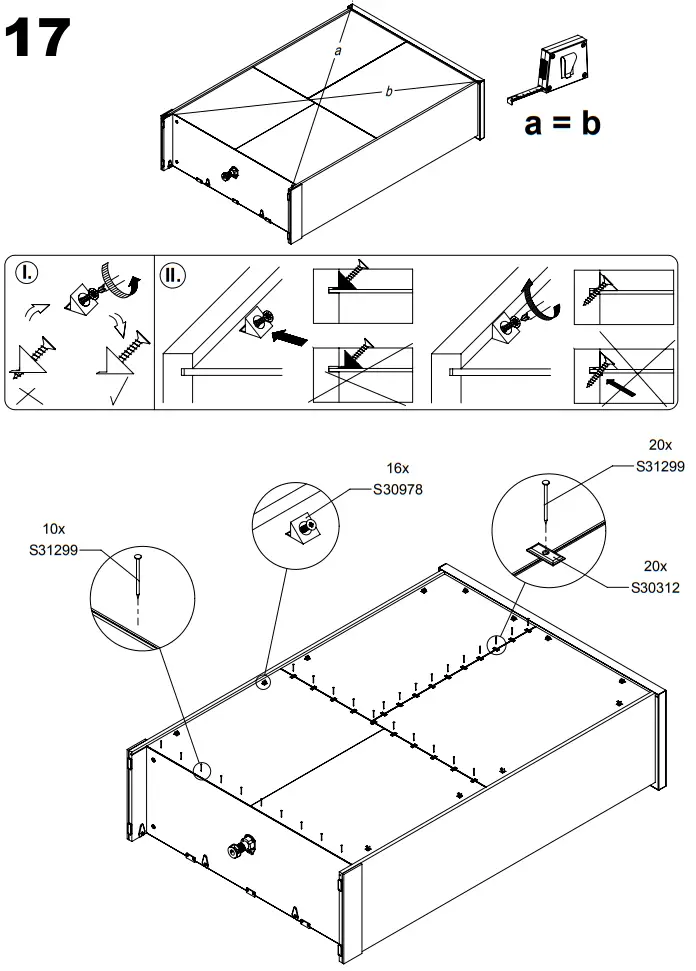

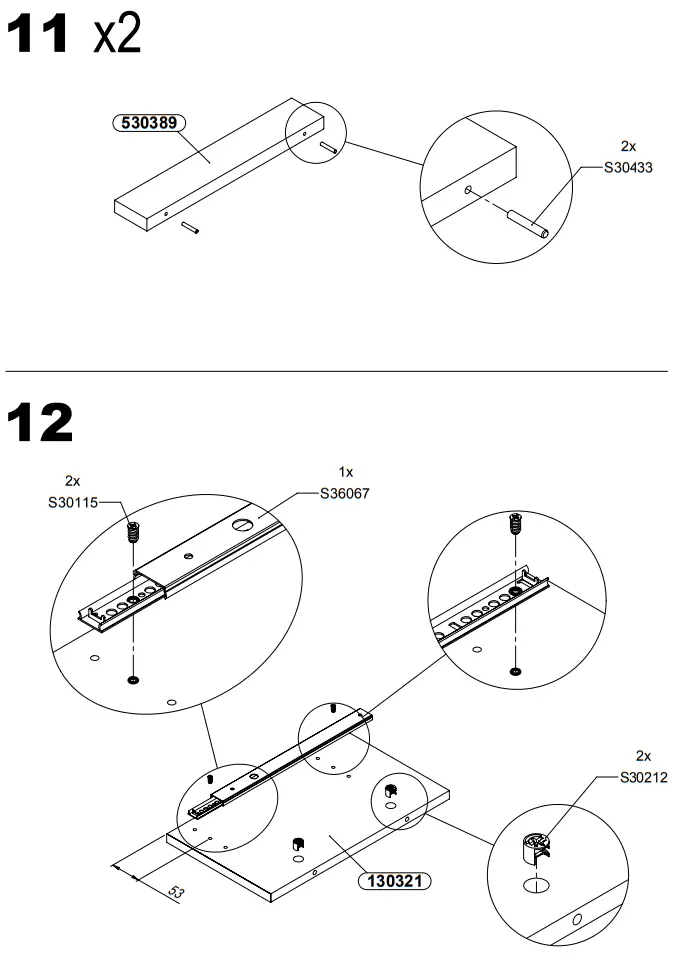

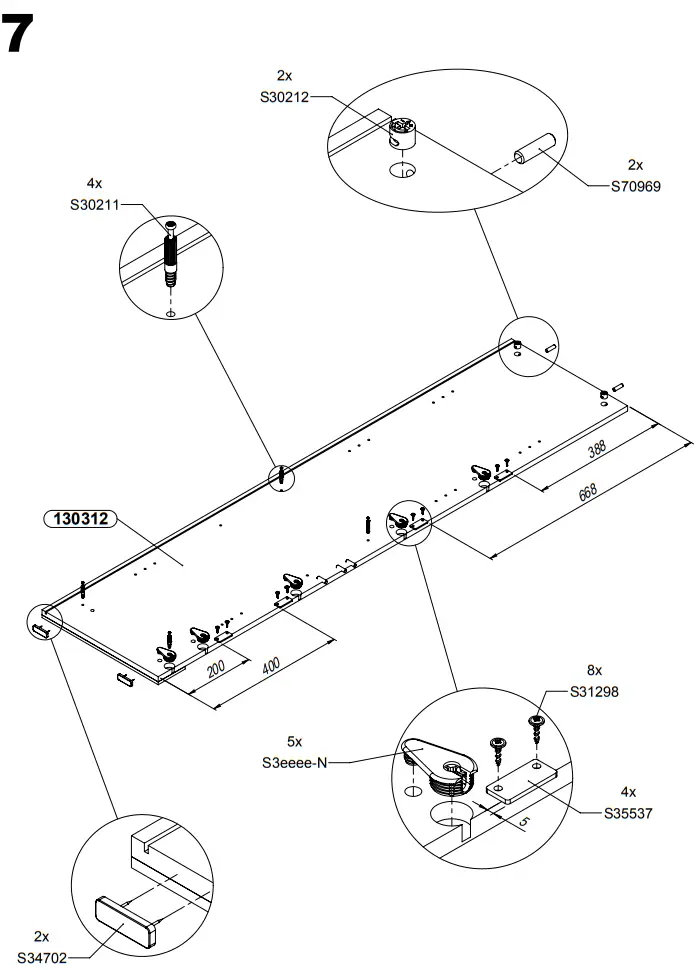

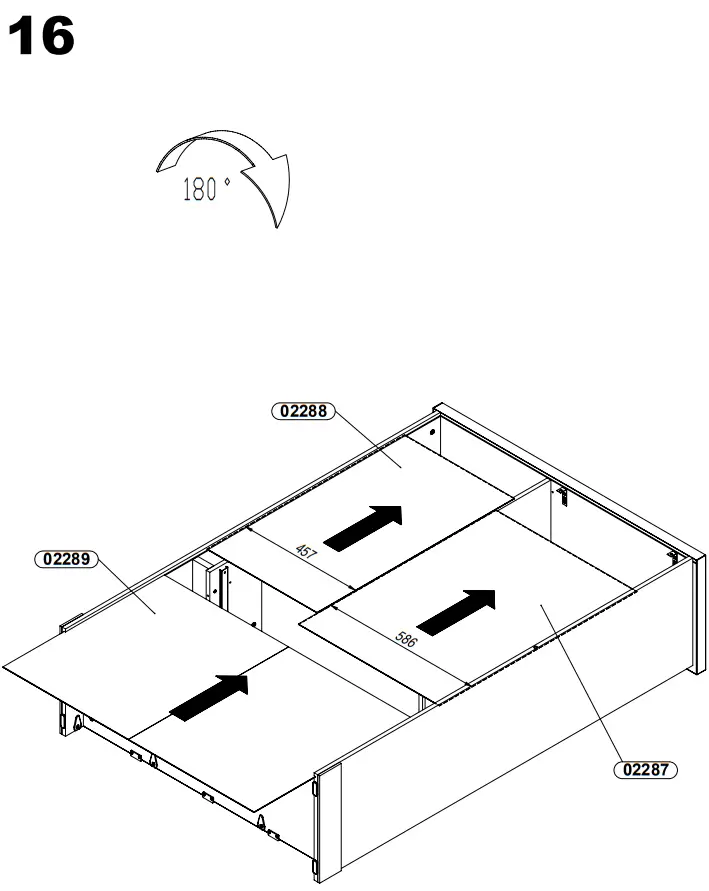

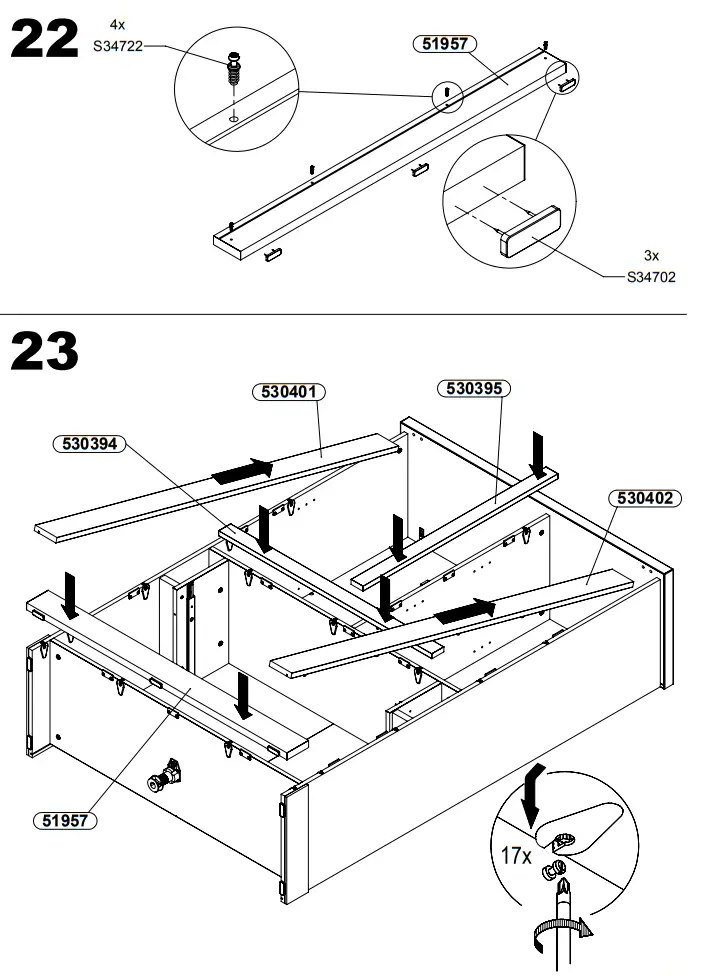

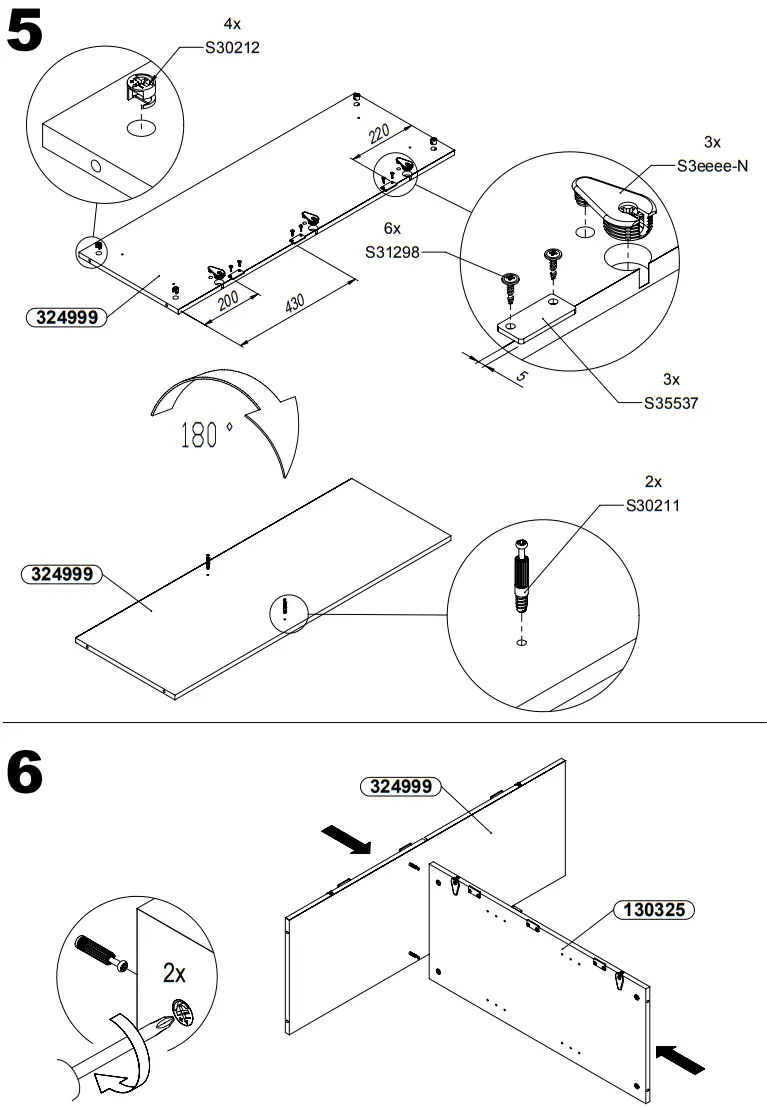

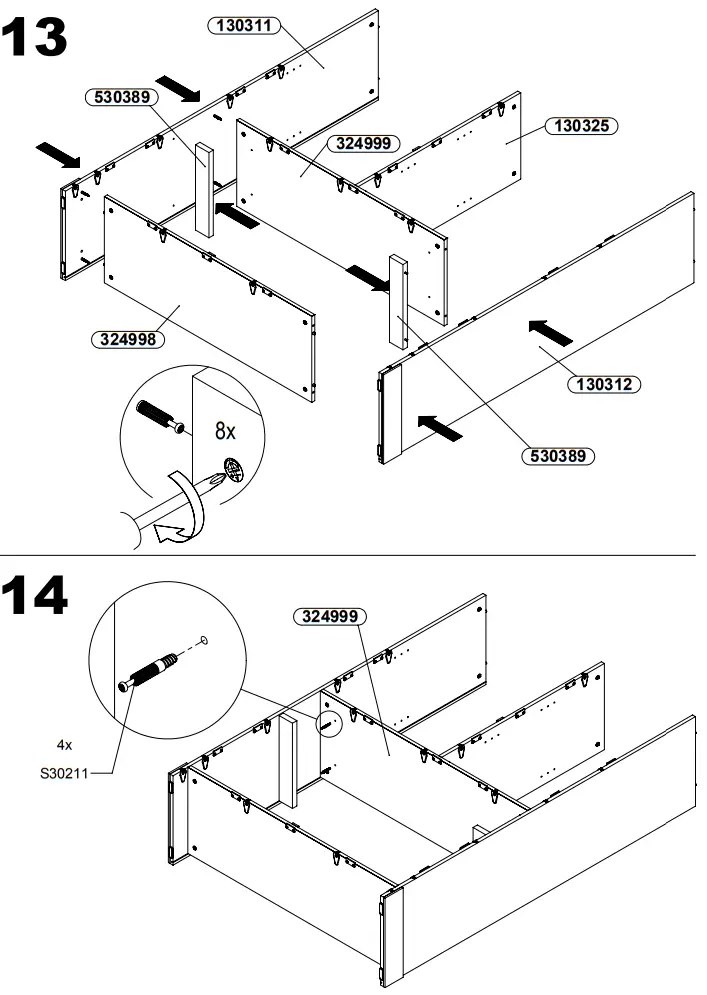

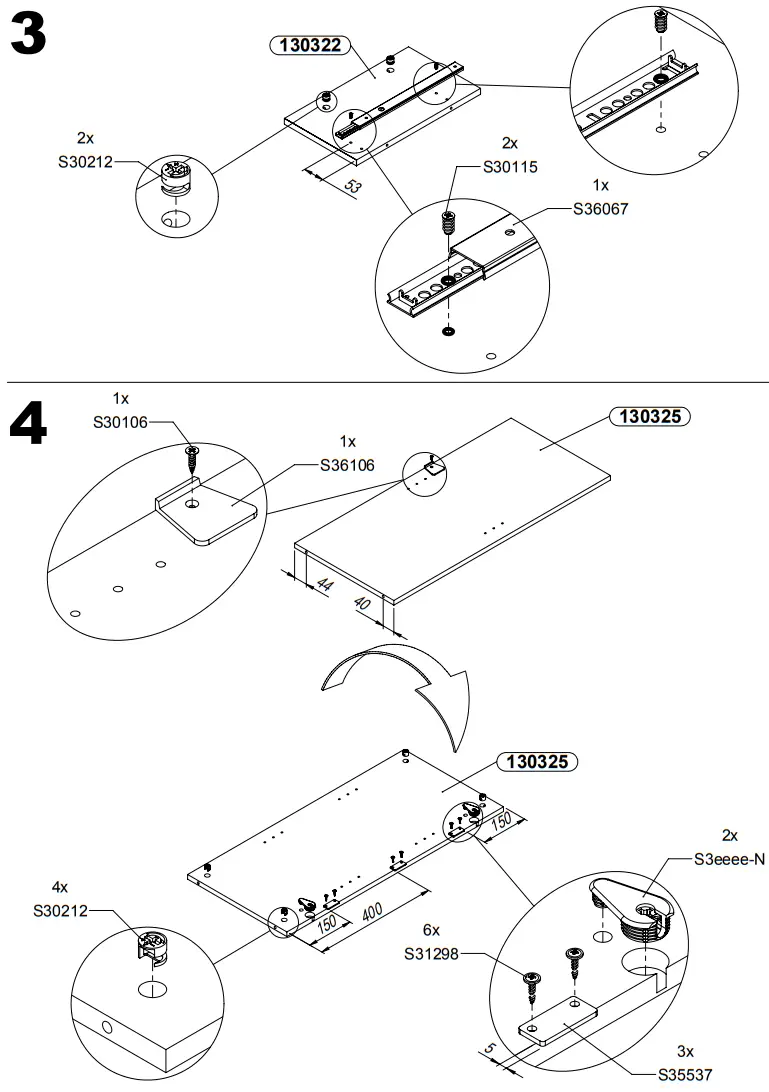

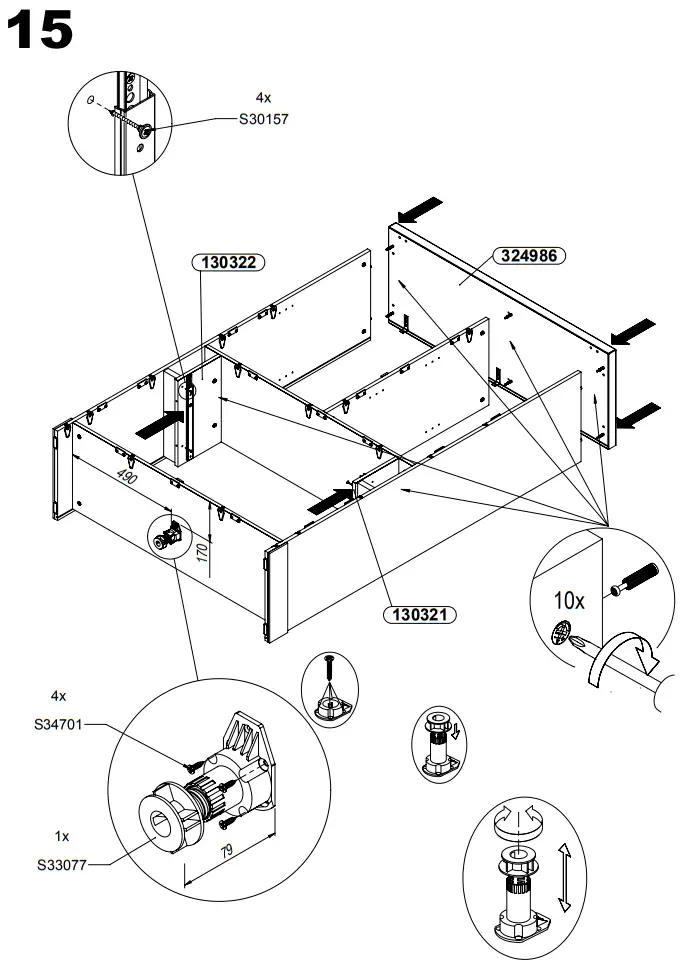

FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - fig 5FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - fig 6FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - fig 7FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - fig 8FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - fig 9FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - fig 10FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - fig 11FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - fig 12FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - fig 13FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - fig 14FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - fig 15FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - fig 16FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - fig 17FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - fig 18FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - fig 19FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - fig 20FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - fig 21FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - fig 22

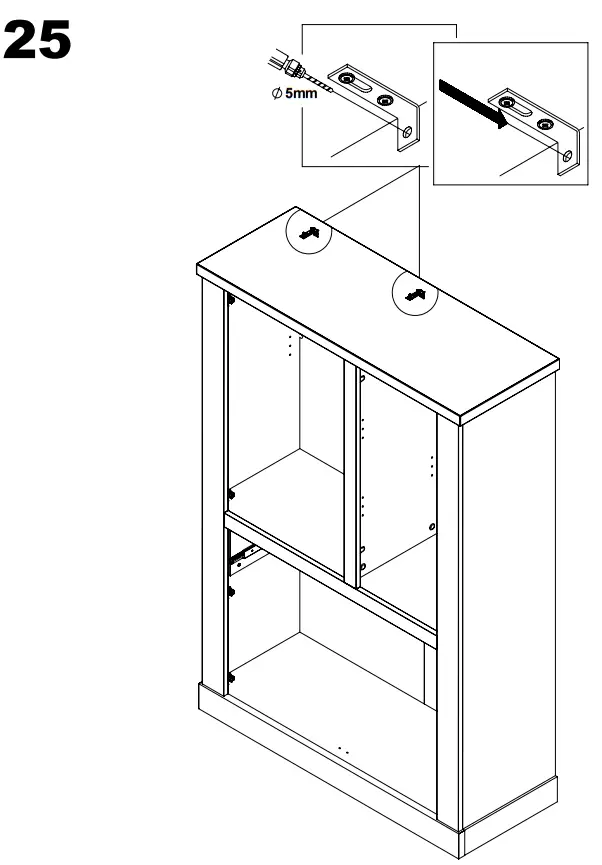

Before suspending or fixing furniture to the wall (in order to prevent falling over), check the type and strength of the wall. Select wall plugs and screws appropriate for the given type of the wall. In the case of doubts, contact a specialist. The installation must be performed by a competent person.
To prevent the piece of furniture from falling over, please attach it permanently to the wall.

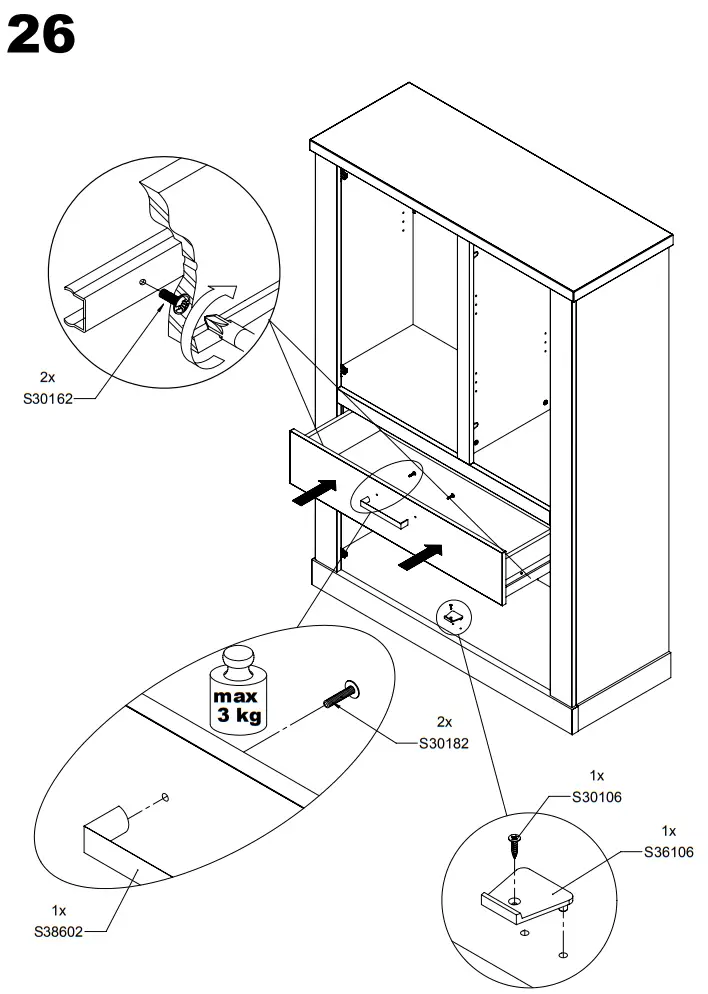

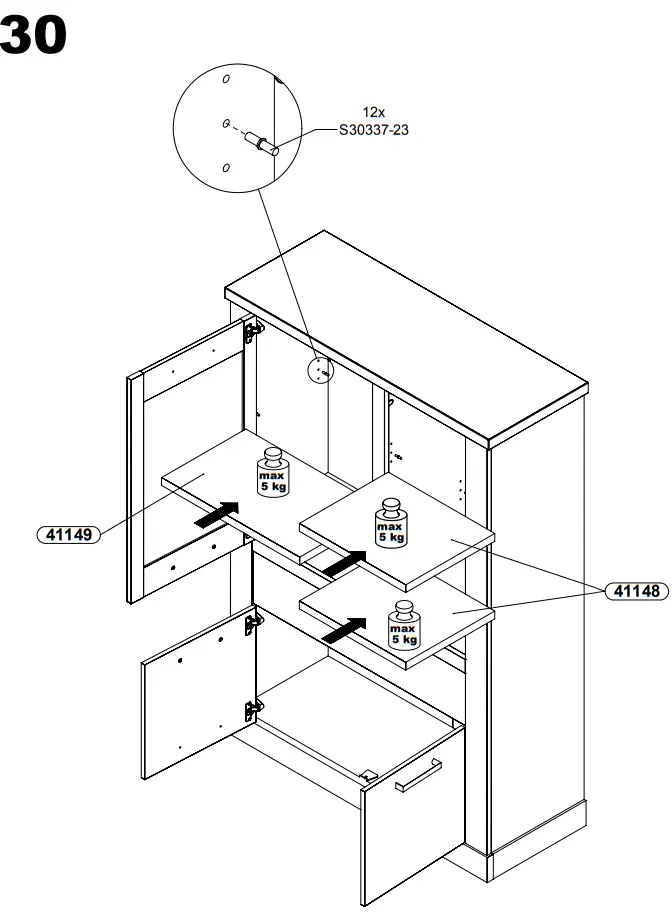

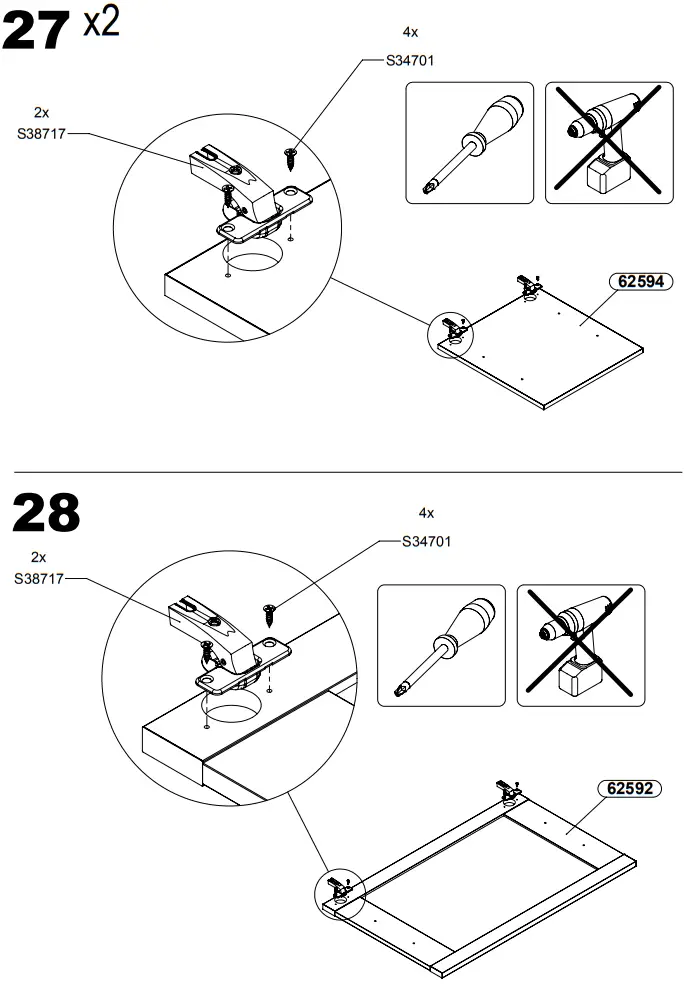

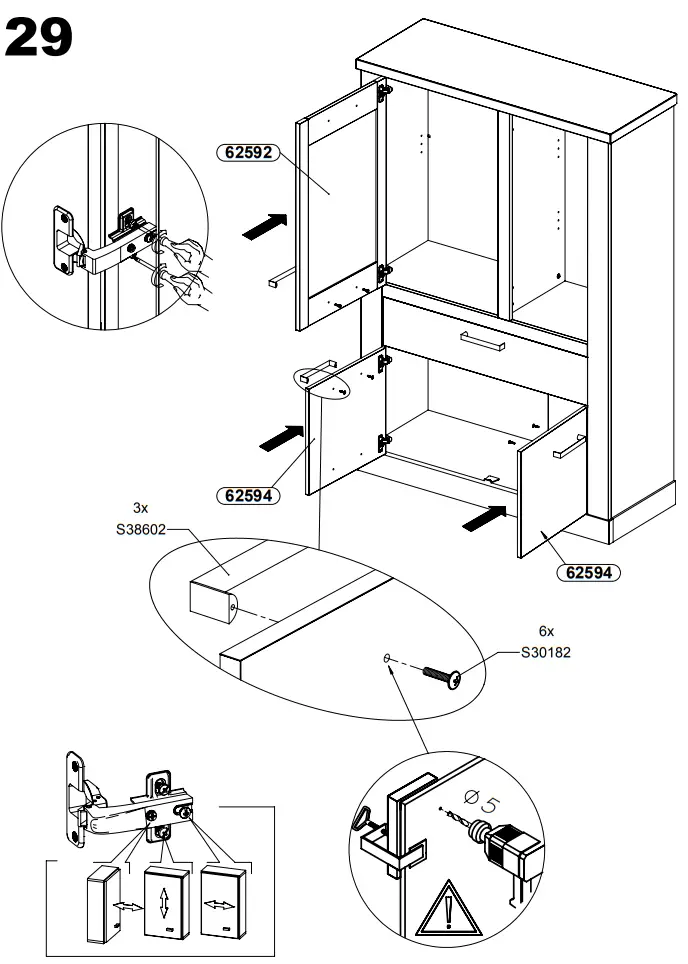

FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - fig 23FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - fig24FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - fig 25FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - fig 26FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - fig 27FORTE DURV521L-C818 DURO Highboard Display Cabinet with 2 Doors - fig 28

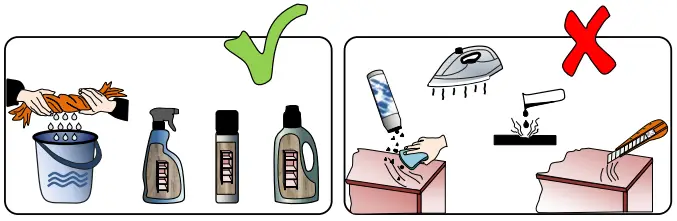

GUIDELINES FOR FURNITURE CARE

Please follow the below specified remarks in order toproperly take care of your furniture:
A clean dry soft fabric must be used for cleaning. If thefurniture requires thorough cleaning, then you canslightly moistened it with water or cleaning agentdesigned for furniture cleaning, and subsequently the cleaned elements must be wiped until they’re dry.Metal and glass parts must be cleaned usingcommercially available cleaning agents designed forcleaning of this type of materials, in accordance withthe included instructions.
Do not use corrosive agents, scouring agents andother agents if their intended use is unknown.
The cleaning agents must have clear marking that they are intended for cleaning furniture.
WARNING!!! High gloss elements, from which theprotective foil was removed, may be cleaned and usedonly after 72 hours.
