HDC-P1
Three 2/3-inch Power HAD FX CCD sensors full HD compact system camera with HD-SDI output
Overview
Uncompromising, Full-HD performance from compact camera
There is increasing demand for small “Box”-type or “Point-Of -View” cameras with the flexibility to shoot from almost anywhere while still delivering highest quality fullHD pictures for use standalone or in seamless integration with content from full-size cameras. The HDC-P1 delivers unprecedented picture quality thanks to its full use of the
technologies from Sony’s flagship HDC Series studio cameras. Three 2/3″-inch type Power HAD FX CCDs offer a sensitivity of F11 at 1080/50i or F10 at 1080/59.94i. A
wide range of formats are supported, including 720/50P, 59.94P, and 1080 50/59.94P, 23.98PsF, 24PsF, 25PsF, and 29.97PsF capabilities available via optional software
upgrades. Uncompromising, Full-HD performance from compact camera
It is also the first camera of its class to feature dual ND/CC filters, both of which are servo controlled, and its ultra-narrow, 86mm body makes it ideal for applications such as 3D. Other applications include a range of unmanned and point-of-view HD applications, such as stadiums, conference rooms and schools. It can also be used as a “companion” camera in automated broadcast studios. Compromise-free HD Picture Quality Compromise-free HD Picture Quality
Features
Despite its diminutive dimensions, the HDC-P1 delivers outstanding quality, full-HD images. Three 2/3-inch type full HD “Power HAD FX” CCDs offer a sensitivity of F11 at 1080 50i and a high signal-to-noise ratio of -58 dB.
Shoot Anywhere
Compact and lightweight, the HDC-P1 is ideal for capturing HD-quality images in locations and from angles where bulky production HD cameras cannot be installed.
Weighing only 1.7 kg (3 lb 12 oz) enables easy installation in space-constrained and awkward areas such as on a crane head or helicopter. The supplied tally unit can be easily detached from the camera body, minimizing the camera size to be fitted in, for example, a pan/tilt head or an underwater housing.
Easily integrated with your existing systems
Easily integrated with your existing systems The HDC-P1 camera is fully compatible with Sony’s current master set-up units (MSU) and remote control panels (RCP). This flexibility makes it easy to integrate with everything from extensive multi-camera systems or simple point-to-point systems.
This product contains pre-installed software and requires the This product contains pre-installed software and requires the purchase of licence keys to activate some functions. purchase of licence keys to activate some functions.
2/3″ full HD “Power HAD FX” CCDs
Three 2/3″-inch type Power HAD FX CCDs offer a sensitivity of F11 at 1080/50i or F10 at 1080/59.94i. A wide range of formats are supported including 23.98PsF, 24PsF, 25PsF, and 29.97PsF capabilities available via optional software upgrades.
Compact and Lightweight Design
The HDC-P1 weighs only 1.7 kg (3 lb 12 oz) and its dimensions are a compact 86mm(W) x 130mm(H) x Compact and Lightweight Design 189mm(D), allowing easy installation in spaceconstrained and awkward areas such as on a crane head or helicopter.
Two remote control optical filters
The HDC-P1 is the first camera of its type with two optical filters – Neutral Density (ND) and Colour Correction (CC) – to provide more flexibility under changing lighting conditions and easier picture matching with full size system cameras. Both filters are servo driven so they can easily be controlled remotely.
Two remote control optical filters
Equivalent picture quality and control system as standard Sony HD camera system Equivalent picture quality and control system as standard Sony
HD camera system
The HDC-P1 camera not only delivers comparable picture quality to a full-size Sony system camera, it is also fully compatible with Sony’s current Master Set-up Units (MSU) and Remote Control Panels (RCP) using 700 Protocol – the same control system as HDC Series Cameras. This flexibility allows for comprehensive camera systems or simple point-to-point systems.
Specifications
| General | |
| Operating temperature | -20 |
| Mass | Approx. 1.7kg (3 lb 12 oz, without VF and lens) |
| Camera | |
| Pickup | 3-CCD |
| Effective | 1920 |
| elements | F1.4 |
| Spectrum | 1: Clear, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND A: CROSS, B: 3200K, C: 4300K, D: 6300K |
| Built-in | Yes |
| Servo | Sony |
| Sensitivity | F11 at 2000 lx (3200K, 89.9% reflectance) |
| Signal-to-noise ratio | Typical -58dB (NS Max. -64 dB) |
| Horizontal resolution | 1000 |
| Shutter speed selection | 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 s (1080/59.94i) 1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000 s (1080/50i) |
| Modulation | 45% or more horizontally (800 TV lines at centre, 27.5 MHz, with typical lens), Pb/Pr: 80% of 12 MHz |
| Input connectors | |
| Genlock | BNC type (1), 1.0 Vp-p, 75Ω HD: SMPTE-274M, tri-level sync, 0.6 Vp-p, 75Ω SD: Black burst (NTSC: 0.286 Vp-p,75Ω/PAL: 0.3 Vp-p, 75Ω) |
| Output connectors | |
| BNC type (2), 3G/HD/SD-SDI | BNC type (2), HD-SDI/SD-SDI selectable |
| VBS | BNC |
| Input/ouput connectors | |
| EXT | D-sub |
| Lens | 12-pin |
| Remote | 8-pin |
| LAN | RJ-45 (1), 10Base-T/100BaseTX |
| Supplied Accessories | |
| Operation Manual | |
| Tally number | |
HDC-2500
3G double-speed multi format HD system camera
HDC-2400
3G multi format HD system camera
HDC-2570
Multi-format HD portable system camera with digital triax transmission interface

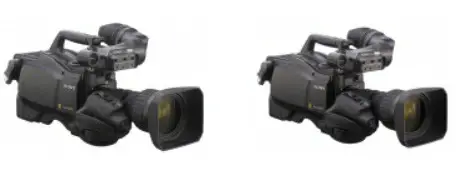

HSC-300RF
Three 2/3-inch Power HAD FX CCD sensors portable HD / SD camera for fibre operation and
 |  |  | |||

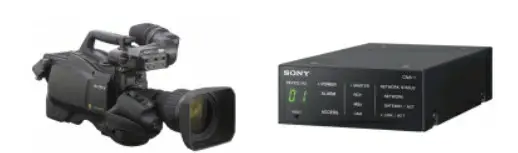

| HSC-300R Three 2/3-inch Power HAD FX CCD sensors portable HD / SD camera for digital triax operation and large lens options | HSC-100RF Three 2/3-inch Power HAD FX CCD sensors portable HD / SD camera for fibre operation | HSC-100R Three 2/3-inch Power HAD FX CCD sensors portable HD / SD camera for digital triax operation | CNA-1 Camera control network adaptor1 | HDC2000W 3G double-speed multiformat HD studio system camera (beige) | HDC2000B 3G double-speed multiformat HD studio system camera (black) |

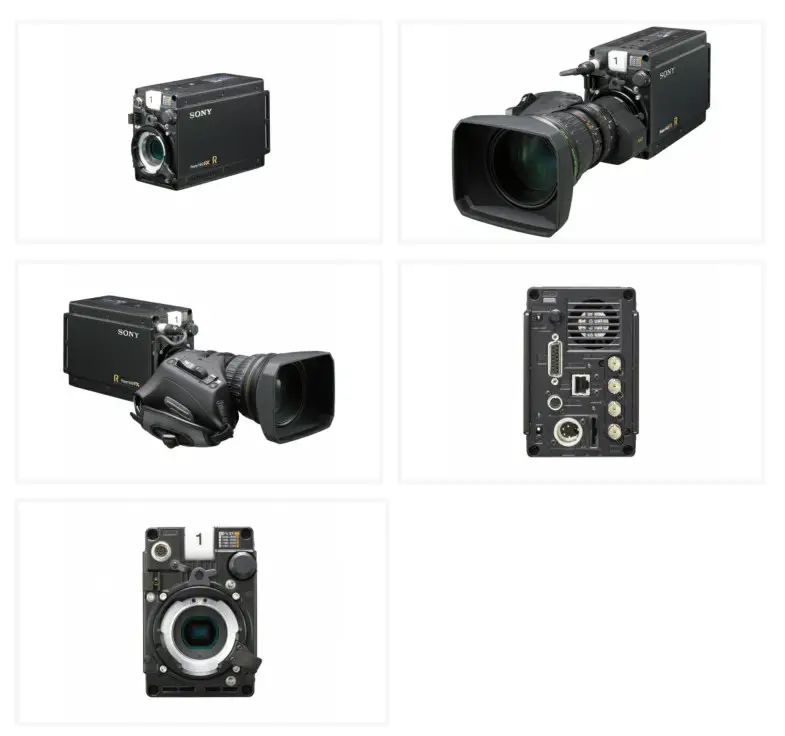

Gallery
