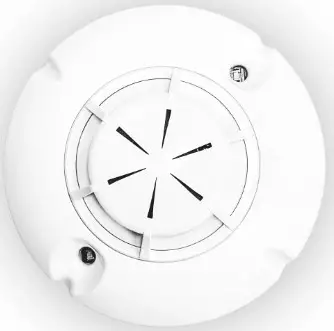

SMK-U01 Smoke Detector
Installation Guide
Quick Install Guide
Smoke Detector (USB)
ZPE-SMK-U01
COMPATIBLE WITH
ALL NODEGRID DEVICES
ZPESYSTEMS.COM
Product Specifications ZPE-SMK-U01
| HARDWARE | |
| Smoke Sensitivity | Complies with EN 54-7:2000+ A1:2002 |
| Protection Requirements | IP30 Ingress |
| Requirements | ZPE-IO8-U01 & ZPE-RL4-U01 SOLD SEPARATELY Must be installed to the Nodegrid environment prior to setting up Smoke Detector |
| Supply Voltage | 12V with USB Adapter |
| Operating | -10º to 55° C (14º to 131º F) |
| Temperature & Humidity | 93±3% at 40° C (104º F) |
| Cables | Relay & Power Relay &PowerExtension: 4 meters (13 feet) IO Extension Cable: 4 meters (13 feet) USB Adapter: 1 meter (3.33 |
DESCRIPTION
Detects smoke in the local environment. Use in conjunction with ZPE 4-Channel Relay and 8-Channel GPIO Modules (USB-powered). Sends notification when the detector is triggered and remotely powers off. Control and read status with CLI, WebUI, SNMP, or Restful APIs.

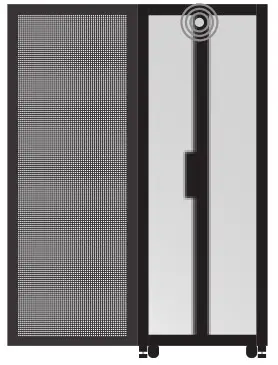

We suggest placing this product here
*Rack cage may be a different model or size.
FOR MOUNTING
a. Detach base from unit.
b. Mount base with screws, top down and parallel to the ground.
ASSEMBLED IN THE USA
ZPESYSTEMS.COM +1.844.4ZPESYS
All rights reserved. September 8, 2022
c. Reattach top cover.

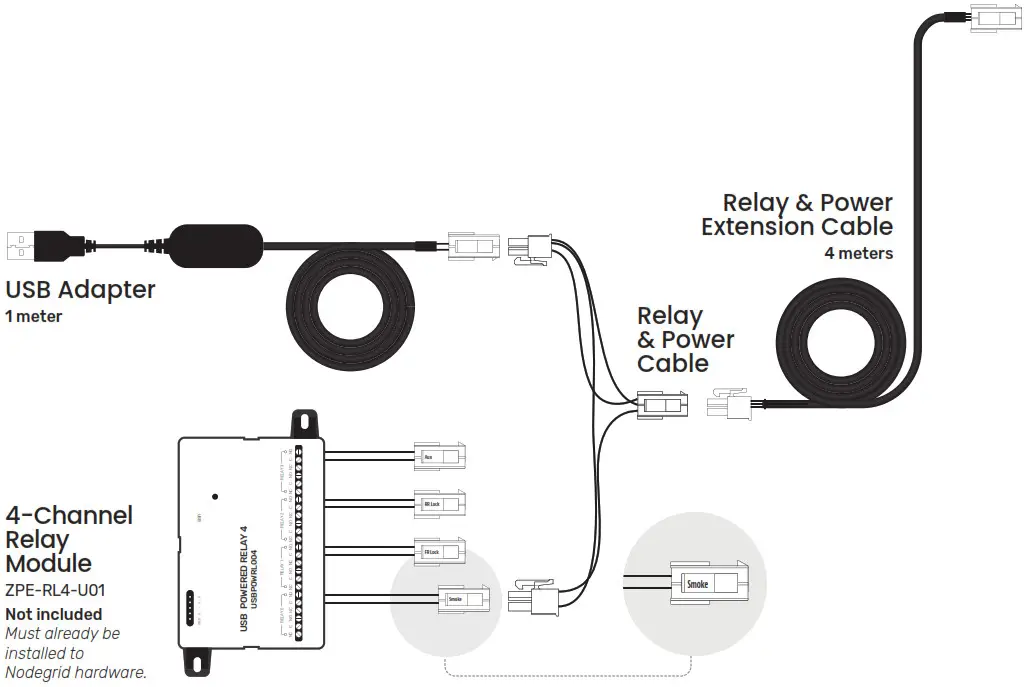

Let’s set up your Smoke Detector
- Make sure that the GPIO and Relay Modules are on hand and set up properly to a Nodegrid device before connecting the pieces as shown. Refer to the GPIO and Relay Module Quick Install Guides for details.
- Once everything is connected, mount to rack then plug the USB Adapter to ANY available live USB port to supply power to the Smoke Detector.
Mounting instructions in back.
- Ensure minimum Nodegrid OS version meets sensor requirements. Upgrade Nodegrid OS to minimum version 5.4.1
- For more information, visit the “Sensor Quick Install Guide” section at: zpesystems.com/user-manuals/
- OPTIONAL: To configure data collection in ZPE Data Lake, refer to Appendix C in the latest ZPE Cloud Manual at: zpesystems.com/user-manuals/
