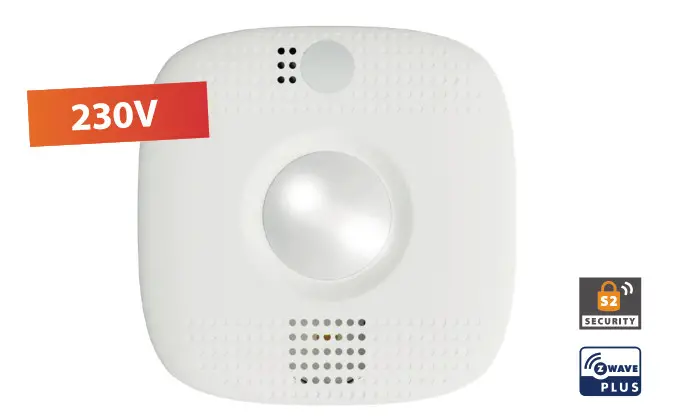

HEATIT Z-SMOKE
DETECTOR
-multifunctional smoke detector
The Heatit Z-Smoke Detector is a multifunctional wireless smoke sensor for smart home systems. With its powerful features, the sensor is designed to protect the family from potential fire hazards. With its compact and streamlined design, the Heatit Z-Smoke Detector blends effortlessly with your home decor and gives you extra security.
The Heatit Z-Smoke Detector is designed to provide the sensor with more features and capabilities. Therefore, you can use optional additional features such as a built-in PIR motion sensor, temperature sensor, and/or emergency lighting. Heatit Z-Smoke Detector has a built-in PIR motion sensor. You can choose to use it to create custom scenes to light up the hallway in the middle of the night or help users save energy. The built-in emergency light can also be set up to provide visual alarms and alerts.
The Heatit Z-Smoke Detector uses a cutting-edge reflective photoelectric sensor in conjunction with an advanced microprocessor to deliver optimum performance by detecting developing fires and heat generation. When it comes to security, there is no room for compromise.
PRODUCT INFO
Heatit Z-Smoke Detector
FEATURES
- Multifunctional smoke detector
- 230V
- Smoke Detection
- Heat Detection
- Serial connection capability (via gateway)
- Built-in motion sensor
- Built-in temperature sensor
- Built-in emergency lighting
- Back-up battery
- Mute button to silence unwanted alarms
- Tamper switch
- Firmware update (OTA)
- Supports encryption mode S0, S2 Unauthenticated Class
This product is a security-enabled Z-Wave Plus product with encryption. The product must be used with a security-enabled Z-Wave Controller in order to fully utilize the product.
TECHNICAL DATA
Protocol – Z-Wave
Chip -Z-Wave 500 chip
Rated voltage – 230V AC 50Hz, 200mAh, NiMh back-up battery
Power consumption – 2,2W
Temperature sensitivity – ±1°C
Alarm – 85dB at 3 meters distance
Smoke sensor – Photoelectric
Ambient temperature – 0°C to 50°C
Humidity – Max. 85% RH
Range, PIR – Up to 8m at 3m mounting height
IP Code – IP 20
Size (LxWxH) – 105mm x 105mm x 41mm (ex. adapter)
Approvals – Z-Wave Plus, CE, RoHS, EN 14604:2005, 14604/AC:2008
MAINTENANCE
The product should be tested regularly. Vacuum or blow the dust off the smoke detector regularly. The smoke detector must be replaced every 10 years.
WARRANTY 2 years
| ART. NO. | PRODUCT | Z-WAVE FREQUENCY |
| 45 126 89 | Heatit Z-Smoke Detector 230V – multifunctional Smoke Detector | EU 868,4MHz |
The product is also available in other Z-Wave frequency versions on request.

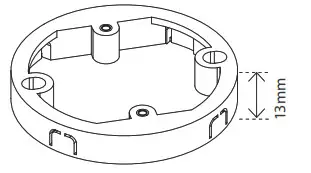

Spacing adapter for mounting on ceiling. Included in package.
Product specifications may change without further notice. All electrical installations must be carried out by a licensed electrician.
The product must be installed in accordance with national building codes and our installers manual.
t must be installed in accordance with our installers manual or national building codes
