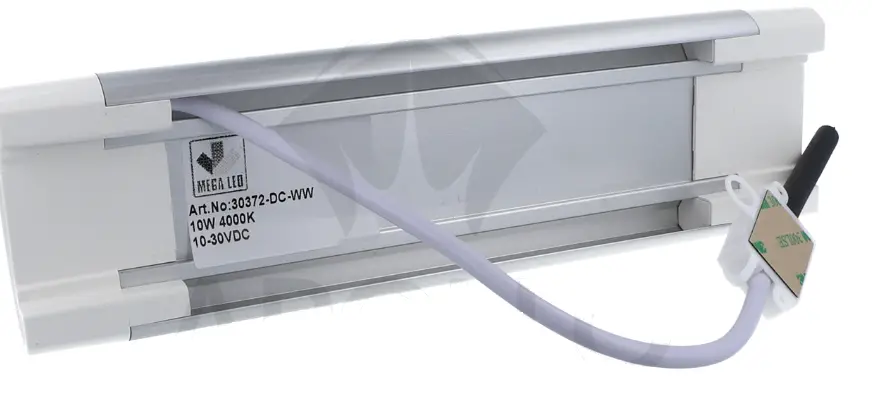

MEGA LED Led Flat Linear Compact Lights
European Quality
Color coding of power cables for AC model
Blue = Neutral, Brown = Live
Yellow-Green = Earth/Ground
Led Flat Linear Compact Lights Installation Instructions
- Drill holes in the preferred position.
- Screw the clips.
- Connect the power cable to the connection box
- Install the light on the clips.
Technical Specifications
| Model | 30372-300mm | 30387-600mm | 30388-1200mm | 30372-DC-300mm | 30387DC-600mm |
| Input Voltage(V) | 100-265V AC | 10-30VDC | |||
| Frequency | 50/60 Hz | – | – | ||
| Light Color (CCT) | 3000K, 4000K, 5000K | ||||
| Led Power | 10 Watt | 20 Watt | 40 Watt | 10 Watt | 20 Watt |

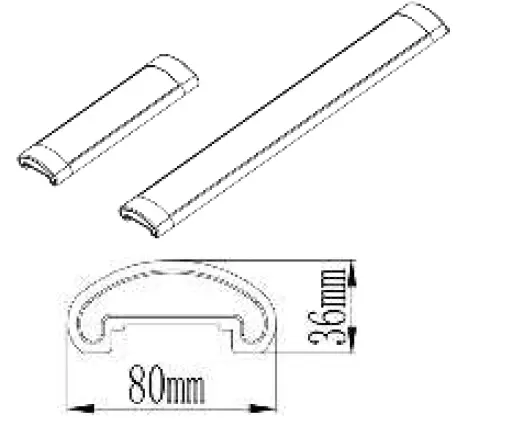

| Product Dimensions | Length 300mm Width 80mm Height 36mm | Length 600mm Width 80mm Height 36mm | Length 1200mm Width 80mm Height 36mm | Length 300mm Width 80mm Height 36mm | Length 600mm Width 80mm Height 36mm |
WARNING RISK OF ELECTRIC SHOCK
Cautions:
- Disconnect or turn off power before installation.
- Verify that the supply voltage is correct by comparing it with the luminaire label information.
- Wear gloves and safety glasses at all times when installing the luminaires.
- Avoid direct eye exposure to the light source when it is turned on.
- Please read product manual carefully before installing.
- Please make sure the products have been not damaged during the transit.
- Product must be not be installed near open flame and high temperature objects.
