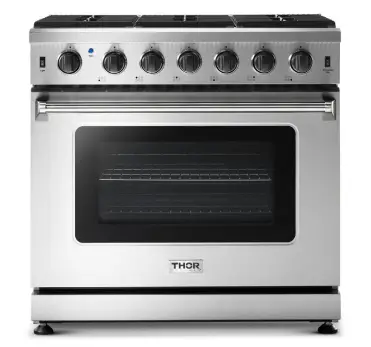

THOR KITCHEN LRG3601U, LRG3601ULP 36 Inch Gas Range
Product: 36 Inch Gas Range in Stainless Steel
Model Number: LRG3601U / LRG3601ULP
TECHNICAL DETAILS
| Fuel Type | Natural Gas / LP Convertible |
| Electrical Requirements | 120V |
| Circuit Breaker (A) | 15 or 20A |
| Frequency (Hz) | 60 Hz |

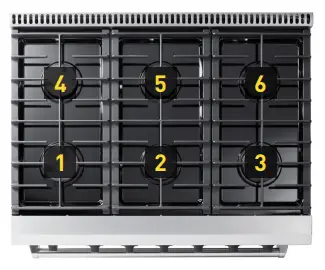

BURNER PERFORMANCE
| Total Burners | 6 |
| [1] Front Left (Single) | 18,000 BTU |
| [2] Front Middle (Single) | 12,000 BTU |
| [3] Front Right (Single) | 18,000 BTU |
| [4] Rear Left (Single) | 9,000 BTU |
| [5] Rear Middle (Single) | 12,000 BTU |
| [6] Rear Right (Single) | 9,000 BTU |
| Tube Broil burner | 10,000 BTU |
| U-shape burner (30” Oven) | 18,500 BTU |
FEATURES & BENEFITS
- High-Powered BTU Burners – The high-powered 18,000 BTU burner provides fast, intense heat for creating large family meals and restaurant-quality dishes
- Large Oven Capacity – 6.0 cu. ft. oven capacity can accommodate multiple dishes for enhanced cooking
- Storage Space – Storage drawer provides additonal storage space for cooking trays and other kitchen utensils.
- Convection Fan – Commercial convection fan provides controlled heat distribution for fast and efficient cooking
- Even Heat Broiler – Reflective gas tube broiler distributes heat evenly to sear your food and seal in the juices
- Continous Cast-Iron Grates – Heavy-duty continuous cast-iron cooking grates that can handle any size cookware
- Pro-style Knobs – Black burner control knobs add style to the bold range design
- Porcelain Spill Tray – Single-piece black porcelain spill tray catches the mess and makes cleanup easy
- Porcelain Interior – The gray porcelain oven interior adds a stylish touch and is easy to clean
ACCESSORIES
(NOT INCLUDED)
| ACCESSORIES (NOT INCLUDED) | |
| Liquid Propane Gas Conversion Kit | LPKLRG3601U |
| Wok Ring | WK01 |
| Cast Iron Reversible Griddle | RG1022 |

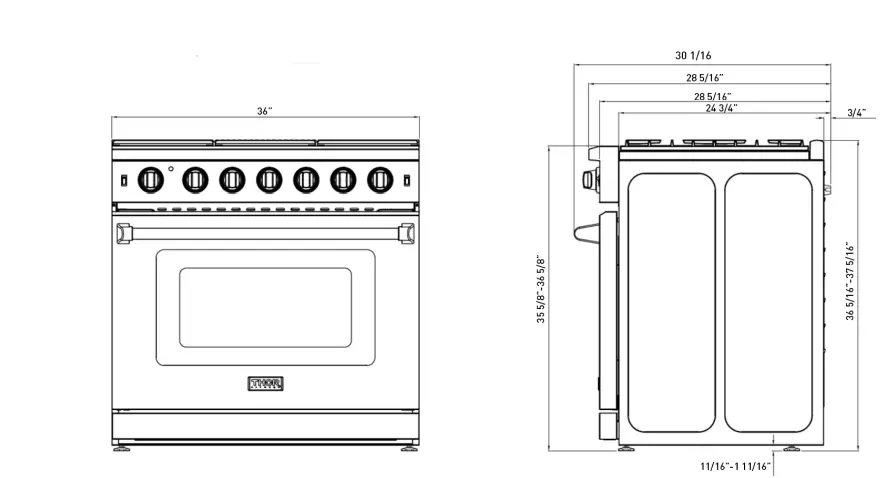

PRODUCT DIMENSIONS
| Product Width | 36” |
| Product height (from bottom to top of back splash) | 36 5/16”- 37 5/16” |
| Product height (from bottom to top of side panel) | 35 5/8”-36 5/8” |
| Product depth (from back panel to bullnose) | 28 5/16” |
| Product depth (from back panel to control board) | 27 1/16” |
| Product depth (from back panel to side panel front) | 24 3/4” |
| Depth of control panel (minimum) | 2 1/4” |
| Depth of control panel (bullnose) | 3 9/16” |
| Adjustable Legs | Not to Exceed 1” |
| REQUIRED CUTOUT SIZE |
| 36 1/8” x 24 3/4” x 35 5/8” (+1”) |
