MANUAL
MODEL VERSION / DATE
ACSALMPIRP l. / 25. 3. 2022
User Guide

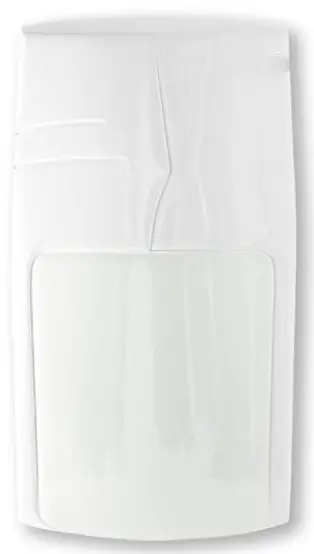

ACSALMPIRP Alarmex Pro Wireless PIR Sensor with Immunity
EVOLVEO Alarmex Pro, wireless PIR sensor with immunity to small animal movement
Thank you for choosing our product. Please read these instructions carefully before use.
This product is only compatible with EVOLVEO Alarmex Pro, a smart wireless WiFi/GSM alarm. Pair with the control panel according to the instructions in the EVOLVEO Alarmex PRO user manual.
The detector uses advanced digital processing technology.
It has automatic temperature compensation function, low voltage warning, intelligent energy saving, etc. Based on the detection of the human body’s infrared heat energy, it sends a wireless signal that triggers a host alarm. Its advantages are low environmental impact, low number of false alarms, easy installation, reliable and safe use, etc.
Installation description
Pair the detector according to the instructions in the EVOLVEO Alarmex Pro manual.
Switch the power switch on the back of the device to the “ON” position. The LED lights up when infrared radiation from the human body is detected and a wireless signal is sent to activate the device.
Warning:
– The recommended installation height is 1.8~2 meters above the ground, the detection distance is ≤8m, the transmission distance is ≤80 meters (without obstacles).
Test the distance before installation.
– We do not recommend installation directly against mirrors, doors and windows.
– We do not recommend installation near sources of cold and heat.
– Do not install detectors in areas with constant airflow that could cause a false alarm. For example, a moving curtain due to a draught.
Detector switches
The sensitivity of the detector can be switched using a combination of switches located on the detector.
A-ON + B-ON – High sensitivity
A-OFF + B-ON – Medium sensitivity
A-ON + B-OFF – Low sensitivity
Toggle the “Notification” switch to turn off/on sending notifications.
Use the “LED” switch to switch the LED flashing off/on.
Technical parameters
| Model | ACSALMPIRP |
| Working voltage | 9V (250mAH) |
| Standby current | 540uA |
| Current on activation | 515mA |
| Working temperature | -10-50°C |
| Detection zone | 58m / 110° |
| Low battery warning | 2V (LED flashes rapidly) |
| Wireless connection parameters | 433MHz |
| Relative humidity | 585% |
| Dimensions | 105 * 58 * 37 mm |
Warranty and post-warranty service
Repairs and servicing can only be carried out at an authorized service point for EVOLVEO products (more at www.evolveo.com), otherwise you may damage your mobile phone and lose your warranty.
Disposal: The crossed-out container symbol on the product, in the accompanying documentation or on the packaging means that in EU countries, all electrical and electronic equipment, batteries and accumulators must be disposed of separately at the end of their useful life as separated waste. Do not dispose of these products in unsorted municipal waste.
ECLARATION OF CONFORMITY
The company Abacus Electric, s.r.o. hereby declares that the EVOLVEO ACSALMPIRP telephone meets the requirements of the standards and regulations that are relevant for the given type of equipment.
The full text of the Declaration of Conformity can be found at http://ftp.evolveo.com/ce/
Importer
Abacus Electric, s.r.o.
Planá 2, 370 01, Czech Republic
Producer / Producer / Manufacturer / Gyártó
Naxya Limited
No. 5, 17/F, Strand 50, 50 Bonham Strand, Sheung Wan,
Hong Kong
Made in China
Copyright © Abacus Electric, s.r.o.
www.evolveo.com www.facebook.com/EvolveoCZ
All rights reserved.The appearance and technical specifications of the product are subject to change without notice.
