MANUAL
MODEL VERSION / DATE
ACSALMMST l. / 25. 3. 2022
ACSALMMST Alarmex Pro Wireless Door Window Detector
EVOLVEO Alarmex Pro, wireless door/window detector Thank you for choosing our product. Please read these instructions carefully before use.
This product is only compatible with EVOLVEO Alarmex Pro, a smart wireless WiFi/GSM alarm. Pair with the control panel according to the instructions in the EVOLVEO Alarmex PRO user manual.

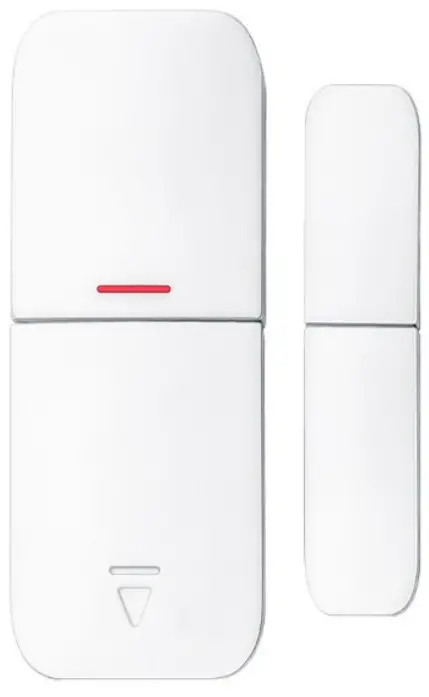

The door sensor consists of one transmitter that is attached to the door (window) frame and one magnetic strip that is attached to the door (window) sash with double-sided adhesive tape.
Thoroughly degrease both surfaces, preferably with alcohol, before applying the double-sided tape.
Warning: After removing the sticker, dirt may remain and can be removed with an alcohol-based cleaner.
Remark:
– The transmitter should be parallel to the magnetic strip and the two parts should be as close together as possible, the distance should not exceed 10 mm.
– The gap between the magnetic strip and the transmitter should not exceed 10 mm and attach the magnetic strip to the right side of the transmitter (marked with an arrow). Only when a gap is created between them will the door sensor send an alarm signal.
– Open the door or window. If the indicator on the transmitter flashes, it means that the sensor is working normally.
Technical parameters
| Model | ACSALMMST |
| Working voltage | 12V (1* 23A battery) |
| Standby current | <8uA |
| Current on activation | 15mA |
| Transmission distance | <100m (without obstacles) |
| Wireless connection parameters | 433MHz |
| Operating temperature | 0-55°C |
| Dimensions | Transmitter: 65*24*14mm Sensor: 51*12*12*mm |
Warranty and post-warranty service
Repairs and servicing can only be carried out at an authorized service point for EVOLVEO products (more at www.evolveo.com), otherwise you may damage your mobile phone and lose your warranty.
Disposal: The crossed-out container symbol on the product, in the accompanying documentation or on the packaging means that in EU countries, all electrical and electronic equipment, batteries and accumulators must be disposed of separately at the end of their useful life as separated waste. Do not dispose of these products in unsorted municipal waste.
DECLARATION OF CONFORMITY
The company Abacus Electric, s.r.o. hereby declares that the EVOLVEO ACSALMMST telephone meets the requirements of the standards and regulations that are relevant for the given type of equipment.
The full text of the Declaration of Conformity can be found at http://ftp.evolveo.com/ce/
Importer
Abacus Electric, s.r.o.
Planá 2, 370 01, Czech Republic
Producer / Producer / Manufacturer / Gyártó
Naxya Limited
No. 5, 17/F, Strand 50, 50 Bonham Strand, Sheung Wan,
Hong Kong
Made in China
Copyright © Abacus Electric, s.r.o.
www.evolveo.com
www.facebook.com/EvolveoCZ
All rights reserved.
The appearance and technical specifications of the product are subject to change without notice.
