MANUAL
MODEL VERSION / DATE
ACSALMRMT l. / 25. 3. 2022
User Manual

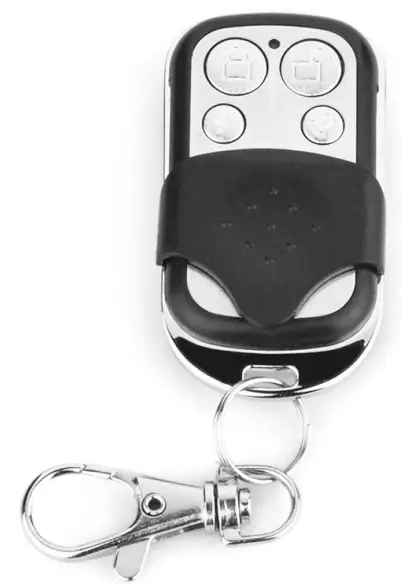

ACSALMRMT Alarmex Pro, Remote Control/Key fob
EVOLVEO Alarmex Pro, remote control/key fob
Thank you for choosing our product. Please read these instructions carefully before use.
This product is only compatible with EVOLVEO Alarmex Pro, a smart wireless WiFi/GSM alarm. Pair with the control panel according to the instructions in the EVOLVEO Alarmex PRO user manual.

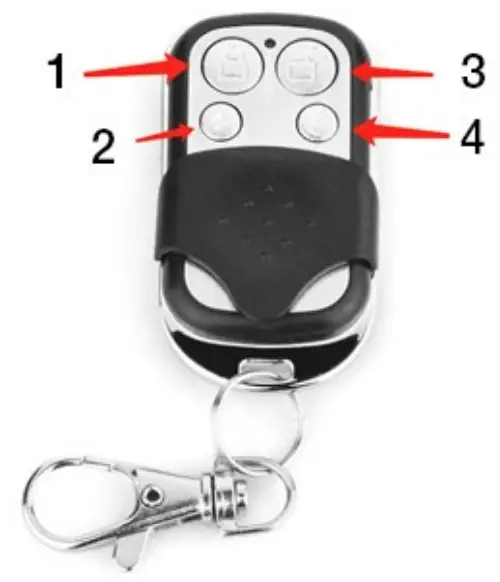

- Total activation
- Partial activation
- Deactivated
- SOS
Technical parameters
| Model | ACSALMRMT |
| Working voltage | 12V (1* 27A battery) |
| Standby current | <5uA |
| Current on activation | 15mA |
| Transmission distance | <80m (without obstacles) |
| Wireless connection parameters | 433MHz |
| Operating temperature | 0-55°C |
| Dimensions | 53*28*11 mm |
Warranty and post-warranty service
Repairs and servicing can only be carried out at an authorized service point for EVOLVEO products (more at www.evolveo.com), otherwise you may damage your mobile phone and lose your warranty.
Disposal: The crossed-out container symbol on the product, in the accompanying documentation or on the packaging means that in EU countries, all electrical and electronic equipment, batteries and accumulators must be disposed of separately at the end of their useful life as separated waste. Do not dispose of these products in unsorted municipal waste.
ECLARATION OF CONFORMITY
The company Abacus Electric, s.r.o. hereby declares that the EVOLVEO ACSALMRMT telephone meets the requirements of the standards and regulations that are relevant for the type of equipment.
The full text of the Declaration of Conformity can be found at http://ftp.evolveo.com/ce/
Importer
Abacus Electric, s.r.o.
Planá 2, 370 01, Czech Republic
Producer / Producer / Manufacturer / Gyártó
Naxya Limited
No. 5, 17/F, Strand 50, 50 Bonham Strand, Sheung Wan,
Hong Kong
Made in China
Copyright © Abacus Electric, s.r.o.
www.evolveo.com www.facebook.com/EvolveoCZ
All rights reserved.
The appearance and technical specifications of the product are subject to change without notice.
