IX-NVP2
3-Gang Sub Station
INSTRUCTIONS

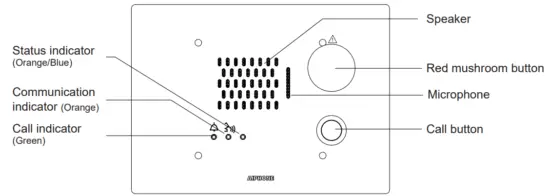

The IX-NVP2 is a vandal and weather-resistant sub station designed for use with the IX Series IP intercom system. It is constructed of 12 gauge carbon steel with a white powder-coated finish. It has a standard call button and a red mushroom call button that wires to the option input. The mushroom call button is programmed independently of the standard call button. The IX-NVP2 will flush mount horizontally into a 3-gang masonry type box (Raco model 692 or equivalent) or surface mount using the SBX-NVP/A. Tamper-proof screws and a tool for installation are included.
Note: The IX-NVP2 will be treated as an IX-SS-2G when programming the station.

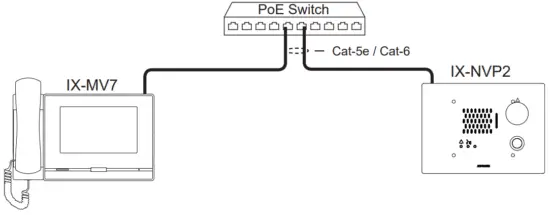

WIRING:
SPECIFICATIONS:
| Power Source: | 802.3af PoE compliant |
| Power Draw: | 3.36 Watts |
| Audio Codec: | G.711 (µ-law, A-law), G.722 |
| Protocols: | IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, SFTP, DHCP, NTP, DNS |
| Operating Temp: | -40° ~ 140°F (-40° ~ 60°C) |
| Dimensions: | 5-½” H x 7-½” W x 2″ D |
| Mounting: | Horizontal in a 3-gang masonry-type box. If mounted vertically, the unit will not be weather resistant. (Any damage caused due to vertical mounting will not be covered under warranty.) |
Aiphone Corporation
www.aiphone.com
[email protected]
800-692-0200
IX-NVP2 Instr
0319JD
