Spectrum PA-1045H Photoelectric Smoke Detector

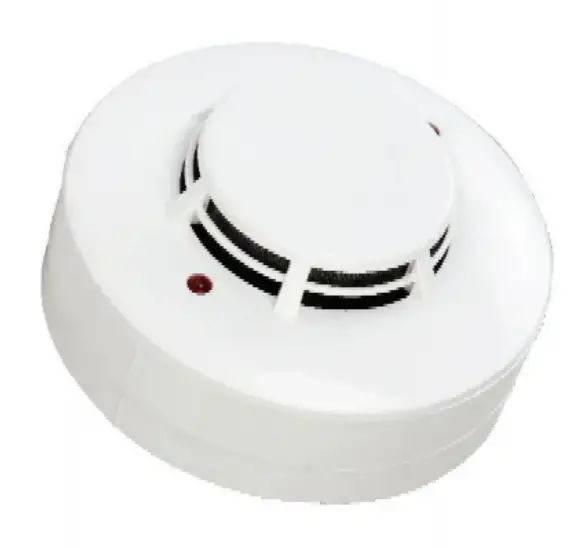

General View
INTRODUCTION
Photoelectric Smoke Detector runs by detecting the smoke particles. With special structure designed, and photoelectric signal processing technique, and dustproof, anti little fly and anti light interference, especially detecting the visible smoke caused by hidden or bright fire. It is widely used in house, shop, hotcl and storage etc.
Technical Specifications
| Supply voltage | DC 12V |
| Standby current | 5mA |
| Alarm current | 35mJ-\ |
| Operating temperature | -IO’C-SO’C |
| Opcrnling humidify | 95%RH |
| Mounting methot.I | Ceiling mouulod |
| Detecting range | 20m’ |
| LED Frequency | One time every IO sec |
| Output pottcm | Relay&LED is on |
| Sensor type | Jnrrared phol1Jclec1rie diode |
| Sensuivity | Dor ID dergrec |
PACKING
Detector, a set of 86*86 installation board, a piece of attachment, quality certifieate, a copy of instruction
INSTALLATION
- Choose a suitable position (normally mounted on the center of the ceiling of the detecting area) and mount the 86×86 fixture board on the sclccted position by fixing screws, then push the detector into the board and turn it, check ifit is steady or not.

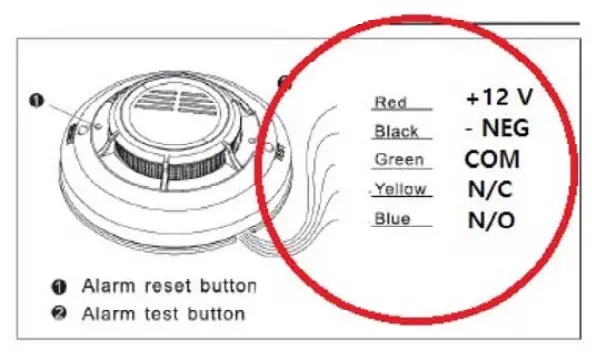

- Please connect the wire correctly according the specification. Red wire is connected with the positive pole of power. Black one is connected with the ground. Yellow and green are normally close. Blue and green are normally open.
USAGE
- Turn on the power, the detector comes into sclf-checking. Indicator LED flashes fifteen times (about 30 seconds) and then the detector comes into normal detecting state. After self-checking, the indicator LED flashes one time every 10 seconds.
- Push the test button down over a second, then the indicator LED will flash several times. It indicates the detector works normally. You can also blow a little smoke into the detector to test if it has a normal feature. After alarm, the detector should be reset manually by pressing the reset button and come into normal detecting state.
NOTICE
- The detector should not be placed in very hot, very cold, high wind speed surroundings and in the conditions where there is a lot of smoke or dust normally.
- The detector needs to be test one time every month.
- To ensure it has a normal performance, you should clean the detector with soft brush semiyearly. When cleaning turn off power firstly.
- For various reasons, including, but not limited to, changes in environmental conditions, electric or electronic disruptions and tampering, the Product may not perform as expected. The user is advised to take all necessary precautions for his/her safety and the protection of his/her property.
