SMD WiFi RGB LED
Downlight Instruction Manual
Model NO: 610295
610295 SMD WiFi RGB LED Downlight
Our supplier specializes in manufacturing SMD and COB LED downlights, LED oyster lights, LED track lights, LED high bay lights and other LED commercial lighting.The products have SAA,C-tick,CE,RoHS,CB,CUL,UL certificates,and strictly follow EU electrical safety standards. With SMT production lines, six power driver production lines and lamp production assembly lines,24 hours aging testing workshop, and more than 30 professional LED engineers and technicians, We can supply more than one million energy-saving LED products all over the world each year.
Features of SMD LED DOWNLIGHT:
- Energy saving: Our LED downlight save more than 90% power compared with the incandescent light bulb meanwhile it can provide the perfect luminance.
- Long lifespan: Our LED downlight has more than 50000 hours of lighting life which is equal even more than 5 to 10 times the lifespan of the energy-saving lamp.
- Good heat dissipation: epoxy encapsulation, lower calorific value
- Green health environmental protection: No Hg, Pb, and UV
- High CRC: Ra>80, makes colors look like the things really do
Application:
Applications: SMD LED DOWNLIGHT is widely applied to which traditional fluorescent lamps would normally be used. It appears in any place that needs light, such as factories, banks, hotels, stores, commercial buildings, shopping malls, supermarkets, underground garage&etc.

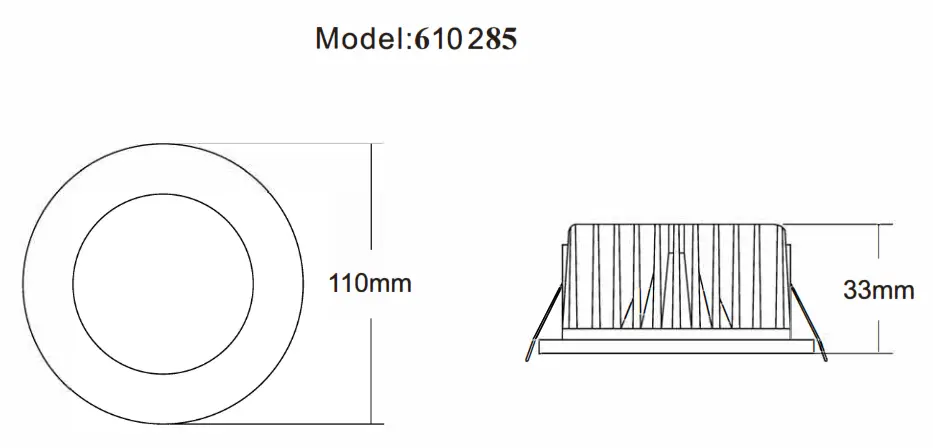

Physical Dimensions:

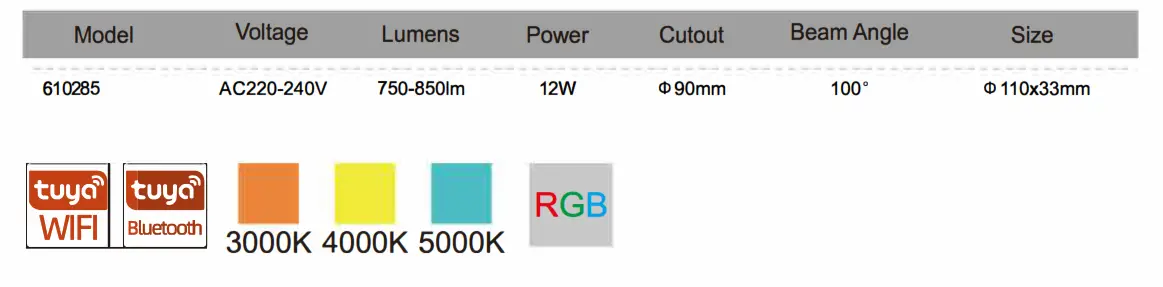

Typical Technical Parameters:
Tuya Inc. Mobile App
Play Store: https://play.google.com/store/apps/details?id=com.tuya.smartlife
App Store: https://apps.apple.com/us/app/smart-life-smart-living/id1115101477
Color Parameters:

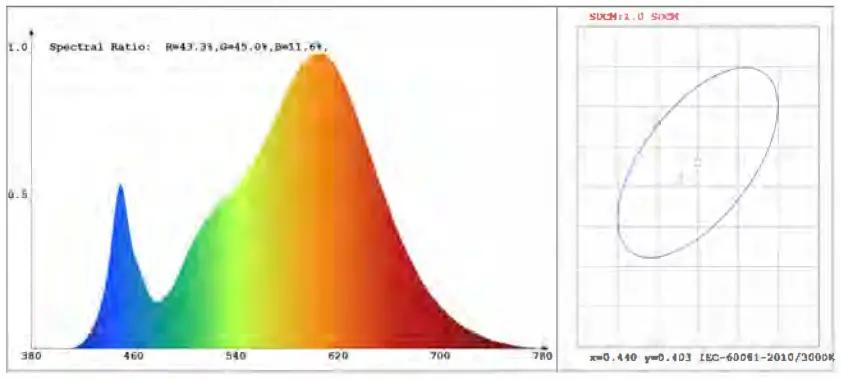

5.1 Warm White:
Chrome Parameters
Chron,Coor.:x=0.4380 yw0.4012
um0.2525 ve0.3489 dove -0.0013 CC?: 2959K Dominant Wave.:583.5nm Purity:51.94
Flux RGB Ratio:R=23.21,G=75.311,8=1.5% Peak Have:605.8nm Half Width:127.3nm
Rendering Index:Ra= 82.6
| RI =81 | R2 =90 | R3 =96 | R4 =81 | R5 =81 | R6 =89 | R7 =83 | RO =59 |
| R9 =8 | R10=78 | R11=80 | R11=80 | R13=83 | R14=99 | R15=74 |
Photo Parameters
| Flux:831.131m Efficiency:0.176 | Effi.:71.51m/W Rediant:2348.7mW Effi Love1:A (EU 874-2012) | /v:0.0mcd | |
Ela. Parameters
| Voltage:U=230.500V Power: Pla11.63N | Current:I=0.0540A Power Factor: PF1.0.928 |
Instrument state
| Instrument:Bopoo RPBOOO | Integral Time: 95. 322ms | VPN;l.k: 15055 |
| Clark: 1154 | Sc.an Range: 380-780nm | Product. ID: 201608142 |

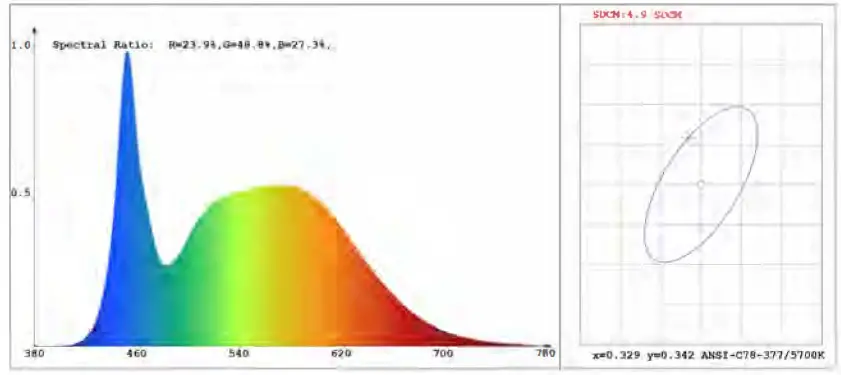

5.2 Cool White:
Chroma. Pa.rilm&ta.rs
Chro.Coor.:xm0-1272 r0.3475 ual0.2008 v=0.3200 davv0.0056
CCT: 5729K Dominant Wave.:526.3nr Purity:2.9t
Flax RGB Ratio:R=14.2%,G=H2.1%,B=3.74 Paak Wave:452.6nm Half Width:24.0nm
Rendering Index:Ra=82.9
| Rl =81 | R2 =89 | R3 =94 | R4 =81 | RS =81 | R6 =84 | R7 =88 | R8 =67 |
| R9 =4 | R10=73 | Rll,aBO | Rl2=58 | Rl3=8’3 | Rl4=97 | RlS=75 |
Photo Parameters
| Flux:099.471.m Efficiency:0.167 | Effi.:76.51m/W Radiant:2642.5mW Effi Level:A+ (EU 074-2012) | Iv:0.0mcd |
Ela. Pa.rameters
| Voltage: U=230.300V Power: Pw11.76W | CurrentiI=0.0540A Power Factor=FF0. 929 |
Instrument state
| Instrument:Bopoo RPBOOO | I.ntegra.l Time: 55. 765ms | VPN;l.k: 14783 |
| Clark: 10.34 | scan Range: 380-780n.m | Pt”Product. lD: 201608142 |

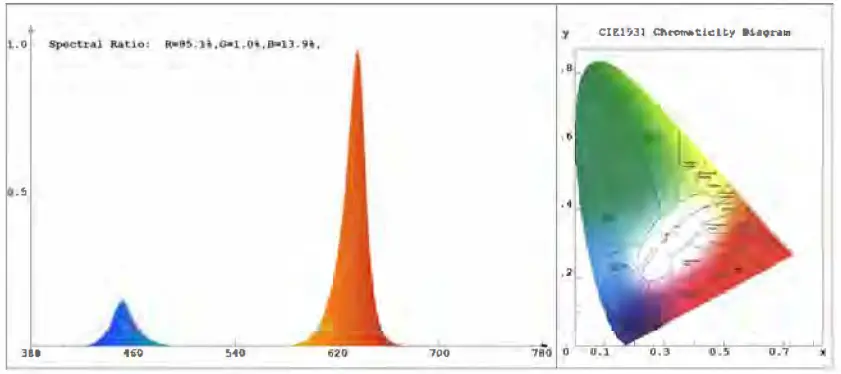

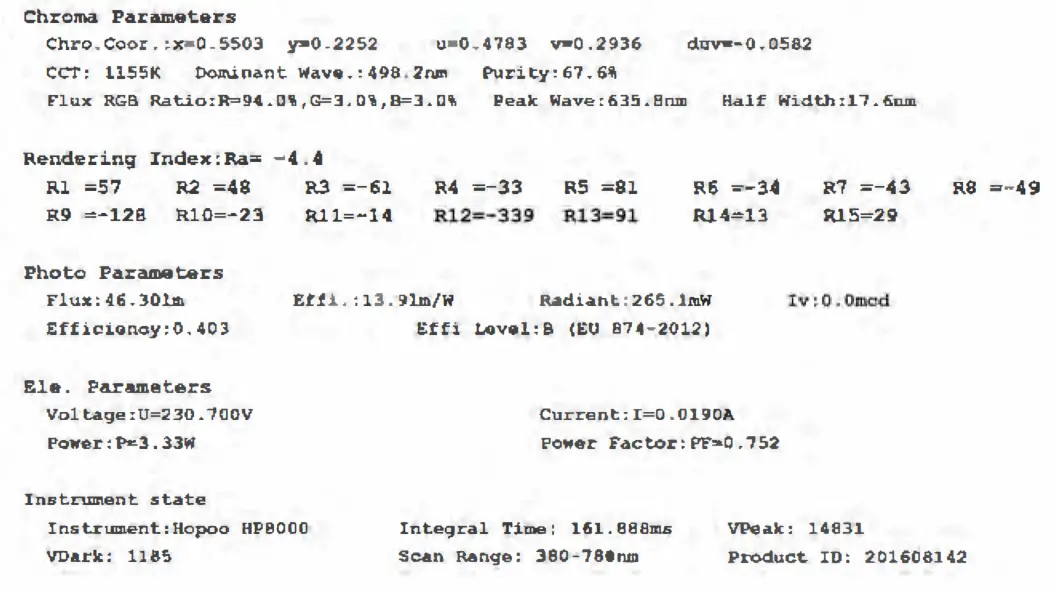

5.3 Red:

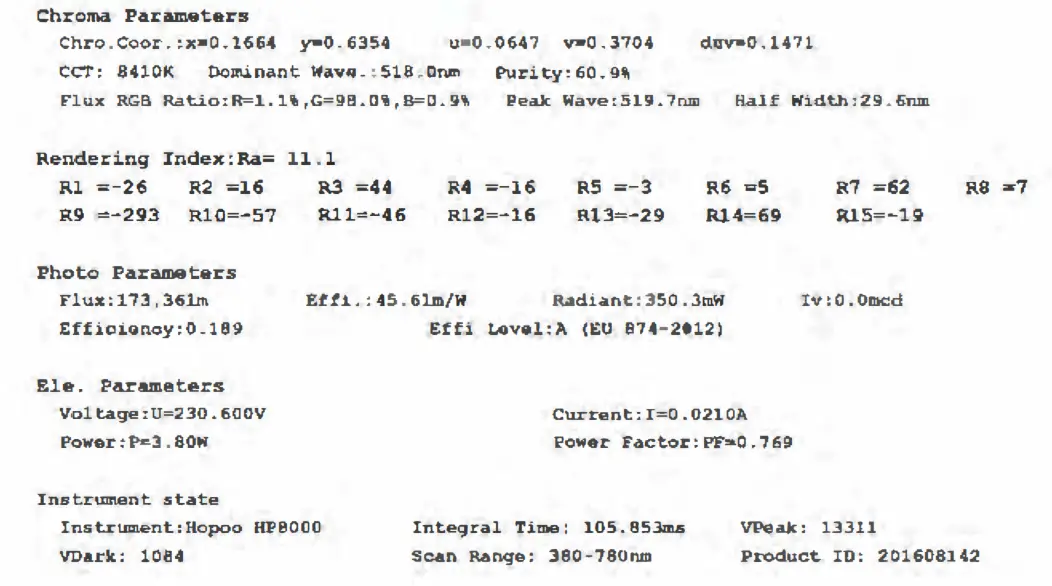

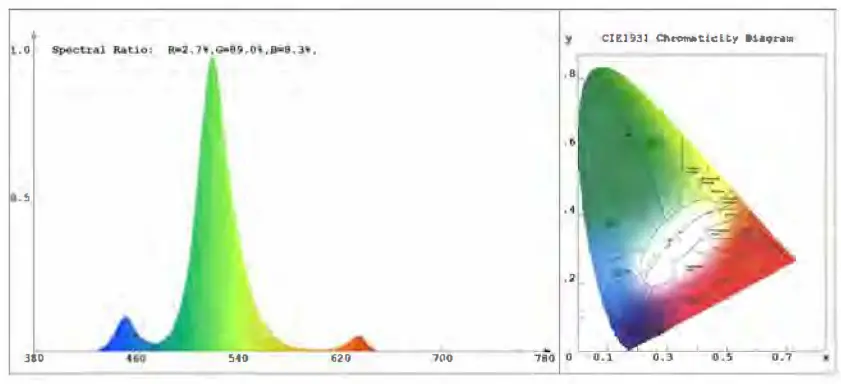

5.4 Green:

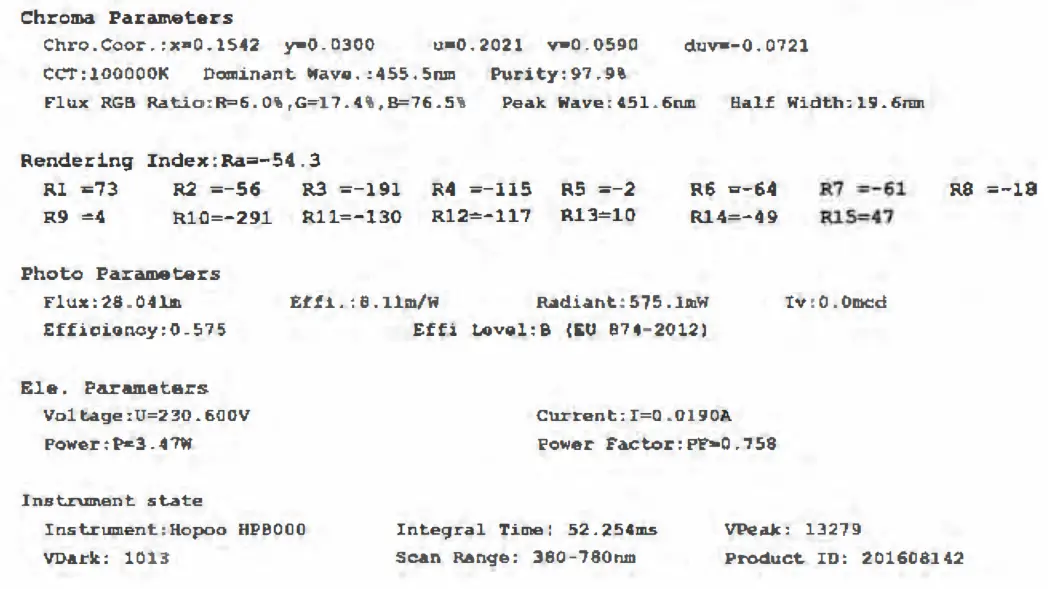

5.5 Blue:

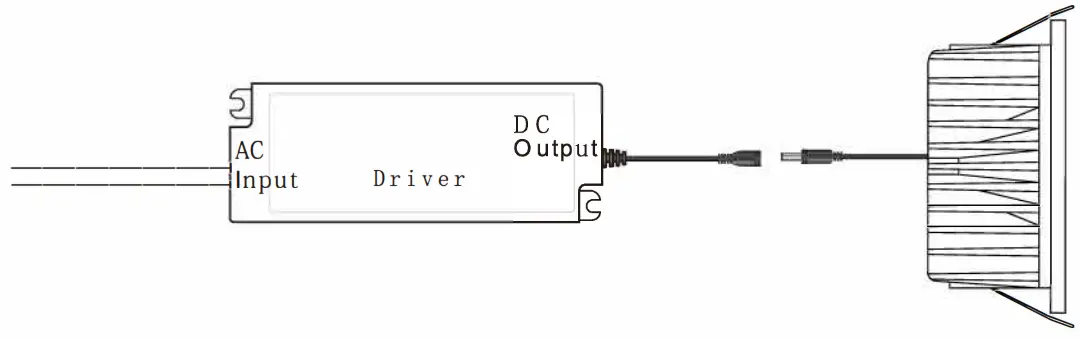

Connection Road:
Attention: Before Installation please make sure the power is turned off.

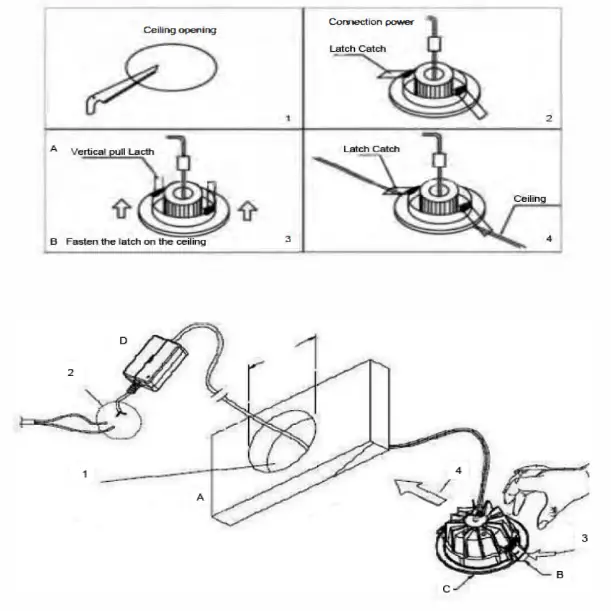

installation :
| A: Wall | Step 1: Make a hole |
| B. Spring | Step 2: Connect the power wire |
| C.LED Downlight | Step 3: Push Spring |
| D. Driver | Step 4: Put the downlight into the hole |

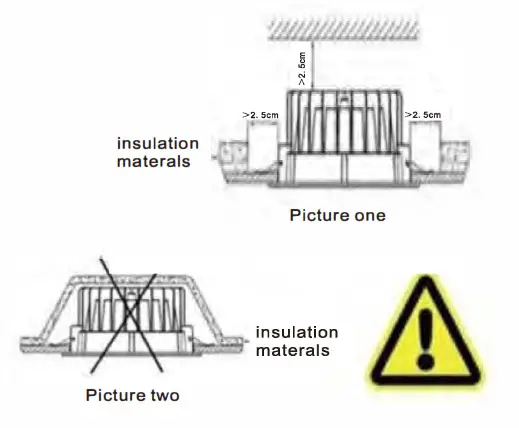

As shown in the above figure, the luminaire is mounted in the mounting hole, and ensure strong
- Please turn off the power when installing.
- Do not touch or grasp the down light when it is hot.
- Working environment pe ratu re: -20~45 °C
- Only for indoor application.
MUST BE INSTALLED BY A LICENSED ELECTRICIAN
