Tamiya Alpine A110 Rc 1-10th Scale Jagermeister Instruction Manual

ITEM 51690
ALPINE A110
JAGERMEISTER 1973
BODY PARTS SET
RC 1/10th SCALE

Alpine A110 RC 1-10th Scale Jagermeister

NOTICE

• This body is compatible with the (210mm) short wheelbase M-06S and M-08S chassis.
• Some bodies may be pre-painted or have other work already carried out.

Alpine Official Licensed Product.
Vehicles and Trademarks are protected by intellectual property laws.
Used with permission of Alpine and Renault. All rights reserved.
with permission of Mast-Jagermeister SE

CAUTION

• Read carefully and fully understand the instructions before commencing assembly.
• When assembling this kit, tools including knives are used. Extra care should be taken to avoid personal injury.
• Read and follow the instructions supplied with paints and/or cement, if used (not included in kit).
• Keep out of reach of small children. Children must not be allowed to put any parts in their mouths, or pull vinyl bags over their heads.
  Sensibly dispose of the leftover parts immediately.

★ Tools are not included in set.

How to make holes

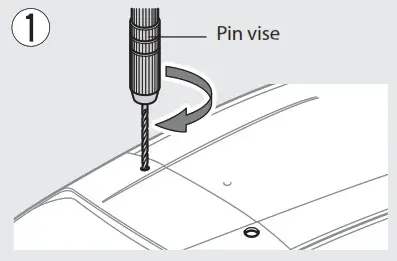

★ Make a pilot hole in the indicated position using a pin vise and drill bit, etc.

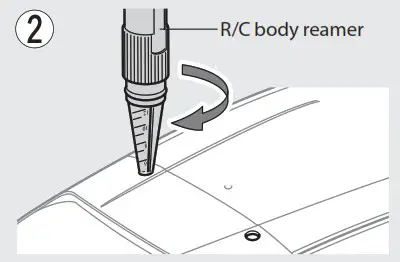

★ Enlarge hole to desired size using body reamer.
★ Handle tools with care.

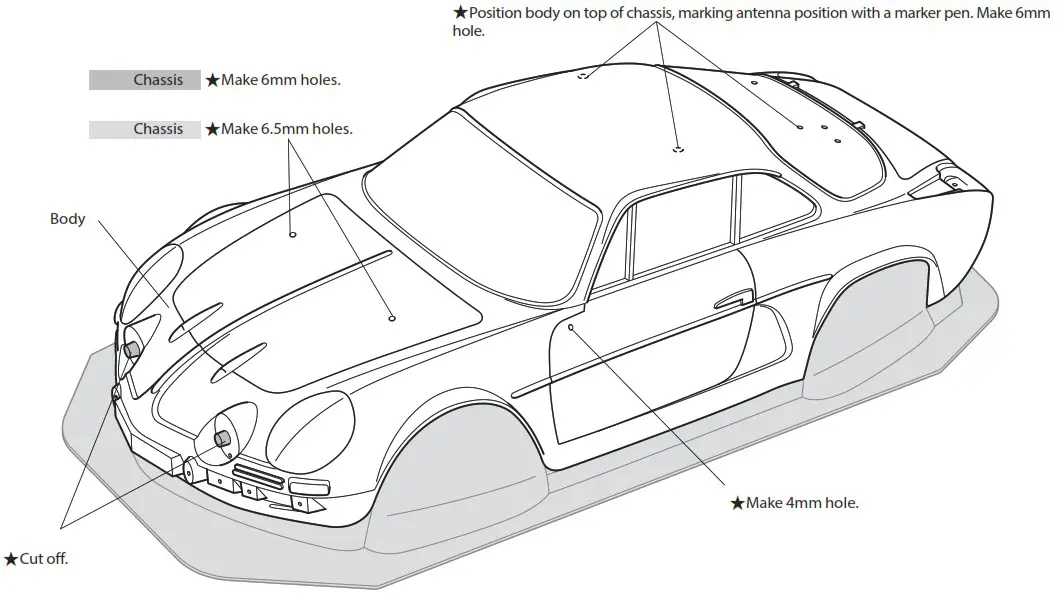

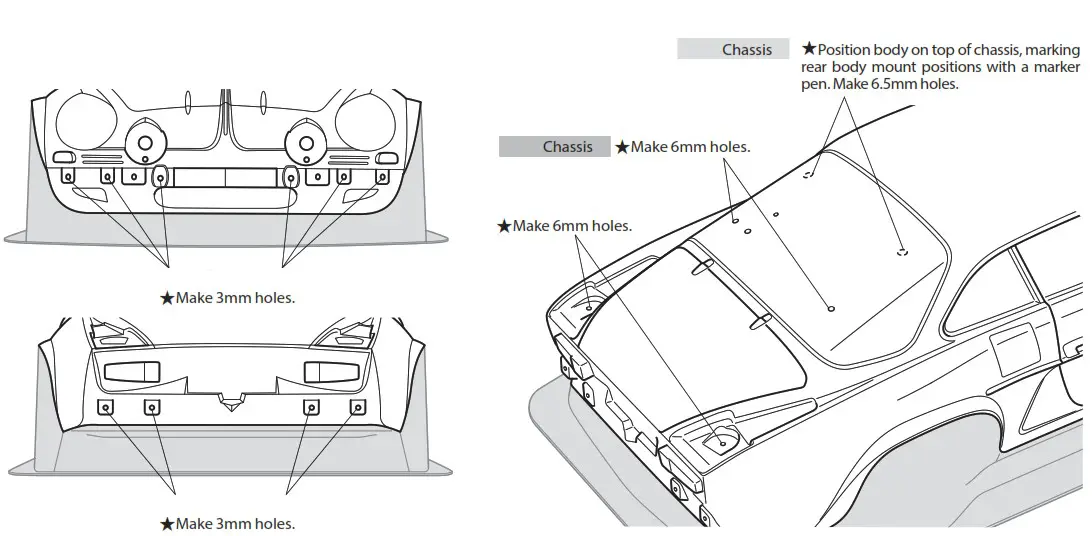

Making holes

Cutting out polycarbonate body parts

★ Use different cutting tools depending upon the section you are working on.

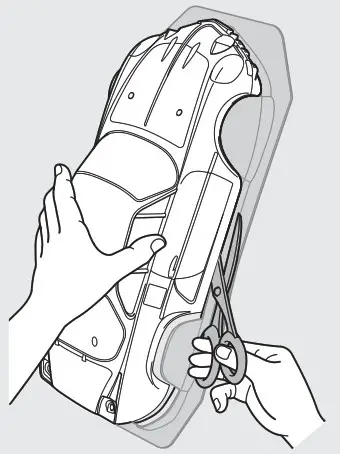

Straight sections – use scissors

Curved sections – use a modeling knife

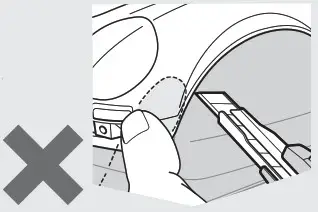

● Keep hands and fingers off of section being cut, particularly when using a modeling knife.

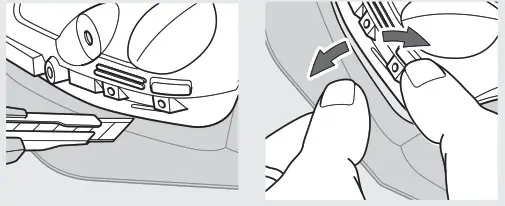

★ When using a modeling knife, make multiple passes to score the cut line, then bend and snap off the unwanted area.

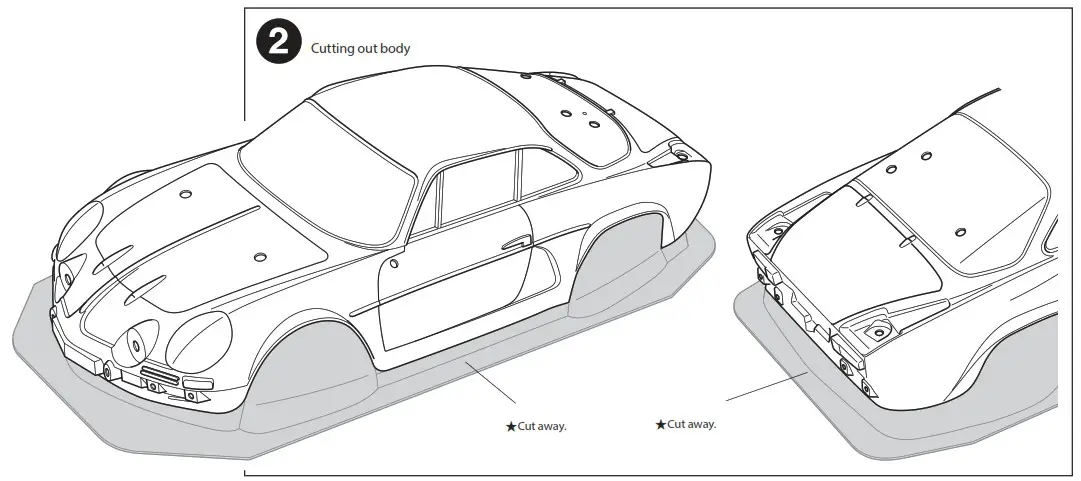

Cutting out body

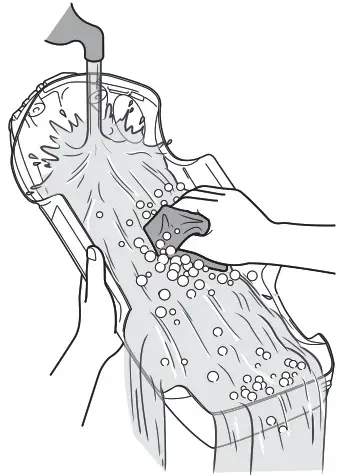

3. Preparing body for painting

★ Wash the body thoroughly with detergent in order to remove any oil, then rinse well and allow to air dry.

This mark denotes numbers for Tamiya Paint colors. Paint body from inside using polycarbonate paints. Paint plastic parts (side mirrors, etc.) using plastic paint.

TAMIYA POLYCARBONATE PAINTS
PS-31 ● / Smoke
PS-62 ● / Pure orange

TAMIYA PLASTIC PAINTS
LP-48 ● / Sparkling silver
TS-29 ●/ Semi-gloss black
TS-98 ● / Pure orange
X-24 ● / Clear yellow

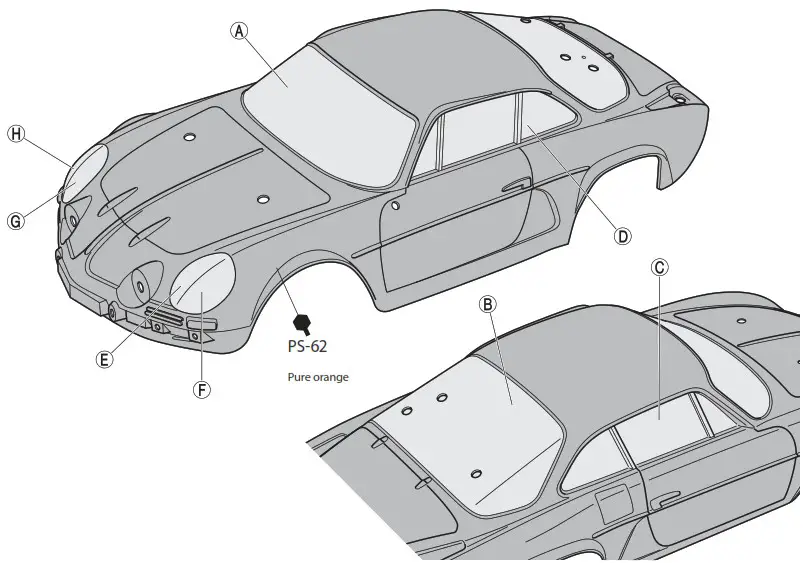

Painting

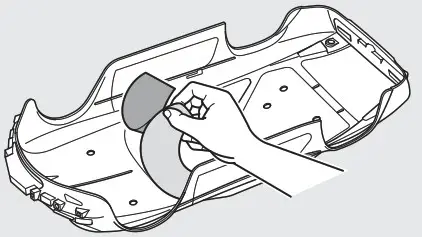

1. ★ Cut out masking stickers and mask off window and light areas from inside.

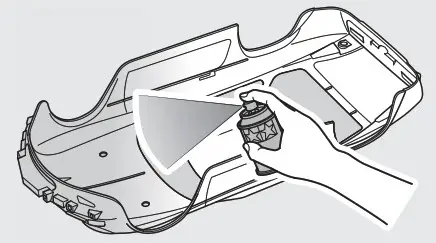

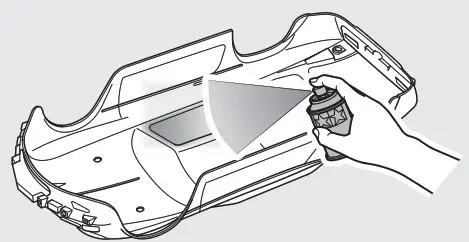

2. ★ Paint body with Pure orange (PS-62) from inside. Apply thin layer of spray paint 2-3 times keeping 30cm distance from body.

3. ★ After paint has dried, remove masking stickers from windows, and paint with Smoke (PS-31) as you wish.

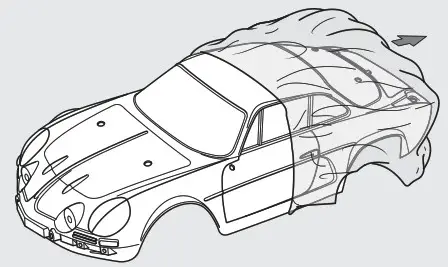

4. ★ After completion of painting, remove remaining masking stickers and protective film.

Painting body

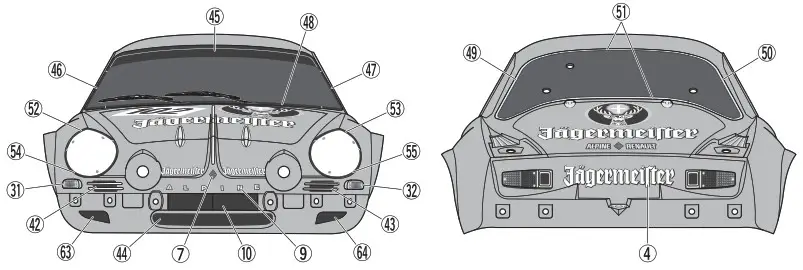

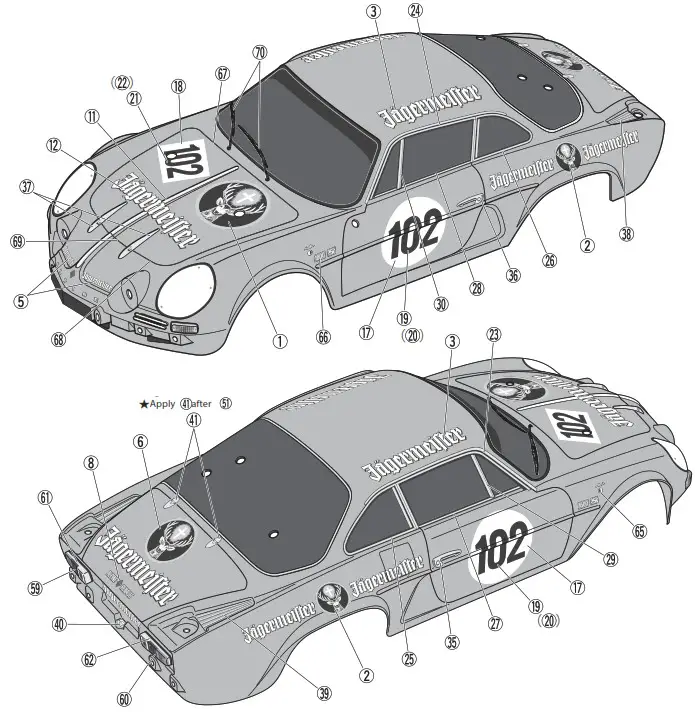

Markings

★Apply stickers in numbered order.

NOTICE
★ Remove protective film before applying stickers.

★ Choose from two types of stickers: car No.102 and No.34. Numbers in ( ) are for car No.34.

Not used. 58

Stickers
① Cut along the edges as close as possible to cut the sticker from the sheet. Cut out stickers in numbered order to prevent confusion.
② Slightly peel away one end of the lining and position the sticker on the body.
③ Slowly remove the remaining lining while checking sticker position. Do not completely remove lining prior to application as this may cause unwanted air bubbles and creases.

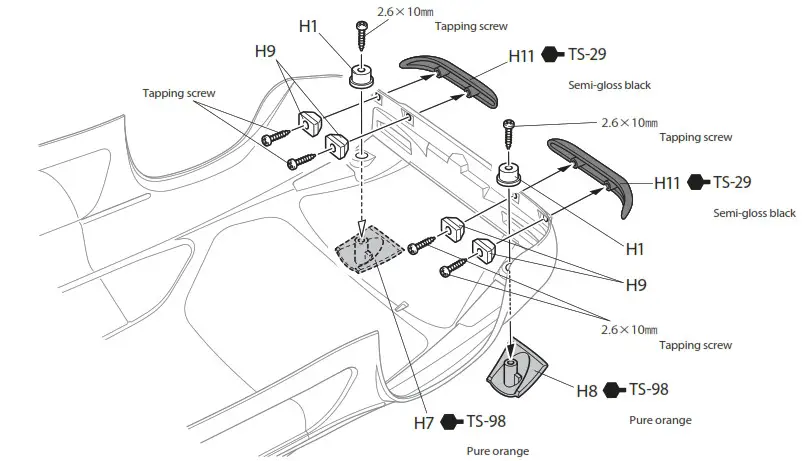

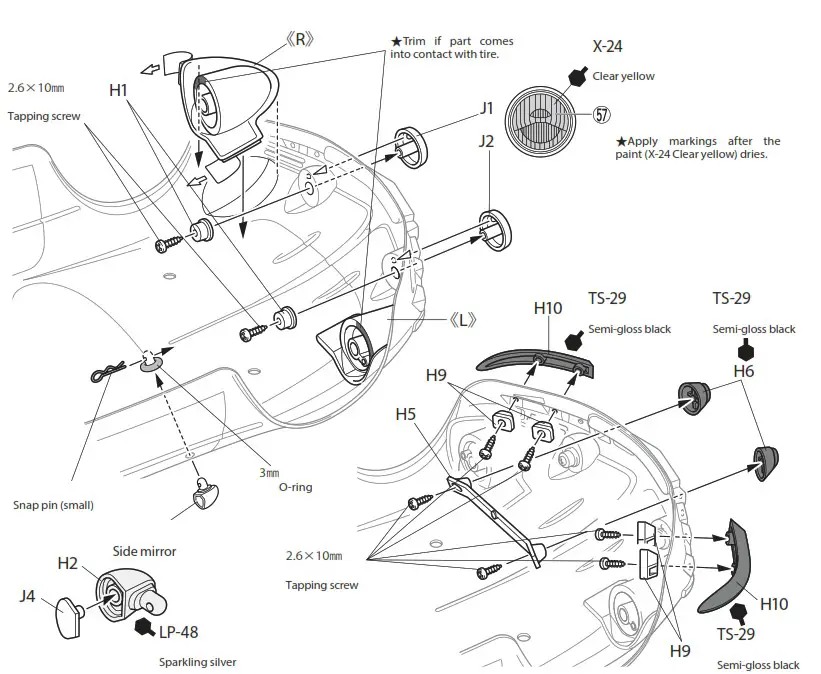

Attaching rear body parts

Attaching front body parts

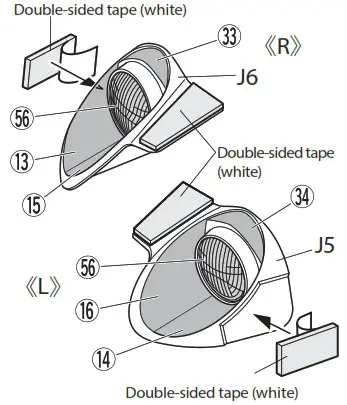

6. Headlights

★ Cut double-sided tape referring to the diagrams below.

PARTS

METAL PARTS BAG

2.6×10㎜ Tapping screw	×1
6㎜ Snap pin	×8
Snap pin (small)	×1
3㎜ O-ring	×1
Double-sided tape (white)	×1

★ Ask your local Tamiya dealer for availability of the wheels & tires.

Attaching body

AFTER MARKET SERVICE CARD
When purchasing replacement parts, please take or send this form to your local Tamiya dealer so that the parts required can be correctly identified. Please note that specifications, availability and price are subject to change without notice.

Parts code
ITEM 51690
10005590･･･････････････････････････････････H Parts
10115207････････････････････････････････････J Parts
19490057･･････････････････Stickers, Masking Stickers
11057541･･･････････････････････････････Instructions
50025･･･ ･ ･････････････Double-Sided Tape (White) (x5)
50197 ･ ･ ･ ･ ･ ･ ･ ･ ･ ･ ･ ･ ･ ･ ･ ･ ･Snap Pin (Large x10, Small x5)
50575･･････････････････ ･2.6x10mm Tapping Screw (x5)
51537･･･････････････････････････6mm Snap Pin (x15)
84195･･････････････････････3mm O-Ring (Black) (x10)
