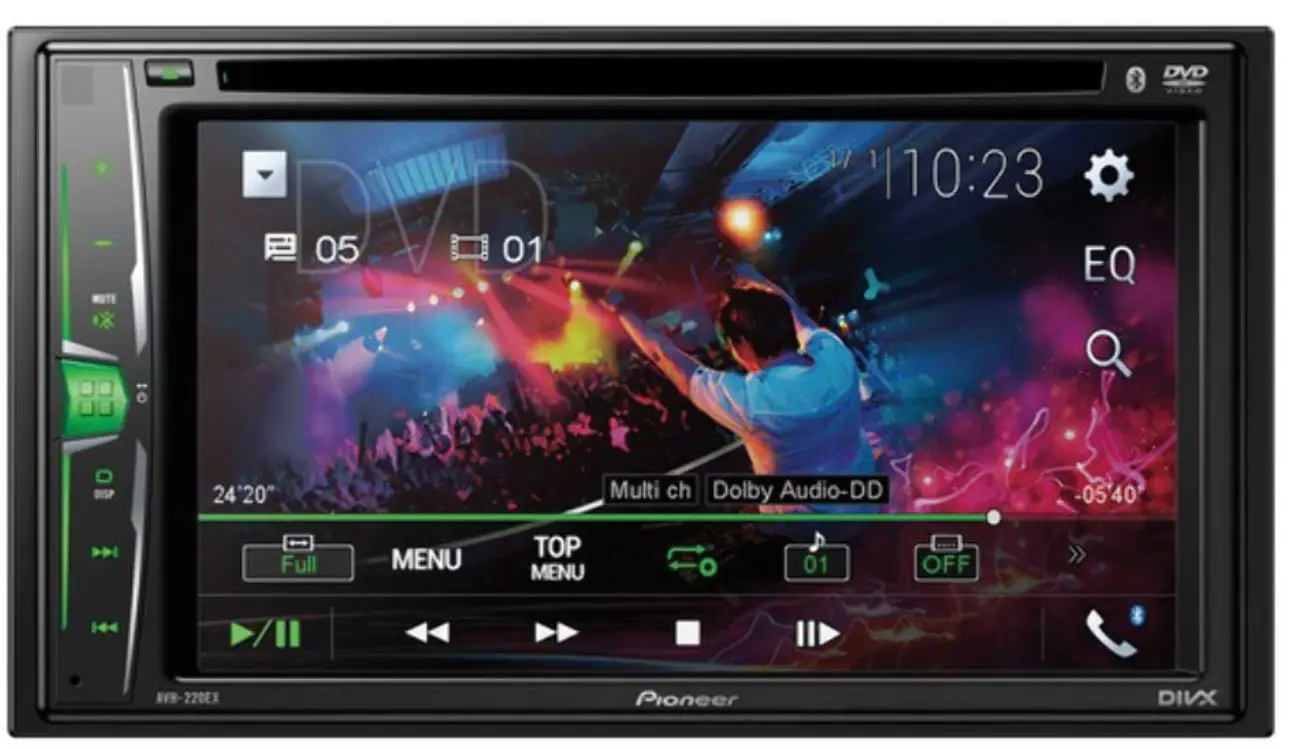

Pioneer AVH-221EX Multimedia DVD Receiver

Specifications

General

• Rated power source:
  14.4 V DC (10.8 V to 15.1 V allowable)
• Grounding system:
  Negative type
• Maximum current consumption:
  10.0 A
• Dimensions (W x H x D):
  D
• Chassis:
  178 mm x 100 mm x 159 mm (7 in.x 3-7/8 in. x 6-1/4 in.)
• Nose:
  171 mm x 97 mm x 5 mm (6-3/4 in. x 3-7/8 in. x 1/4 in.)
• Weight:
  1.4 kg (3.0 lbs)

Display

• Screen size/aspect ratio:
  6.2 inch wide/16:9 (effective display area:
  137.52 mm x 77.232 mm) (5-3/8 in. x 3 in.)
• Pixels:
  1 152 000 (2 400 X 480)
• Display method:
  TFT Active matrix driving
• Color system:
  PAL /NTSC/PAL-M/PAL-N/SECAM compatible
• Durable temperature range:
• 1 o °C to +60 °C (14 °F to+ 140 °F) (Power off)

Audio

• Maximum power output:
  50 Wx4 ch/40
  50 W x 2 ch/4 0 + 70 W x 1 ch/2 0 (for subwoofer)
• Continuous power output:
  22 W x 4 (SO Hz to 15 kHz, 5 %THD, 4 0 LOAD, Both Channels Driven)
• Load impedance:
  4 0 (4 0 to 8 0 [2 0 for 1 ch] allowable)
  Preout output level (max): 2.0 V
  Equalizer (13-Band Graphic Equalizer):
• Frequency:
• 50 Hz/80 Hz/125 Hz/200 Hz/315 Hz/
• 500 Hz/800 Hz/1.25 kHz/2 kHz/3.15 kHz/5 kHz/8 kHz/12.5 kHz
• Gain: ±12 dB (2 dB/step)
• HPF:
  • Frequency:
    25 Hz/31.5 Hz/40 Hz/50 Hz/63 Hz/80
    Hz/100 Hz/125 Hz/160 Hz/200 Hz/250 Hz
• Slope:
  -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct, OFF
• Subwoofer/L PF:
  Frequency:
  25 Hz/31.5 Hz/40 Hz/50 Hz/63 Hz/80
  Hz/100 Hz/125 Hz/160 Hz/200 Hz/250
  Hz
• Slope:
  -6 dB/oct, -12 dB/oct, -18 dB/oct, -24
  dB/oct, -30 dB/oct, -36 dB/oct, OFF
• Phase: Normal/Reverse
• Time alignment:
  Oto 140 step (1 inch/step)
• Bass boost:
  Gain: +12 dB to 0 dB
• Speaker level:
  + 10 dB to -24 dB (1 dB/step)

DVD drive

• System:
  DVD-V, VCD, CD, MP3, WMA, AAC, DivX, MPEG player
• Usable discs:
  DVD-VIDEO, VIDEO-CD, CD, CD-R, CDRW,
  DVD-R, DVD-RW, DVD-R DL
  Region number: 1
  Signal Format:
• Sampling frequency:
  8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Number of quantization bits:
  16 bit/20 bit/24 bit; linear
• Frequency response:
  5 Hz to 22 000 Hz (with DVD, at sampling frequency 48 kHz)
• Signal-to-noise ratio:
  91 dB (1 kHz) (IHF-A network) (RCA level)
• Output level:
  Video:
  1.0 Vp-p/75 0 (±0.2 V )
  Number o f channels: 2 (stereo)
• MP3 decoding format:
  MPEG-1 & 2 & 2.5 Audio Layer 3
• WMA decoding format:
  Ver. 7, 7.1, 8, 9, 9.1, 9.2 (2 ch audio)
  (Windows Media Player)
• AAC decoding format:
  MPEG-4 AAC (iTunes encoded only):
  .m4a (Ver. 10.6 and earlier)
• DivX decoding format:
  Home Theater (Except ultra and HD):
  .avi, .divx
• MPEG video decoding format:
  MPEG1 (Low Level), MPEG2 (Main
  Level), MPEG4 (part2) (Main Level) use
  USB 1.1, USB 2.0 full speed, USB 2.0 high speed
  Max current supply: 1.0 A

USB

• Class:
  MSC (Mass Storage Class), MTP (Media Transfer Protocol)
  File system: FAT16, FAT32
  <USB audio>
• MP3 decoding format:
  MPEG-1 & 2 & 2.5 Audio Layer 3
  WMA decoding format:
  Ver. 7, 7.1, 8, 9, 9.1, 9.2 (2 ch audio)
  (Windows Media Player)
• AAC decoding format:
  MPEG-4 AAC (iTunes encoded only):
  .m4a (Ver. 10.6 and earlier)
• WAV signal format:
  Linear PCM : wav
• Sampling frequency:
  Linear PCM:
  16 kHz/22.05 kHz/24 kHz/32 kHz/44.1
  kHz/48 kHz
  <USB image>
• JPEG decoding format:
  .j peg, .j pg, .j pe
  Pixel Sampling: 4:2:2, 4:2:0
• Decode Size:
  MAX: 8 192 (H) x 7 680 (W)
  MIN: 32 (H) x 32 (W )
  BMP decoding format: .bmp
  Decode Size:
  MAX: 1 920 (H) x 936 (W )
  MIN: 32 (H) x 32 (W )
• DivX decoding format:
  Home Theater (Except ultra and HD) :
  .avi, .divx
• MPEG video decoding format:
  MPEG1 (Low Level), MPEG2 (Main Level),
  MPEG4 (part2) (Main Level)

Bluetooth

• Version:
  Bluetooth 3.0 certified
• Output power:
  +4 dBm Max. (Power class 2)
• Frequency band(s):
  2 400 MHz to 2 483.5 MHz

FM tuner

• Frequency range:
  87.9 MHz to 107.9 MHz
• Usable sensitivity:
  12 dBf (1.1 μV/75 0, mono, S/N: 30 dB)
• Signal-to-noise ratio:
  72 dB (IHF-A network)

AM tuner

• Frequency range:
  530 kHz to 1 710 kHz (10 kHz)
• Usable sensitivity:
  28 μV (S/N: 20 dB)
• Signal-to-noise ratio:
  62 dB (IHF-A network)

CTA2006 Specifications

• Power output:
  14 W RMS x 4 Channels (4 0 and 1 % THD+N)
• 5/N ratio:
  91 dBA (reference: 1 W into 4 0)

Note: Specifications and design are subject to possible modifications without notice due to improvements.
