Xmart Lsc-26 Landscape Series User Manual

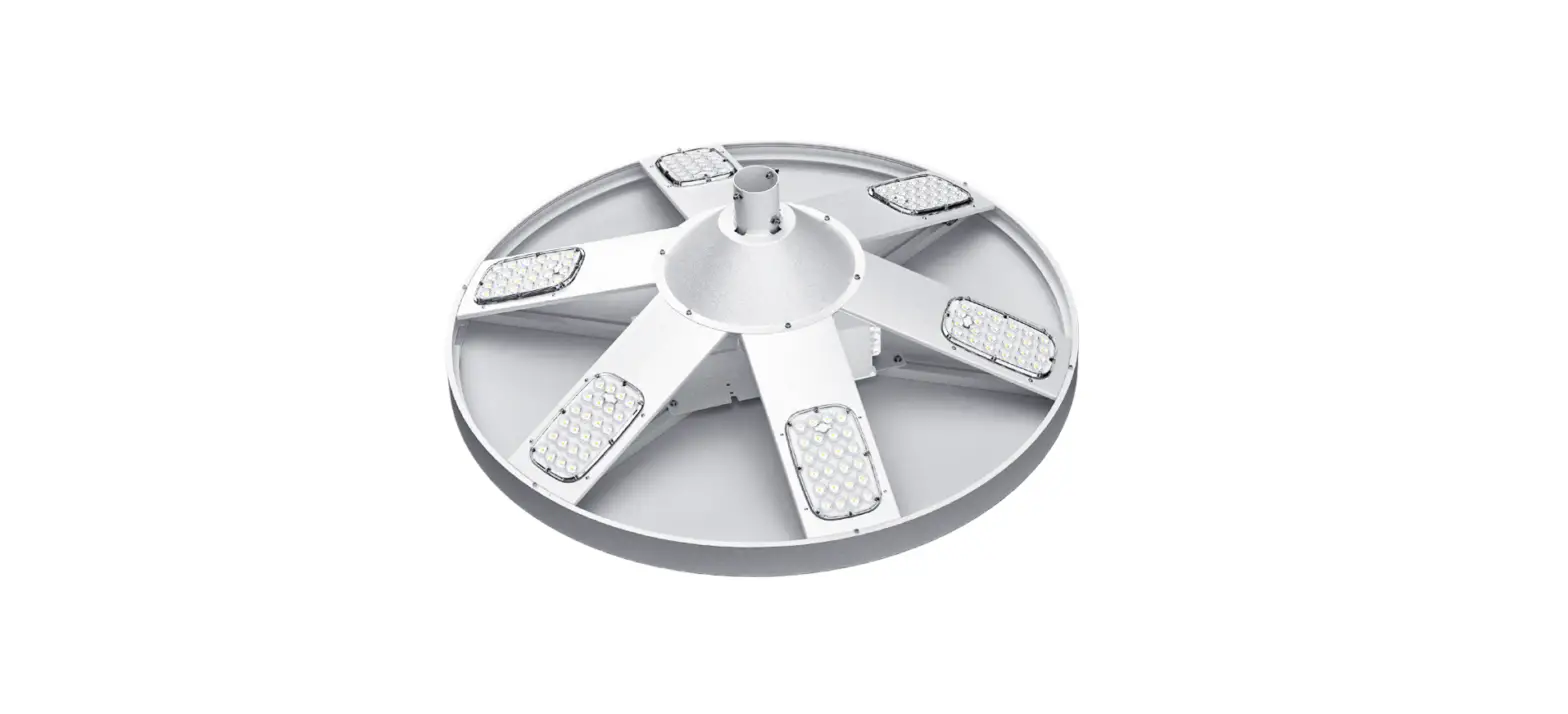

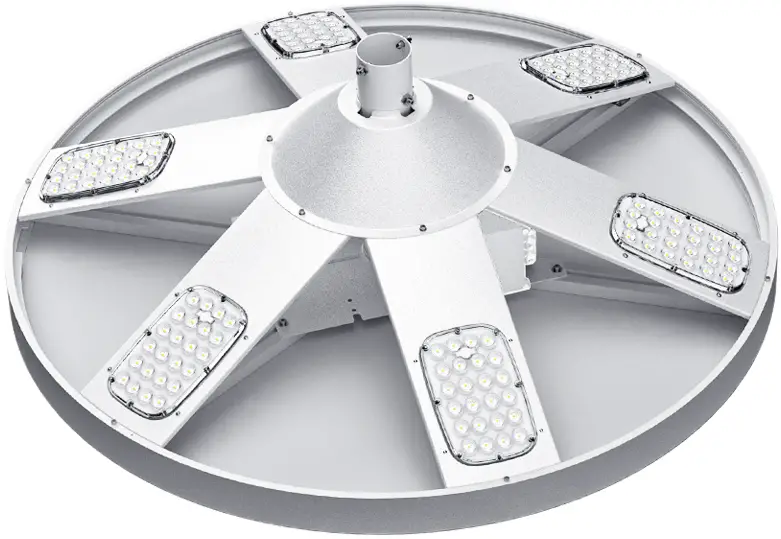

Xmart LSC-26 Landscape Series

LSC-26 – TECHNICAL SPECIFICATIONS

• Luminosity (LM): 6000
• Type: Monocrystalline

Li-Ion BATTERY

• Capacity:
  • 4 pcs. Each: 3.7Vdc / 115.44WH / 2.6AH
  • TOTAL: 462Wh
• Charge & Discharge Temp: Charge -20 a 45 °C
• Recharge Time: 9 H

ILLUMINATION

• LED (OSRAM): 2835/144pcs
• Light Color Temp: 4000K, Ra 80+
• Efficiency: 190 lm/W

OPERATION

• Backup (cloudy days): Up to 10 nights
• Operation Modes: 6000LM x 5H + 1200LM Hasta Amanecer
• Capacity Indication:
  • Green: >80%
  • Orange: 80% to/a 40%
• IP/IK Codes: IP65 / IK10
• Directives: CE (IEC60598-1 / IEC60598-2-3 / EN55015 / EN61547)
• Extra Feature: Birds Repellent
• Light Sensitivity:
  • > 50 Lux: Off
  • < 10 Lux: On
• Installation Height & Spacing: 6 to/a 7 m, 20 m

WARNING

1. Keep the device away from fire and fire risk.
2. There are no replaceable parts inside the lamp. If disassembled warranty will be void.
3. Do not remove the battery for any other use. If backup time is too short, the lamp’s battery needs to be recharged under bright sunlight.
4. Clean solar panels regularly for more efficient operation and longer backups (Suggestion: At least every 6 months).
5. Long-term storage might cause battery damage and leakage, Leakage might cause battery spontaneous combustion.
6. The operation temperature for this lamp must comply with Technical Specifications.

Parts Identification

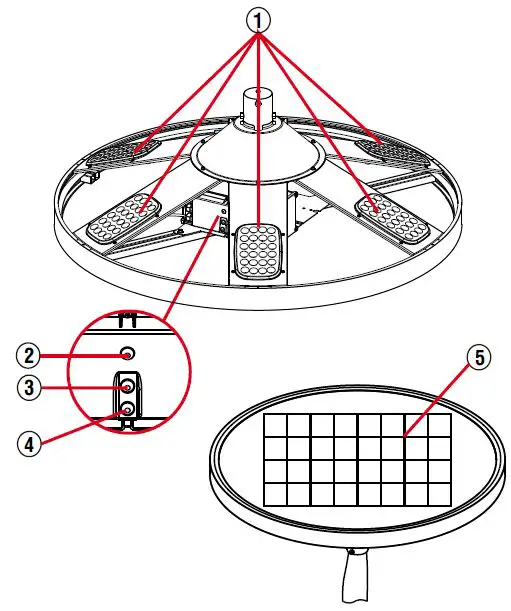

1. LED Lamps
2. Switch
3. Bird Repeller Indicator
4. Battery Indicator
5. Solar Panel

Special Features

• Monocrystalline Solar Panel
• Li-ion Rechargeable Battery
• Highly Efficient Operation Mode
• Material: Aluminum alloy & PC

Installation Instructions

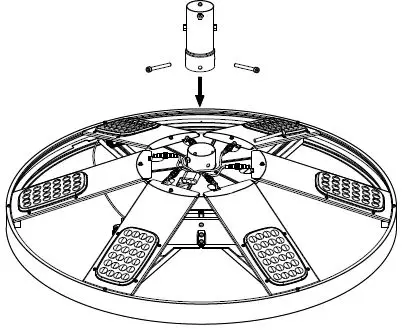

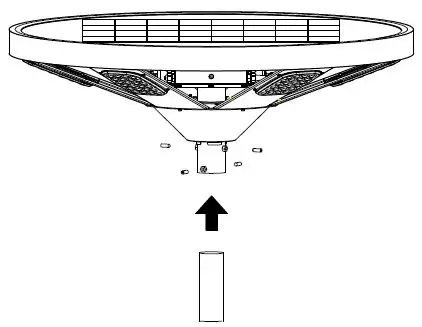

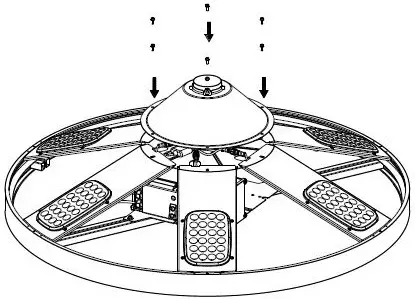

1. Install the sleeve and fix it with screws
2. Remove 6 screws, install a round tray, and fix it with 6 original screws.
3. Fix the lamp to the pole using screws.

Solar Panels must be oriented toward the sun and avoid any shade for battery charging efficiency.

IMPORTANT

1. Use standard installation accessories
2. If stored, charge the lamp every 3 months, to avoid battery damage
3. If stored for more than 1 year without charging, make a charge & discharge process to assure the battery is in good condition, otherwise, it is not allowed to use.

Operation Instructions

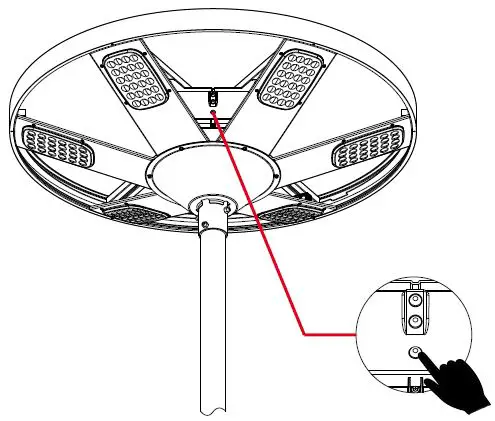

• Power On/Off: Press the switch for 1.5 Sec, approx.
• Bird Repeller Switch: Press the switch shortly to turn on/off the bird repeller.
• Operative Mode:
  6000LM x 5 Hrs + 1200 Until Dawn
• Battery Power Indication:
  • Green: > 80%
  • Orange: Between 80% and 40%
  • Red: < 40%
• Bird Repeller Indication:
  • Green: Bird Repeller On (Sound + Strobe)
  • Red: Bird Repeller Off

Dimensions

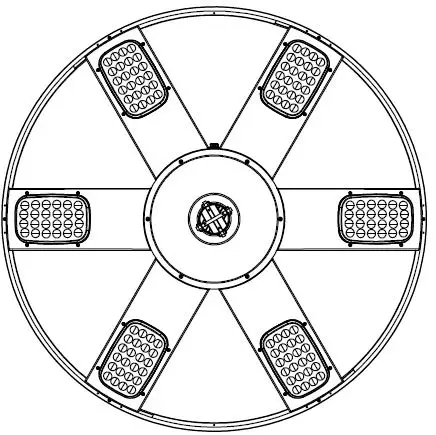

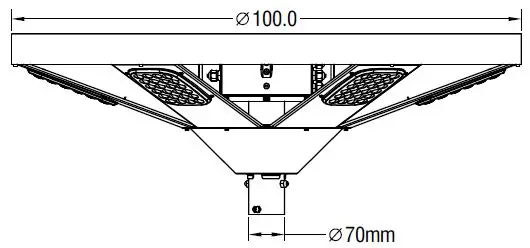

Bottom View

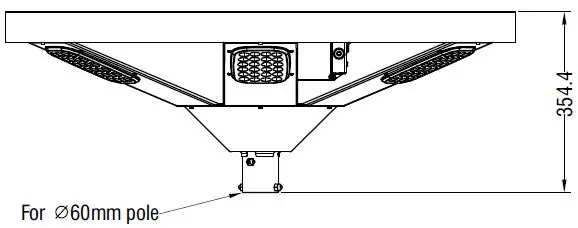

Left Side View

Right Side View

Packing Information

Net and Gross weight information is for reference purposes only. www.xmart-ups.com.

References

• xmart-ups.com
