Echogear Egos1 Outlet Shelf Instruction Manual

#YourGearUpgraded

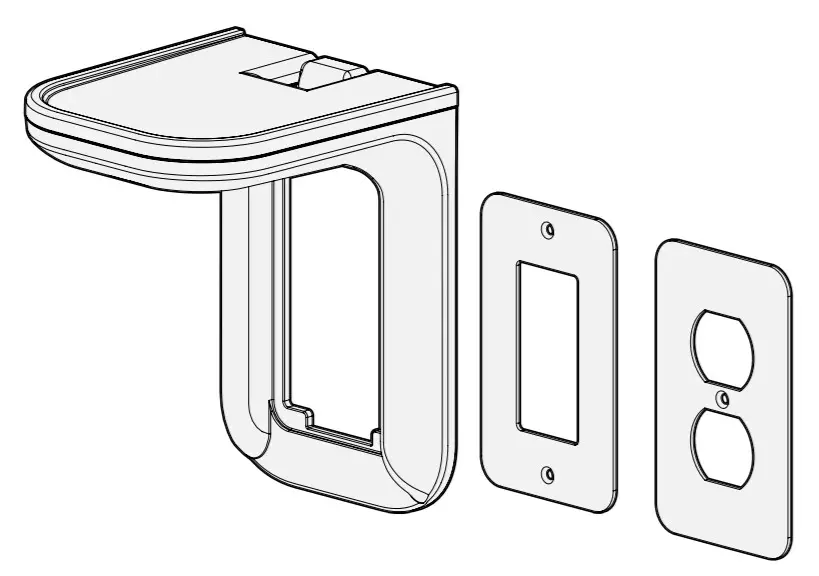

OUTLET Shelf
Model: EGOS1
INSTRUCTION MANUAL

IMPORTANT SAFETY INSTRUCTIONS.

READ THE ENTIRE MANUAL PRIOR TO USE. SAVE These INSTRUCTIONS.
Yea, the boring stuff … but read it, so you don’t jack things up!
“apologies to all the Jack in the world.”

• Check your speaker owner’s manual to see if there are any special requirements for mounting your speaker.
• Please read through these instructions completely to be sure you’re comfortable with this easy install process.
• This product is for household use only. Do not use this product for any purpose not explicitly specified by the manufacturer.
• The manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
• The wall must be capable of supporting five times the weight of the speaker and mount combined.
• For use only with UL/CUL/CN Listed receptacles (round or rectangular faces) installed in UL/CUL/CN Listed single gang receptacle outlet boxes mounted in minimum 1/2″ thick gypsum wall board.
• If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact the ECHOGEAR Pros (see back page).

Speaker Weight Limit
DO NOT EXCEED

DO NOT EXCEED 10 lbs. (4.5 kg) for this shelf.
“You can think about it … but doooon’t do it.”

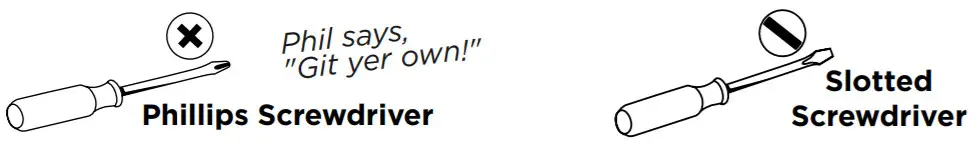

Tool Needed

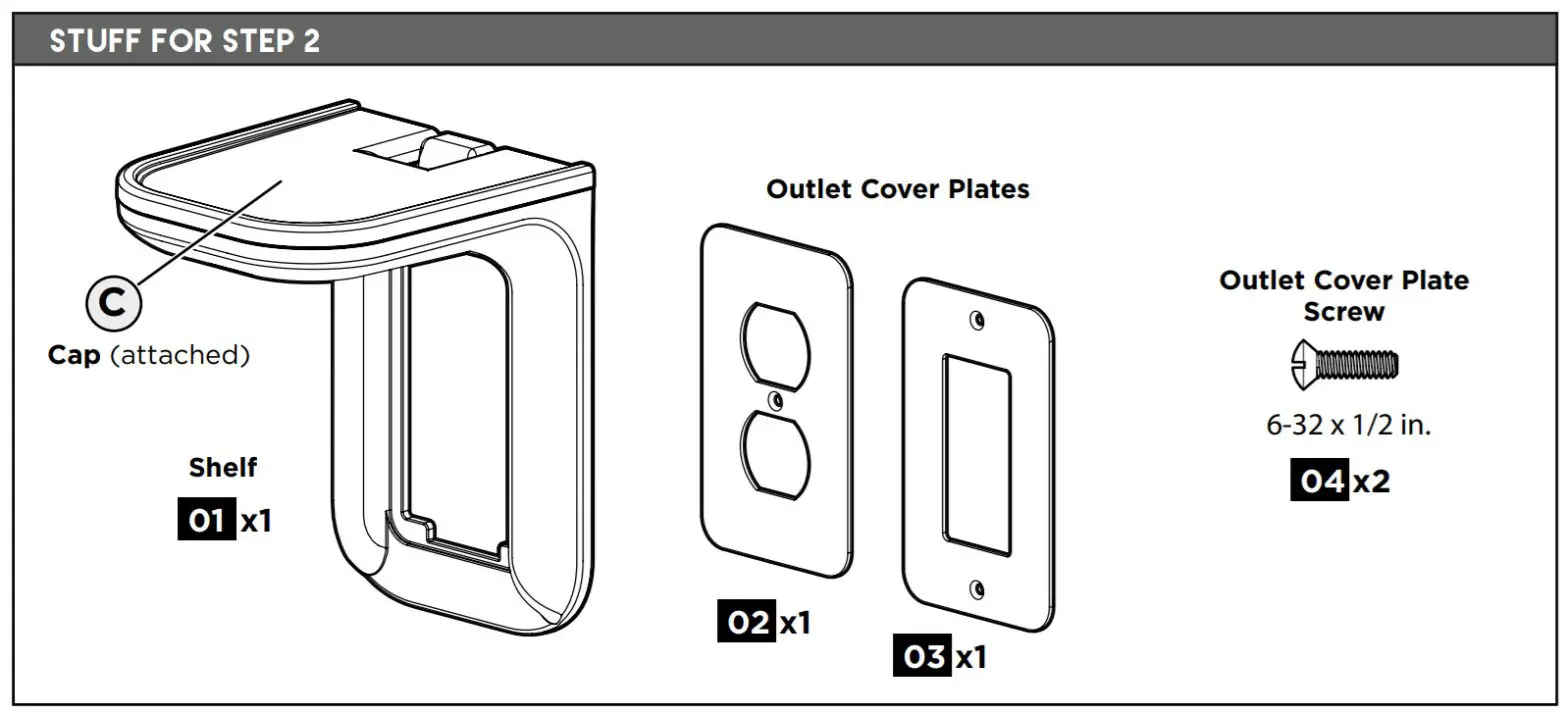

What’s in the Box

WARNING: DON’T FEED TO CHILDREN —This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, DO NOT return the damaged item to your dealer; contact the ECHOGEAR Pros (see back page). Never use damaged parts!

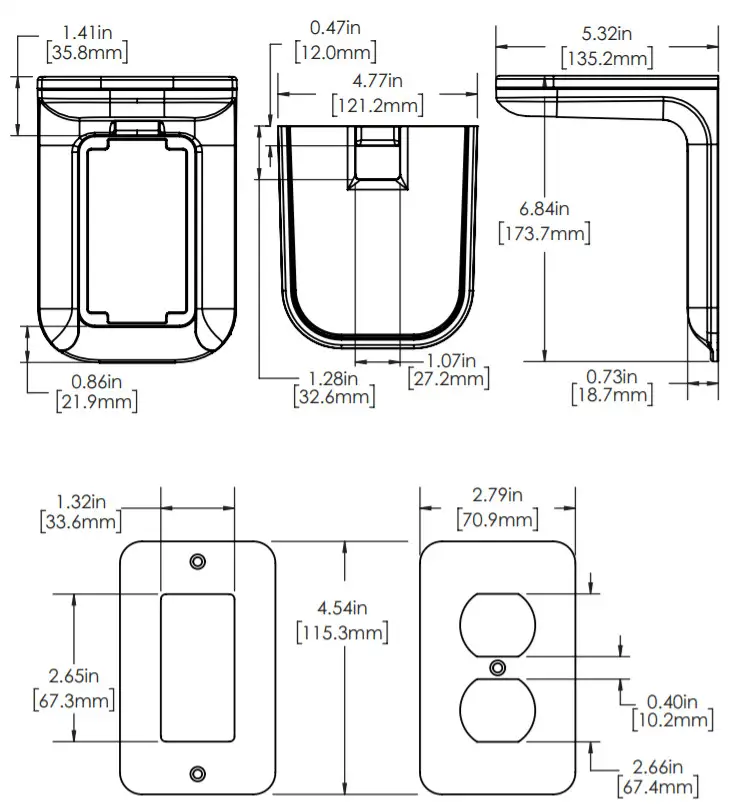

DIGITS

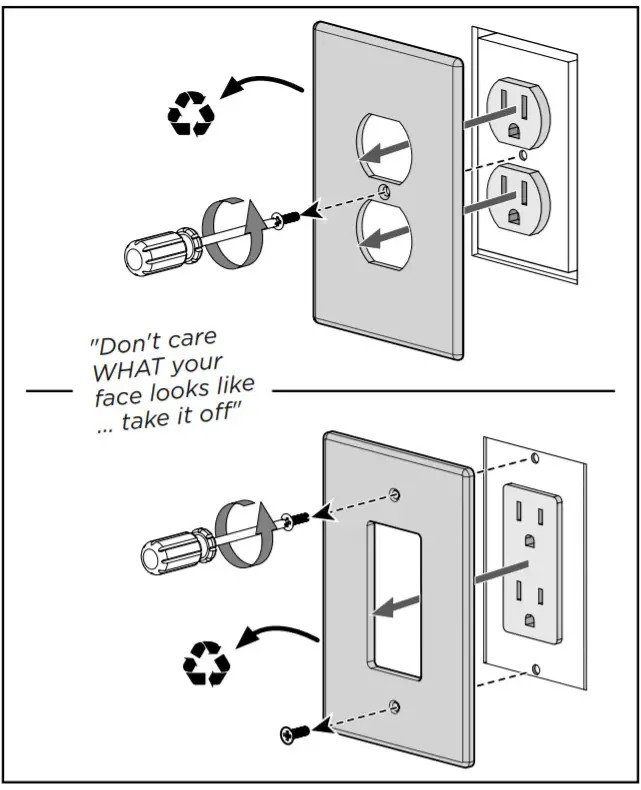

STEP 1 Remove the cover plate

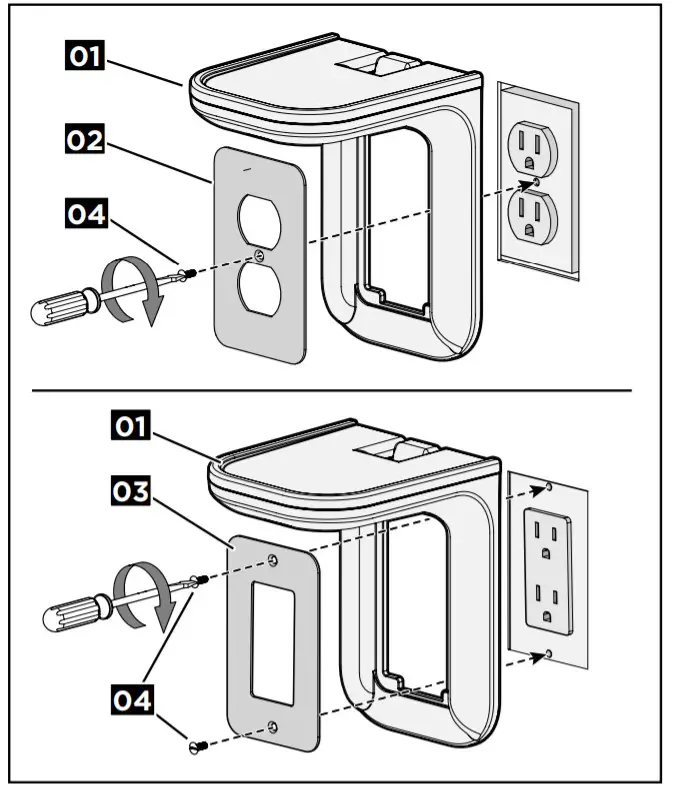

STEP 2 ASSEMBLY

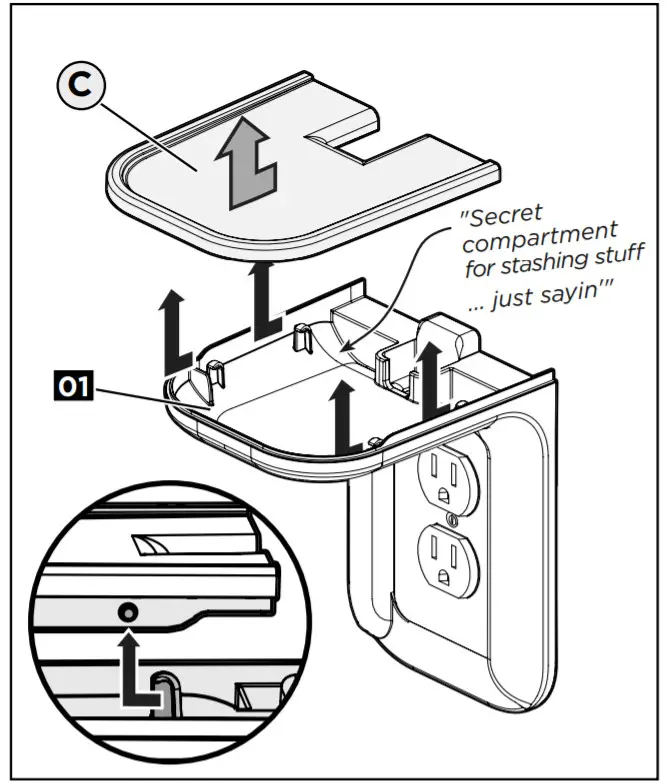

STEP 3 Remove Cap C

STEP 4 Secure Cable

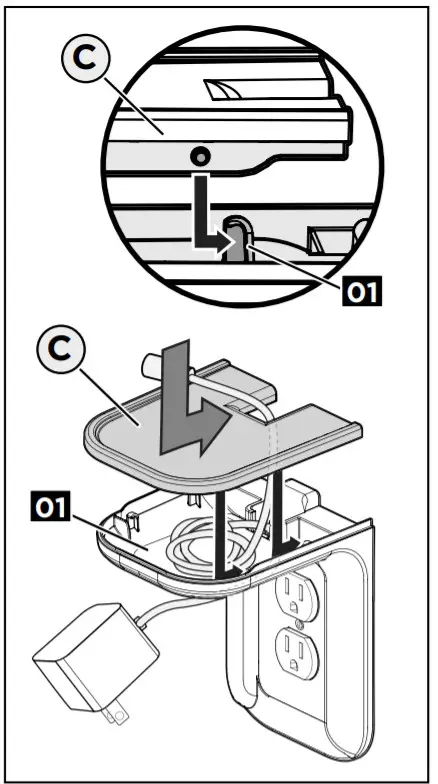

STEP 5 Install Cap C

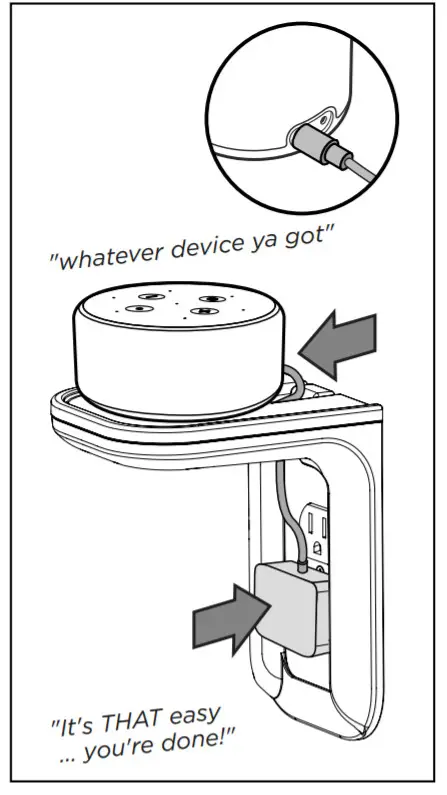

STEP 6 Power Up

“Want to show off your hard work?
Share a picture of your completed project with #YourGearUpgraded.
Who knows, it might not be as bad as you thought”

Confuzzled? Call the ECHOGEAR Pros:
1-855-428-2490
[email protected]

Legrand AV Inc. and its affiliated corporations and subsidiaries, intend to make this manual accurate and complete. However, Legrand AV makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Legrand AV makes no representation or warranty, expressed or implied, regarding the information contained herein. Legrand AV assumes no responsibility for the accuracy, completeness or sufficiency of the information contained in this document.
©2020 Legrand AV Inc. All Rights Reserved. ECHOGEAR is a Legrand AV Inc. brand and a registered trademark owned by Legrand.

Legrand AV Inc. • 6436 City West Parkway • Eden Prairie, MN 55344 USA
6901-602611 00
