ARA Antenna Research YCA2432LW Tactical Antenna Systems
TACTICAL ANTENNA SYSTEMS

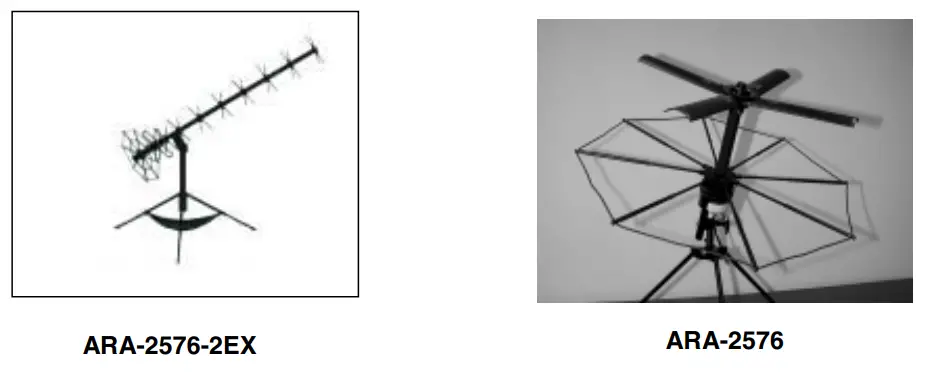

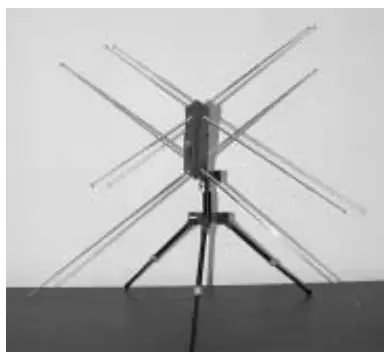

UHF SATCOM MANPACK ANTENNAS
These are foldable antennas that fit together with a tripod and are ideal for tactical and field applications. These are extremely durable antennas that can be deployed several thousand times by military troops in harsh environments. The dull black finish is suitable for use in environments found around the world. The complete assembly is folded and supplied in a water resistant carrying bag.
SPECIFICATIONS
| GAIN | 8.0 dBic | 6.5 dBic to 7.0 dBic | 5 dBic |
| FREQUENCY | 240 to 400 MHz | 240 to 400 MHz | 244 to 318 MHz |
| POLARIZATION | Right hand circular | Right hand circular | Right hand circular |
| IMPEDANCE | 50 Ohms | 50 Ohms | 50 Ohm |
| VSWR | < 1.5 : 1 | 1 : 1.5 max | 1.5:1 |
| BEAMWIDTH | 80° degrees | 100° degrees | 100° degrees |
| OPERATING TEMPERATURE | -25° to +125° F | -25° to +125° F | – 25° to +160° F |
| STORAGE TEMPERATURE | -70° to + 250° F | -70° to 160° F | – 55° to + 250° degree F |
| POWER HANDLING | 200 Watts average | 100 Watt CW, 200 Watts for 5 min | 100W CW |
| ANTENNA CONNECTORS | Female, BNC type | Male, BNC type | Female, BNC type |
| CABLE CONNECTORS | Male and female BNC | Male and female BNC | Male and female BNC |
| TRIPOD WITH AZ AND EL MOUNT | Included | Included | Included |
| DEPLOYMENT TIME | 3 minutes or less | 3 minutes or less | 30 seconds |
- Phone: 301-937-8888
- Fax: 301-937-2796
- http://www.ara-inc.com
- [email protected]
