P231146 Supersonic Hair Dryer
User Manual
In the box

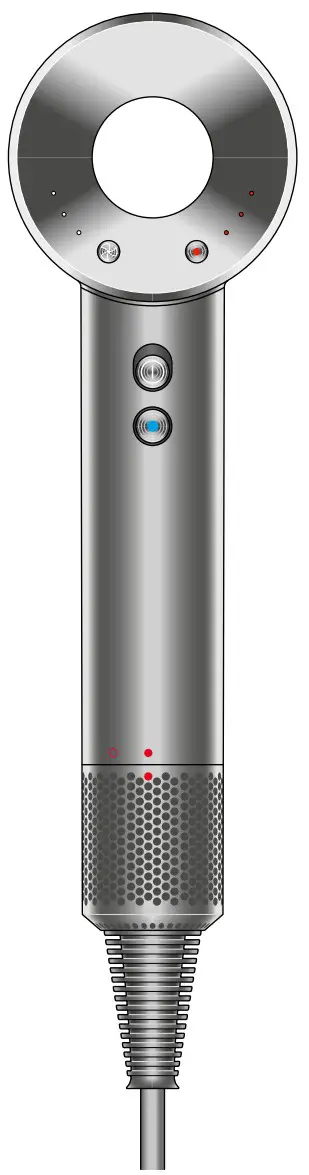

Dyson Supersonic™ hair dryer

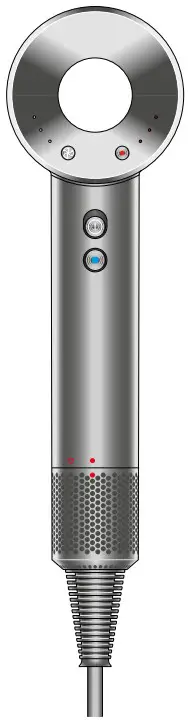

View of the back of the Dyson Supersonic hairdryer showing the flow button on the left and the temperature button on the right. The power button and cold shot buttons shown on the handle. The filter cage located at the bottom of the handle.
Some attachments may not be included.
You can buy additional attachments at www.dyson.my.
 | |||
| Styling concentrator Attachment with a flattened, flared nozzle. | Smoothing nozzle A flat, straight nozzle | Gentle air attachment A flat nozzle with a rippled texture. | Flyaway smoother Attachment with cylindrical barrel and retractable brush bristles. |
Getting started

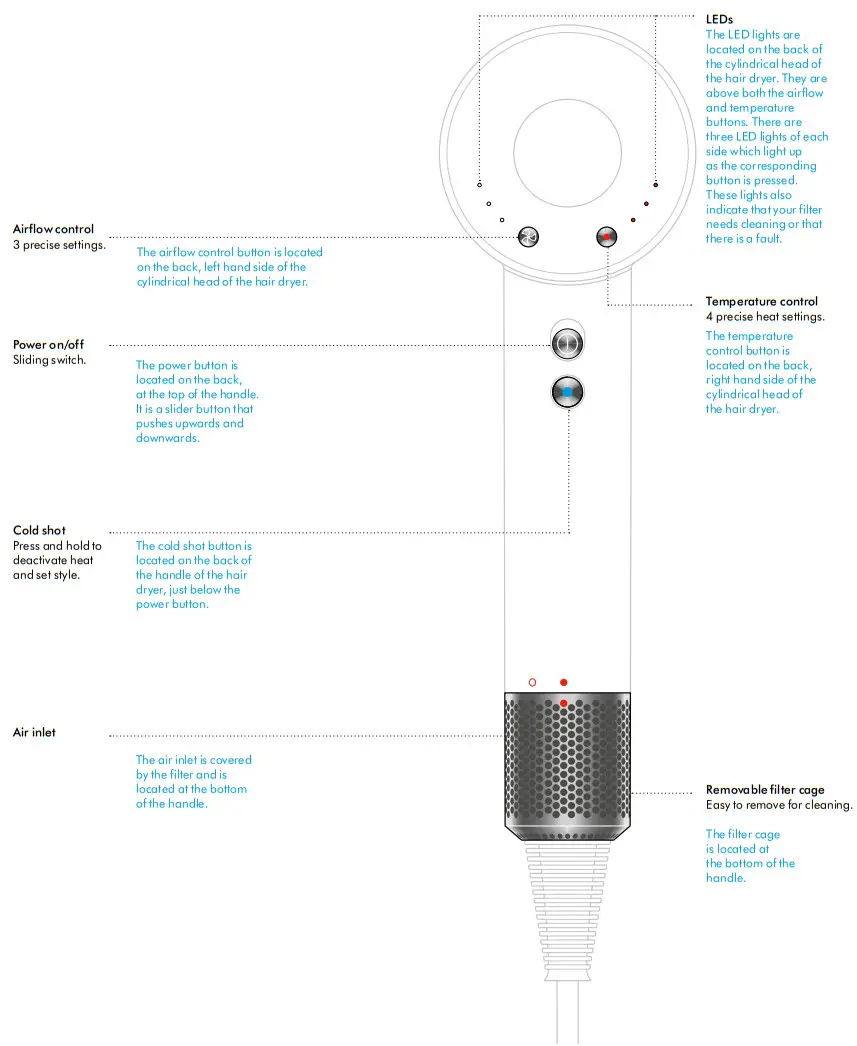

View of the back of the Dyson Supersonic hairdryer showing the flow button on the left with LED lights and the temperature button on the right, also with LEDs. The power button and cold shot buttons shown on the handle.
LEDs
Settings
The LED lights indicate which settings you are using.

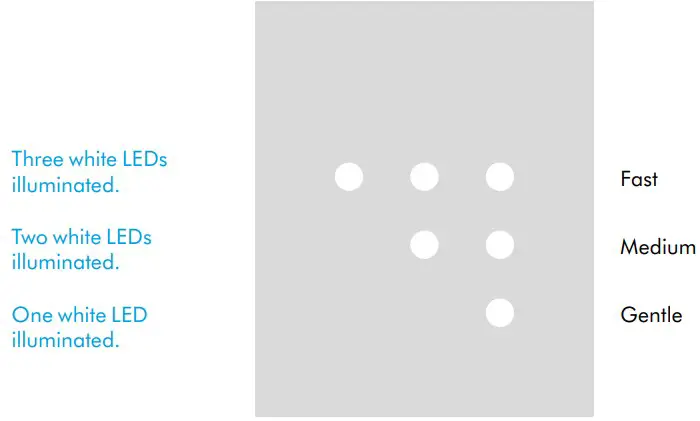

Flow

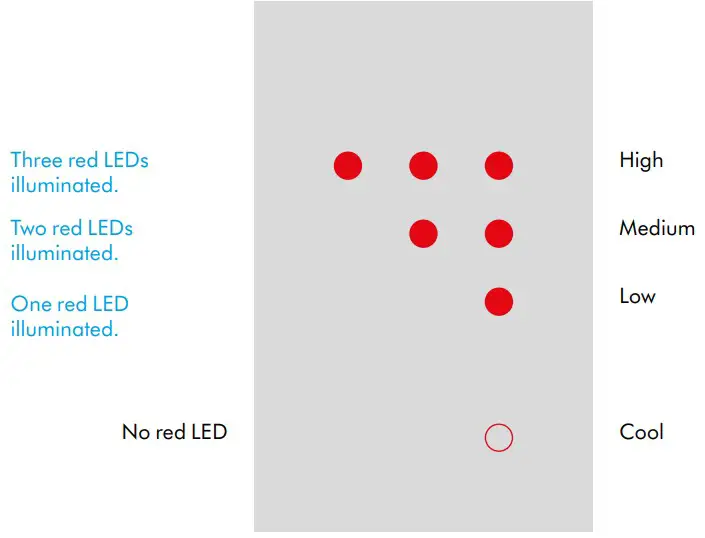

Temperature
Maximum operating temperature in normal working conditions: 105°C.
Maximum thermistor temperature at safety shut down: 145°C.

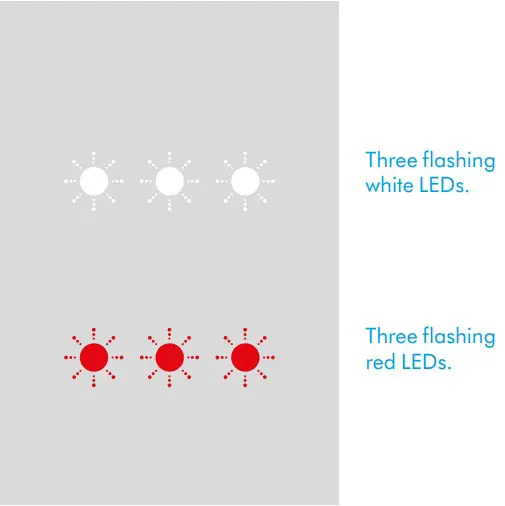

Diagnostics
The LEDs will flash continuously to let you know that your machine needs attention.
Clean the filter. Follow the instructions or watch the video at www.dyson.my/products/hair-care/dyson-supersonic-hair-dryer/owners.
If all three red lights continue to flash, contact the Dyson Helpline.
Don’t turn back on.
Using your hair dryer
Your Dyson Supersonic™ hair dryer has magnetic styling attachments, for easy fitting and rotation during styling.
Remove your attachments using the cool edges.
Heat Shield technology keeps the surface of your styling attachments cool.
| Smoothing nozzle Helps create volume and body. Decreases frizz for a smooth, natural look. |  | A flat, straight nozzle. |
| Styling concentrator Wider and thinner for precision styling. |  | Attachment with a flattened, flared nozzle. |
| Gentle air attachment Cooler, gentle drying for fine hair and delicate scalps. |  | A flat nozzle with a rippled texture. |
| Flyaway smoother With two modes, to smooth and hide flyways, using the Canada effect. |  | Attachment with cylindrical barrel and retractable brush bristles. |
Regular filter cleaning
Check your filter is clear from hair product residue and debris monthly, or when the LED lights alert you.
Unplug your machine from the mains electricity supply and allow to cool down before cleaning your filter.
The Dyson Supersonic™ hair dryer has highly tuned technology to give outstanding performance.
This technology needs to be kept free from dust and hair product residue.
Maintenance is required to maintain performance.
Maintaining performance

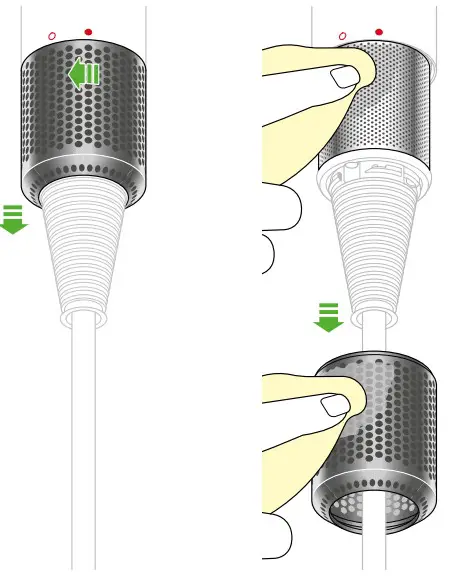

Step 1
Hold the handle of your machine firmly and gently rotate the filter cage anti-clockwise.
Step 2
Pull down and away from the machine. Use a lint-free cloth or soft brush to remove any dust or debris from both the filter cage and the filter mesh.
Step 3
Don’t use water to clean the filter mesh.
Don’t apply too much pressure to the filter mesh.

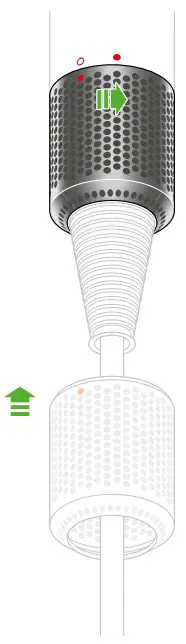

Step 4
Rotate the filter cage back into position until correctly aligned.
Rotate clockwise to lock before use.
