Dyson supersonic logo
User manual
SV12 JN.00000 PN.000000-00-00
00.00.00 VERSION NO.01
In the box

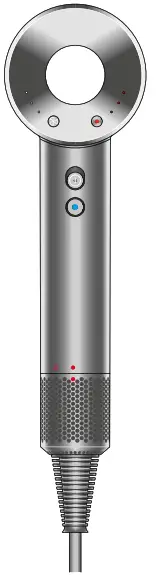

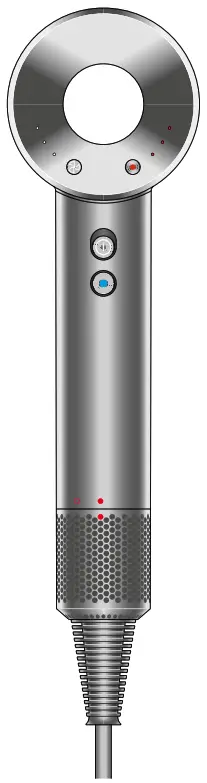

Dyson Supersonic™ hair dryer
View of the back of the Dyson Supersonic hairdryer showing the flow button on the left and the temperature button on the right. The power button and cold shot buttons
are shown on the handle. The filter cage is located at the bottom of the handle.
Some attachments may not be included.
You can buy additional attachments at www.dyson.com.
 | |||||

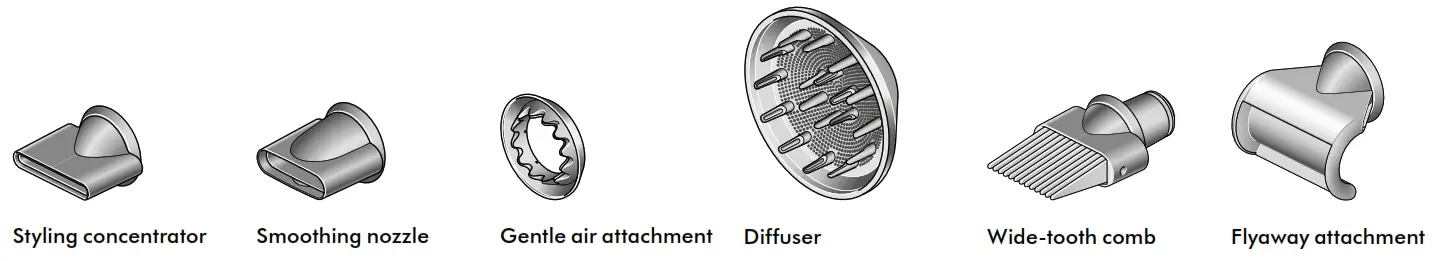

| Attachment with a flattened, flared nozzle. | A flat, straight nozzle. | A flat nozzle with a rippled texture. | A large, wide, circular nozzle with prongs on the inner surface. | An attachment with long straight comb prongs. | A flat, hook-shaped nozzle. |
Getting started

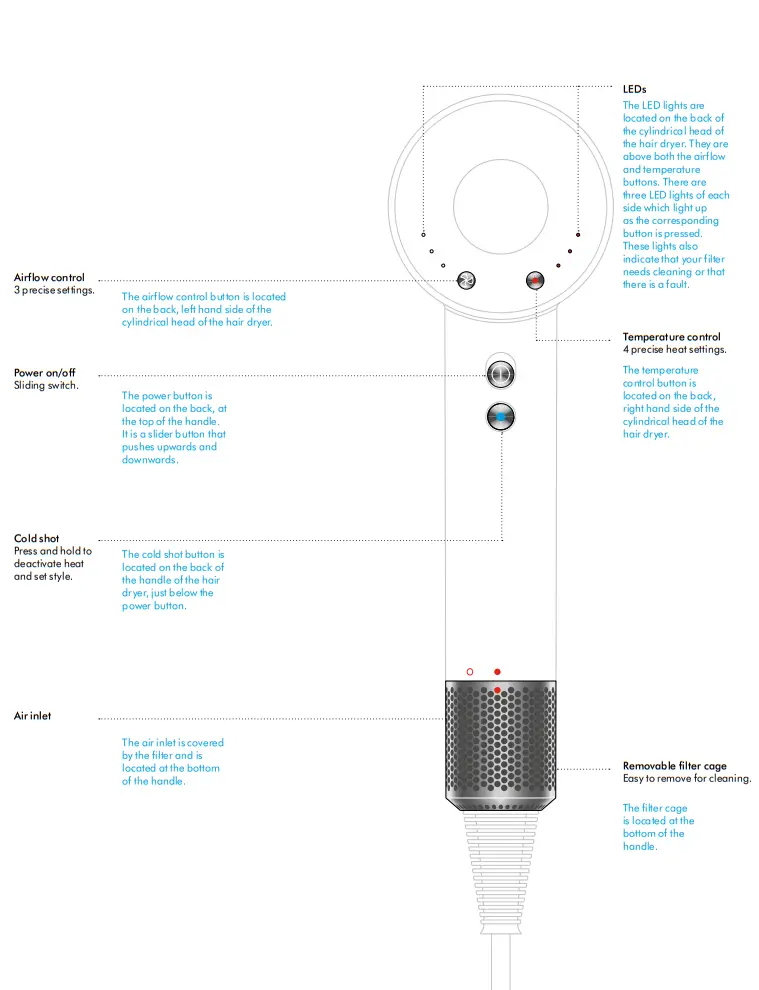

View of the back of the Dyson Supersonic hairdryer showing the flow button on the left with LED lights and the temperature button on the right, also with LEDs. The power button and cold shot buttons are shown on the handle.

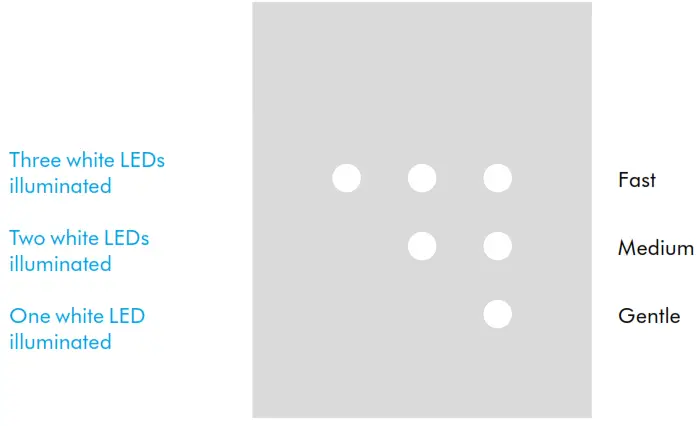

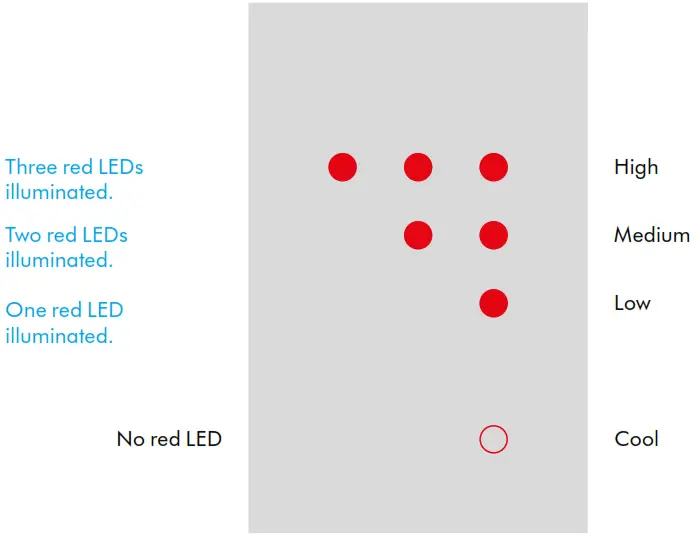

LEDs
Settings
The LED lights indicate which settings you are using.
Flow
Temperature
Maximum operating temperature in normal working conditions: 105°C.
Maximum thermistor temperature at safety shut down: 145°C.

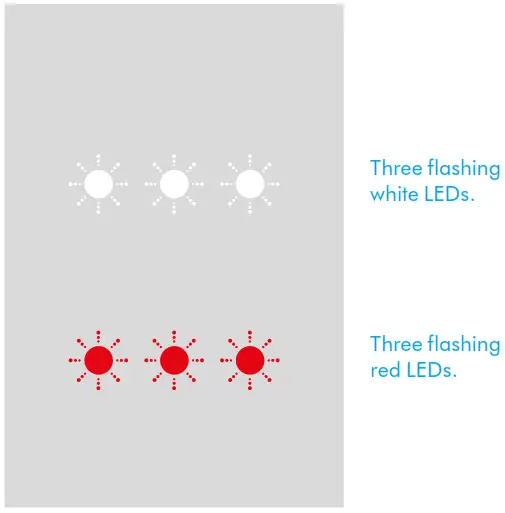

Diagnostics
The LEDs will flash continuously to let you know that your machine needs attention.
Clean the filter. Follow the instructions or watch the video at dyson.com/yoursupersonic.
If all three red lights continue to flash, contact the Dyson Helpline. Don’t turn back on.
Use your hair dryer
Your Dyson Supersonic™ hair dryer has magnetic styling attachments, for easy fitting and rotation during styling.
Remove your attachments using the cool edges.
Heat Shield technology keeps the surface of your styling attachments cool.
Smoothing nozzle
Helps create volume and body. Decreases frizz for a smooth, natural look.
A flat, straight
nozzle.
Styling concentrator
Wider and thinner for precision styling.
Attachment
with a flattened, flared nozzle.
Diffuser
Even diffusion to help define curls and reduce frizz.
A large, wide, circular nozzle with prongs on the inner surface.
Gentle air attachment
Cooler, gentle drying for fine hair and delicate scalps.
A flat nozzle with a rippled texture.
Wide-tooth comb
Engineered for curly and coily hair. Lengthen hair completely, or tease out curls just a little bit.
An attachment with long straight comb prongs.
Flyaway attachment
For a smoother finish. Attracts longer hairs and hides flyaways, using the Coanda effect.
A flat, hook-shaped nozzle.
Regular filter cleaning
Check your filter is clear from hair product residue and debris monthly, or when the LED lights alert you.
Maintaining performance
Unplug your machine from the mains electricity supply and allow to cool down before cleaning your filter.
The Dyson Supersonic™ hairdryer has highly tuned technology to give outstanding performance.
This technology needs to be kept free from dust and hair product residue. Maintenance is required to maintain performance.

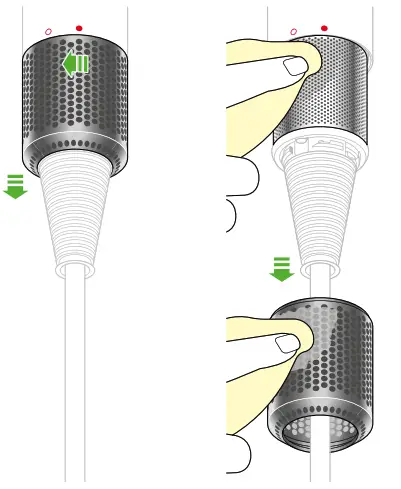

Step 1
Hold the handle of your machine firmly and gently rotate the filter cage anti-clockwise.
Step 2
Pull down and away from the machine. Use a lint-free cloth or soft brush to remove any dust or debris from both the filter cage and the filter mesh.
Step 3
Don’t use water to clean the filter mesh. Don’t apply too much pressure to the filter mesh.

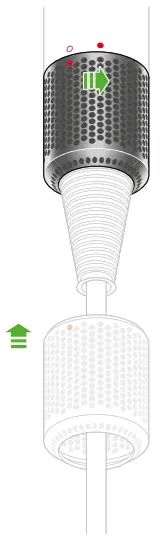

Step 4
Rotate the filter cage back into position until correctly aligned. Rotate clockwise to lock before use.
