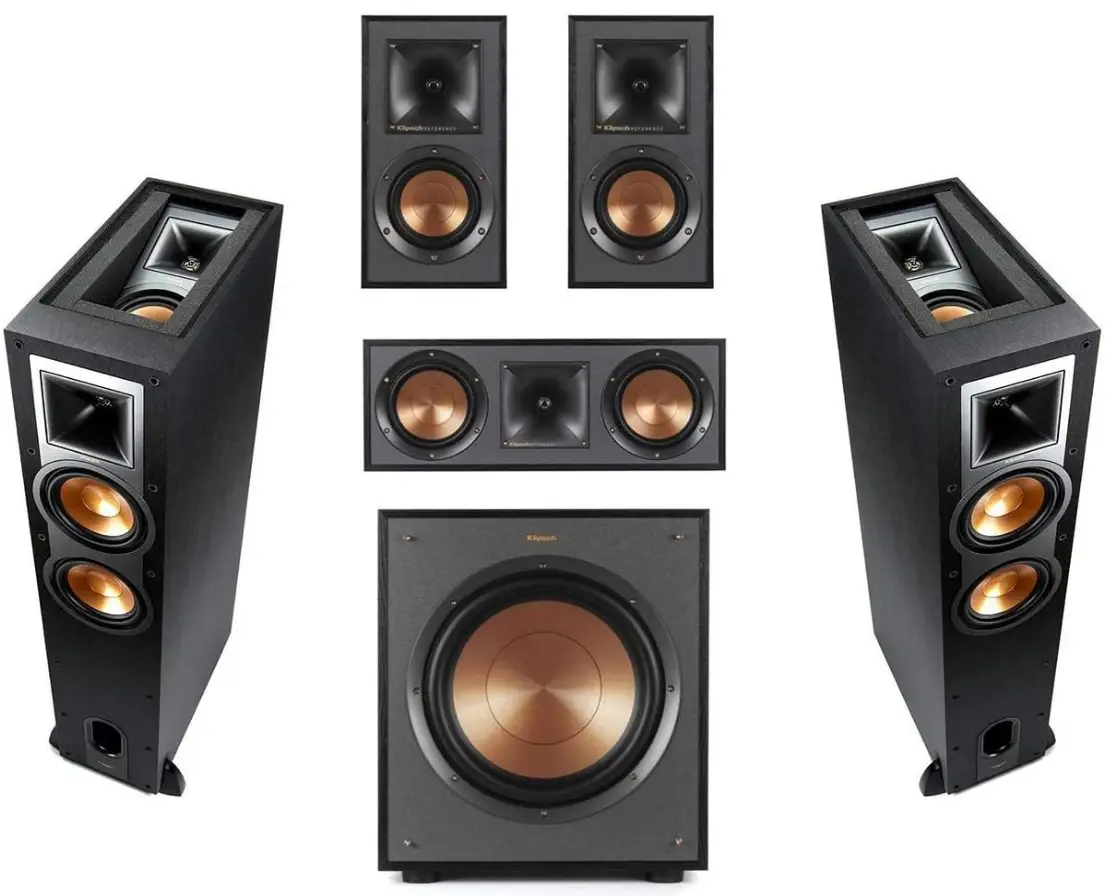

Klipsch R-26FA 5.1 Home Theater Pack
Klipsch R-26FA 5.1 Home Theater Pack
SPECIFICATION
- DIMENSIONS: 44 x 21.75 x 12.75 inches
- WEIGHT: 195.7 pounds
- TRACTIX HORN: 90 x 90
- MODEL NAME: Dolby Atmos Speaker
INTRODUCTION
The R-26FA was created with an elevation channel built right into the top. In addition to projecting stereo sound in the direction of the listener, Dolby Atmos floor standing speakers also bounce sound off the ceiling to create an immersive, overhead Dolby Atmos experience. For more than a century, Klipsch’s acoustic design principles have included controlled directivity and great performance, which is why Klipsch is the chosen speaker for this cutting-edge soundstage. Horn-loaded 90 × 90 for clarity Horn, Tractrix Aluminum tweeters with our proprietary Tractrix Horn technology produce the most stunning high-end response with increased extension, improved imaging, and robust dynamics. This produces the purest, most authentic sound that is conceivable. Tweeter with linear travel suspension (LTS) reduced distortion from linear travel suspension results in improved, detailed performance.
REFERENCE (n):
- the standard, the benchmark, the point used for comparison
- the embodiment of the legendary Klipsch sound
LOUD AND PROUD SINCE 1946
In 1946, Paul W. Klipsch revolutionized the audio industry by creating our proprietary horn technology and the acoustic principles that are the driving force behind our highly acclaimed signature sound. Today, we remain true to PWK’s vision and pack the better part of a century’s worth of sweat and genius into every product we make. These speakers are the result of our obsession with that aural perfection. Experience the power, detail and emotion of Klipsch Reference. We are the Keepers of the Sound®.

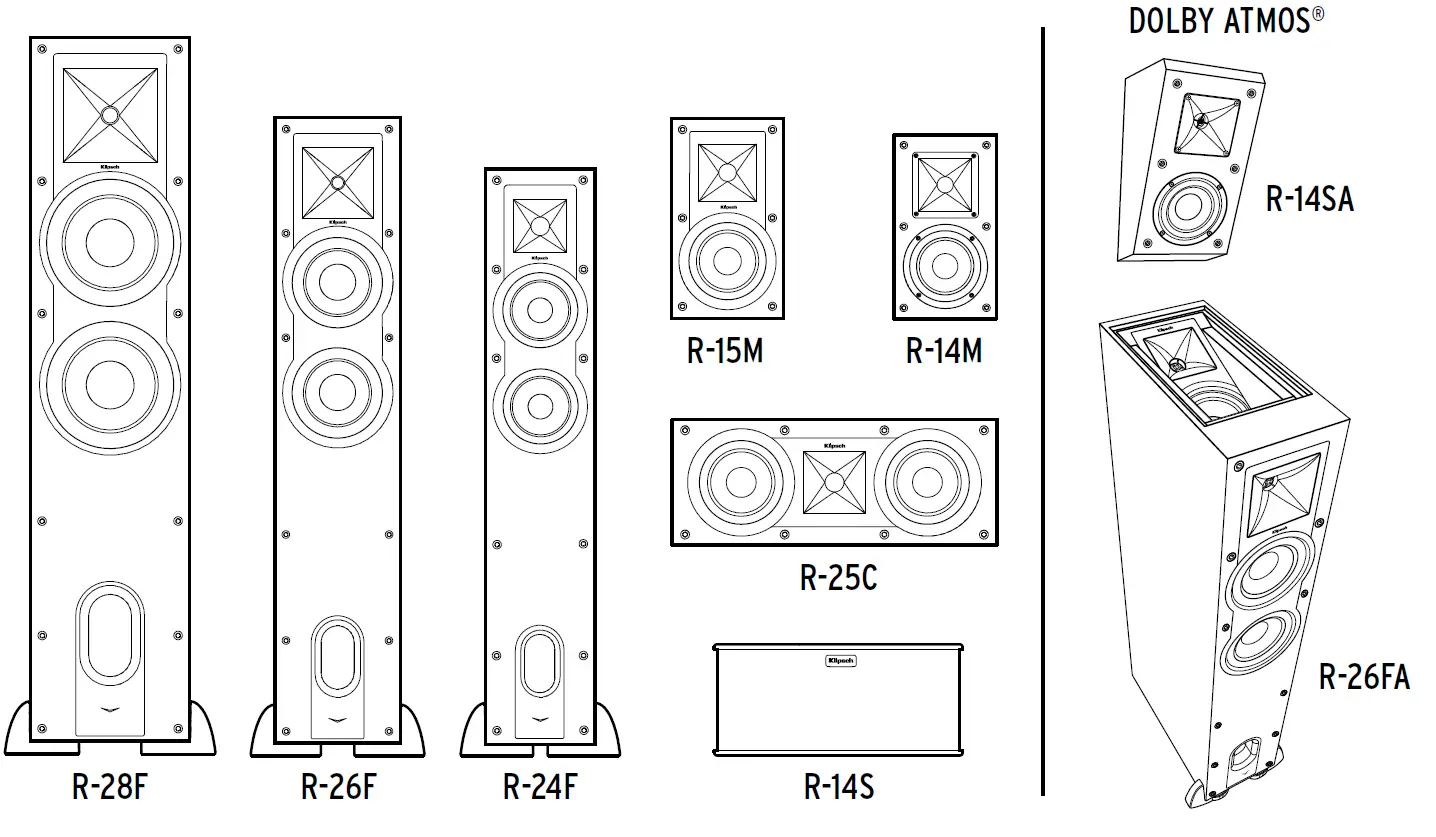

REFERENCE SPEAKERS
BEFORE YOU START

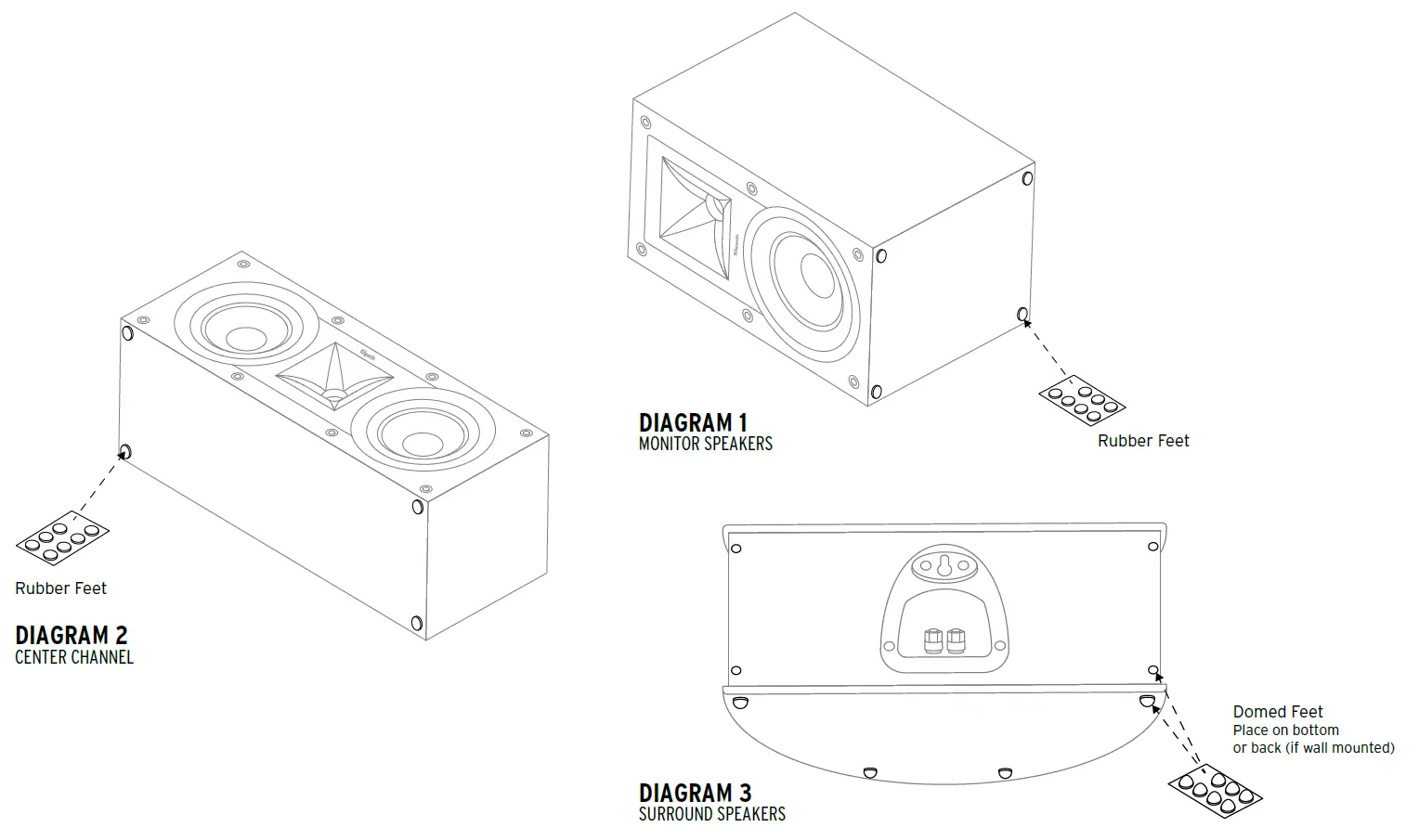

Some Klipsch® speakers have feet and other accessories that may need to be installed prior to use. Please refer to Diagrams 1, 2 and 3 for installation.
ROOM PLACEMENT

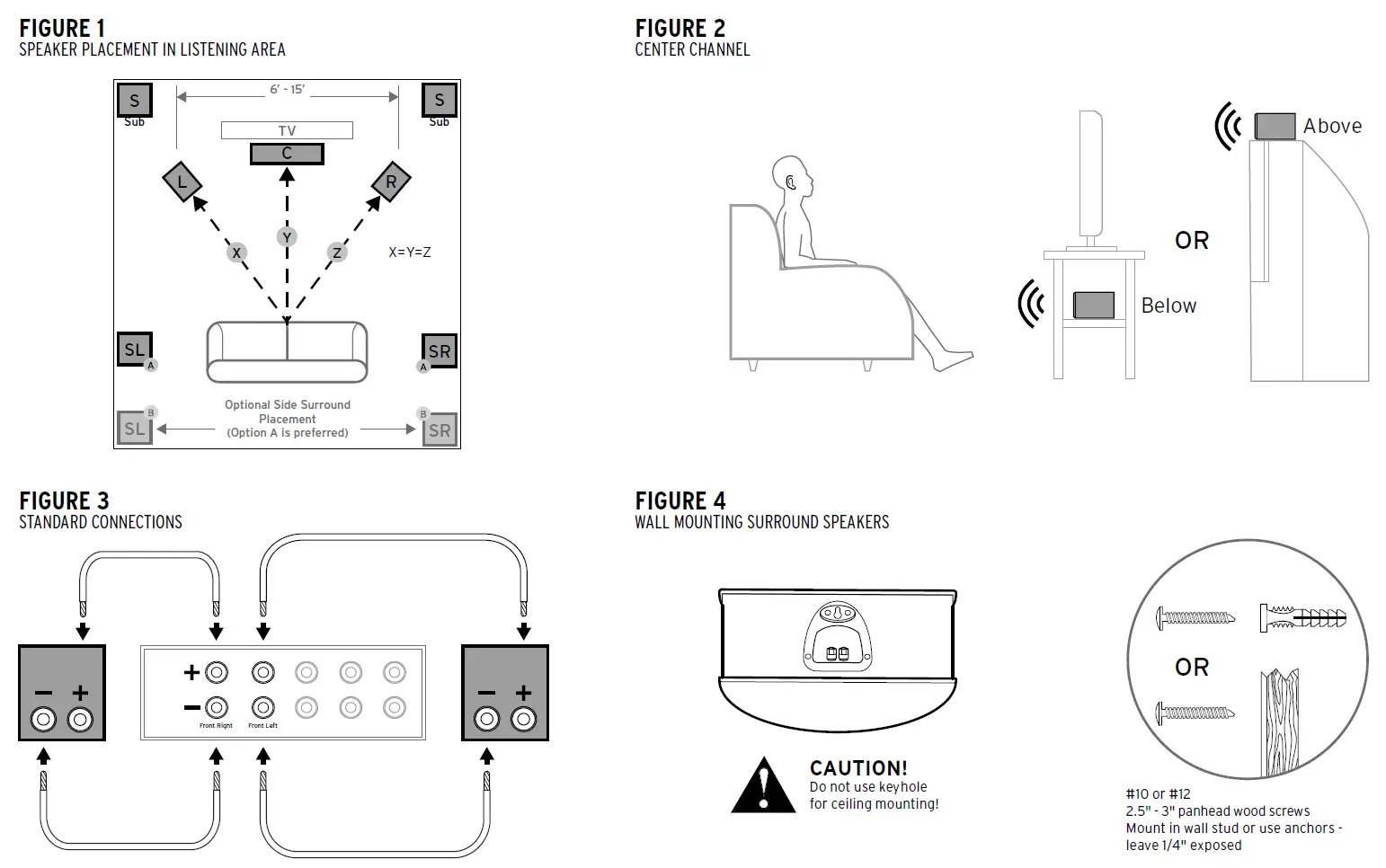

Left and Right Main Channel Speakers — For optimum performance, Klipsch Group, Inc. (KGI) suggests placing your speakers 6 to 15 feet (1.8 to 4.6m) apart. They may also be toed-in slightly for better stereo imaging. The listening position should be about 1 to 1.5 times the distance separating the speakers. Refer to Figures 1 and 3 for connection and placement.
Center Channel Speakers — Center channel speakers are designed to place dialogue and primary sounds so that they appear to come from the video screen. The speakers should therefore be placed as close to the screen as possible, preferably directly on top of or below the screen. Refer to Figures 1, 2 and 3 for connection and placement.
Rear Surround Channel Speakers — Klipsch WDST surround speakers should be placed approximately 2 feet above the listening position. Typically this will be about 5-7 feet above the floor. The surrounds should be placed on the walls directly adjacent to the listening position. Another option would be on the wall behind the listening position. The final surround speaker placement depends on your room’s characteristics. They are designed to recreate the sense of space and ambience that many of today’s surround sound technologies provide. Refer to Figures 1, 3 and 4 for connection and placement.
Please note that surround grilles are fixed and cannot be removed.
CONNECTION
Conventional Connection — Using 16-12 gauge speaker wire, connect the RED “positive” (+) terminal of the LEFT speaker to the RED “positive” (+) terminal of your amplifier’s LEFT channel. Connect the BLACK “negative” (–) terminal of the LEFT speaker to the BLACK “negative” (–) terminal of your amplifier’s LEFT channel. Repeat this procedure for connecting all remaining speakers to the appropriate amplifier channels. Refer to Figure 3. Make sure that no bare wires from any of the connections touch any other terminals as this could cause a short and damage your equipment.
Some Klipsch Reference speakers come with dual binding posts that are connected by a metal strip. Do not remove this strip or your speakers will not function correctly. Keep this strip in place and connect your speaker wire to the top set of the binding posts. It is possible to “Bi-wire” a speaker that has two sets of binding posts. Please see your receiver’s manual for further instructions.
Amplifier Requirements — Klipsch speakers are highly efficient and will operate easily on a wide variety of amplifiers. All Klipsch speakers are 8-ohm compatible and can be driven to very high levels with low distortion. Due to the high output levels Klipsch speakers are capable of reproducing, exercise caution with the volume control. Excessive volume over long periods can permanently damage your hearing. Overdriving your amplifier could also damage your speakers. Check with your dealer or amplifier manual to make sure your particular amplifier is best suited to your application. We want you listening for a lifetime.

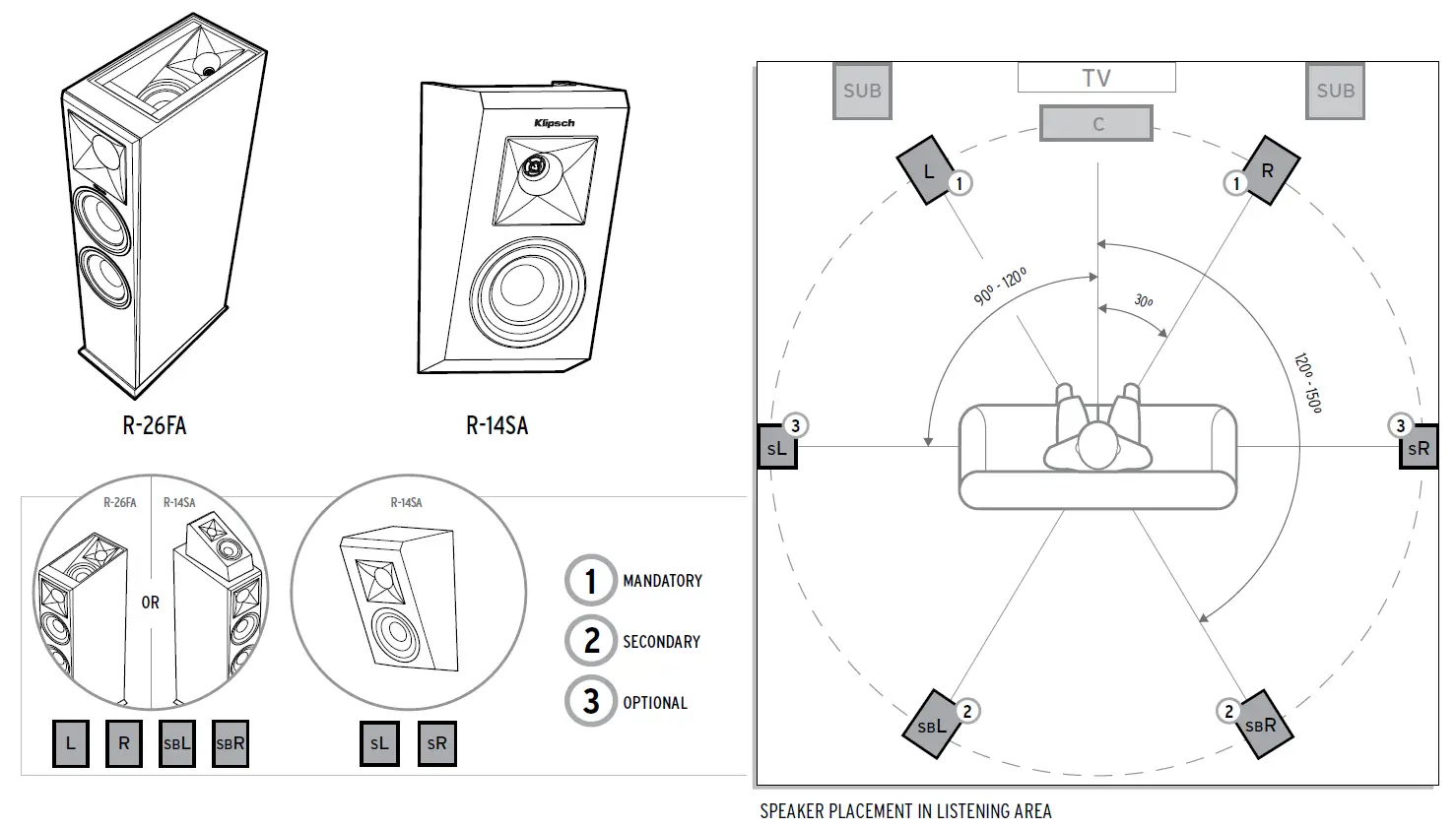

REFERENCE WITH DOLBY ATMOS® TECHNOLOGY
CARE AND CLEANING
The only thing you should ever need to do to your speakers is dust them occasionally. Never apply any abrasive or solvent-based cleaner or any harsh detergent. You can clean the grilles with the brush attachment of a vacuum cleaner.
PRODUCT REGISTRATION
Register your product online at www.klipsch.com/register
- Keep up-to-date on new products and promotions.
- Your personal information will never be resold.
- This registration information is not used for warranty purposes. Please retain your receipt for warranty claims.
FREQUENTLY ASKED QUESTIONS
Is a receiver necessary?
Yes, that or an amp. Could someone please tell me the dimensions of the front left and right speakers? They are 39.5″ H x 7.875″ W x 16″ D, the centre speaker is 7″ H x 18.75″ W x 7.625″ D, the surround speakers are 11″ H x 5.75″ W x 7.875″ D, and the subwoofer is 16″ H x 14″ W x 18.5″ D.
How far up the floor speakers are the hookups from the base?
The higher speakers are 16″ above the floor, while the primary speakers are 9″ above it.
Will these would be adequate for a 24 x 14 home theatre?
Yes. Just make sure you have or get a receiver with at least 7.2 channels to do it right.
Will these speakers complement the Denon AVR-X1700H 7.2 receiver well?
Yes, these higher speakers come from a trusted brand. According to how effectively your receiver drives them, they will sound.
Will these speakers complement the Denon AVR-X1700H 7.2 receiver well?
Yes, these higher speakers come from a trusted brand. According to how effectively your receiver drives them, they will sound.
What about Klipsch speakers for home theatre?
Klipsch speakers may transform your home theatre audio from ordinary to extraordinary. Klipsch has been making speakers for decades using tried-and-true methods and high-quality components, so you can expect nothing less than the best audio quality and performance for all of your entertainment needs.
Is Klipsch high end?
For more than 50 years, Klipsch has been a leader in the high-end speaker industry, and its products are renowned for their excellent sound, high quality, and dependability. Klipsch is a great option if you want to update your audio system.
What kind of receiver do I need for Klipsch Reference Theater Pack?
Onkyo TX-SR494 7.2-Channel 4K Ultra HD Hi-Res AV Receiver and Klipsch Reference Theater Pack 5.1 Surround System Bundle in black.
Why do people like Klipsch?
Generally speaking, Klipsch is regarded as a premium budget speaker. I believe Klipsch speakers are an excellent option for most people mostly because they sound incredibly clear. If you’re shopping for new speakers, keep in mind that they sound far better than speakers with comparable prices.
Will these speakers work with a Yamaha TSR-700 7.2 receiver?
Yes, it will undoubtedly succeed.
Does it come with cables?
The subwoofer’s power plug is provided, however speaker wire must be purchased separately.
Are front covers included with speakers?
They do indeed have front covers.
Before they connect to the receiver, do you wire the two front speakers in the cab together?
No, the speaker parts will have different outputs on your Atmos receiver. For the top and bottom parts of each speaker, there are two sets of binding posts.
