J D Manufacturing VG24DM Whirl-Wind Galvanized Box Fan
The Whirl-Wind galvanized box fan has performance and durability, and it is easy to install. This fan features a strong galvanized housing, and heavy-duty 12-gauge welded wire mesh guards that are hot dip galvanized. Poly guard clips reduce noise and vibration between the housing and guard. Whirl-Wind fans include attached hanging brackets for quick and easy installation in your building. The high-velocity air movement provides maximum air flow at a low electrical cost.
Features
- Available in 24”, 36”, 50” and 55”
- 18 gauge galvanized housing
- 3, 4, or 6 blades balanced high output propeller
- Lifetime Warranty on 50” cast aluminum propellers
- Poly guard clips to reduce vibration for quiet performance
- Includes attached hanging brackets for easy installation
- 12 gauge wire mesh guards are hot dip galvanized after welding for long life
- 1” x 2” mesh guards are standard on most models
- Belt drive models include a heavy-duty spring belt tensioner to reduce bounce at startup, and provide self-adjusting equal pressure throughout the life of the belt for high efficiency.
- Shaft bearings are eccentric locking, pre-lubricated, permanently sealed and rubber mounted for smooth operation and reduced blade fatigue, and are covered by a 3 Year Warranty.
- Totally enclosed, maintenance-free, high-efficiency motors have completely sealed ball bearings, and are covered by a 2 Year Warranty
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product.
Whirl-Wind

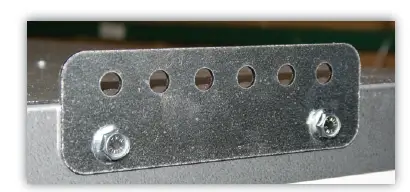

- Attached hanging brackets for easy installation.

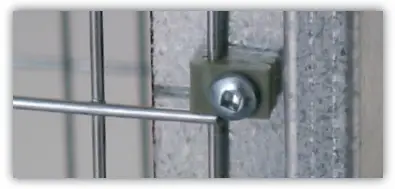

- Poly guard clips to reduce vibration for quiet performance.

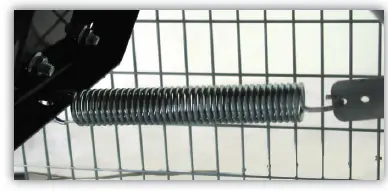

- Heavy duty spring belt tensioner on belt drive models to reduce bounce at startup.
| Part# | Size | Ph | Spd | Thrust CFM | Thrust CFM/ Watt | Drive | Prop | Mesh |
| Single Phase | ||||||||
| VG24DM | 24” | 1 | 1 | 5,170 | 13.9 | Direct | 3-Alm | 1” x 2” |
| VG36DM | 36” | 1 | 1 | 9,680 | 18.2 | Direct | 3-Glv | 1” x 2” |
| VG36DM-22 | 36” | 1 | 1 | 10,190 | 19.2 | Direct | 3-Glv | 2” x 2” |
| VG36VF36GBM | 36” | 1 | 1 | 9,800 | 16.8 | Belt | 4-Glv | 1” x 2” |
| VG36VF36 | 36” | 1 | 1 | 13,540 | 10.5 | Belt | 4-Glv | 1” x 2” |
| VG50DM | 50” | 1 | 1 | 17,000 | 18.2 | Direct | 3-Glv | 1” x 2” |
| VG50 | 50” | 1 | 1 | 20,800 | 20.2 | Belt | 3-Glv | 1” x 2” |
| VG50-24 | 50” | 1 | 1 | 22,000 | 21.4 | Belt | 3-Glv | 2” x 4” |
| VG50CA | 50” | 1 | 1 | 21,400 | 21.1 | Belt | 3-CA | 1” x 2” |
| VG50G6 | 50” | 1 | 1 | 21,100 | 21.7 | Belt | 6-Glv | 1” x 2” |
| VG55 | 55” | 1 | 1 | 28,876 | 18.4 | Belt | 3-Glv | 1” x 2” |
| Three Phase | ||||||||
| VG24DM3CF | 24” | 3 | 1/Var^ | 5,090 | 11.6 | Direct | 3-Gva | 1” x 2” |
| VG36DM3CF | 36” | 3 | 1/Var^ | 9,860 | 20.8 | Direct | 3-Glv | 1” x 2” |
| VG36DM3F-22 | 36” | 3 | 1/Var^ | 10,150 | 21.8 | Direct | 3-Glv | 2” x 2” |
| VG50DM3B | 50” | 3 | 1/Var^ | 17,400 | 19.2 | Direct | 3-Glv | 1” x 2” |
| VG503 | 50” | 3 | 1/Var^ | 21,300 | 22.1 | Belt | 3-Glv | 1” x 2” |
| VG503CA | 50” | 3 | 1/Var^ | 21,200 | 22.2 | Belt | 3-Glv | 1” x 2” |
| VG503G6 | 50” | 3 | 1/Var^ | 20,600 | 22.1 | Belt | 6-Glv | 1” x 2” |
| VG553 | 55” | 3 | 1/Var^ | 29,629 | 16.4 | Belt | 3-Glv | 1” x 2” |
Best sellers/recommended models Variable speed fans require separate variable speed control to adjust fan speed Bold red text is data based on testing performed by an accredited
lab using ANSI/ AMCA Standard 230-12 OSHA requires this fan to be mounted a minimum of 7’ above the floor

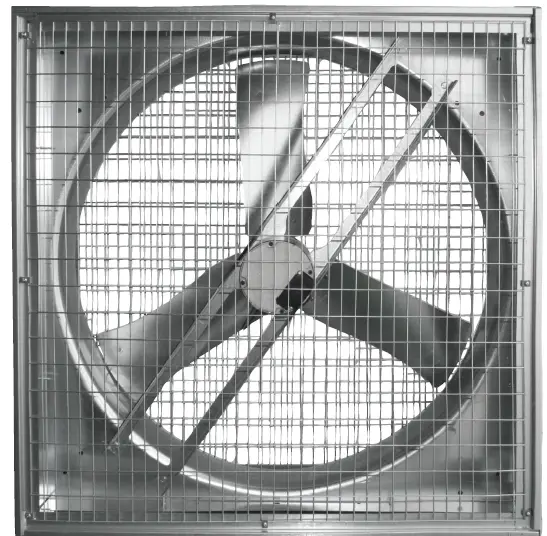

Shown:
Back of 36” Direct Drive, Galvanized 3 Blade Whirl-Wind

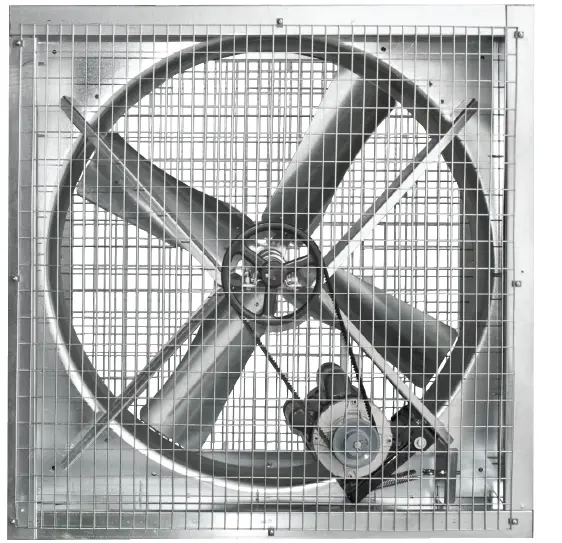

Shown:
Back of 36” Belt Drive, Galvanized 4 Blade Whirl-Wind
| Fan Size and Type | Dimensions (W x H x D) (rounded to nearest ⅛”) |
| 24” Direct Drive | 30½” x 30½” x 16¼” |
| 36” Direct Drive | 40⅝” x 40⅝” x 14⅛” |
| 36” Belt Drive | 40½” x 40½” x 24⅜” |
| 50” Direct Drive | 54½” x 54½” x 23¾” |
| 50” Belt Drive | 54½” x 54½” x 23¾” |
| 55” Direct Drive | 66” x 66” x 23¾” |
