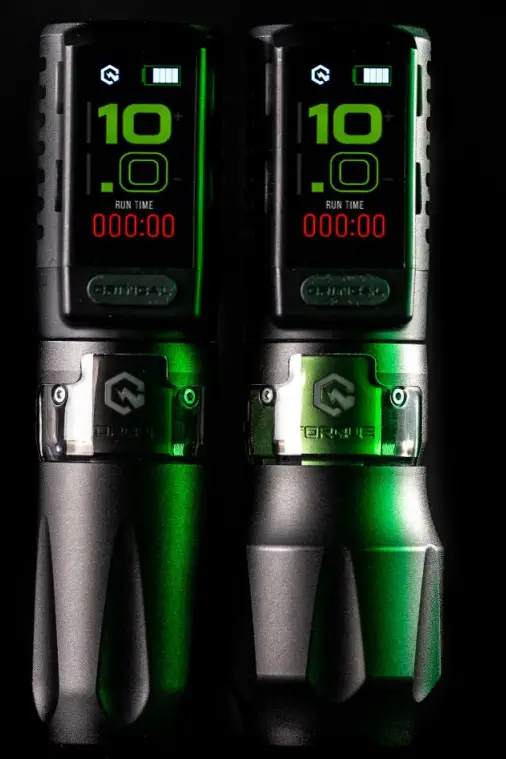

CRITICAL TATTOO CTC-CV3 Critical Torque Pen Machine

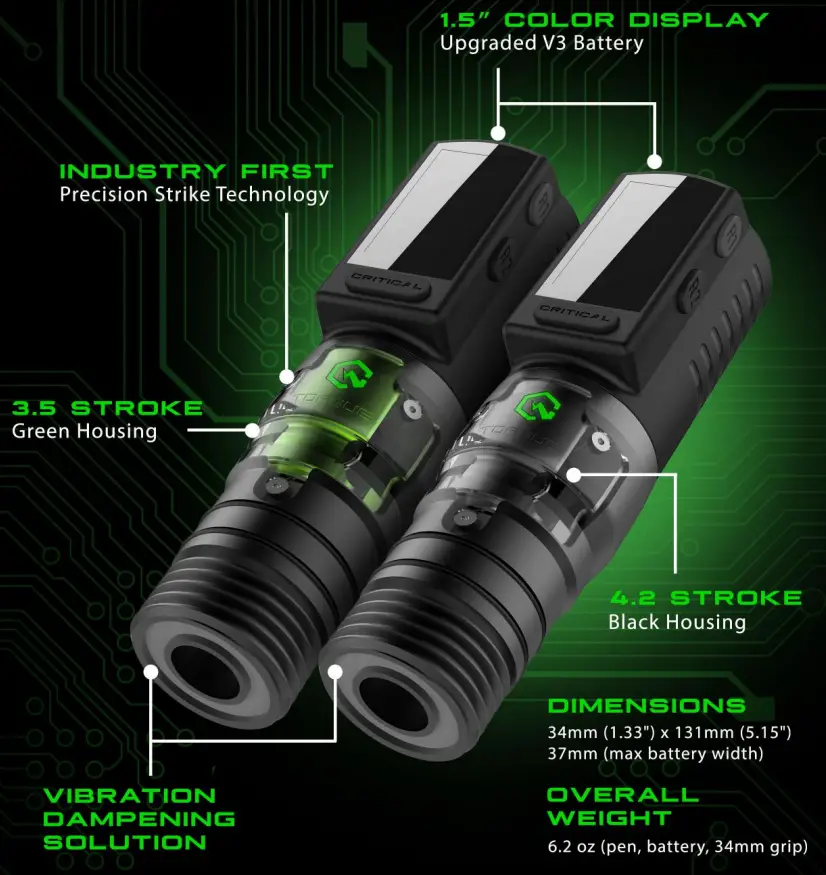

FEATURES

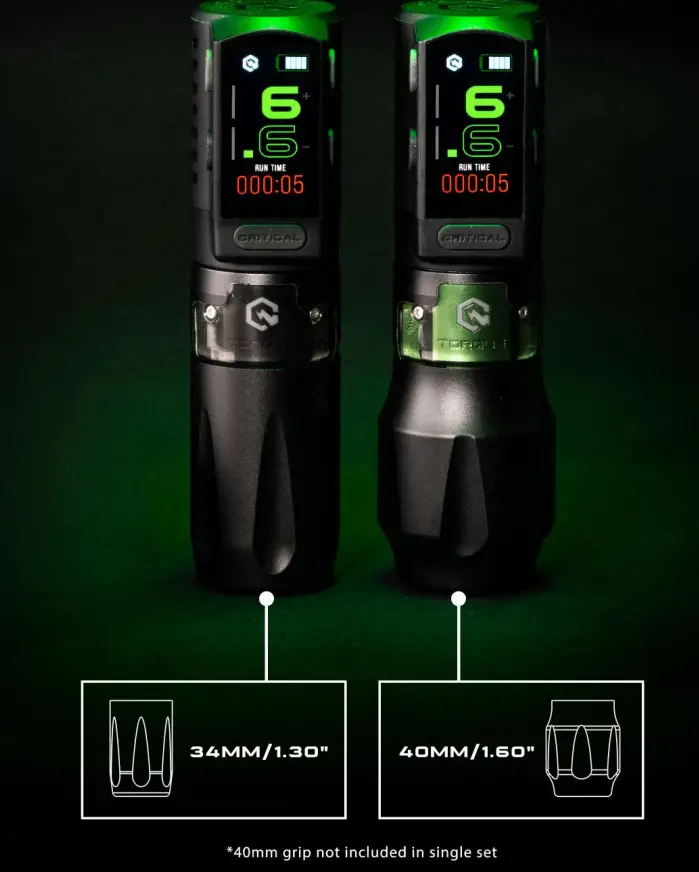

GRIP OPTIONS

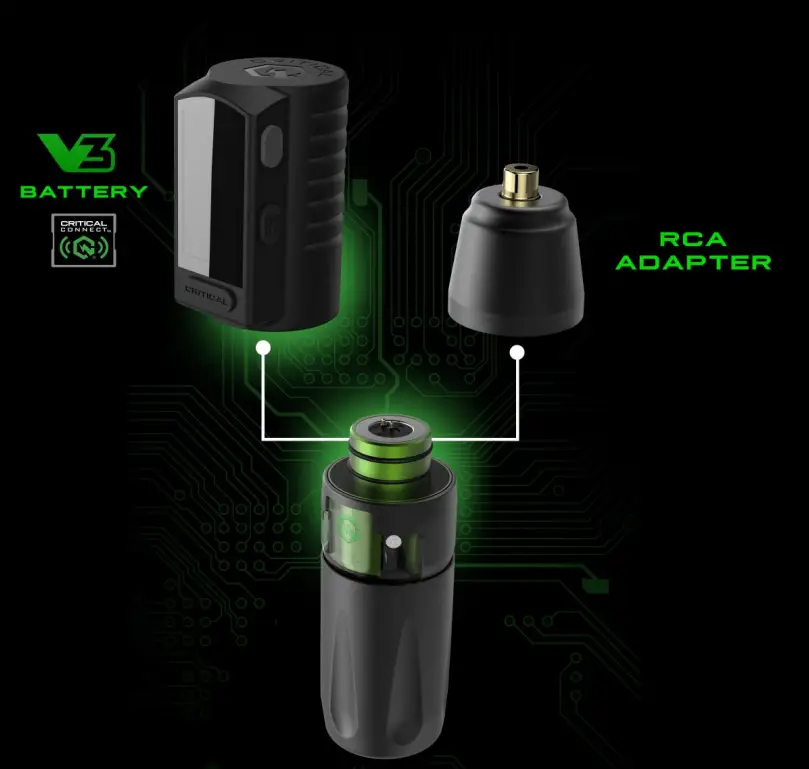

POWER ATTACHMENTS
BATTERY BASICS
LARGE CAPACITY BATTERY
Up to is hours of tattooing
*tattoo duration could change due to battery charge and voltage usage.

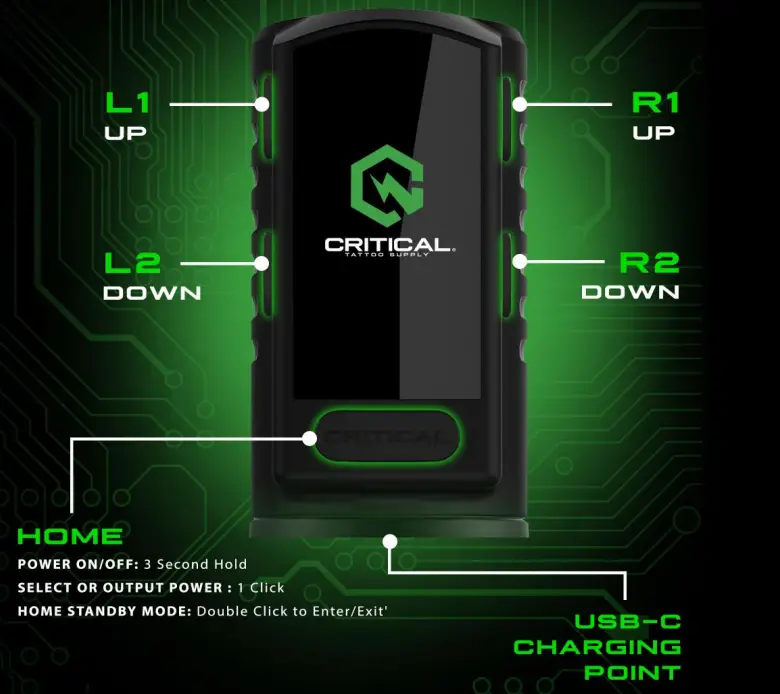

DISPLAY LAYOUT

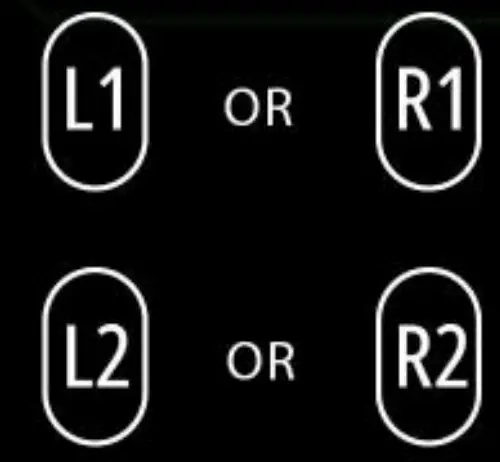

| COMMAND | BUTTONS | ACTION |
| TO ENTER SETTINGS MENU FROM MAIN MENU |  | 3 SEC HOLD |
| SCROLL UP SCROLL DOWN |  | 1 – CLICK |
| BACK BUTTON OR RETURN TO MAIN MENU |  | 2 – CLICK |

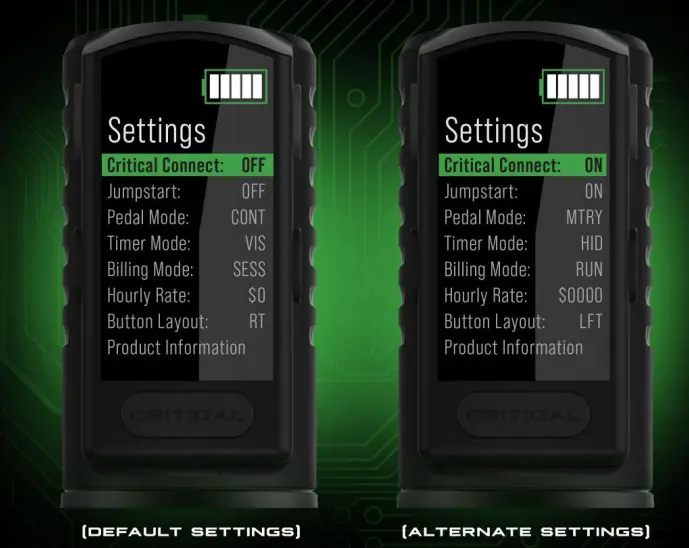

SETTING DEFINED
CRITICAL CONNECT:
Connect or Disconnect from Bluetooth (Critical Connect footswitch Required)
JUMPSTART:
Turn jumpstart on or off
PEDAL MODE:
If using a footswitch, you can change your output mode on the pedal to either continuous or momentary power.
TIMER MODE:
You can make your Run/Session timer visible on the main menu or hide it with a play/pause symbol.
BILLING MODE:
if you want to track your session time and/or hourly rate , you can do so two ways. the Session timer will record the entire session from when you manually start the timer and pause it, like a stopwatch . The Run timer will record only when the battery is active and outputting power.
HOURLY RATE:
You can update your hourly charge rate here.
BUTTON LAYOUT:
You can switch your primary buttons to either the Left or Right side to change the voltages.

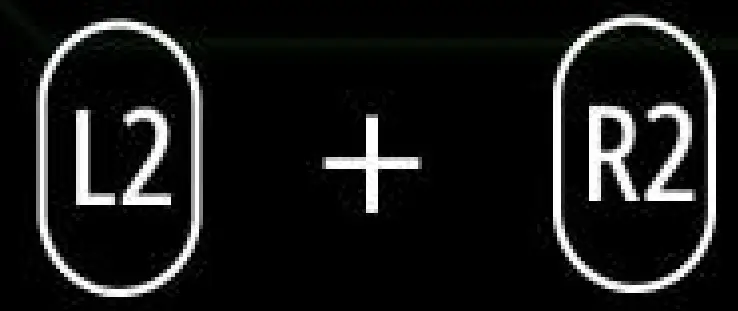

| COMMAND | BUTTONS | ACTlON |
| TO START /PAUSE TIMER SESSION MODE ONLY WHIL ON THE MAIN PAGE |  | 1-CLICK |
| TO ENTER SESSION /RUN MENU FROM MAIN PAGE |  | 3 SEC HOLD |
| TO CLEAR OR RESET THE TIMER WHILE IN THE SESSION /RUN MENU |  | 3 SEC HOLD |
| TO EXIT SESSION/ RUN MENU TO RETURN TO MAIN PAGE |  | 2-CLICK |
POWER TO THE ARTIST
@CRITICALTATTOOSUPPLY
EMAIL: [email protected]
PHONE : 877-271-1446
DESINED IN CALIFORNIA | MADE IN CHINA
US PATENT 10471246, 202030724065.7, 29/736,884 AND OTHER US PATENTS PENDING
FCC ID: 2A3QRCTC-CV3
FCC STATEMENT
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions : 1)
this device may not cause harmful interference , and 2) this device must accept any interference received , including interference that may cause undesired operation.
changes or modification not expressly approved by the party responsible for compliance could void your authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device . pursuant to Part 15 of the FCC Rules , These limits are designed to provide this equipment generates uses and can radiate radio frequency energy and , if not installed and used in accordance with the instructions, may cause harmful interference to radio communications . However ,there is no guarantee that interference will not occur in reception , which can be determined by turning the equipment off and on , the user is encouraged to try to correct the interference by on or more of the following measures”
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver .
connect the equipment into an outlet on a circuit different from that to which the receiver is connected .
consult the dealer or an experienced radio/ TV technician help.
The device has been evaluated to meet general RF expose requirement , the device can be used in portable exposure condition without restriction.
