Robot Vacuum User Manual
Sweeva1000

Please read this manual carefully before using this product and keep it for later use

Product description

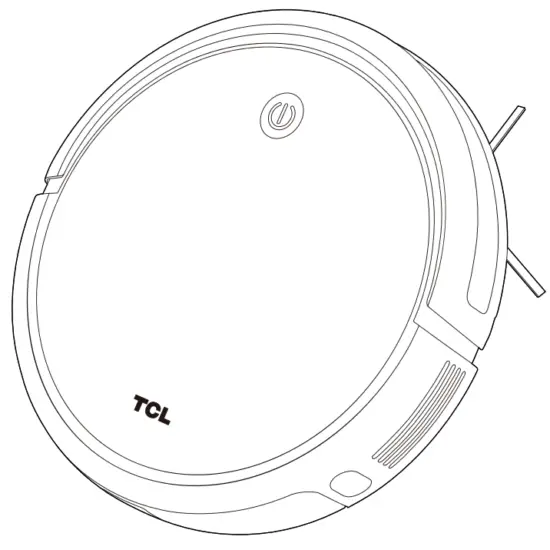

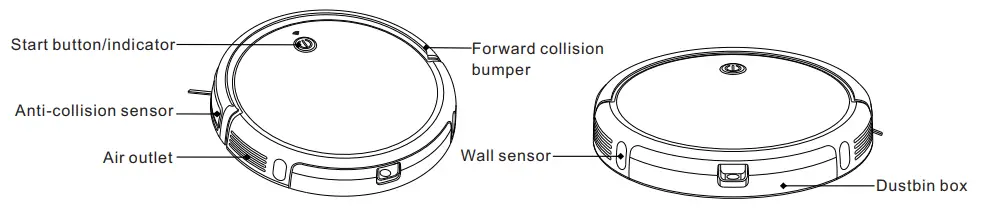

Robot Vacuum

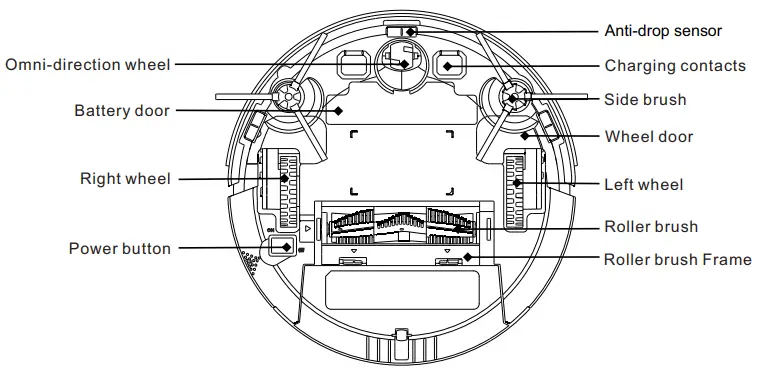

Bottom of Robot Vacuum

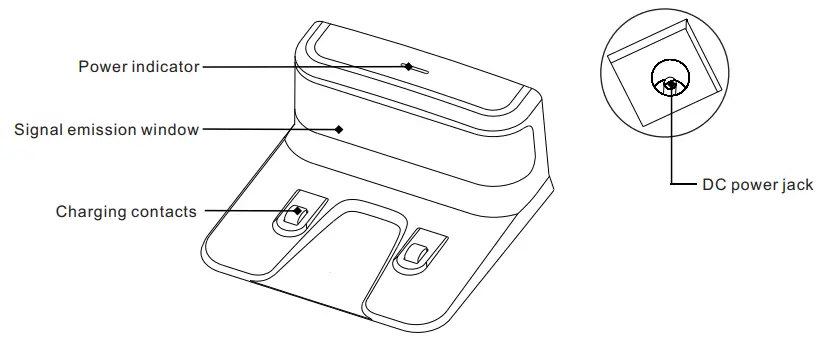

Charging base

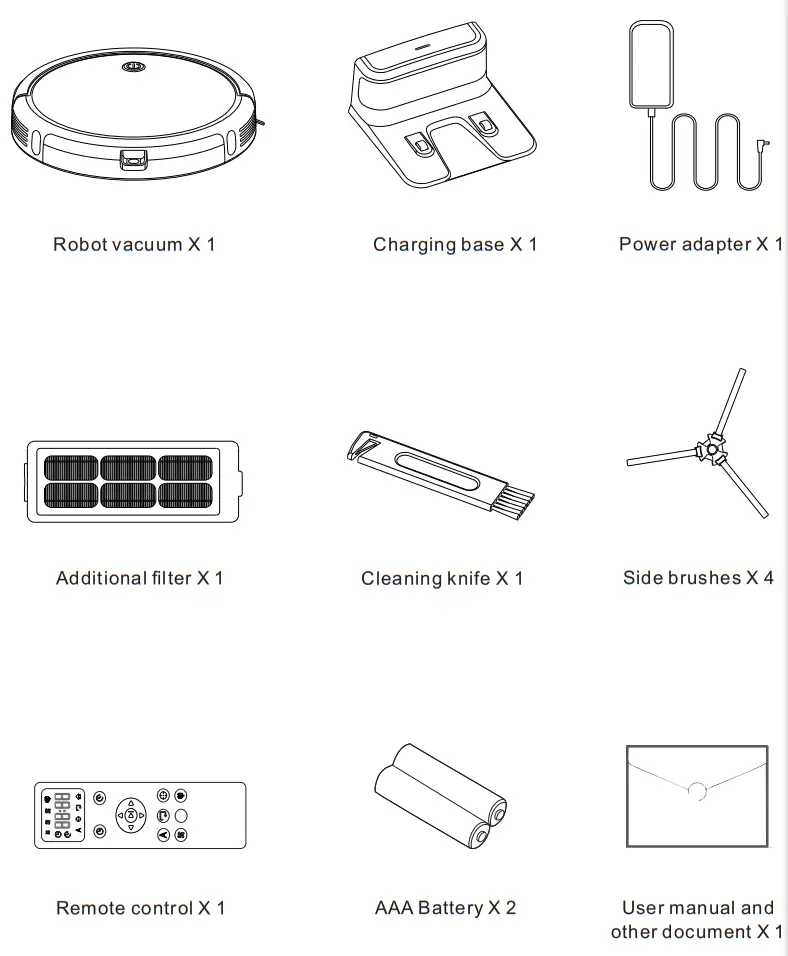

Packaging list

Safety instructions

The following precautions guide users on how to use the product safely and correctly to avoid the risk of injury or damage.
Basic precautions
After reading this manual, please keep it in an easily accessible place.

• This symbol is a warning symbol This symbol warns you of potential hazards that may cause property damage or serious injury or death.
• The warning refers to a situation that, if not avoided, may result in death or serious injury.
• Be careful of flashing indicators. It may cause slight or moderate injury if not avoided.

Warning

• Please read this manual carefully to learn about the product use and precautions before using the product.
• This appliance can be used by children aged 8 years and above Persons with physical, mental, or sensory impairments are prohibited from using or operating this product.
• This product is not a toy. Children shall not play with the appliance. Small children and pets should be supervised when the robot is operating.
• Children are prohibited from playing with the product package, otherwise, it may cause suffocation.
• Please do not insert any body parts(such as hands or feet)under the brushes or wheels of the appliance when it is operating.
• Do not place any objects on the stationary or moving robot. Please do not sit or lean on the appliance.
• Do not clean any burning objects.
• Do not use the appliance to pick up hard or sharp objects, such as glass sheets, iron nails, etc.
• Do not use this appliance in humid or flammable, explosive, corrosive environments, or in the exposed power sockets.
• Do not spray or place flammable materials (gasoline, thinner, etc.), surfactants (cleaners, bathroom items, etc.), or beverages around the appliance, otherwise, it may cause fire or product failure.
• Do not pour water, detergent, etc. into the appliance, otherwise, it may cause product failure.
• This product is for indoor use only. Do not use it outdoors or in a suspended environment without protective fences to prevent it from falling. At the same time, physical barriers should be used to prevent it from entering the balcony to ensure safe operation.
• To avoid electric shock, do not expose the robot’s electronics, batteries, or charging base. It is strictly prohibited for users to repair the robot themselves. Please hand maintenance work over to qualified maintenance personnel. Do not operate the robot with wet hands.
• Do not clean or maintain the main machine and charging base with the power on.
• Please make sure to use original adapters, batteries, and other accessories. Do not use third-party accessories.
• This product contains batteries. Please do not place the product in water or on fire. Please stop using this product if there is any battery problem; the battery needs to be recycled separately. and the used battery should be put in a sealed plastic bag and handled in accordance with local environmental laws and regulations.
• Please only use a cloth dampened with clean water to clean the appliance.
• Please note that the robot moves by itself. Take care when walking in the area the robot is cleaning to avoid stepping on it or tripping over it.
• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction.
• The appliance is only to be used with the unit provided.
• It must only be supplied at SELV.
• This appliance contains batteries that are only replaceable by skilled persons.
• For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.
• This device is for indoor use only. It should be clean and maintained regularly. The appliance is only to be used with the unit provided.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision
• The battery must be removed from the appliance before it is scrapped;
• The appliance must be disconnected from the supply mains when removing the battery;
• The battery is to be disposed of safely.

Be careful

• Carefully protect the power cord, avoid pulling, twisting, being caught by the door, or damaging and crushing caused by other heavy objects; Do not use the appliance if the cord is damaged.
• If the charging base is not used for a long time, the power plug should be unplugged from the socket.
• Please place the cleaning brush out of the reach of children.
• Empty the dustbin frequently and keep it clean Do not usr the appliance when the dustbin is full.
• Keep the mainframe and charging terminal of the charging base away from metal objects.
• This appliance is specifically designed to prevent floor scratching. however, we still recommend that you use this appliance to clean a small area of the room before cleaning the entire room to ensure that the floor is not scratched.
• Please purchase and use the original consumables.

Reminder
Before using this appliance, please check the following items:

• Remove fragile or unnecessary objects from the cleaning area, including papers, blinds, or curtain cords; remove expensive pottery, valuables, and inflammable from the floor.
• Do not use this appliance in a room where children sleep alone. otherwise, the child may be injured.
• Check whether the battery power is sufficient. Please charge it if the power is low.
• Please empty the dustbin box if it is full.
• Please close the door of the room if you do not want the robot to enter. During cleaning, the robot may enter other rooms and continue cleaning.
• In most cases, the anti-fall sensor will prevent the robot from rolling down the stairs. If the sensor is dirty or used on a carpet or on a reflective / very dark floor, the effect of the sensor will be compromised it is recommended to set up physical barriers where the robot may fall.
• Please do not use the robot on the tassels of a carpet in the folding area, so at to prevent the robot from being entangled. Avoid cleaning dark and high pile carpets or carpets thicker than 1.02/26mm, as they may cause robot failure.

Notice
This symbol on the device or its packaging indicates: Do not dispose of electrical appliances as unsorted municipal waste; use separate collection facilities. Contact your local authority for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obliged to take back your old appliance for disposal at least free of charge.

FCC Statement
1. This device complies with Part 15 of the FCC Rules. operation is subject to the following two conditions:
(1)This device may not cause harmful interference.
(2)This device must accept any interference received, including interference that may cause undesired operation.

Product use

Important Tips Before Use
a, Remove power cords and small objects from the floor that may entangle Robot Vacuum.
b, Fold tasseled edges of area rugs underneath to prevent tangling Robot Vacuum. Avoid cleaning very dark-colored high-pile rugs or rugs thicker than 1.02 in / 26 mm as they may cause Robot Vacuum to malfunction.
c, Keep Robot Vacuum away from spaces lower than 2.87 in/73 mm to prevent Robot Vacuum from getting stuck. If necessary, place a physical barrier to block off the problem areas.
d, Keep Robot Vacuum away from wet areas.
e, Robot Vacuum may climb on top of objects less than 0.63 in / 16 mm in height. Remove these objects if possible.
f, Anti-drop sensors prevent Robot Vacuum from tumbling downstairs and steep drops. They may work less effectively if dirty or used on reflective/very dark-colored floors. It is recommended to place physical barriers to block off areas where Sweeva may fall.

Place physical barriers in front of fireplaces and areas that may cause damage to Robot Vacuum if entered.

Prepare

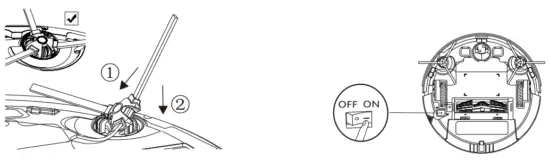

1. Please install side brushes before use.
2. Remove the limit stripes in the Sweeva’s forward collision bumper on both sidesBefore use, the user should remove the foam placed on both sides of the front bumper

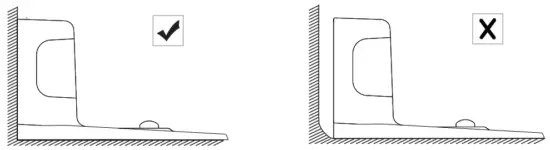

3. Place the Charging base on a hard, level surface and against a wall

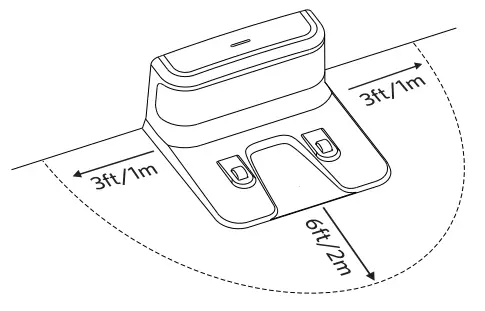

4. Remove objects within 3ft/1m of the left and right side and within 6ft/2m of the front of the charging base.Do not face the charging base towards strong light or high magnetic fields. (e.g. , television, refrigerator, and other home appliances)

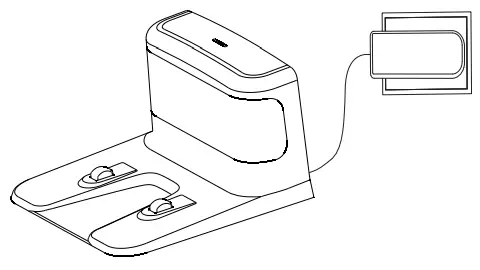

5. Connect the round connector of the adapter into the power socket on the charging base and the charging base and the other end into a wall outlet.
   When the charging base connects to AC power, the LED indicator on the charging case will turn solid blue.

Install the Charging Base in a location that Robot Vacuum can easily access. It is recommended to place the Charging Base against a wall, and on a hard-level surface rather than on rugs or carpets. Always keep the Charging Base plugged in, otherwise, Robot Vacuum will not automatically return to it.

Charge Your Robot Vacuum

Sweeva has a pre-installed rechargeable battery that has to be fully charged before use.
Sweeva returns to the Charging Base at the end of a cleaning cycle or when its battery is running low.

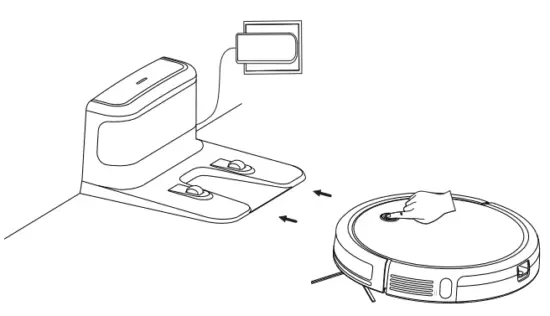

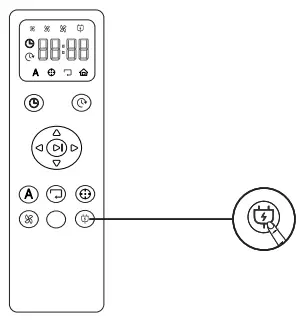

◆Method 1: Attach Sweeva to the Charging Base by aligning its charging pins with the charging pins on the base.◆ Method 2: Press the charging button on the remote control to return the robot vacuum to the Charging Base.

◆ Method 3:Press and hold the start button on the machine for 3 seconds to return it to the charging base.
Turn off the main powers witch if Sweeva will not be used for a long period of time. To preserve the battery’s lifespan, recharge at least once every 6 months.

How to start operating

1. Turn on: Turn on the rocker switch button at the bottom of the robot ( shift the gear to the “ ON ” state )
2. Start Short press the “ Start button ” on the top of the robot to start the automatic cleaning mode.
3. Pause: When the robot is operating, short press the “start button” on top, and the robot will pause and enter the standby mode.
4. Recharge: Press and hold the “Start button” for three seconds, Once the device beeps once, release the button, and a robot vacuum will enter recharge mode, It will automatically find its way back to the charging base.
5.  Sleep: If there is no operation within 90 seconds, the status light will turn off and the robot will enter sleep mode.

Key indicator status description

Error Tones and Indicators

How to turn off the robot
Turn off the power button on the bottom side of the robot (turn the gear to the “ OFF ” state)

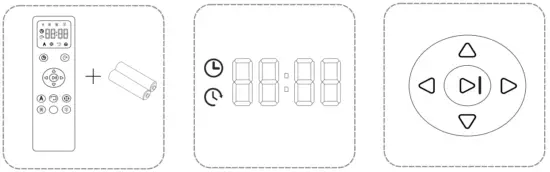

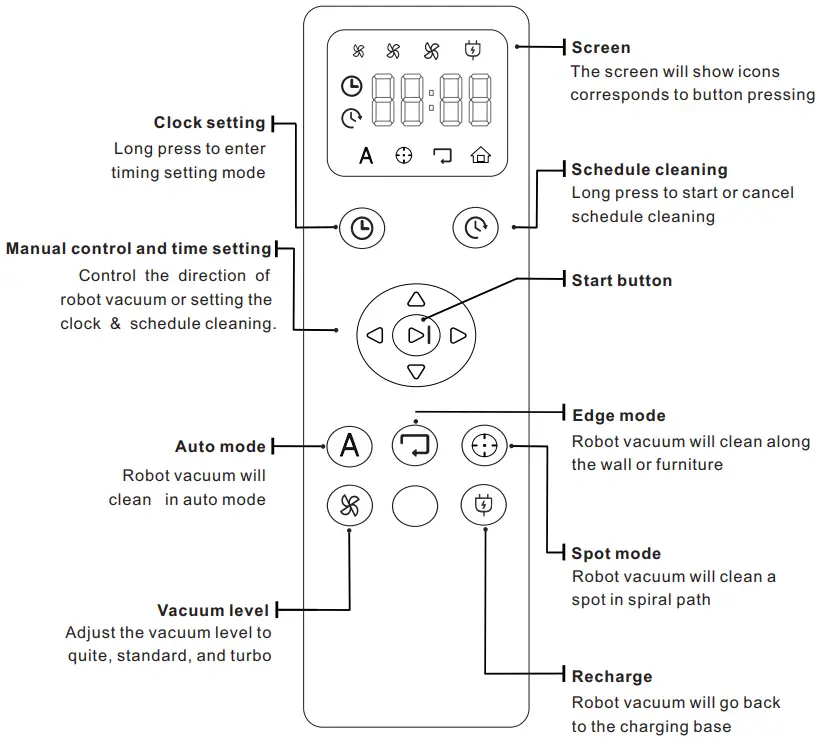

How to use the remote control

1. Use two AAA batteries for the remote control. The battery is included in the package.	2. Before using the remote, please set the clock time to be your local time zone.	3. Short press the Start Button to start cleaning.

Maintenance/replacing consumables

1. Cleaning of the dustbin and filter net (filter net is replaceable)
   Please power off the power before maintenance
   Note: Please turn off the power (bottom rocker switch)of the robot before product maintenance /replacing consumables.
   The suction power may become weak if the dustbin is full. The dustbin needs to be cleaned before and after each cleaning.

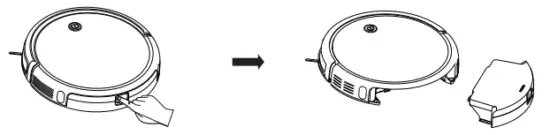

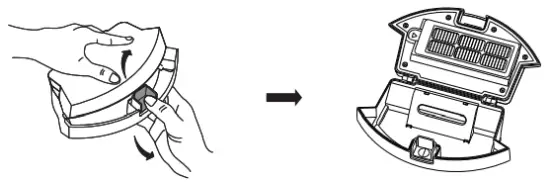

   ① Press the buckle of the dustbin with your thumb and drag the dustbin out.

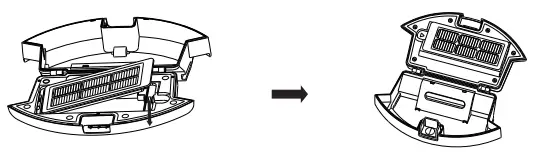

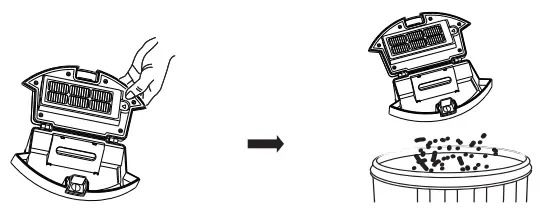

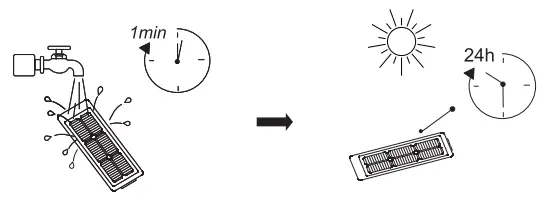

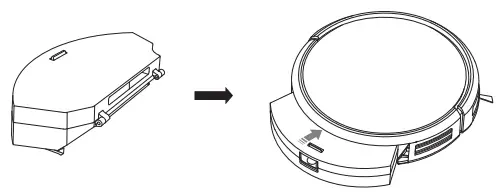

   (2) (When taking out the dustbin, do not turn it upside down) Hold the dustbin up and down with both hands, and open the dustbin forcefully;(3) Hold the dustbin with your left hand, tilt it at a suitable angle, and use the cleaning tool with your right hand to pour out the dust in the dustbin;⑤ Rinse the dustbin and filter(not frequently, monthly cleaning is recommended), wash for at least 1 minute, and shake off the water drops. Please wait until the dust bin and filter are completely dried(≥24h) before using it, to ensure their service life.⑥ Filter installation/new filter net replacement: Insert the filter net into the housing slot, and then fasten the filter downwards until it buckles into place.⑦ After closing the upper cover, push the dustbin into the main machine (make sure the dustbin is fully inserted until it buckles into the right place).

2. Cleaning of roller brush (roller brushes are replaceable)
   Foreign substances such as hair are easy to adhere to roller brushes. Roller brushes may be damaged if there are too many foreign substances on them. It is recommended to clean them once a week.

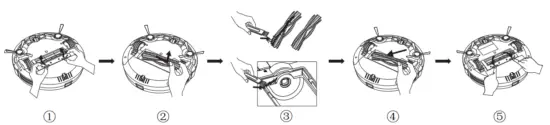

   ① Turn the main machine over (with the bottom shell facing upwards), hold the buckle with both hands, lift it up, and take out the brush cover.
   ② Use your fingers to hold the bearing far away from the switch, take the other end of the support holder, and take out the roller brush upwards.
   ③ Use cleaning tools to clean the hair and other dirt on the roller brush slot.
   ④  Roller brush installation/new roller brush replacement: Insert one end of the roller brush square bearing seat into the corresponding square slot of the roller brush slot and slide into place (reverse installation does not work).
   ⑤ Make sure the main brush is aligned properly in the robot and then fasten the roller brush cover downward.

3. Cleaning of side brushes (side brushes are replaceable)
   Foreign substances such as hair are easy to adhere to side brushes. side brushes may be damaged if there are too many foreign substances on them. It is recommended to clean them once a week.

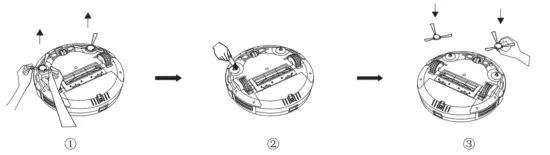

   ① With the bottom shell of the main machine facing upwards, pull out the side brush forcefully;
   ② Use a cleaning tool to clean up the dirt on the side brush and the slot, and the hair on the side brush can be cut off with a cleaning tool (dry brushing works, washing doesn’t work).
   ③ Reinstall the side brush/new side brush replacement: hold one corner of the side brush, and the other side against the corresponding buckle, and press the side brush down into the slot.

4. Cleaning of sensor
   Foreign substances may adhere to the sensors on the bottom and side rear of the robot. If too many foreign substances adhere to the sensor at the bottom of the robot, the robot may fall off ledges. It is recommended to clean the sensors once a week. Please gently wipe each sensor cover with a soft dry cloth, including:
   (1) Wall sensors on both sides of the robot;
   (2) Front infrared anti-collision sensors;
   (3) 3 anti-fall sensors on the bottom side;

① Wall sensors on both sides of the robot;	② Front infrared anti-collision sensor;	③ 3 anti-fall sensors at the bottom

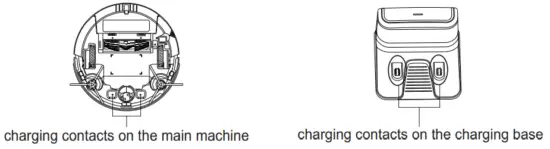

Cleaning of charging contacts

Foreign substances may adhere to the bottom of the machine and the charging contacts of the charging base. If too many foreign substances adhere to the contact pins at the bottom of the machine, the machine may not be able to charge normally. It is recommended to clean them once a week.
The position in the figure is where the charging contacts are located. Please use a dry cloth to clean the charging pole pieces on the main machine and the charging base (please  turn off the power when cleaning)

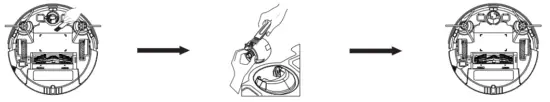

Cleaning of the Omni-direction wheel

Foreign substances may adhere to the Omni-direction wheels of the machine. If too many foreign substances adhere to the Omni-direction wheels at the bottom of the machine,  it may prevent the machine from moving forward and make it unable to clean or cause low cleaning efficiency. It is recommended to clean them once a week.
Remove the wheels from the front caster assembly and remove the hair or dirt in the assembly shell and those entangled on the axle; When completed, reinstall the wheels into the front caster assembly.

Maintenance and replacement frequency

Note: Sweeva has many different spare parts and components. Please purchase spare parts through the “TCL Home” App or by visiting TCL’s offline or online stores.

Troubleshooting

Basic parameters

Sweeva1000 main machine

	Model	Global: B100A EU:    SW1000B      SW1000W UK: SW1000BK SW1000WK
	Size	320mmχ323.5mmχ70 mm
	Battery	Li-ion2600mAh
	Net weight	4.07 kg
	Rated voltage	14.4V
	Rated power	30W
	Power input	19V0.6A
	Model	B100G00AA
	Input	19V0.6A
	Output	19V 0.6A

Sweeva1000 main adapter

Model:	Connector type	DC5.5
GSC”X”0600S019V12E (X=U,T,V,B,U=US, T=JP,V=EU,B=UK).	Rated input	100-240V∼0.5AMax,50/60Hz
	Rated output	19V 0.6A

X=U stands for US plug,X=T stands for Japan plug,X=V stands for Europe plug,X=B stands for UK plug.
