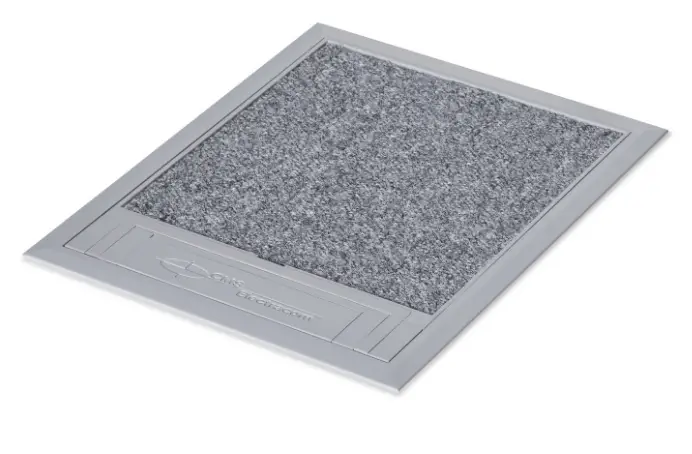

CMS Electracom FTA3 Access Floor Box
CMS INSTALLATION GUIDE
ACCESS FLOOR BOX APPLICATION – FTA3

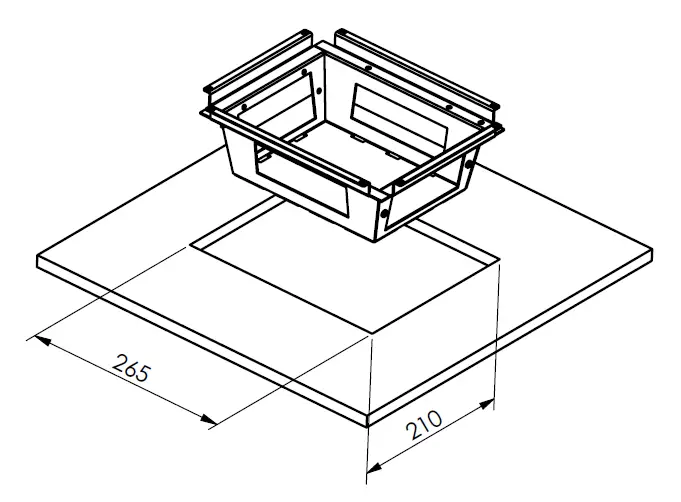

- STEP 1 – CUT A HOLE INTO THE FLOORING FOLLOWING THE LISTED CUT-OUT DIMENSIONS
- STEP 2 – INSTALL THE UNDERCARRIAGE INTO THE CUT-OUT AND SCREW FIX IN PLACE

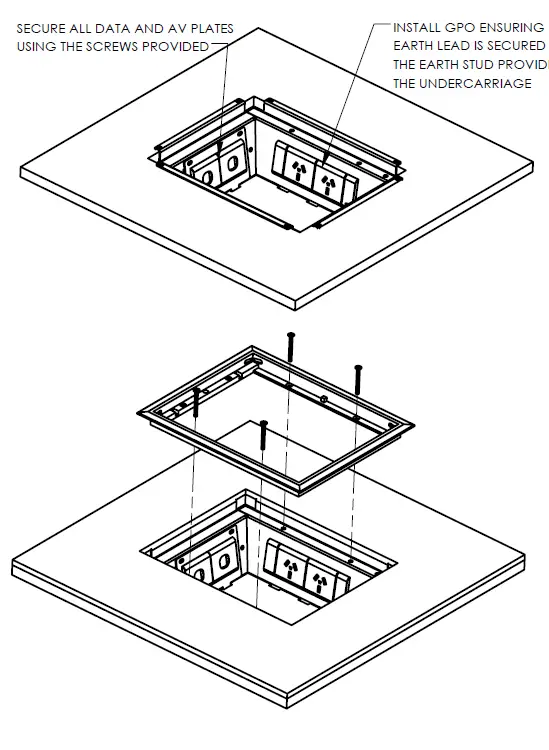

- STEP 3 – TERMINATE ALL GPO DATA AND AV OUTLETS INTO THE MOUNTING PLATES AND INSTALL TO THE UNDERCARRIAGE USING THE SCREWS PROVIDED.

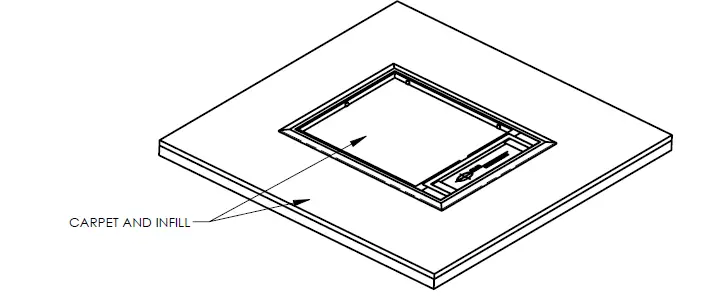

- STEP 4 – LAY CARPET AND CUT OT HOLE FOR THE LID TO FIT- USE CUT PIECE TO INSTALL INTO RECESS (IF APPLICABLE) INSTALL AND SECURE THE LID FRAME TO THE FLOORBOX UNDERCARRIAGE USING THE FIXING SCREWS PROVIDED
NOTE: THE LID IS ADJUSTABLE TO ACCOMMODATE VARYING CARPET THICKNESS
