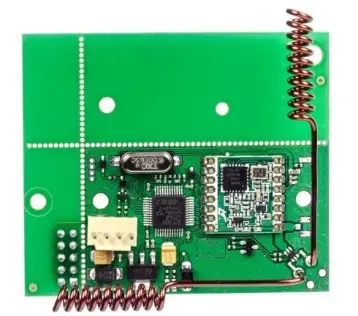

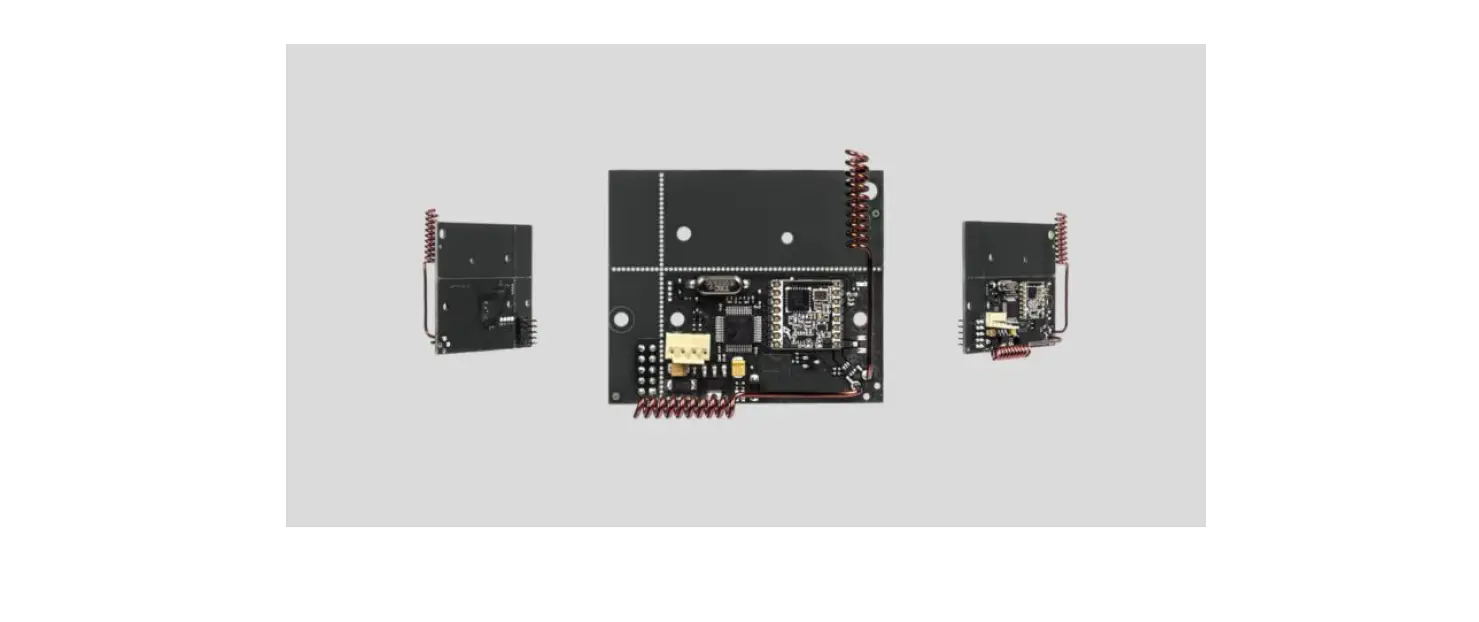

AJAX UART bridge Receiver Module
uartBridge is the module for integration with third-party wireless security and smart home systems.
A wireless network of smart and secure Ajax detectors can be added to a third-party security or smart home system through the UART interface.
Connection to Ajax hubs is not supported.
Buy uartBridge
Supported sensors:
- MotionProtect (MotionProtect Plus)
- DoorProtect
- SpaceControl
- GlassProtect
- CombiProtect
- FireProtect (FireProtect Plus)
- LeaksProtect
Integration with third-party detectors is implemented at the protocol level. UART bridge communication protocol
Tech specs
| Communication interface with central unit | UART (speed 57,600 Bd) |
| Use | Indoor |
| Radio signal power | 25 mW |
| Communication protocol | Jeweller (868.0−868.6 MHz) |
| The maximum distance between a wireless detector and uartBridge receiver | Up to 2,000 m (in open area) |
| Maximum number of connected devices | 85 |
| Detection of jamming | Yes |
| Software update | Yes |
| Detector performance monitoring | Yes |
| Power supply voltage | DC 5 V (from the UART interface) |
| Operating temperature range | From -10°С to +40°С |
| Operating humidity | Up to 90% |
| Dimensions | 64 х 55 х 13 mm (without antennas) 110 х 58 х 13 mm (with antennas) |
