legrand CABLOFIL® J-Hooks with Cable Retainers
CABLOFIL®
J-Hooks with Cable Retainers
Cable management that’s secure and installs 50% faster

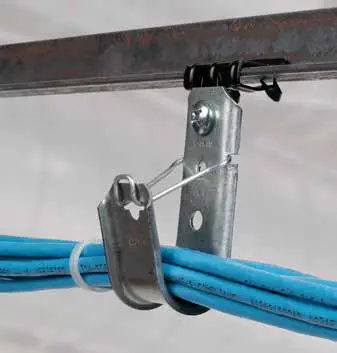

J-Hooks provide an easy-to-install, non-continuous cable support for all types of telecommunication, data and power cabling. They also are perfect for low voltage building cable management and fire protection cabling.
Our CJH Series is engineered to provide stress-free cable support for multiple cables and features a structural design for optimal strength and tapered edges to reduce cable sheath damage. Multiple pre-drilled holes reduce on-site modification at installation. J-Hooks can be attached to a variety of structures and are available with multiple attachment options that allow quick and easy cable installation virtually anywhere.
The CJHP Series J-Hooks are plenum rated, plastic coated and feature a built in latch that allows you to lock the bendable flap into place – and unlock easier. CJHP hooks also combine the best features of both metal and plastic, providing strength and a slick, no-burr surface to make pulling cable easy. All CJHP hooks are plenum safe.
Features & Benefits

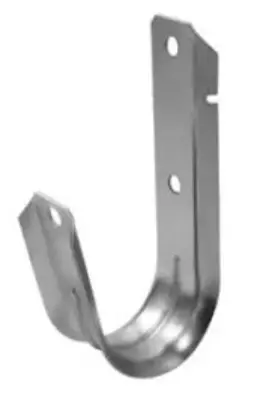

CJH Series – Steel J-Hooks
- Broad product line. CJH Series J-Hooks are available in 4 sizes ¾” to 4” sizes with a cable retainer clip (Patent Pending) and has multiple attachment options.
Sturdy steel construction. CJH Series J-Hooks have a wider base and provides optimal support for electrical and high-performance data cables, including CAT 5e, CAT 5, CAT 6A, CAT 7 and fiber optic. - Smooth tapered edges. Smooth edges of CJH Series J- Hooks reduces pressure points for ultimate cable protections.
- Simple single person installation. Labor savings.
- Highest cable fill capacity. CJH Series J-Hooks have the highest fill capacity on the market and are engineered to accommodate future emerging data cables.
- Manufactured using over 70% recycled steel. CJH Series
J- Hooks are manufactured using over 70% recycled steel. Great for recycling and the environment. - UL load and anti-corrosion tested. cULus listed.
- RoHS compliant. Environmentally friendly.
- Meets TIA-568-C & TIA 569-C and complies with
EN 50174-2. Ensures that software and applications running on the network are able to perform as designed and work seamlessly together.
CJHP Series – Plastic J-Hooks
- Cable containment latch. CJHP Services J-Hooks integral catch quickly opens and closes for easy moves, adds or changes. Available in 4 sizes 1” to 4” sizes and has multiple attachment options.
- Smooth easy-slide polypropylene construction. CJHP Series J-Hooks allow cables to slide with 50% less pulling tension.
- Safe for use in plenum spaces. CJHP Series J-Hooks are UL listed safe for use in plenum spaces.
- Simple single person installation. Labor savings.
- UL load and anti-corrosion tested. cULus listed.
- RoHS compliant. Environmentally friendly.
- Meets TIA-568-C & TIA 569-C and complies with
EN 50174-2. Ensures that software and applications running on the network are able to perform as designed and work seamlessly together.
Vertical Markets
- Commercial
- Hospitality
- Education
- Entertainment
Compliance
cULus Listed UL31TS RoHS Compliant
Country of Origin
Cablofil® CJH Series and CJHP Series J-Hooks are made in the USA and assembled in Mexico.

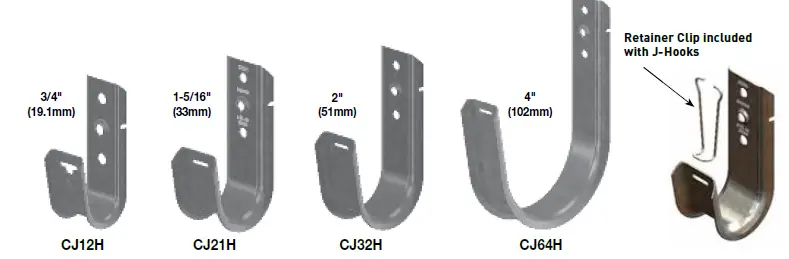

CJH Series Steel J-Hooks Specifications
| CJH Series J-Hooks Load/Fill Capacity Table | |||||
| HOOK SIZE | LOAD CAPACITY | CABLE CAPACITY | |||
| IN | LBS | 4-PAIR UTP CAT 5E | CAT 6 | CAT 6A | |
| CJ12H | 3/4″ | 65 | 34 | 23 | 13 |
| CJ21H | 1-5/16″ | 65 | 61 | 42 | 24 |
| CJ32H | 2″ | 65 | 119 | 81 | 48 |
| CJ64H | 4″ | 65 | 417 | 284 | 167 |

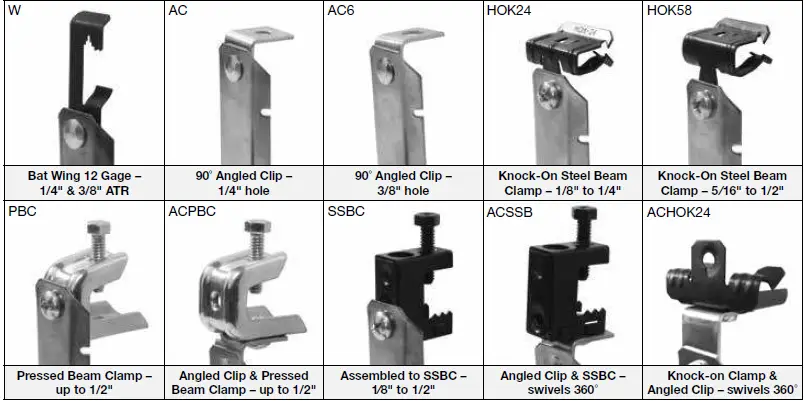

CJH Series J-Hooks Attachment Options

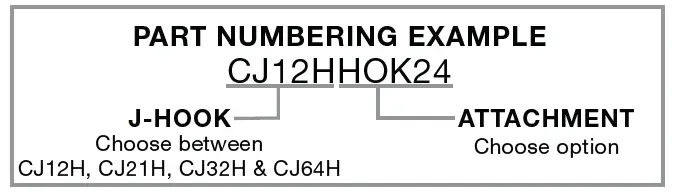

CJH Series Steel J-Hooks Ordering Information
| CJ12H – 3/4″ J-HOOK | |||||
| PKG QTY | HOOK SIZE (In.) | DESCRIPTION | WEIGHT (Lbs.) | PG | |
| CJ12H | 50 | 3/4″ | J-Hook Wide Base w/Retainer | 4.5 | F000247 |
| CJ12HAC | 50 | 3/4″ | J-Hook Wide/Ret – 90° Angle Clip 1/4 Rod | 5.8 | F000248 |
| CJ12HW* | 50 | 3/4″ | J-Hook Wide/Ret – Batwing Clip | 5.75 | F000249 |
| CJ12HAC6 | 50 | 3/4″ | J-Hook Wide/Ret 90° Angle Clip 3/8 Rod | 5.7 | F000250 |
| CJ12HSSBC | 50 | 3/4″ | J-Hook Wide/Ret – Screw on Spring Steel Beam Clip 1/2 | 7.3 | F000259 |
| CJ12HACHOK24 | 50 | 3/4″ | J-Hook Wide/Ret – 90° Swivel Knock on Beam Clip 1/8-1/4 | 8.35 | F000252 |
| CJ12HACHOK58 | 50 | 3/4″ | J-Hook Wide/Ret – 90° Swivel Knock on Beam Clip 5/16-1/2 | 8.35 | F000253 |
| CJ12HACPBC | 50 | 3/4″ | J-Hook Wide/Ret – 90° Swivel Screw on Beam Clip 1/2 | 11.5 | F000254 |
| CJ12HACSSBC | 50 | 3/4″ | J-Hook Wide/Ret – 90° Swivel Screw on Beam Clip 1/2 | 8.6 | F000255 |
| CJ12HHOK24 | 50 | 3/4″ | J-Hook Wide/Ret – Knock on Beam Clamp 1/8-1/4 | 5.8 | F000256 |
| CJ12HHOK58 | 50 | 3/4″ | J-Hook Wide/Ret – Knock on Beam Clamp 5/16-1/2 | 5.8 | F000257 |
| CJ12HPBC | 50 | 3/4″ | J-Hook Wide/Ret – Screw on Beam Clamp 1/2 | 10.2 | F000258 |
| CJ21H – 1 5/16″ J-HOOK | |||||
| PKG QTY | HOOK SIZE (In.) | DESCRIPTION | WEIGHT (Lbs.) | PG | |
| CJ21H | 50 | 1-5/16″ | J-Hook Wide Base w/Retainer | 8.5 | F000260 |
| CJ21HAC | 50 | 1-5/16″ | J-Hook Wide/Ret – 90° Angle Clip 1/4 Rod | 9.8 | F000261 |
| CJ21HW* | 50 | 1-5/16″ | J-Hook Wide/Ret – Batwing Clip | 9.75 | F000262 |
| CJ21HAC6 | 50 | 1-5/16″ | J-Hook Wide/Ret – 90° Angle Clip 3/8 Rod | 9.7 | F000263 |
| CJ21HSSBC | 50 | 1-5/16″ | J-Hook Wide/Ret – Screw on Spring Steel Beam Clip 1/2 | 11.3 | F000272 |
| CJ21HACHOK24 | 50 | 1-5/16″ | J-Hook Wide/Ret – 90° Swivel Knock on Beam Clip 1/8-1/4 | 12.35 | F000265 |
| CJ21HACHOK58 | 50 | 1-5/16″ | J-Hook Wide/Ret – 90° Swivel Knock on Beam Clip 5/16-1/2 | 12.35 | F000266 |
| CJ21HACPBC | 50 | 1-5/16″ | J-Hook Wide/Ret – 90° Swivel Screw on Beam Clip 1/2 | 15.5 | F000267 |
| CJ21HACSSBC | 50 | 1-5/16″ | J-Hook Wide/Ret – 90° Swivel Screw on Spring Steel Beam Clip 1/2 | 12.6 | F000268 |
| CJ21HHOK24 | 50 | 1-5/16″ | J-Hook Wide/Ret – Knock on Beam Clip 1/8-1/4 | 9.8 | F000269 |
| CJ21HHOK58 | 50 | 1-5/16″ | J-Hook Wide/Ret – Knock on Beam Clip 5/16-1/2 | 9.8 | F000270 |
| CJ21HPBC | 50 | 1-5/16″ | J-Hook Wide/rRet – Screw on Beam Clip 1/2 | 14.2 | F000271 |
| CJ32H – 2″ J-HOOK | |||||
| PKG QTY | HOOK SIZE (In.) | DESCRIPTION | WEIGHT (Lbs.) | PG | |
| CJ32H | 50 | 2″ | J-Hook Wide Base w/Retainer | 10.3 | F000273 |
| CJ32HAC | 50 | 2″ | J-Hook Wide/Ret – 90° Angle Clip 1/4 Rod | 11.6 | F000274 |
| CJ32AHW* | 50 | 2″ | J-Hook Wide/Ret – Batwing Clip | 11.55 | F000275 |
| CJ32HAC6 | 50 | 2″ | J-Hook Wide/Ret – 90° Angle Clip 3/8 rod | 11.5 | F000276 |
| CJ32HSSBC | 50 | 2″ | J-Hook Wide/Ret – Screw on Spring Steel Beam Clip 1/2 | 13.1 | F000285 |
| CJ32HACHOK24 | 50 | 2″ | J-Hook Wide/Ret – 90° Swivel Knock on Beam Clip 1/8-1/4 | 14.15 | F000278 |
| CJ32HACHOK58 | 50 | 2″ | J-Hook Wide/Ret – 90° Swivel Knock on Beam Clip 5/16-1/2 | 14.15 | F000279 |
| CJ32HACPBC | 50 | 2″ | J-Hook Wide/Ret – 90° Swivel Screw on Press Beam Clip 1/2 | 17.3 | F000280 |
| CJ32HACSSBC | 50 | 2″ | J-Hook Wide/Ret – 90° Swivel Screw on Spring Steel Beam Clip 1/2 | 14.4 | F000281 |
| CJ32HHOK24 | 50 | 2″ | J-Hook Wide/Ret – Knock on Beam Clip 1/8-1/4 | 11.6 | F000282 |
| CJ32HHOK58 | 50 | 2″ | J-Hook Wide/Ret – Knock on Beam Clip 5/16-1/2 | 11.6 | F000283 |
| CJ32PBC | 50 | 2″ | J-Hook Wide/Ret – Screw on Beam Clip 1/2 | 13.8 | F000284 |
* Works with both 1/4 x 20 and 3/8 x 16 rod
CAB_CSF — Updated June 2019 — For latest specs visit www.legrand.us/cablofil
