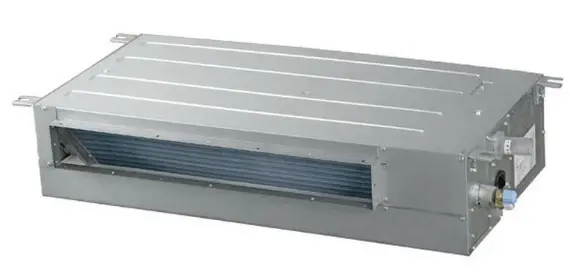

Haier AD18SS1ERA N P Ducted Slim Low Static 5.0 kW
Product Information
The AD18SS1ERA(N)(P) is a ducted, slim low static air conditioner with a cooling capacity of 5.0 kW and a heating capacity of 5.5 kW. It comes in white color and has the following features:
- 24 Hour timer
- Bluefin coils
- Sleep mode
- Standard controller
- Wi-Fi controller compatible
The air conditioner has dimensions of 185mm (height) x 1170mm (width) x 420mm (depth) and weighs 22kg. It requires a supply frequency of 50/60Hz and a supply voltage of 220-230V. The product comes with a warranty of 5 years for parts and labor.
Product Usage Instructions
- Installation:
- Refer to the installation guide provided in the product downloads section of haier.com for detailed instructions on installation.
- The air conditioner has a liquid line and a suction line that need to be installed properly.
- Power Requirements:
- The air conditioner requires a supply frequency of 50/60Hz and a supply voltage of 220-230V.
- Operation:
- The air conditioner can be operated using the standard controller or a Wi-Fi controller (a compatible controller needs to be purchased separately).
- The air conditioner has a 24-hour timer, Blue fin coils, Sleep mode, and a self-cleaning evaporator.
- To turn on the air conditioner, press the power button on the controller.
- Use the temperature controls to set the desired temperature.
- The air conditioner has a cooling capacity of 5.0 kW and a heating capacity of 5.5 kW.
DIMENSIONS
| Height | 185mm |
| Width | 1170mm |
| Depth | 420mm |
SPECIFICATIONS
Capacity
| Cooling capacity (kW) | 5kW |
| Heating capacity (kW) | 5.5kW |
Features
| 24 Hour timer | • |
| Blue fin coils | • |
| Sleep mode | • |
| Standard controller | YR-E17 |
| Wi-Fi controller compatible | • |
Installation
| Liquid line | 6.35mm |
| Suction line | 12.7mm |
Performance
| Airflow | 250l/s |
| Self-cleaning evaporator | • |
| Sound power | 55dBA |
| Sound pressure | 36dBA |
Power requirements
| Supply frequency | 50/60Hz |
| Supply voltage | 220-230V |
Product dimensions
| Depth | 420mm |
| Height | 185mm |
| Net weight | 22kg |
| Width | 1170mm |
Warranty
| Parts and labour | 5 years |
| SKU | 51031 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
