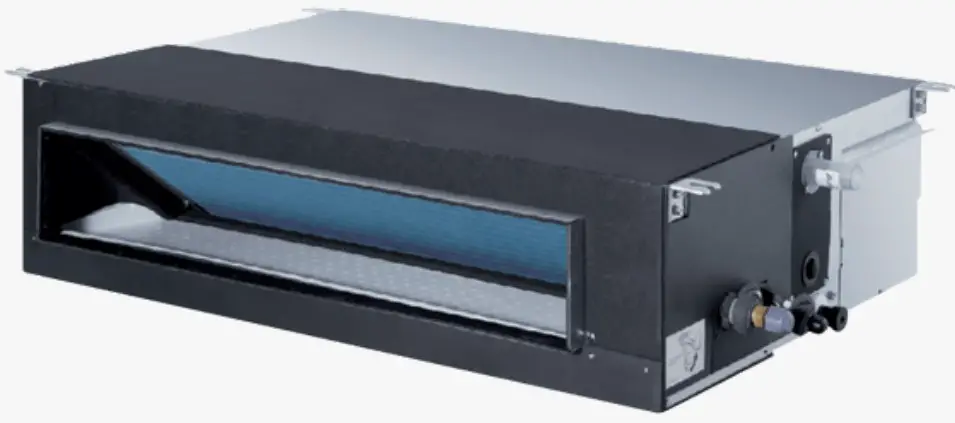

Haier AD18MS1ERA Ducted, Medium Static, 5.0 kW User Guide
DIMENSIONS
- Height: 250 mm
- Width: 1050 mm
- Depth: 720 mm
SPECIFICATIONS
Capacity
- Cooling capacity (kW): 5.0kW
- Heating capacity (kW): 5.5kW
Features
- 24 Hour timer: •
- Blue fin coils: •
- Sleep mode: •
- Standard controller: YR-E17
- Wi-Fi controller compatible: •
Installation
- Liquid line: 6.35mm
- Suction line: 12.7mm
Performance
- Airflow: 255l/s
- Self cleaning evaporator: •
- Sound power: 48dBA
- Sound pressure: 36dbAX
Power Requirements
- Supply frequency: 50/60Hz
- Supply voltage: 220-230V
Product dimensions
- Depth: 720 mm
- Height: 250 mm
- Net weight: 28kg mm
- Width: 1050 mm
Warranty
- Parts and labour: 5 years
SKU 51067
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
