NOVASTAR NovaPro UHD Jr All-in-One Video Processing Controller User Guide

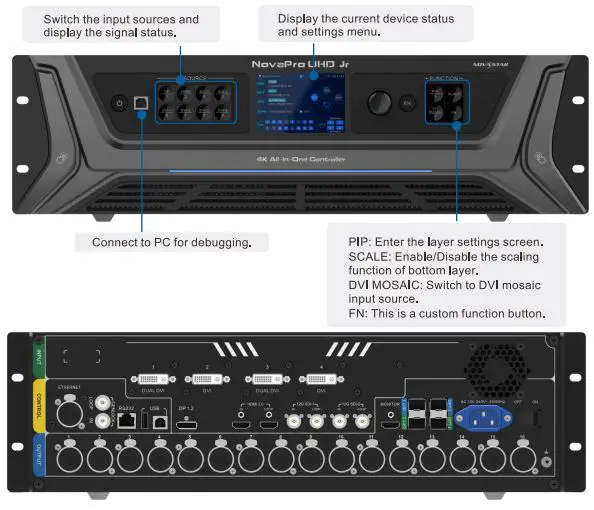

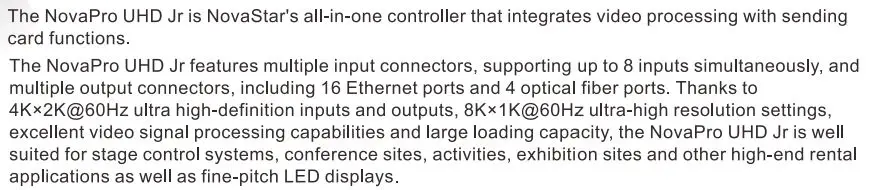

Introduction
Applications
1 NovaPro UHD Jr Unit for Image Mosaic

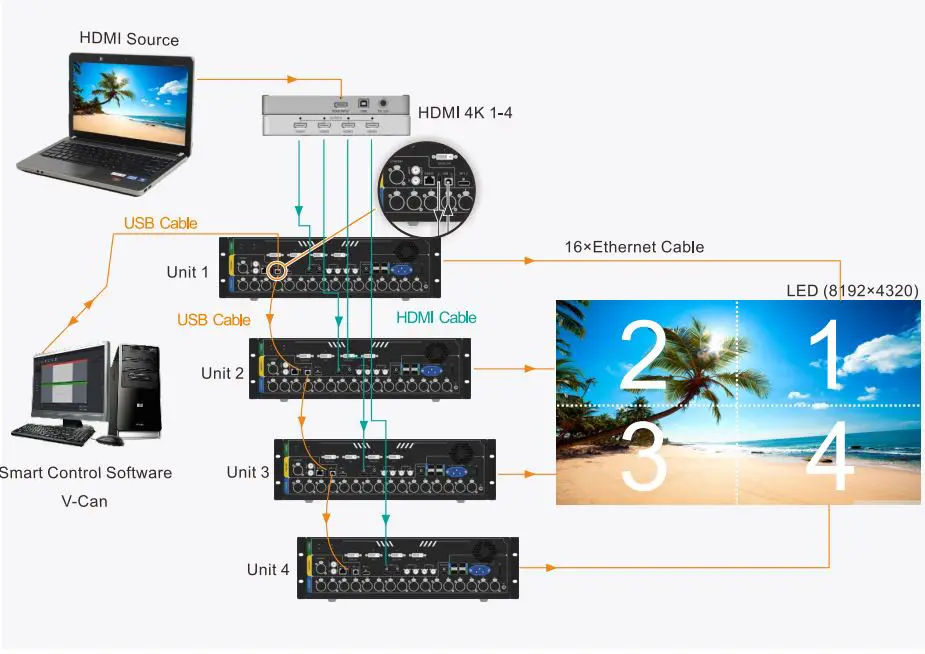

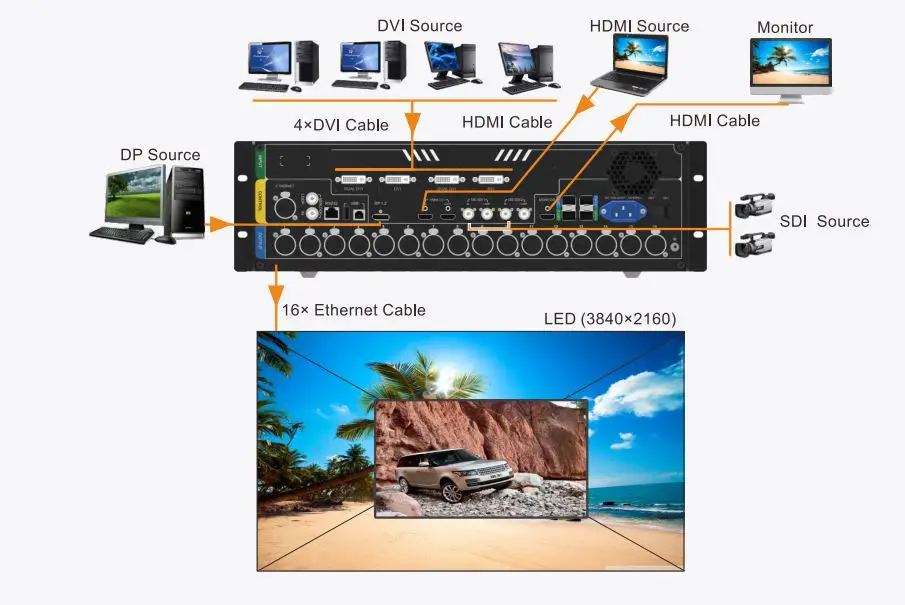

4 NovaPro UHD Jr Unit for Image Mosaic

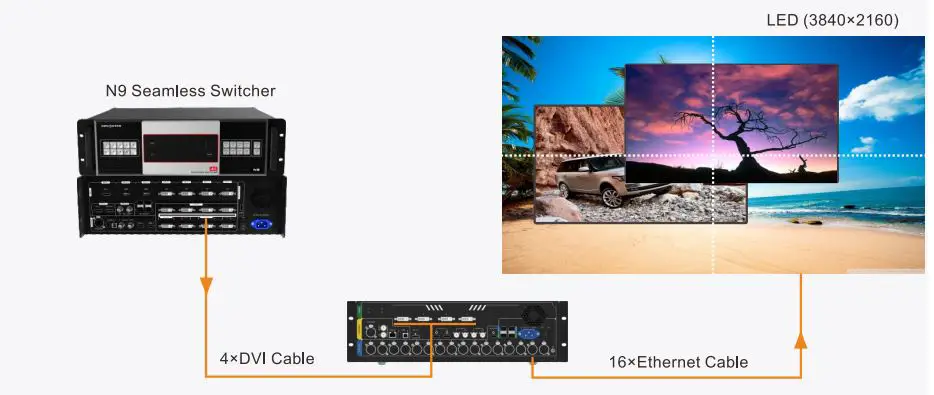

DVI MOSAIC – 1* input source: 3840*2160@60Hz

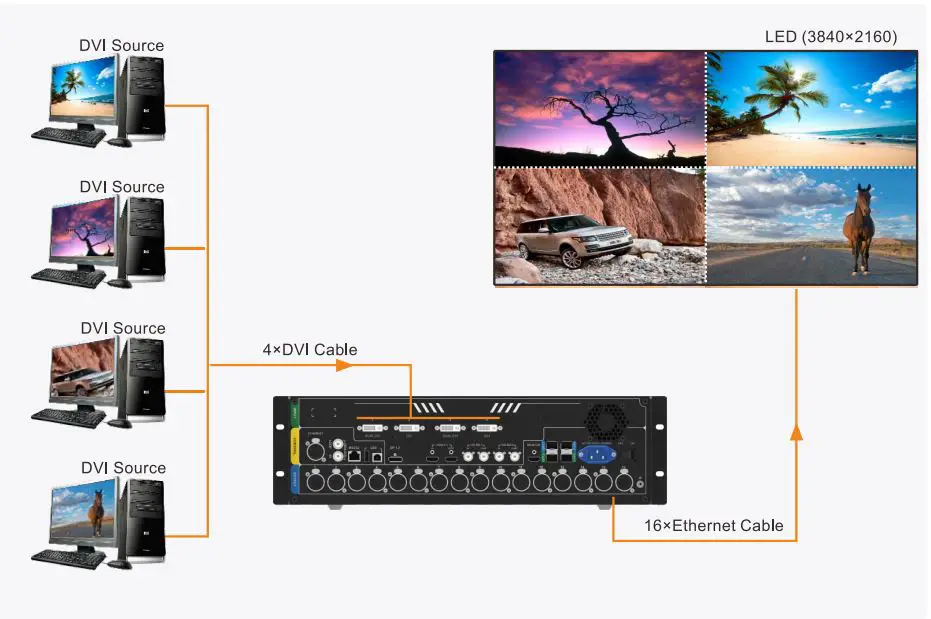

DVI MOSAIC – 4* input source: 3840*2160@60Hz

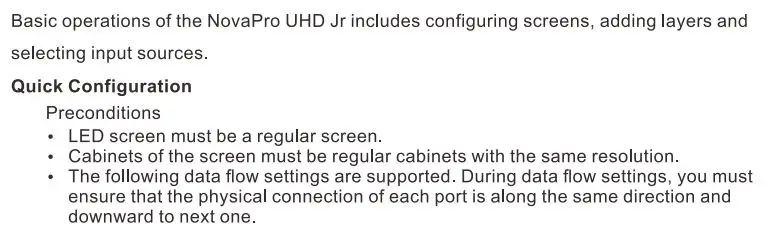

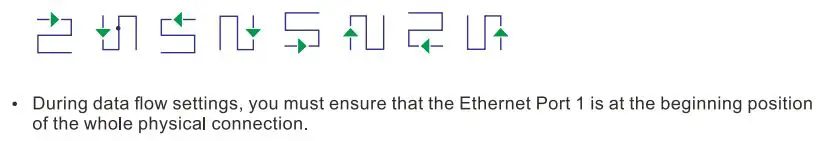

Operations

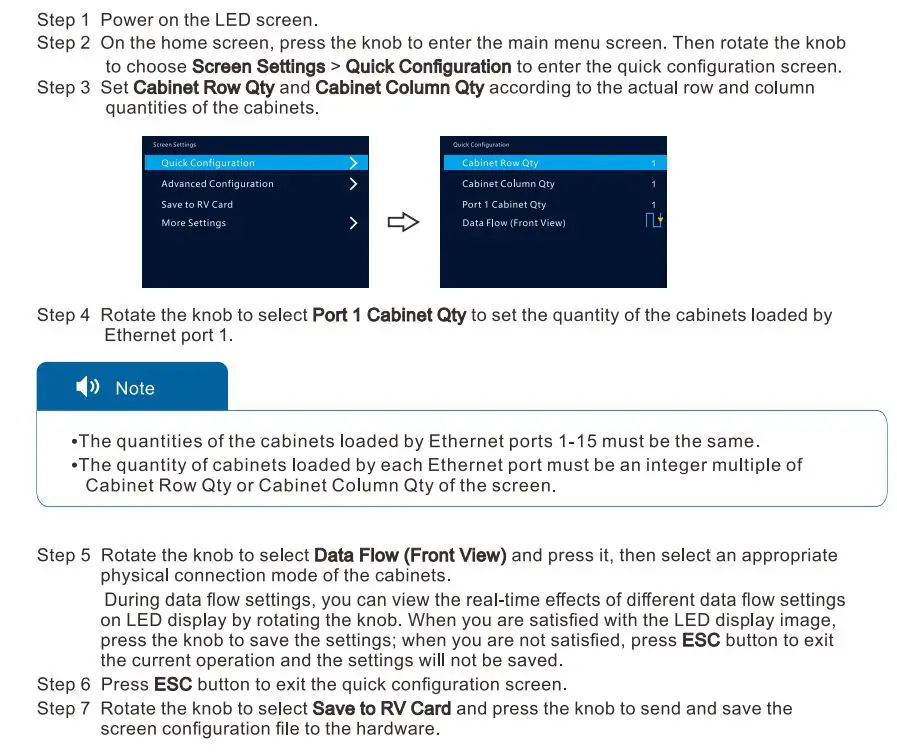

Procedure

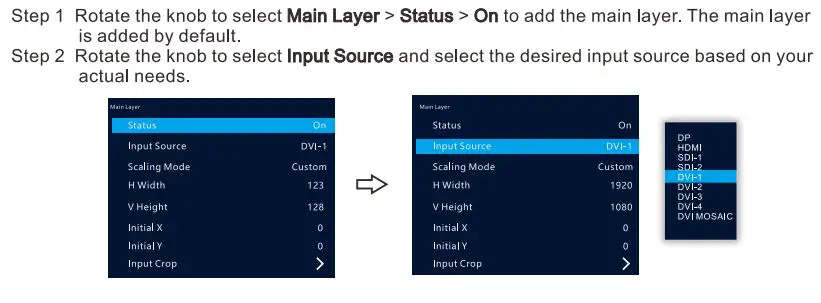

Adding Layers

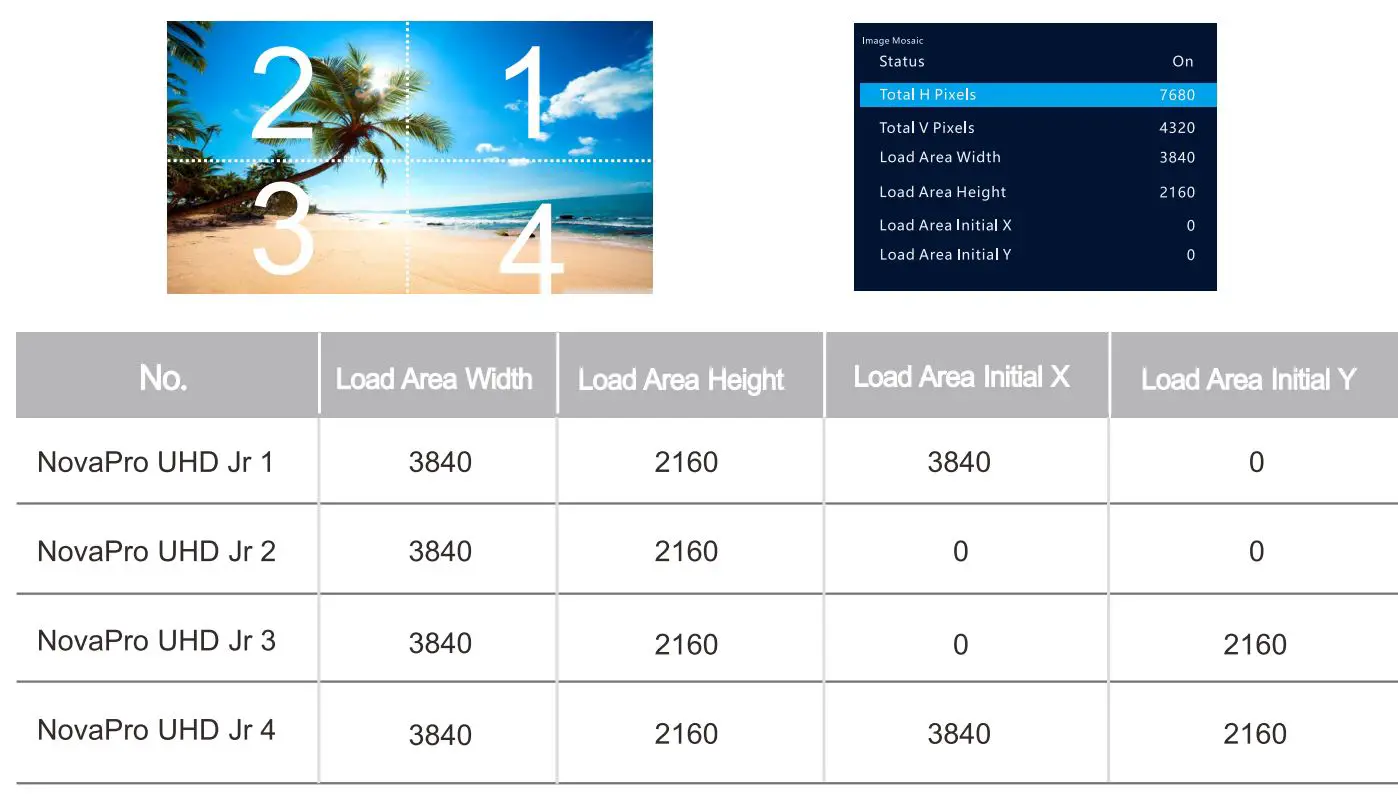

Image Mosaic
When 4 NovaPro UHD Jr units are used together for image mosaic, the total pixels of the LED screen are 7680*4320.
Working Mode

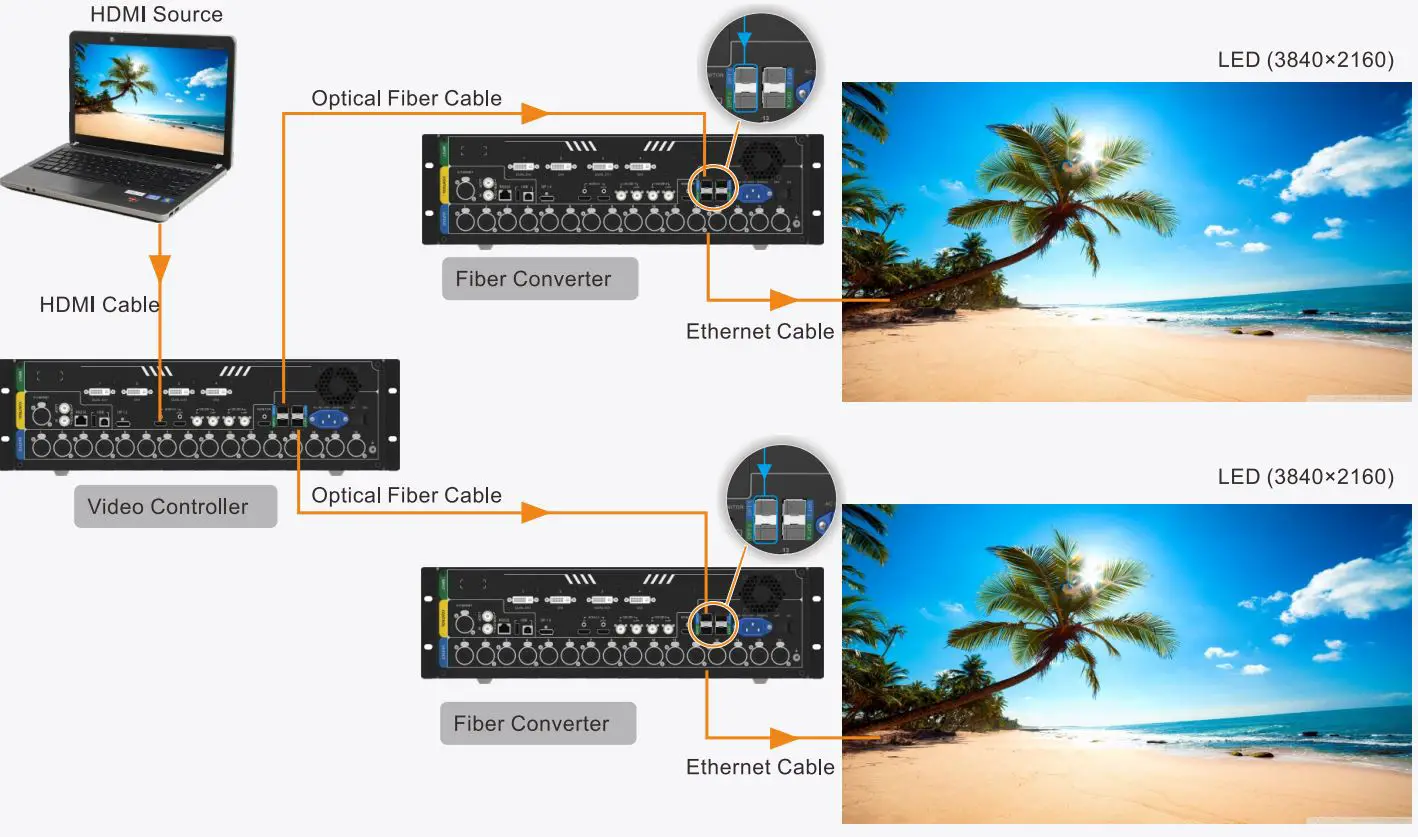

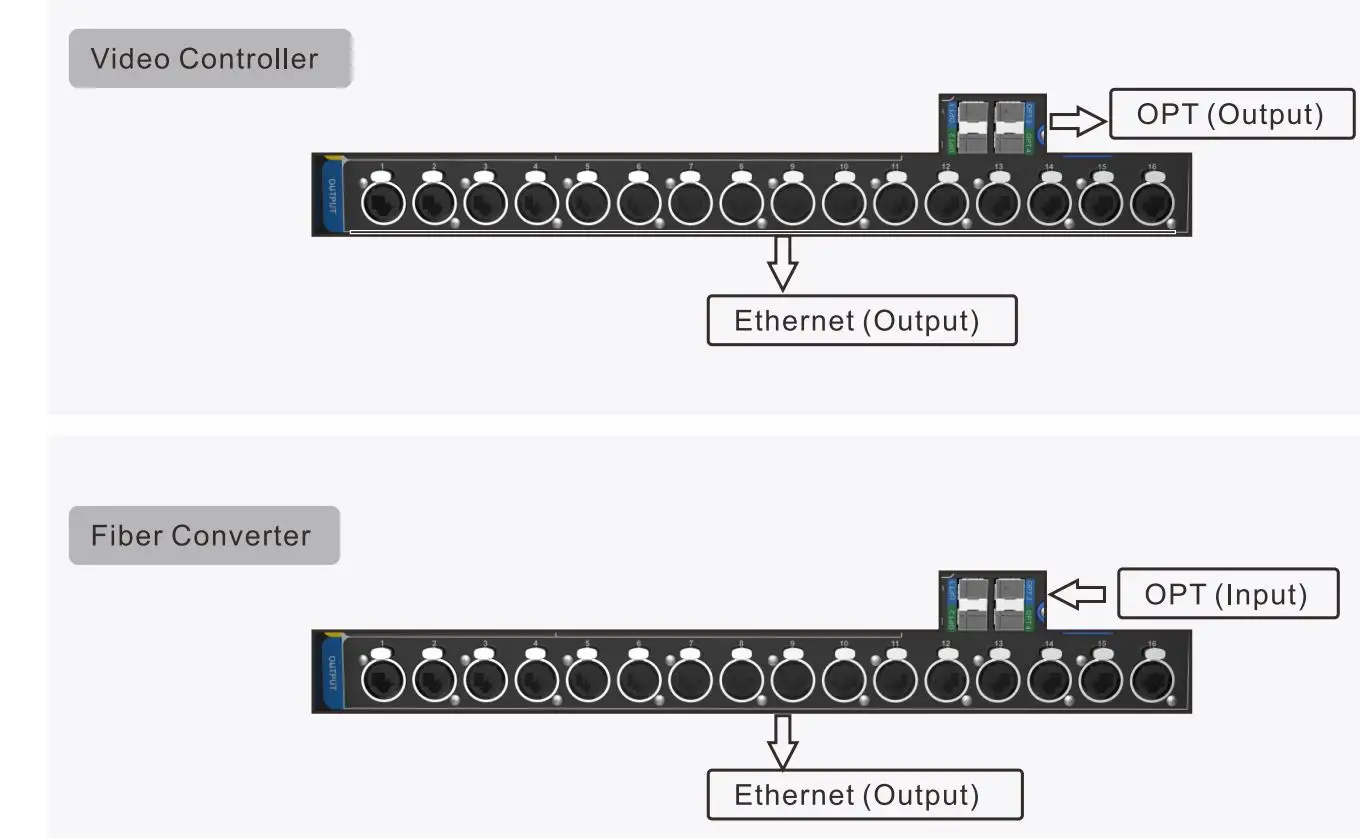

The NovaPro UHD Jr can work as a video controller (default) or fiver converter.
- Video controller: Theme ports and optical fiver connectors are all used for output.
- Fiver Converter: Optical fiver connections are used for input exile Theme ports are used for output.

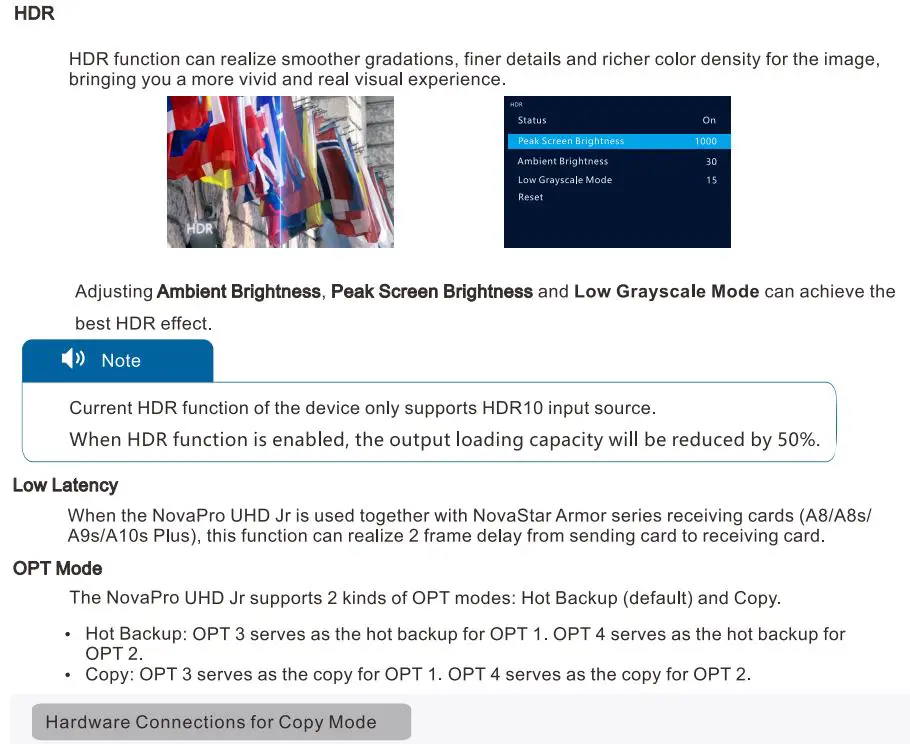

Advanced Functions

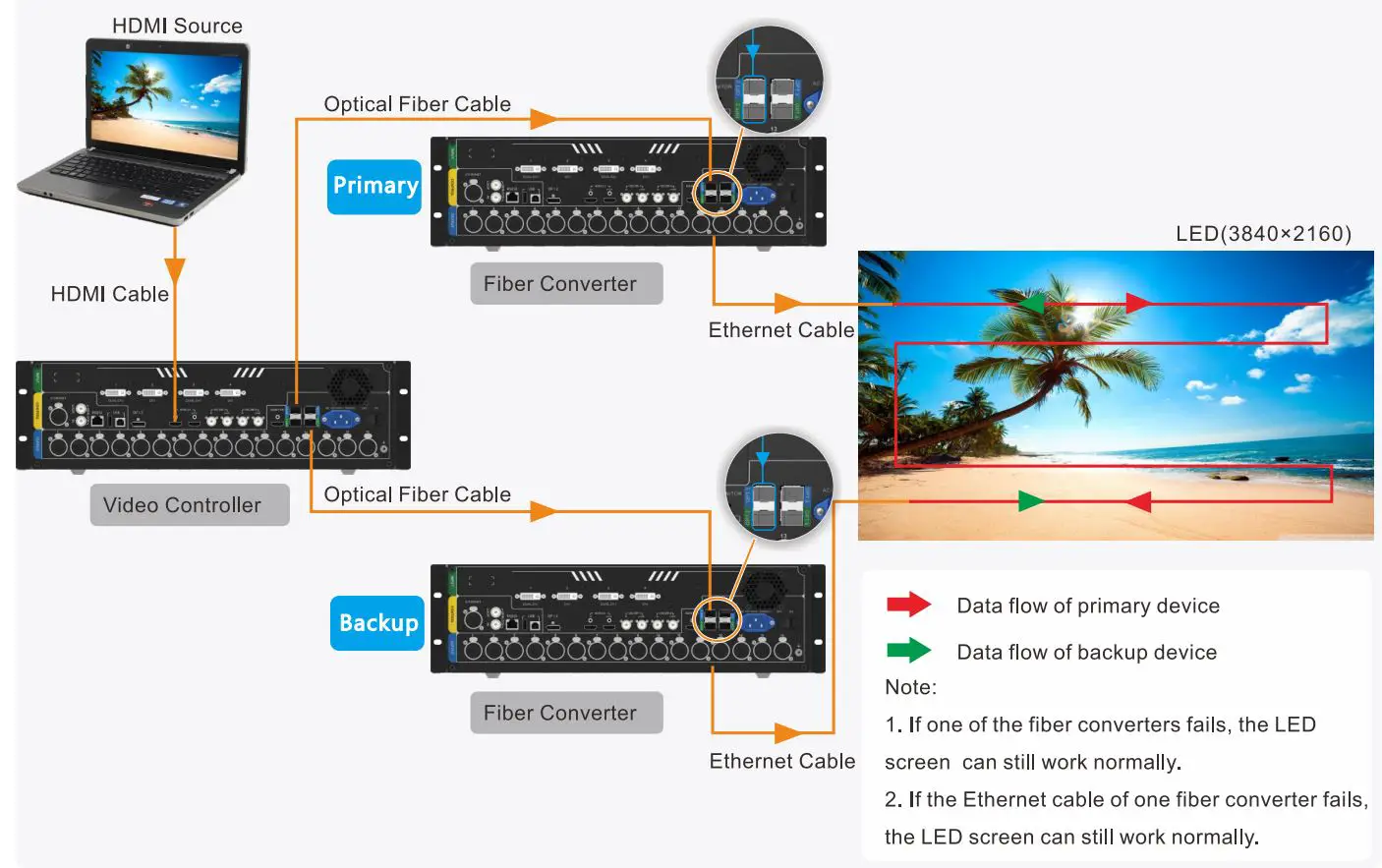

Hardware Connections for Hot Backup Mode

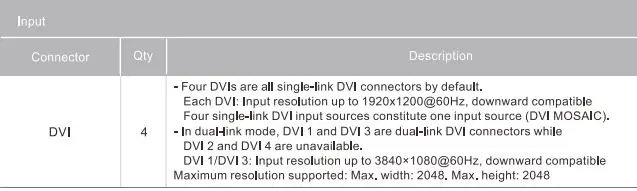

Specifications
