Cordless handstick vacuum cleaner

BBS82 BCS82 BSS82 BLS82 BKS82

User manual

[A] [B] [C] [D]

[E] [F] [G] [H]

[I] [J] [K] [L]

[M] [N] [O] [P]

[1]

[2]

[3] [4]

[5] [6]

[7] [8]

[9] [10]

[11] [12]

[13] [14]

[15] [16]

[17] [18]

[19] [20]

[21] [22]

[23] [24]

[25] [26]

[27] [28]

[29] [30]

[31] [32]

[33] [34]

[35] [36]

[37] [38]

[39] [40]

[41]

Safety

Read this instruction manual carefully.
Keep the instruction manual and the product information safe for future reference or for the next owner.
Do not connect the appliance if it has been damaged in transit. Only use this appliance:
With genuine parts and accessories. Damage caused by using third-party products is not covered under the warranty.
In private households and in enclosed spaces in a domestic environment at room temperature.
Up to an altitude of max. 2000 m above sea level.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.
Children must not play with the appliance.
Cleaning and user maintenance must not be performed by children unless they are being supervised.

Repairs to the appliance should only be carried out by trained specialist staff.
Only use genuine spare parts when repairing the appliance.
Never operate a damaged appliance.
Never operate an appliance with a cracked or fractured surface.
Call customer services.
Only use the appliance in enclosed spaces.
Never expose the appliance to intense heat or humidity.
Do not use steam- or high-pressure cleaners to clean the appliance.
Never let the power cord come into contact with hot appliance parts or heat sources.
Never let the power cord come into contact with sharp points or edges.
Never kink, crush or modify the power cord.
Connect and operate the charging cable¹ and the quick charger¹ only in accordance with the specifications on the rating plate.
Connect the charging cable¹ and the quick charger¹ to a power supply with alternating current only via a properly installed socket with earthing.
When cleaning the appliance, do not use flammable substances or substances that contain alcohol.
Keep clothing, hair, fingers and other body parts away from the openings on the appliance and the moving parts.
Never point the pipe or the nozzles towards eyes, hair, ears or mouths.
Ensure that children do not play with the appliance, even when it is in the base station¹.
Persons with electronic implants must stand at least 10 cm away from the appliance.
Keep packaging material away from children.
Do not let children play with packaging material.
Protect the battery against fire, heat and constant sunlight.
Protect the battery against water and penetrating moisture.
Never open the battery.
When not in use, keep the battery away from metal objects, e.g. paper clips, coins, keys, nails or screws.
Supply fresh air.
If there are any problems, seek medical advice from a doctor.
If these come into contact with the skin, wash immediately with cold water.
If these come into contact with the eyes, seek medical help.

Preventing material damage

To prevent material damage to your appliance, accessories or any other objects, follow these instructions.

Check and clean any wet objects.
Replace damaged objects.
Regularly check the outsides of the nozzles for wear.
Replace the worn nozzle.
Never use the nozzle without the brush roller in place.
Never operate the appliance without the filter unit.

Included with the appliance

After unpacking all parts, check for any damage in transit and completeness of the delivery.

______________________

¹ Depending on the appliance specifications

Note: The appliance comes with additional accessories depending on its features.

→ Fig. [1]

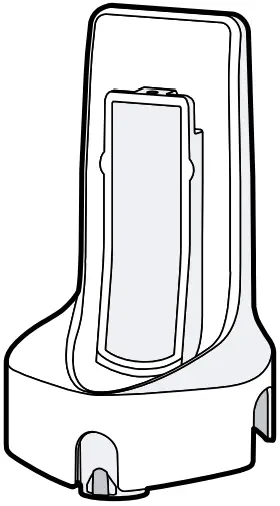

[A] Base station¹

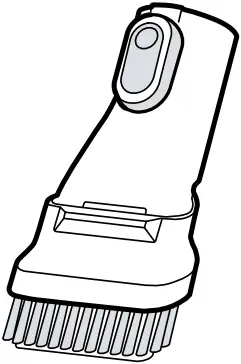

[B] 2-in-1 furniture brush with upholstery nozzle¹

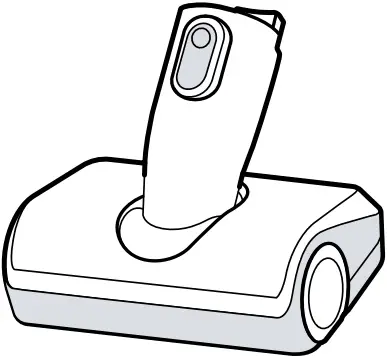

[C] Mini electro-nozzle¹

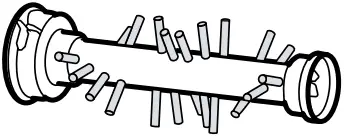

[D] Replacement brush for mini electro-nozzle¹

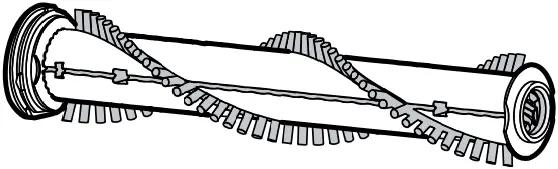

[E] Replacement brush for power brush¹

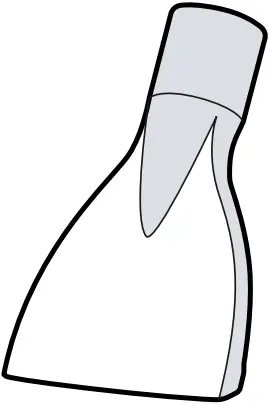

[F] Mattress nozzle¹

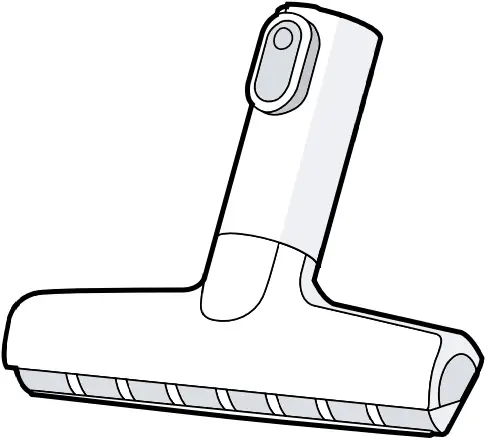

[G] XXL upholstery nozzle¹

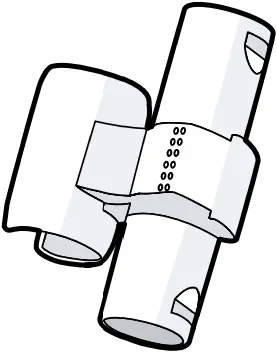

[H] Variable accessory holder¹

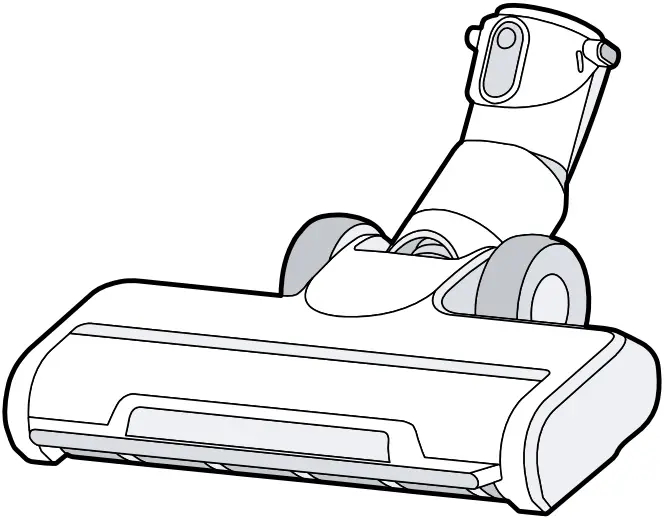

[I] Power brush for hard floors¹

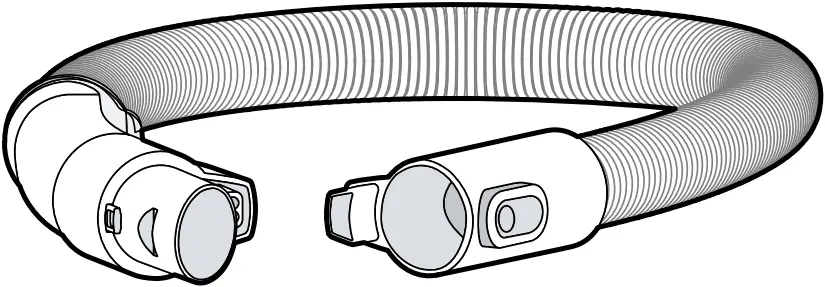

[J] Flexible extension hose¹

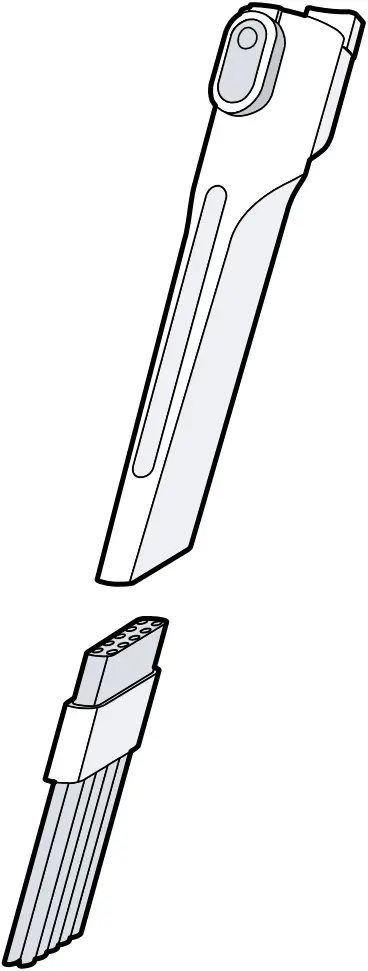

[K] Keyboard and drawer nozzle¹

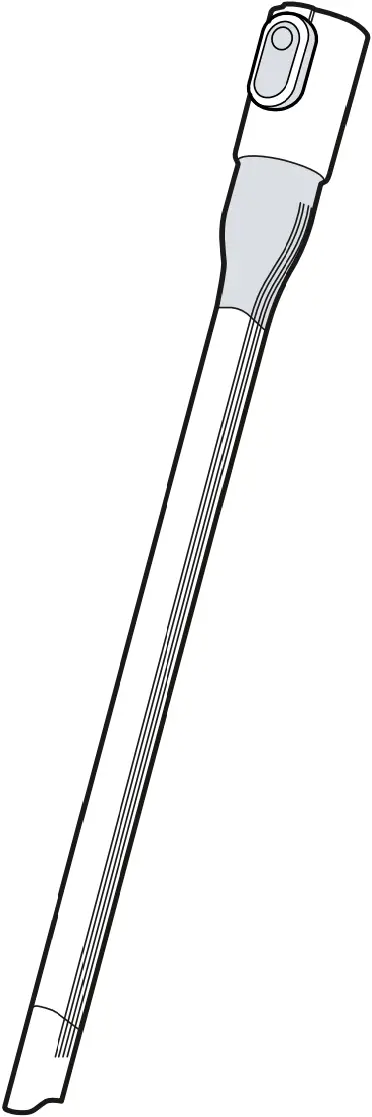

[L] Long, flexible crevice nozzle¹

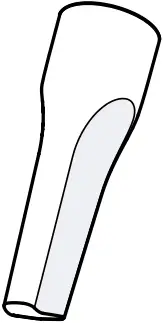

[M] Short crevice nozzle¹

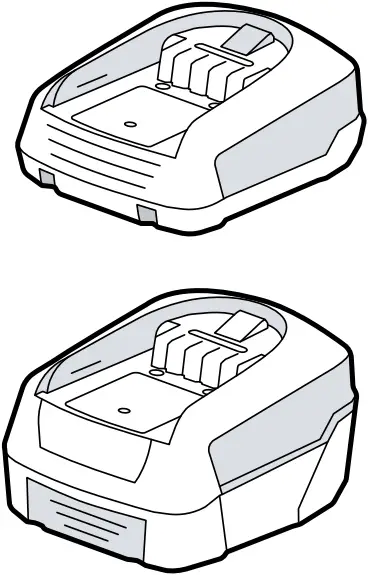

[N] Battery¹

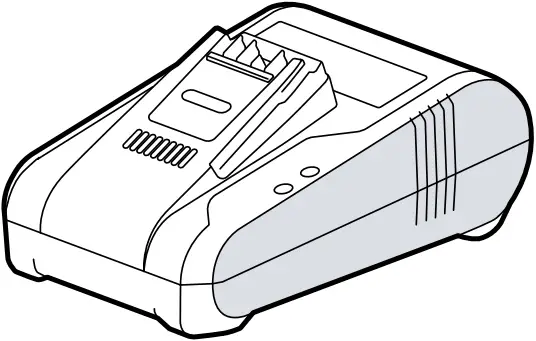

[O] Quick charger¹

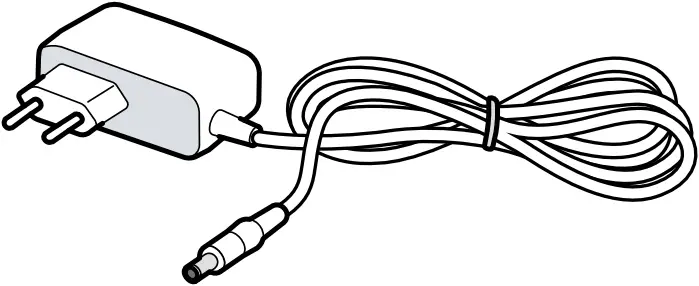

[P] Charging cable¹

¹ Depending on the appliance specifications

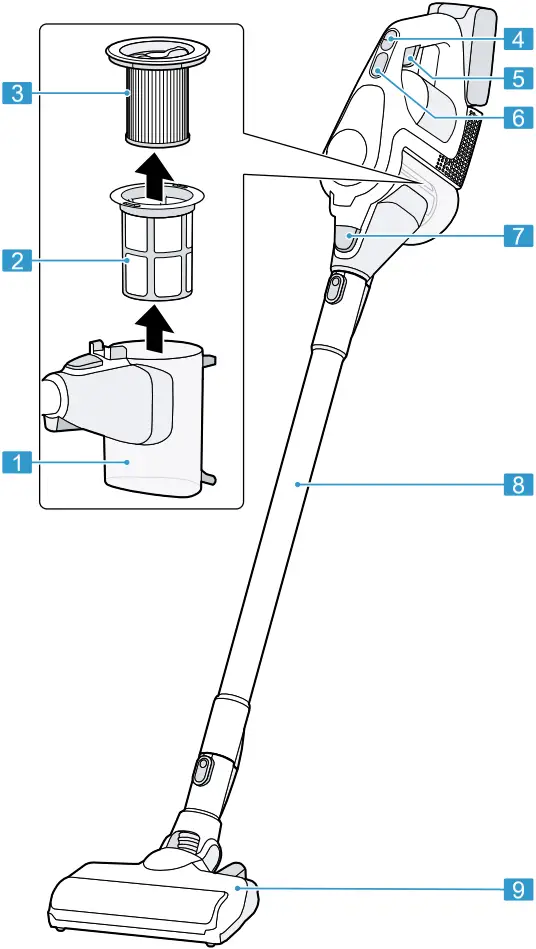

Appliance

You Appliance can find an overview of the parts of your appliance here.

→ Fig. [2]

[1] Dust container

[2] Fluff filter

[3] Cartridge filter

[4] Regulating the operating statuses

Battery charging times

You can find an overview of the battery charging times here.

[5] On/off switch

[6] Status display

[7] Dust container release button

[8] Suction pipe

[9] Power brush

Controls

You can find an overview of the controls for your appliance here.

Switch on the appliance.
Switch off the appliance.

Status display

The status display indicates the different operating statuses.

Operating status	Status display
Normal mode	Auto lights up.
Turbo mode	Turbo lights up.
Energy-saving mode	Eco lights up.
Battery charge below 20%	flashes quickly.
Battery empty	Display goes out.
Charging process	flashes and shows the already charged status.
Battery is fully charged	lights up and goes out after approx. two minutes.
Error display	lights up red and goes out after approx. 10 seconds. → “Troubleshooting”, Page 22

Notes

The specified charging times may vary depending on the battery charging status, the battery temperature and the age of the battery.
You can find out which battery charging times are achieved with the quick charger¹ in the instructions of for the quick charger¹.

Tip: If the quick charger¹ displays a battery charging status of approx. 80%, you can remove and use the battery.

Battery charging status of	18 V 3,0 Ah	18 V 4,0 Ah	18 V 5,0 Ah
80% in hrs	4	4	5
97%–100% in hrs	5	4½	5½

Battery runtimes

You can find an overview of the battery runtimes, depending on the battery that is used, here.

Note
The following modes affect the battery runtime:

Mode 1: Energy-saving mode with non-electrical accessory
Mode 2: Energy-saving mode with electrical floor nozzle
Mode 3: Auto mode with electrical floor nozzle
Mode 4: Turbo mode with electrical floor nozzle

Runtime	18 V 3,0 Ah	18 V 4,0 Ah	18 V 5,0 Ah
Mode 1 up to min.	45	65	45
Mode 2 up to min.	35	50	35
Mode 3 up to min.	15	20	28
Mode 4 up to min.	10	10	12

Notes

Like every Li-ion battery, the batteries from the Power for ALL 18 V series wear out over time, meaning that the battery capacity and the runtime decrease. This is a natural aging process and not the result of a material error, manufacturing error or material defect.
You can delay the natural wear by using the following measures:
– Only charge the battery in the temperature range between 0 °C and 45 °C.
– Only store the battery in the temperature range between -20 °C and 50 °C.
– Do not store the battery for an extended period of time if it is fully charged or fully discharged.

Installing the base station

Check whether any household wiring could be damaged in the installation area.
Do not install the base station horizontally or vertically above, below or next to a socket.

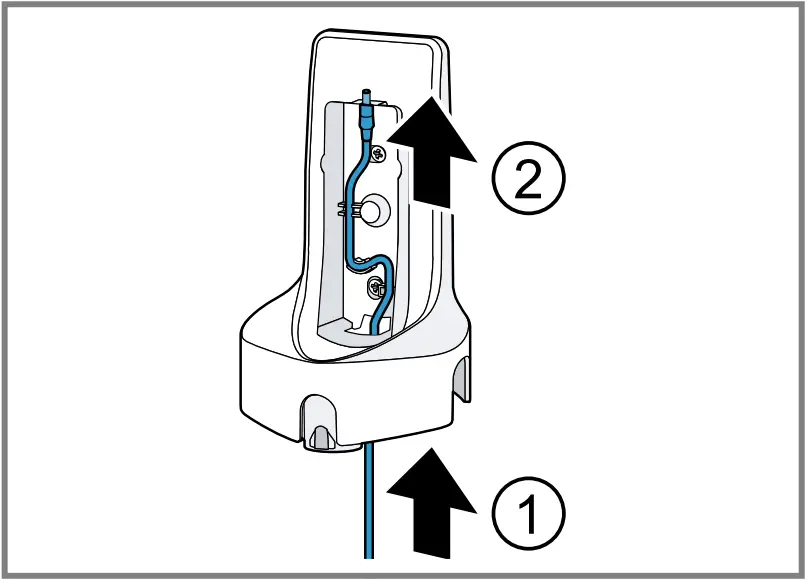

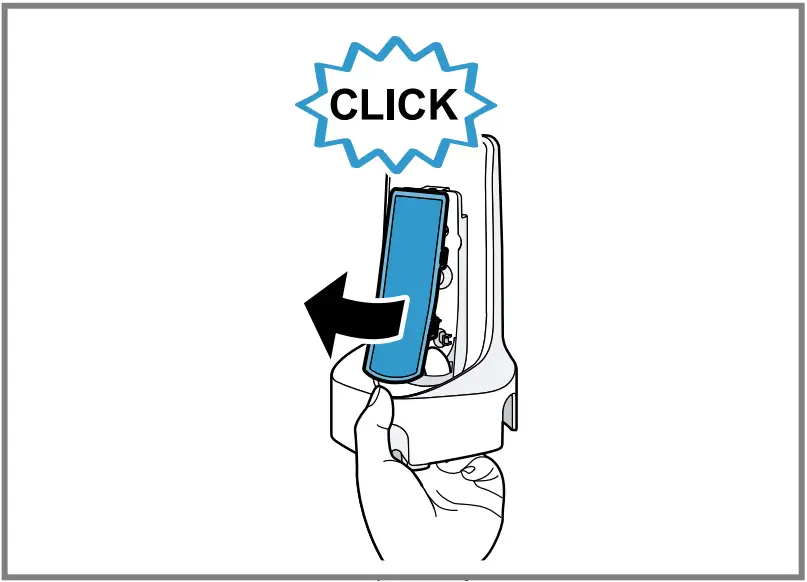

→ Fig. [3] – [6]

Inserting and charging the battery

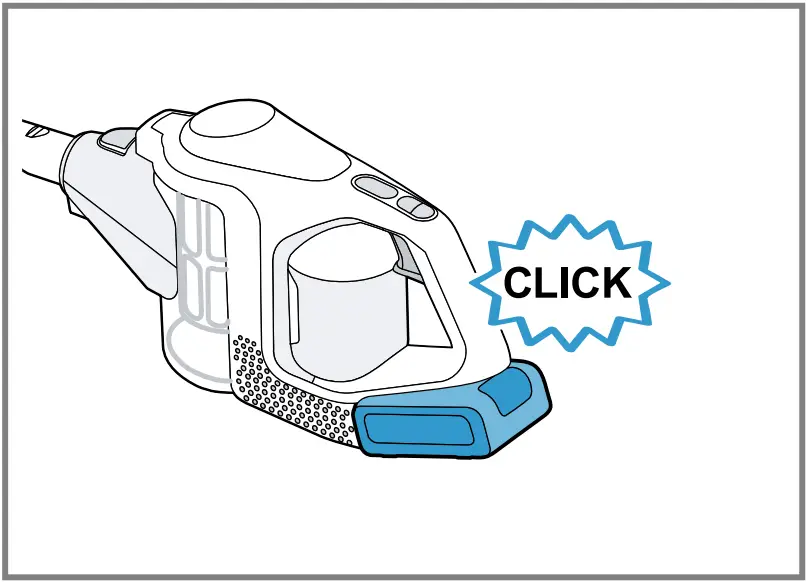

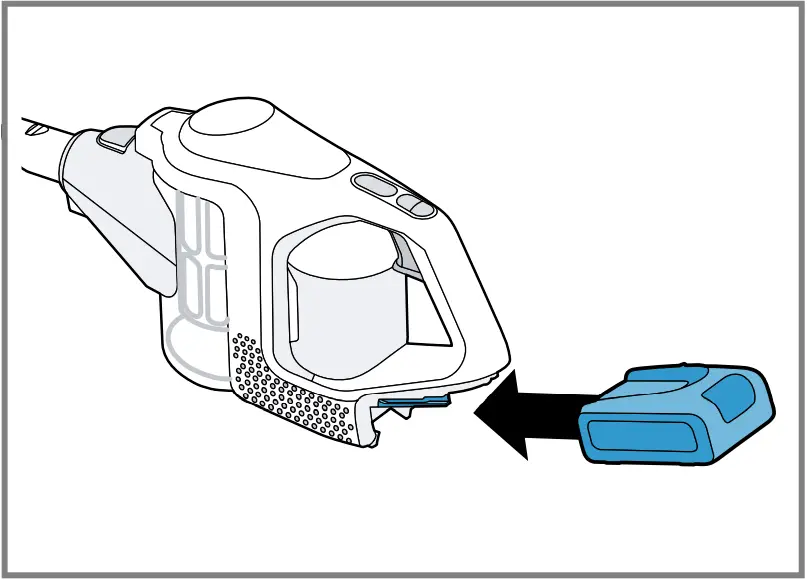

→ Fig. [7] – [8]

Charging

Only charge the battery in chargers that are recommended by the manufacturer.
Only use the battery in connection with the Bosch appliance.
Charge the battery using the original charging cable ¹ or the original quick charger ¹.
Only use batteries from the Power for ALL 18 V series.

Note: The power supply unit on the charging cable ¹ and the appliance heat up while charging. This is normal and harmless.

Charging using the charging cable

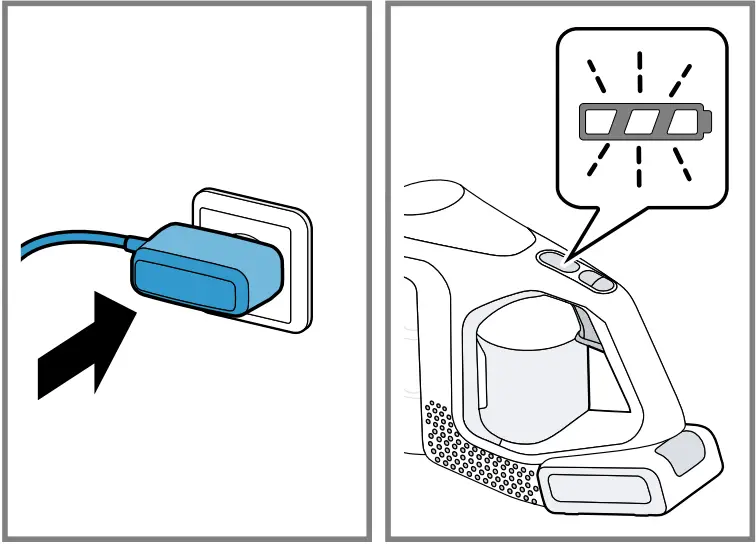

→ Fig. [9] – [10]

Charging in the base station

Ensure that children do not play with the appliance, even when it is in the base station¹.

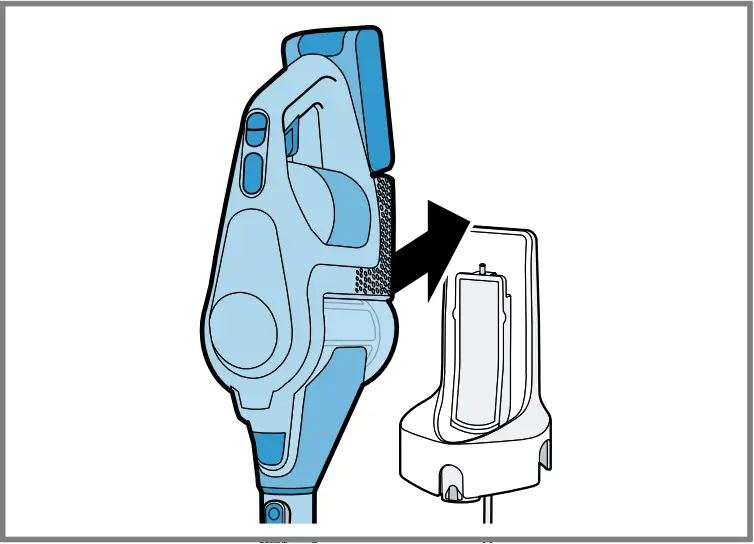

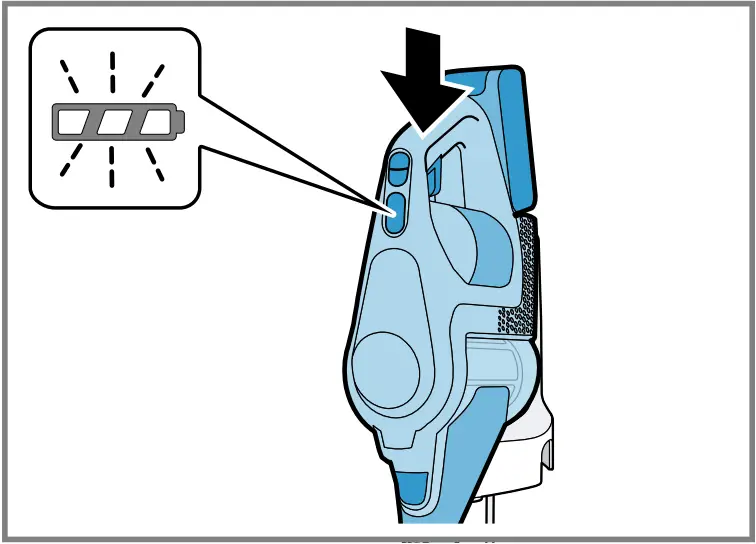

→ Fig. [11] – [12]

¹Charging using the quick charger

1. Press the release button and remove the battery to the rear.

→ Fig. [13]

2. Observe the enclosed instructions.

Installing the appliance

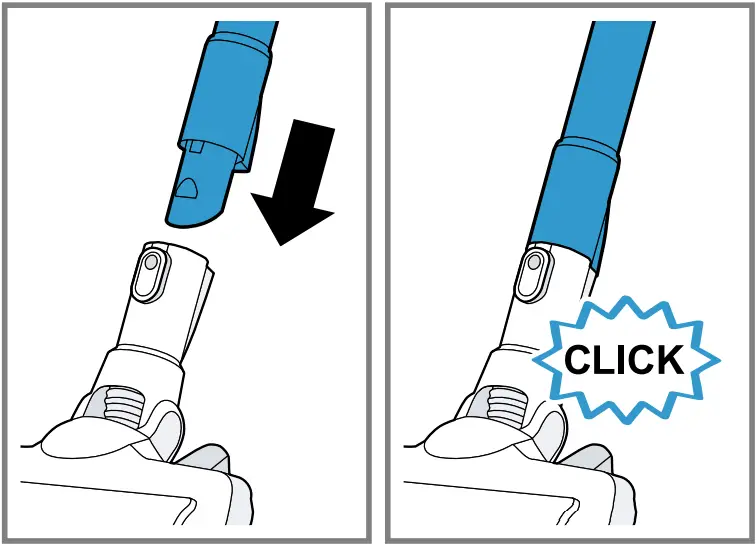

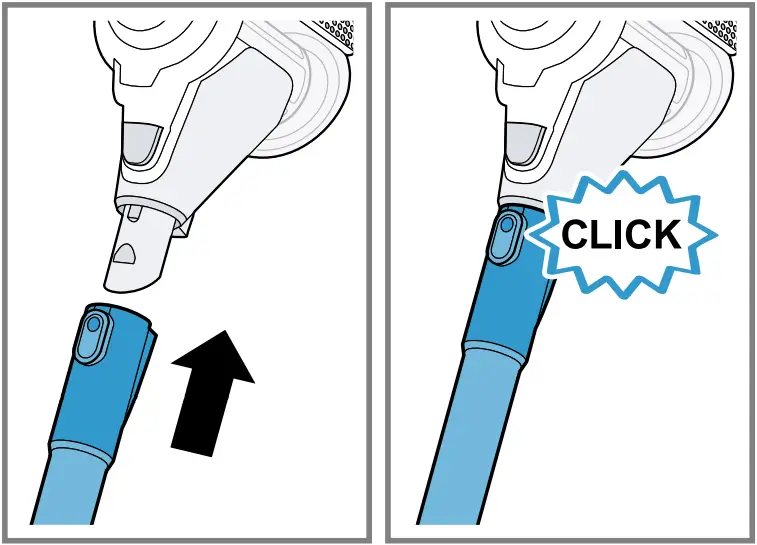

→ Fig. [14] – [15]

Switching on the appliance

Press .

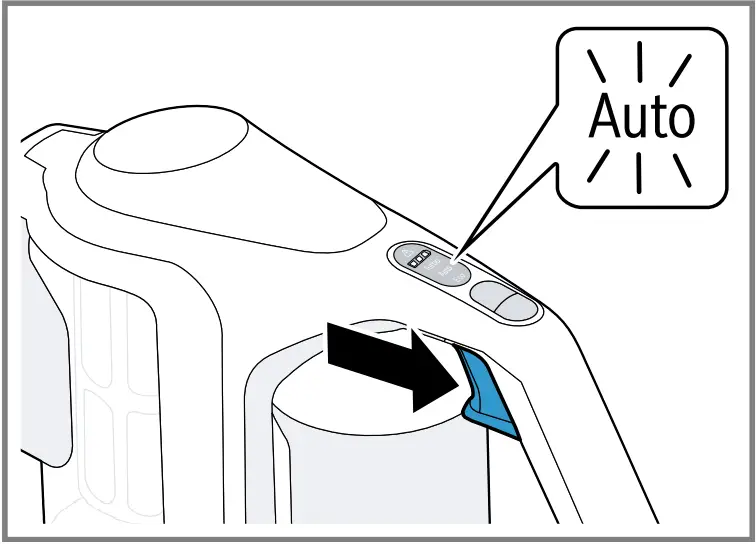

→ Fig. [16]

Setting the power

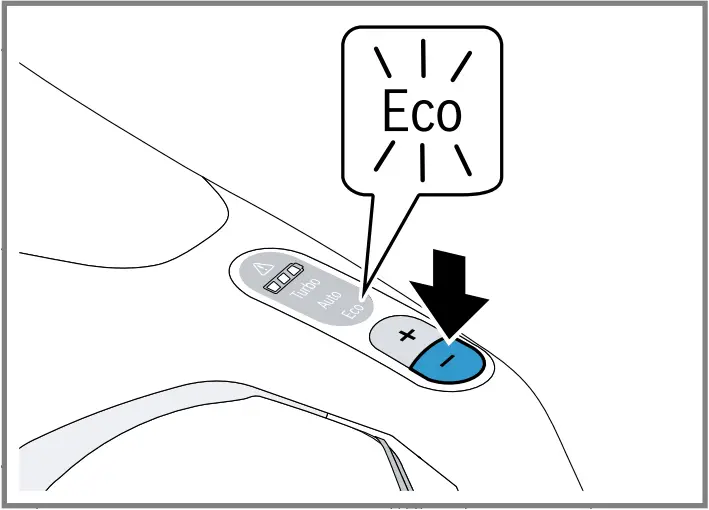

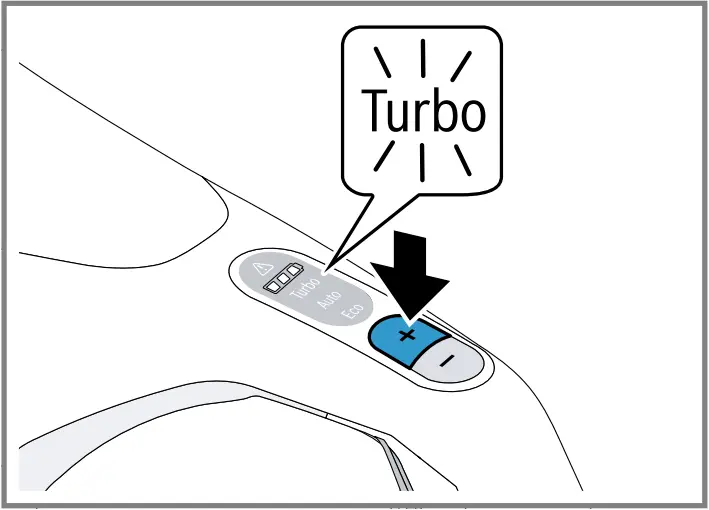

→ Fig. [17] – [18]

Vacuuming with accessories

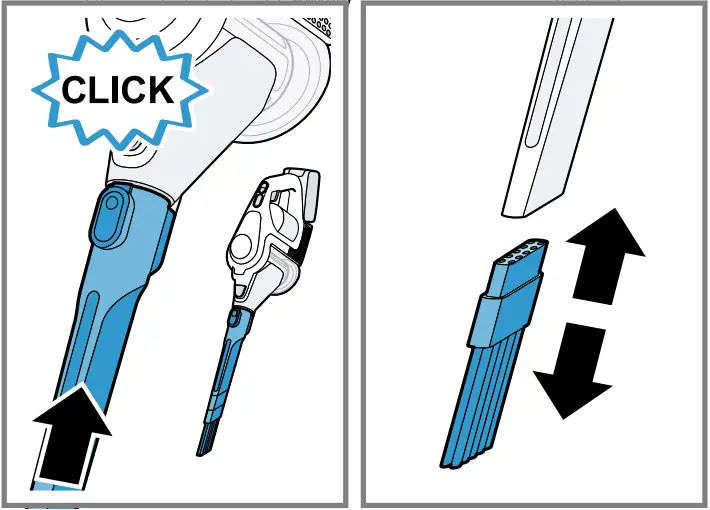

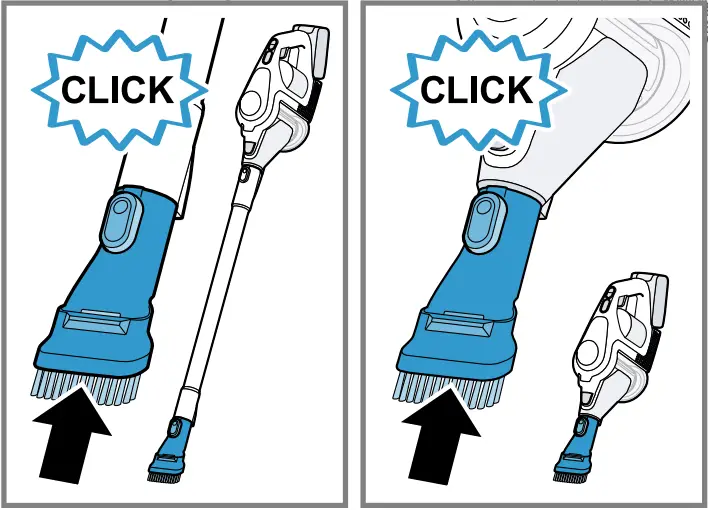

→ Fig. [19] – [20]

Storing accessories

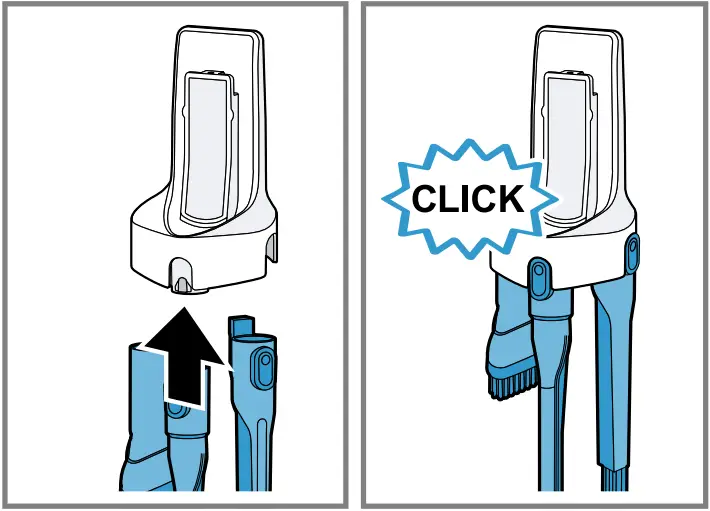

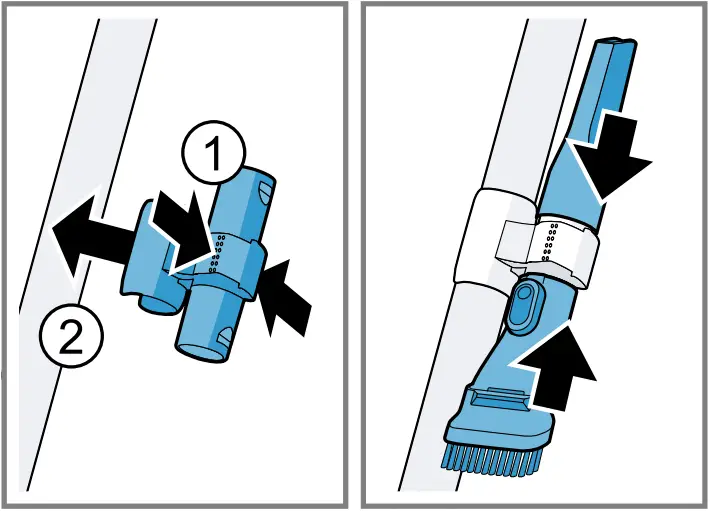

→ Fig. [21] – [22]

Using the flexible extension hose

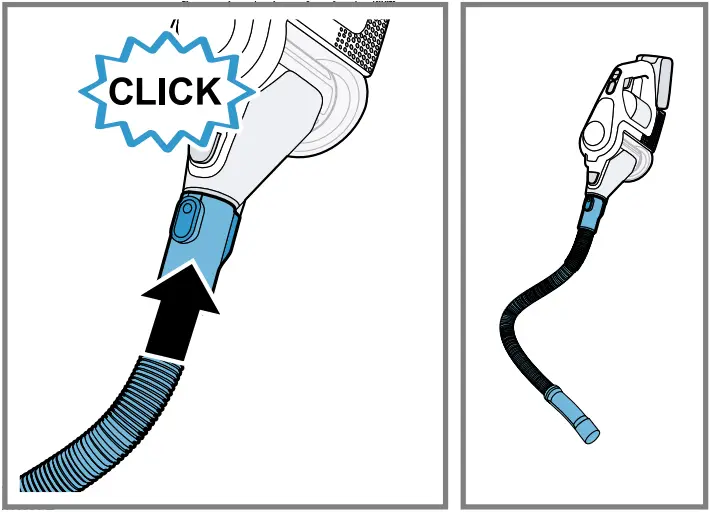

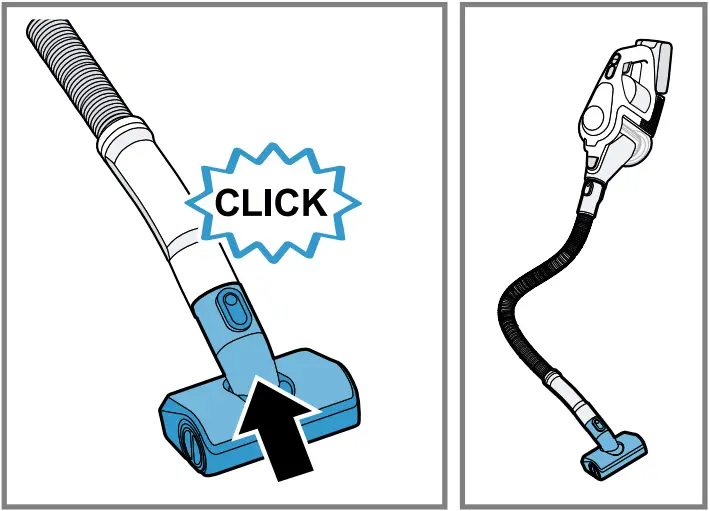

→ Fig. [23] – [24]

Cleaning the appliance

Requirement: The appliance is switched off.

1. Disconnect the appliance from the charging cable¹.
2. Clean the appliance and the accessory with a soft cloth and a commercially available plastic cleaner.

Emptying the dust container

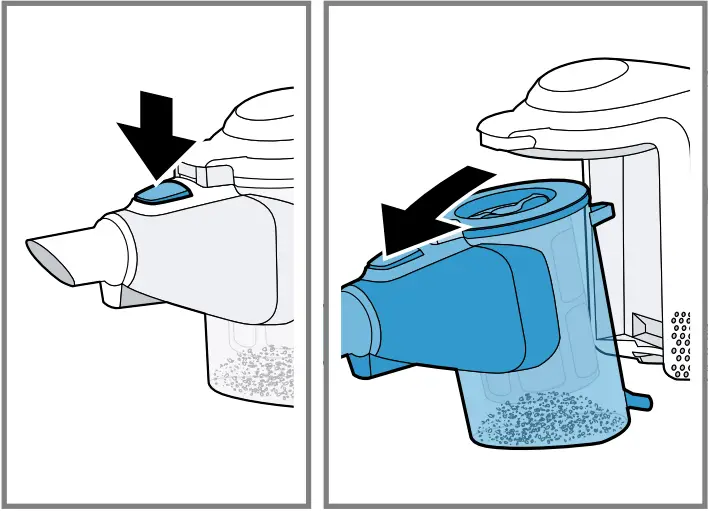

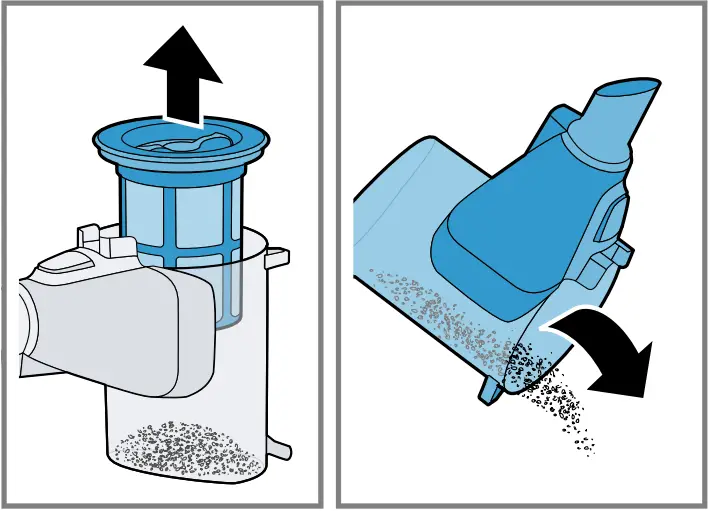

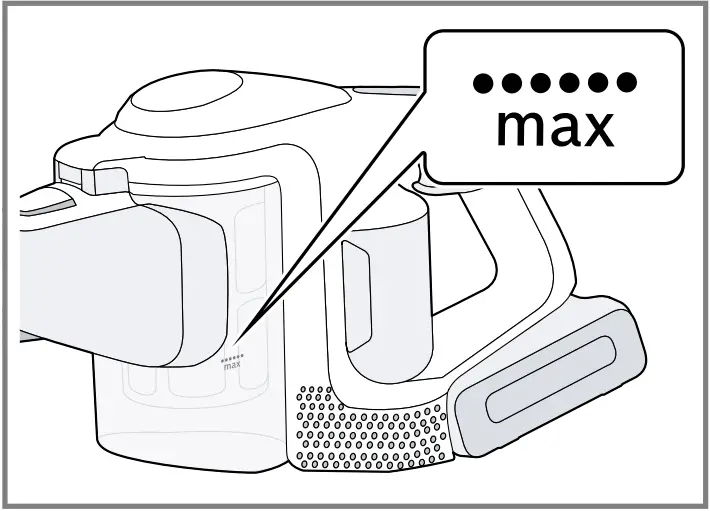

→ Fig. [25] – [28]

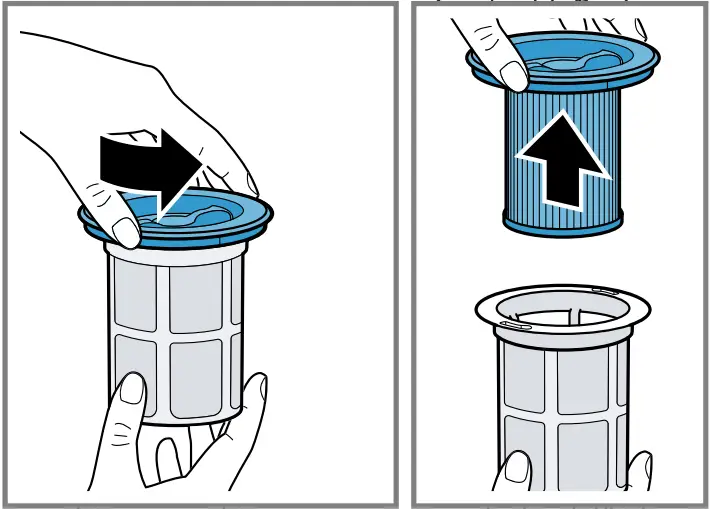

Cleaning the filter unit

Never allow the filters to come into contact with liquids.

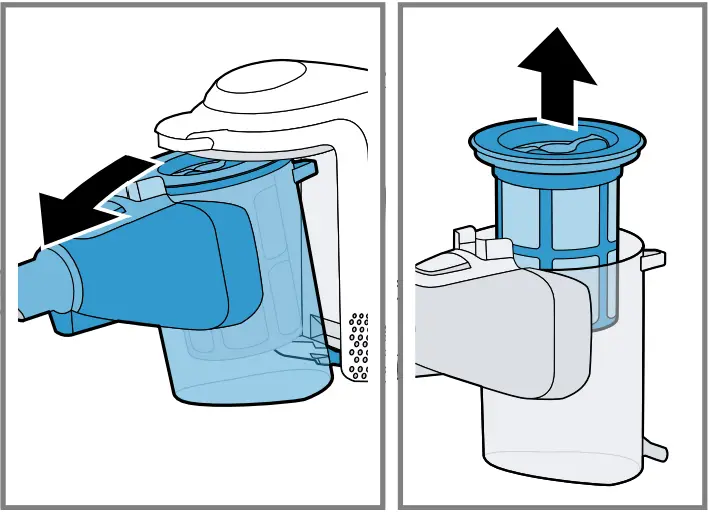

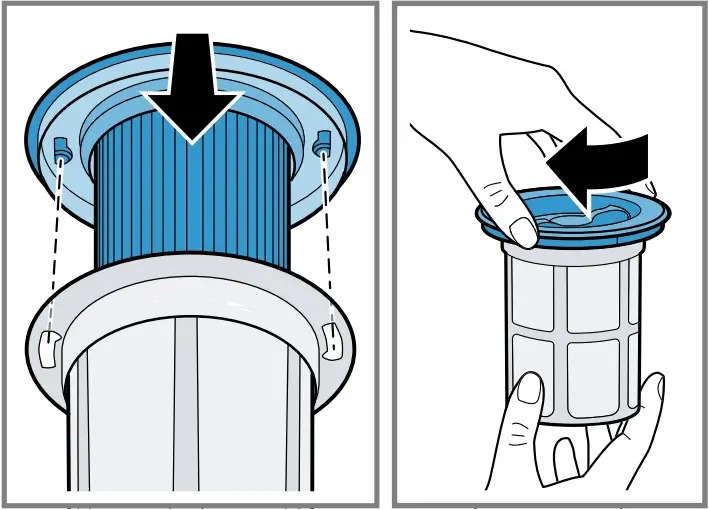

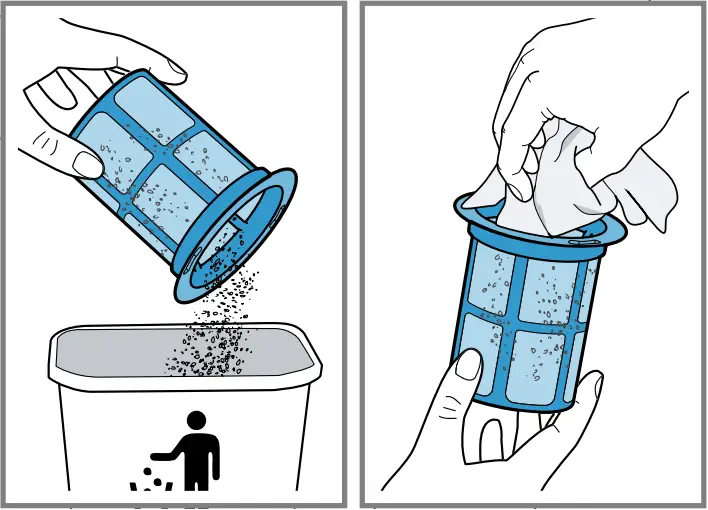

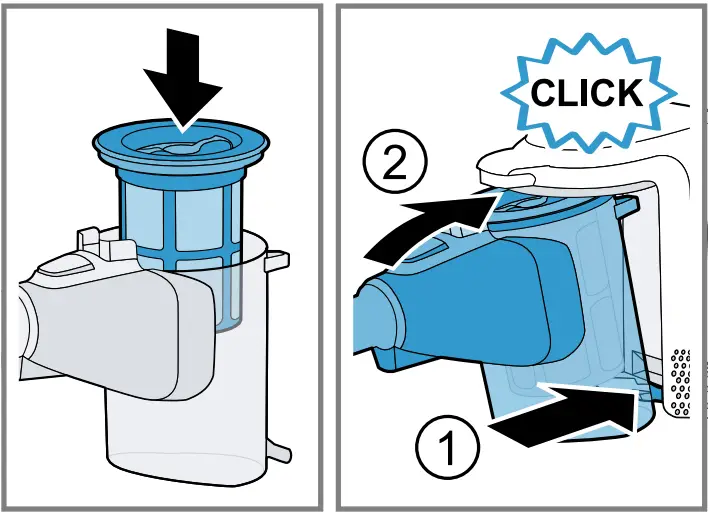

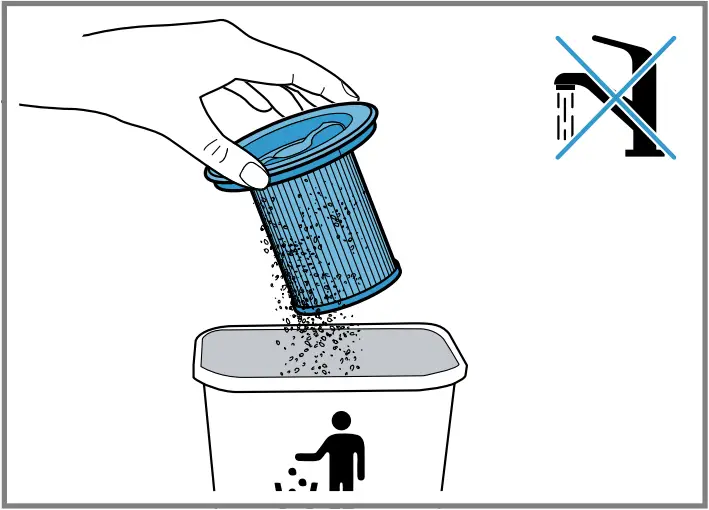

→ Fig. [29] – [35]

Cleaning the power brush

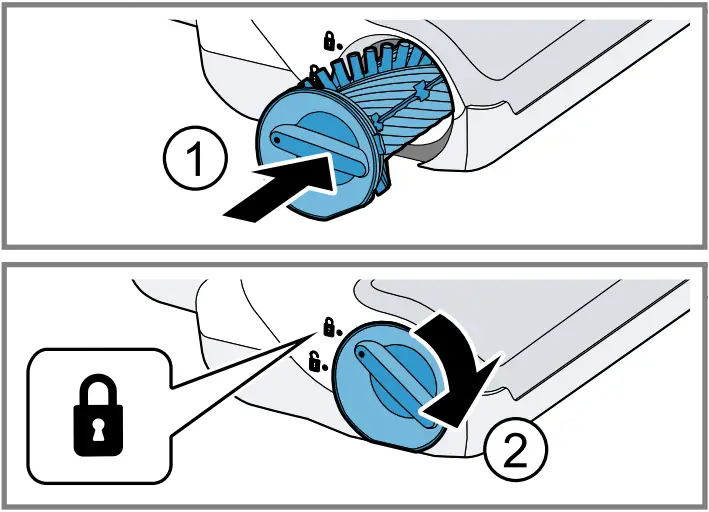

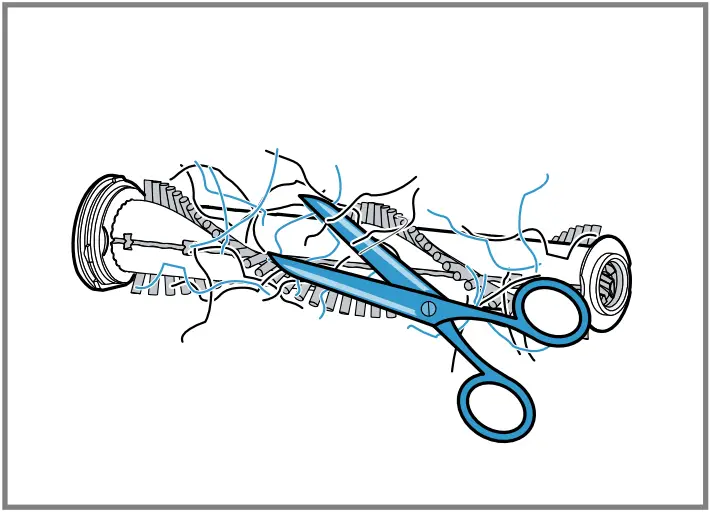

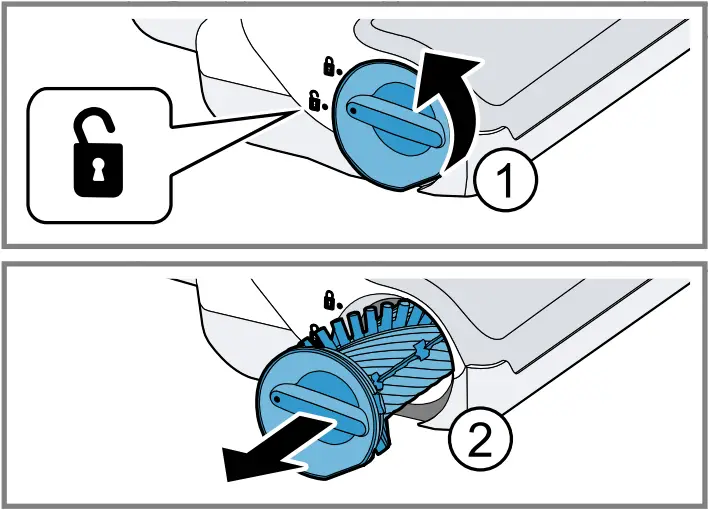

→ Fig. [36] – [38]

Cleaning the power brush for hard floors

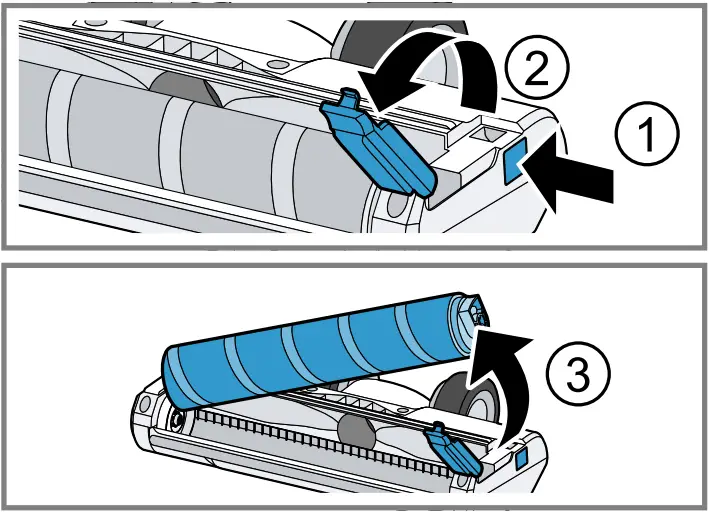

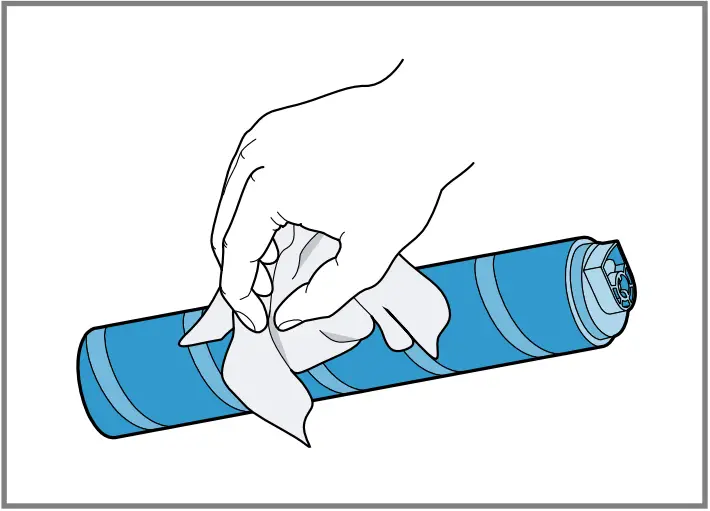

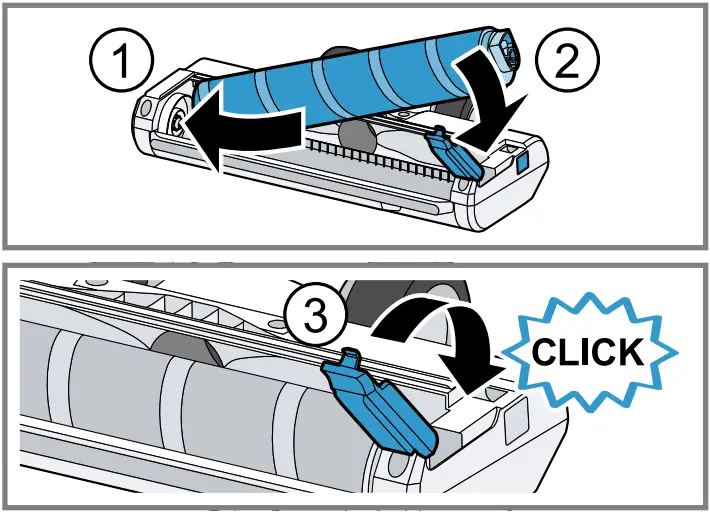

→ Fig. [39] – [41]

_____________________

¹ Depending on the appliance specifications

Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.

Repairs to the appliance should only be carried out by trained specialist staff.
Only use genuine spare parts when repairing the appliance.

Fault	Cause and troubleshooting
The appliance is not working. The battery status display does not show any status. The red fault indicator lights up for 10 seconds.	The battery has not been inserted correctly. Insert the battery correctly.
	The battery has not been charged. Charge the battery.
	The battery has overheated or overcooled. 1. Switch off the appliance and disconnect the appliance from the power supply. 2. Wait until battery has reached room temperature.
	The appliance has overheated or overcooled. 1. Switch off the appliance and disconnect the appliance from the power supply. 2. Wait until the appliance has reached room temperature.
No charging function.	Incorrect charger was used. Only use the charger that is included.
The dust container cannot be inserted.	The filter unit is not complete. Check whether the filter unit is complete.
The dust container cannot be inserted.	The filter unit or dust container is not positioned correctly. Check whether the filter unit and dust container are inserted correctly.
Suction is reduced.	The filter is blocked. 1. Switch off the appliance and disconnect the appliance from the power supply. 2. Clean the filter unit.
Suction is reduced.	The nozzle is blocked. 1. Switch off the appliance and disconnect the appliance from the power supply. 2. Check whether the air channel from the nozzle to the appliance is blocked. 3. Empty the dust container. 4. Clean the filter unit. 5. Once the appliance has cooled down, switch the appliance back on.

Disposing of old appliance

Valuable raw materials can be reused by recycling.

Dispose of the appliance in an environmentally friendly manner.
Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE).
The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Disposing of batteries

Batteries should be recycled in an environmentally friendly manner. Do not dispose of the batteries in the household rubbish.

Dispose of batteries in an environmentally friendly manner.

Only for EU countries:

According to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Warranty conditions

You can make warranty claims for your appliance under the following conditions.
The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Service world-wide

Central Service Contacts

AM Armenia,
ZIG ZAG LLC
Charenci str. 25
Yerevan 375025
Tel.: 010 55 60 10
mailto:[email protected]
www.zigzag.am

Austria
BSH Hausgeräte Gesellschaft mbH
Werkskundendienst für Hausgeräte
Quellenstrasse 2a
1100 Wien
www.bosch-home.at
Tel.: 0810 550 511*
mailto:[email protected]

Australia
BSH Home Appliances Pty. Ltd.
Gate 1, 1555 Centre Road
Clayton, Victoria 3168
Tel.: 1300 369 744*
mailto:[email protected]
www.bosch-home.com.au
*Mon-Fri 24 hours

Belgium
BSH Home Appliances S.A. – N.V.
Rue Picard 7, box 400, Picardstraat 7, box 400
1000 Bruxelles – Brussel
Tel.: 02 475 70 01
mailto:[email protected]
www.bosch-home.be

Belarus
OOO “БСХ Бытовая техника”
: 495 737 2961
mailto:[email protected]

Switzerland
BSH Hausgeräte AG
Bosch Hausgeräte Service
Fahrweidstrasse 80
8954 Geroldswil
Tel.: 0848 888 200
mailto:[email protected]
mailto:[email protected]
www.bosch-home.ch

China,
BSH Home Appliances Service Jiangsu
Co. Ltd.
Building 3, No. 18 Qingjiang South Road,
Gulou District
Nanjing, Jiangsu Province
Service Tel.: 400 8855 888*
mailto:[email protected]
www.bosch-home.cn
*phone rate depends on the network used

Cyprus
BSH Ikiakes Syskeves-Service
39, Arh. Makaariou III Str.
2407 Egomi/Nikosia (Lefkosia)
Tel.: 777 78 007
Fax: 022 65 8128
mailto:[email protected]

–

Argas Limited Company
37 Osman Paşa Cad. Küçük Çiltlik
Lefkoşa
Tel.: 0228 40 70
mailto:[email protected]

–

Semson Ticaret Sti. Ltd.
Bedrettin Demirel Cad. no 17
Girne
Tel.: 0816 04 94
mailto:[email protected]

Czech Republic
www.boschhome.com/cz/
+420 251 095 511
BSH domácí spotřebiče s.r.o.
Radlická 350/107c
158 00 Praha 5
Tel: +420 251 095 043
mailto:[email protected]

Deutschland, Germany
BSH Hausgeräte Service GmbH
Zentralwerkstatt für kleine Hausgeräte
Trautskirchener Strasse 6-8
90431 Nürnberg
www.bosch-home.com
Tel.: 0911 70 440 040
mailto:[email protected]

Denmark
BSH Hvidevarer A/S
Telegrafvej 4
2750 Ballerup
Tel.: 44 89 80 18
mailto:[email protected]
www.bosch-home.dk

Spain
BSH Electrodomésticos España S.A.
Servicio Oficial del Fabricante
Parque Empresarial PLAZA, C/ Manfredonia, 6
50197 Zaragoza
Tel.: 976 305 713
mailto:[email protected]
www.bosch-home.es

Finland
BSH Kodinkoneet Oy
Itälahdenkatu 18 A, PL 123
00201 Helsinki
Tel.: 0207 510 705*
mailto:[email protected]
www.bosch-home.fi

France
BSH Electroménager S.A.S.
26 ave Michelet – CS 90045
93582 SAINT-OUEN cedex
Service interventions à domicile: 01 40
101 100
Service Consommateurs:

Service Pièces Détachées et Accessoires:

mailto:[email protected]
www.bosch-home.com/fr

Great Britain
BSH Home Appliances Ltd.
Grand Union House, Old Wolverton Road,
Wolverton
Milton Keynes MK12 5PT
To arrange an engineer visit, to order spare parts and accessories or for product advice please visit www.bosch-home.co.uk Or call Tel.: 0344 892 8979*
*Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

Greece
BSH Ikiakes Siskeves A.B.E.
Central Branch Service
17 km E.O. Athinon-Lamias & Potamou 20
14564 Kifisia
: 210 4277 500, -701
mailto:[email protected]
www.bosch-home.gr

Hong Kong
BSH Home Appliances Limited
Unit 07, 23/F, CDW
Building, 388 Castle Peak Road
Tsuen Wan, New Territories, Hong Kong
Tel.: 2626 9655 (HK)
Toll free 0800 863 (Macao)
mailto:[email protected]
www.bosch-home.com.hk

Hungary
BSH Háztartási Készülék Kereskedelm Kft.
Árpád fejedelem útja 26-28
1023 Budapest
Call Center: +06 80 200 201
mailto:[email protected]
www.bosch-home.com/hu

Republic of Ireland
BSH Home Appliances Ltd.
M50 Business Park, Ballymount Road Upper, Walkinstown
Dublin 12
To arrange an engineer visit, to order spare parts and accessories or for product advice please call Tel.: 01450 2655*
www.bosch-home.ie
*Calls are charged at the basic rate, please check with your telephone service provider for exact charges

Iceland
Smith & Norland hf.
Noatuni 4
105 Reykjavik
Tel.: 0520 3000
www.sminor.is

Italy
BSH Elettrodomestici S.p.A.
Via. M. Nizzoli 1
20147 Milano (MI)
Tel. 02 412 678 100
mailto:[email protected]
www.bosch-home.com/it

Luxembourg
BSH électroménagers S.A.
13-15, ZI Breedeweues
1259 Senningerberg
Tel.: 26349 811
Reparaturen: [email protected]
Ersatzteile: [email protected]
www.bosch-home.com/lu

Malta
Oxford House Ltd.
Notabile Road
Mriehel BKR 14
Tel.: 021 442 334
www.oxfordhouse.com.mt

Netherlands
BSH Huishoudapparaten B.V.
Taurusavenue 36
2132 LS Hoofddorp
Storingsmelding/Onderdelenverkoop:
Tel.: 088 424 4010
mailto:[email protected]
mailto:[email protected]
www.bosch-home.nl

Norway
BSH Husholdningsapparater A/S
Grensesvingen 9
0661 Oslo
Tel.: 22 66 05 54
mailto:[email protected]
www.bosch-home.no

New Zealand
BSH Home Appliances Ltd.
Level 3, Air NZ Building, Smales Farm
Business Park, 74 Taharoto Road, Takapuna
Auckland 0622
Tel.: +64 0800 245 700*
mailto:[email protected]
www.bosch-home.co.nz
*Mon-Fri 8.30am to 5pm (exclude public holidays)

Poland
BSH Sprzęt Gospodarstwa Domowego Sp.
z o.o.
Al. Jerozolimskie 183
02-222 Warszawa
Tel.: +48 42 271 5555
mailto:[email protected]
www.bosch-home.pl

Portugal
BSHP Electrodomésticos, Sociedade Unipessoal Lda.
Rua Alto do Montijo, nº 15
2790-012 Carnaxide
Tel.: 214 250 730
mailto:[email protected]
www.bosch-home.pt

Romania
BSH Electrocasnice srl.
Sos. Bucuresti-Ploiesti, nr. 19-21, sect.1
013682 Bucuresti
Tel.: 021 203 9748
mailto:[email protected]
www.bosch-home.ro

Russia
ООО «БСХ Бытовые Приборы»
Сервис от производителя
Тел.: 8 (800) 200 29 61
mailto:[email protected]
www.bosch-home.com

Sweden
BSH Home Appliances AB
Landsvägen 32
169 29 Solna
Tel.: 0771 197 000
mailto:[email protected]
www.bosch-home.se

Singapore
BSH Home Appliances Pte. Ltd.
38C Jalan Pemimpin, #01-01
Singapore 577180
Tel.: 6751 5000*
mailto:[email protected]
www.bosch-home.com.sg
*Mon-Fri 9am to 6pm, Sat: 9am to 1pm
(exclude public holidays)

Turkey
BSH Ev Aletleri Sanayi ve Ticaret A.S.
Fatih Sultan Mehmet Mahallesi, Balkan
Caddesi No: 51
34771 Ümraniye, Istanbul
Tel.: 0 216 444 6333*
mailto:[email protected]
www.bosch-home.com/tr

Taiwan
BSH Home Appliances Private Limited
11F., No.80, Zhouzi St., Neihu Dist.
Taipei City 11493
Tel.: 0800 368 888
mailto:[email protected]
www.bosch-home.com.tw

South Africa
BSH Home Appliances (Pty) Ltd.
96 Fifteenth Road, Randjespark
1685 Midrand – Johannesburg
Tel.: 086 002 6724
mailto:[email protected]
mailto:[email protected]
www.bosch-home.com/za

Thank you for buying a Bosch Home Appliance!

Expert tips & tricks for your appliance
Warranty extension options
Discounts for accessories & spare-parts
Digital manual and all appliance data at hand
Easy access to Bosch Home Appliances Service

Free and easy registration - also on mobile phones:
www.bosch-home.com/welcome

Looking for help? You’ll find it here.

Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts.
Find out everything about the many ways Bosch can support you: www.bosch-home.com/service
Contact data of all countries are listed in the attached service directory.

BSH Hausgeräte GmbH Valid within Great Britain:
Carl-Wery-Straße 34 Imported to Great Britain by
81739 München, GERMANY BSH Home Appliances Ltd.
A Bosch Company Grand Union House
www.bosch-home.com Old Wolverton Road

Wolverton, Milton Keynes
MK12 5PT
United Kingdom

9001675684 (010802)
