Aeg Af5-1-4gb Deli 5 Air Fryer User Guide

AF5-1-4GB Deli 5 Air Fryer User Guide
3484-A-AF5-1-4GB-02-03-1021

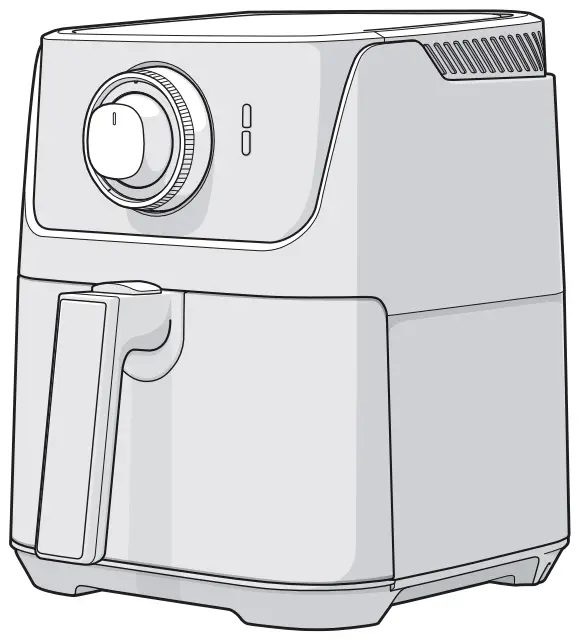

General Overview

A Pan
B Basket
C Basket handle
D Basket release button
E Heating – up light
F Power – on light
G Timer (0 – 60min.)
H Temperature control knob (80 – 200˚C)
I Air inlet
J Air outlet
K Main cord

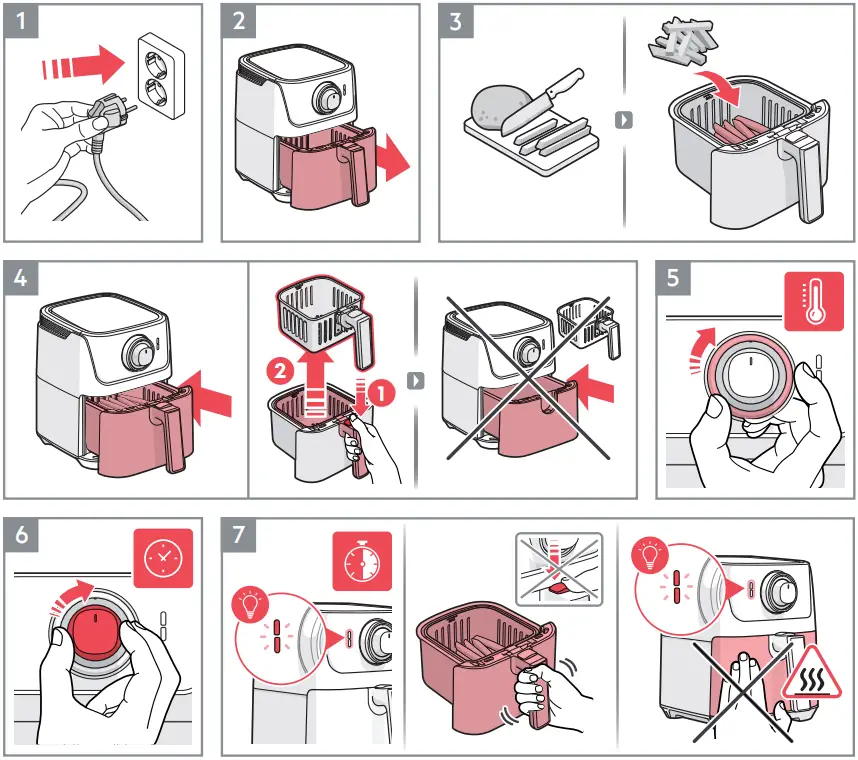

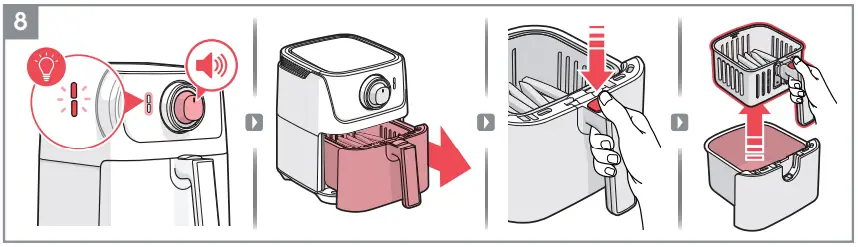

How to use

Cooking Hints

	300-700g	10-20min	180.0
	300-800g	15 min	180’C
	100-400g	10-20 mln	170.0
	100-400g	10 mln	200 `C
	100-400g	10 mln	200 `C
	100-500g	20mln	180.0
	800-1000g	45-60 mln	180.0
	200-500g	10min	140.0
	100-400g	6-10mln	180.0
	150-300g	10-15 min	180 ‘C

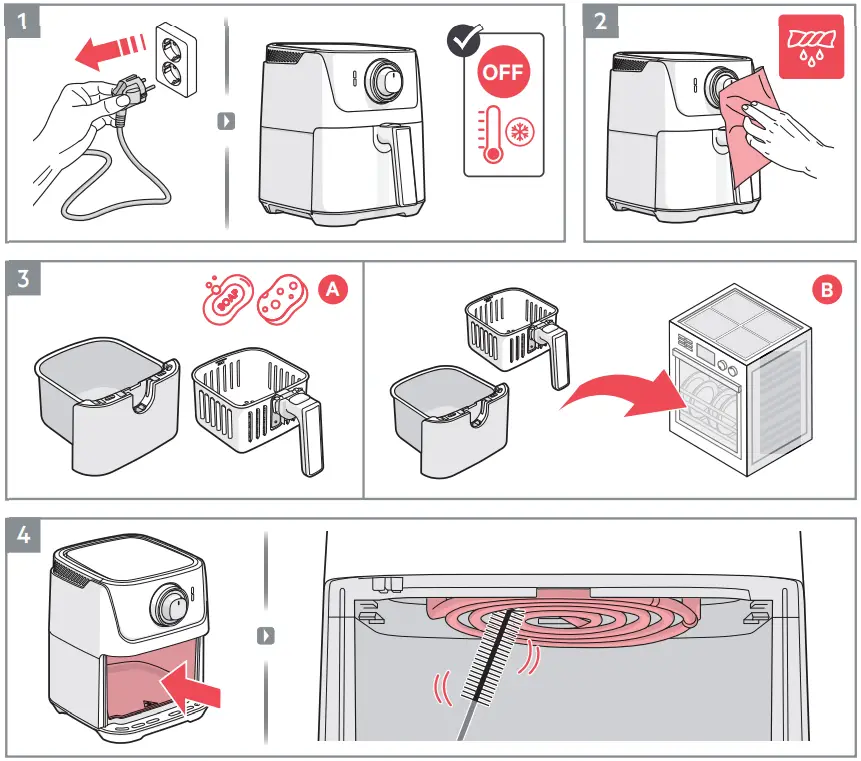

Cleaning

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

• This appliance is designed for frying food in the air stream.
• This appliance can be used by children aged from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. If you need to repair the appliance, contact the authorized service center.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.
  This appliance is intended to be used in household and similar applications such as:
  – staff kitchen areas in shops, offices and other working environments;
  – farm houses;
  – by clients in hotels, motels and other residential type environments;
  – bed and breakfast type environments.
  – Do not fill up the basket above the “MAX” line in order to prevent food contact with the heating element.
  – Avoid using metal tools when manipulating the food in the basket.
  Do not fill up the pan with water in order to create steam.
  – Clean the heating element with a cleaning brush.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol &. Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical  and electronic appliances. Do not dispose of appliances marked with the symbol & with the household waste.
Return the product to your local recycling facility or contact your municipal office.

FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative techonologies that help make life simpler  features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

	Get usage advice, brochures, trouble shooter, service information: www.aeg.com/webselfservice
	Register your product for better service: www.registeraeg.com
	Buy accessories and consumables for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE
When contacting Service, ensure that you have the following data available:
– Model Number
– PNC number
– Serial number
The information can be found on the rating plate.
