DS18 EXL-XX12.4DHE 12 Inch High Excursion Subwoofer
OVERVIEW
Specifications
- Nominal Diameter…………………………….. 12″
- Nominal Impedance . . . . . . . ………………. 4+4 ohms
- RMS Power Handling: 2000W
- MAX Power Handling: 4000W
- Sensitivity (1w/1m) /. 87 dB
- Frequency Response. ... 20-1.3KHz
- Recommended Lo Pass Crossover.…….. 80 Hz
Motor:
- VC Diameter 3″ I 75.6mm
- VC Former Material Black Aluminum
- Winding Material CCAW
- Cone Materia I Paper
- Dust Cap Material . ……………. Glass Fiber
- Surround Materia I: …. Foam
- Basket Material: . Aluminum
- Basket Color/Finish: Black
- Magnet Material: Ferrite
- Magnet Weight: 306 Oz
- Displacement Volume: 3.26L
Thiele & Small Parameters
- Equivilant Vol: Vas ………. 20.73 8L
- Excursion ( one way): Xmax ……… 42 mm
- Free Air Resonance: Fs ………… 41.3 Hz
- Mechanical Factor: Oms ………… 4.525
- Electrical Factor: Qes …………. 0.511
- Total Factor: Qts …………. 0.459
- Moving Mass : Mms …….. 285.43 3 g
- Compliance: Cms . . . . . 0.026 mm/N
- Bl Facto: BL …………. 17.166

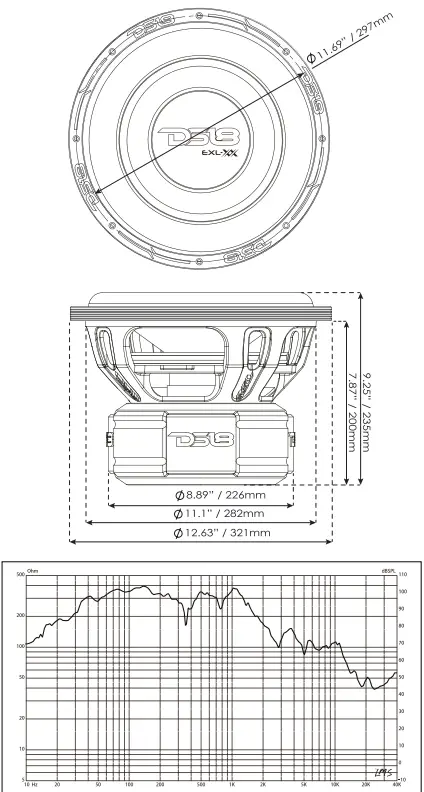

Measurements
- Overall Diameter: 12.63 ” / 321mm
- Overall Depth: 9.25″ I 23 5mm
- Motor Diameter: 11.1″ / 282mm
- Mouting Depth/ Profundidad deMontaje ………………………… 7.87″ I 200mm
- Motor Diameter/ Diametro de/ Motor ……………………………. 8.89 ” I 226mm

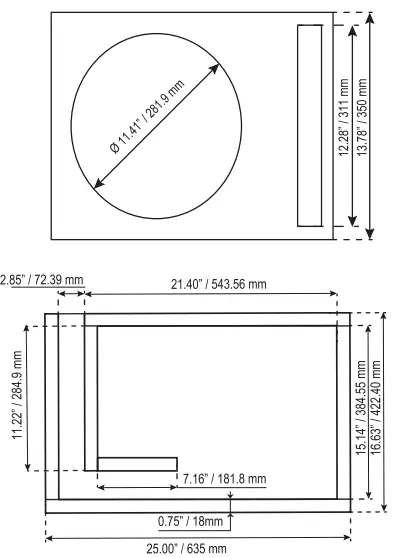

Recommended Box Dimension
Single Subwoofer Ported Box
Parameters I Parametros
- Box External Dimensions (WxH xD): 25.00″x 13. 78″x16.63″
- Material Thickness: 0.75″ (3/4) 118 mm
- Net Internal Volume 1.90 ft3
- Tuning Frequency: 40 Hz
- Port Area: 35.00 inch2
- Port Inlet: 2.85″x 12.28″
- Port Length: 23.79″
Wood Cuts
Top-Bottom I Arriba-Abaja
- (WxH): 37.40″x18.97″ 2
- Front: 31.22″x14.25″ 1
- Rear: 37.40″x14.25″ 1
- Left 17.48″x14.25″ 1
- Right: 18.22″x14.25″ 1
- Port: 12.04″x14.25″ 1
- Port: 4.62″x14.25″ 1

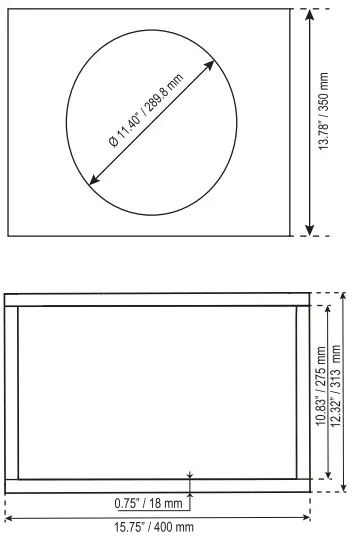

Recommended Box Dimension
Single Subwoofer Sealed Box
Parameters
Box External Dimensions
- (WxHxD): 15.75″x 13.78″x12.32″
- Material Thickness : 0.75″ / 18 mm
- Net Internal Volume: 0.98 ft3
Wood Cuts Qty
Top-Bottom
- (WxH): 15.75″x12.32″ 2
- Front-Rear/
- (WxH): 15.75″x12.28″ 2
- Left-Right/
- (WxH): 10.83″x12.28″ 2
