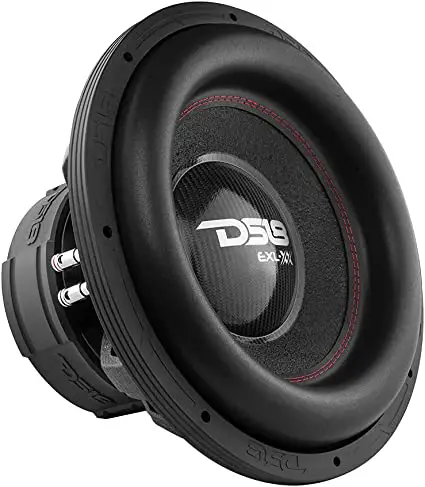

DS18 EXL-XX15.2DHE 15” High Excursion Subwoofer User Manual
EXL-XX15.2DHE
Specifications
- Nominal Diameter: 15”
- Nominal Impedance: 2+2 ohms
- RMS Power Handling: 2000W
- MAX Power Handling: 4000W
- Sensitivity (1w/1m): 88 dB
- Frequency Response: 20-1.5KHz
- Recommended Lo Pass Crossover: 80 Hz
Motor:
- VC Diameter: 3” / 75.6mm
- VC Former Material: Black Aluminum
- Winding Material: CCAW
- Cone Material: Paper
- Dust Cap Material: Glass Fiber
- Surround Material: Foam
- Basket Material: Aluminum
- Basket Color/Finish / Color: Black / Negro
- Magnet Material: Ferrite
- Magnet Weight: 306 Oz
- Displacement Volume: 3.62L
Thiele & Small Parameters:
- Equivilant Vol: Vas: 31.976L
- Excursion (one way): Xmax: 42 mm
- Free Air Resonance: Fs: 34.9 Hz
- Mechanical Factor: Qms: 5.159
- Electrical Factor: Qes: 0.584
- Total Factor: Qts: 0.525
- Moving Mass: Mms: 440.158 g
- Compliance: Cms: 0.026 mm/N
- Bl Factor: BL: 18.453
- VC Inductance: Le: 8.562 mh
- Diaphragm Area: Sd: 804.25 cm²
- Dc Resistance: Re: 2 + 2 ohms
- Efficiency Bandwidth Product: EBP: 59.7

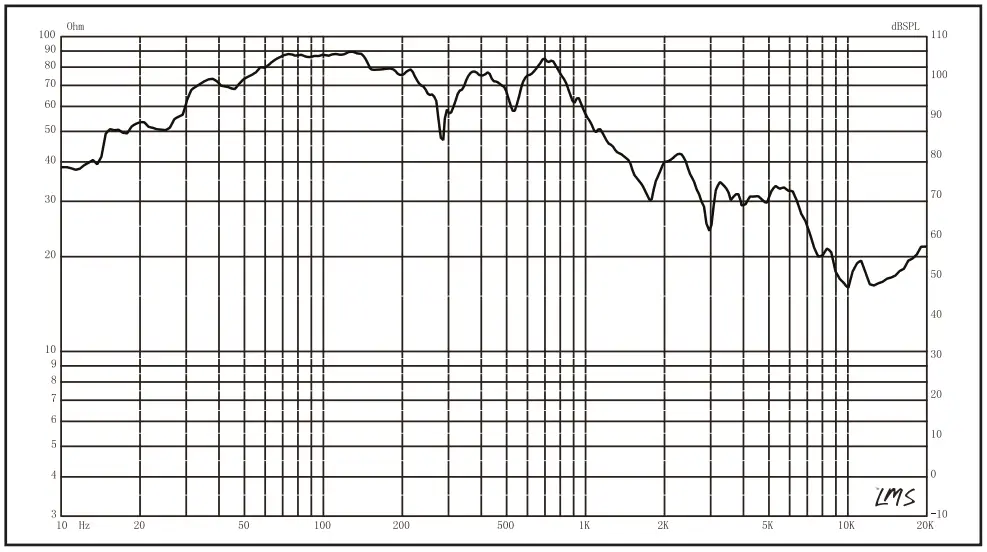

Measurements

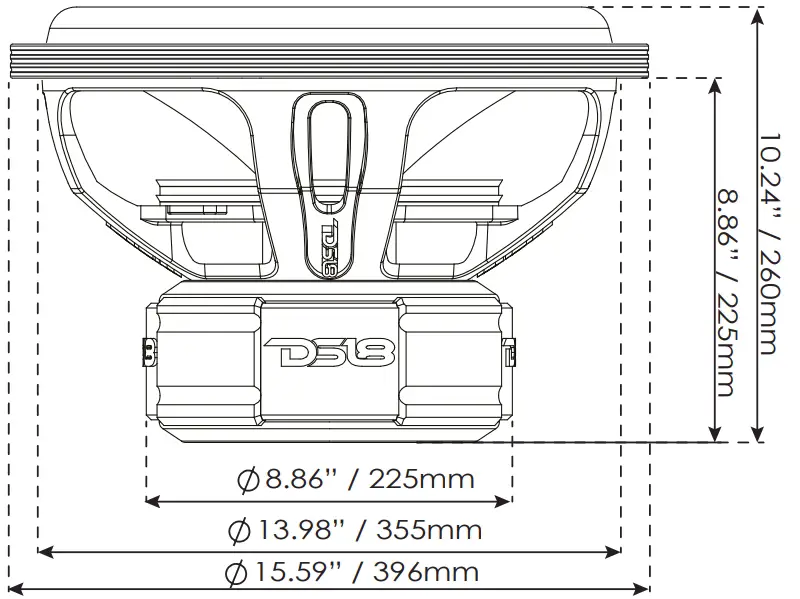

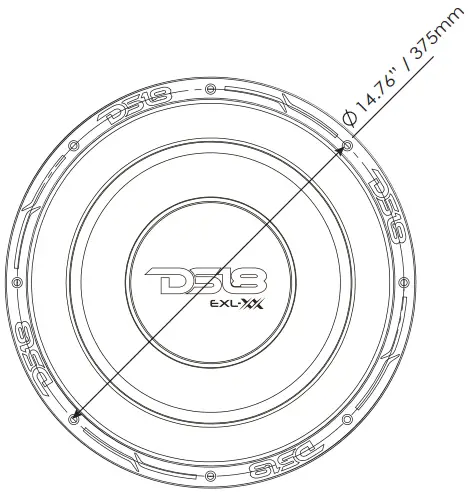

- Overall Diameter: 15.59” / 396mm
- Overall Depth: 10.24” / 260mm

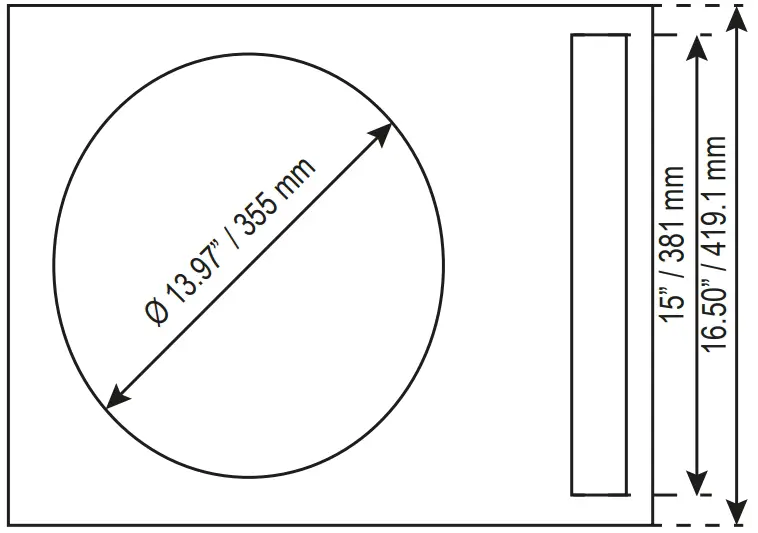

- Front Mount Baffle Cutout: 13.98” / 355mm
- Mouting Depth: 8.86” / 225mm
- Motor Diameter: 8.86” / 225mm
Recommended Box Dimension

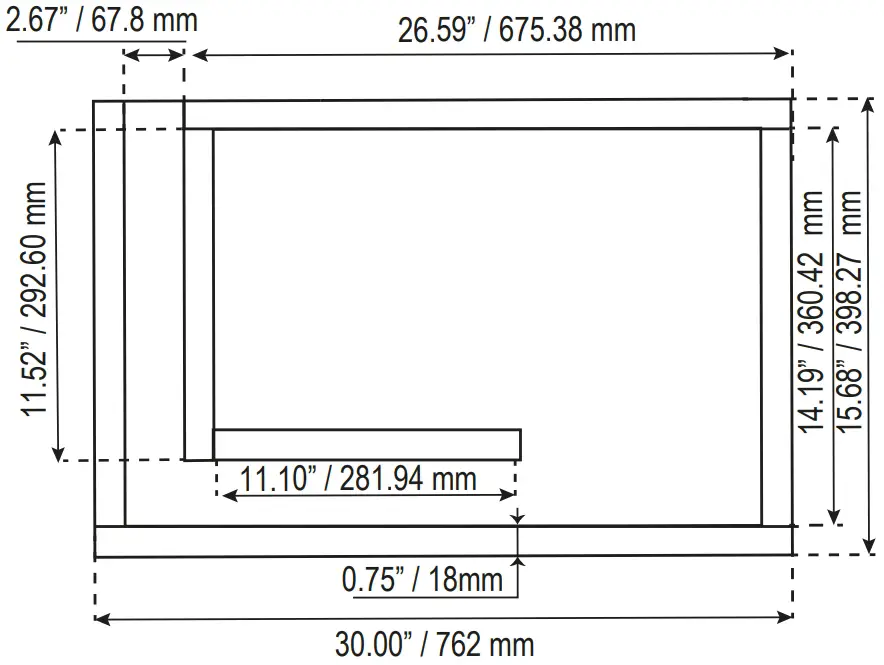

Single Subwoofer Ported Box:
Parameters | Wood Cuts | Qty |
| Box External Dimensions | Top-Bottom | |
| (WxHxD): 30.00”x 16.50”x15.68” | (WxH): 30.00”x15.68” | 2 |
| Material Thickness | Front/26.59”x15” | 1 |
| Net Internal Volume | Rear/: 30.00”x15” | 1 |
| Tuning Frequency | Left/ 26.59”x15” | 1 |
| Port Area | Right/ 30.00”x15” | 1 |
| Port Inlet | Port/11.10”x15” | 1 |
| Port Length | Port/11.10”x15” |

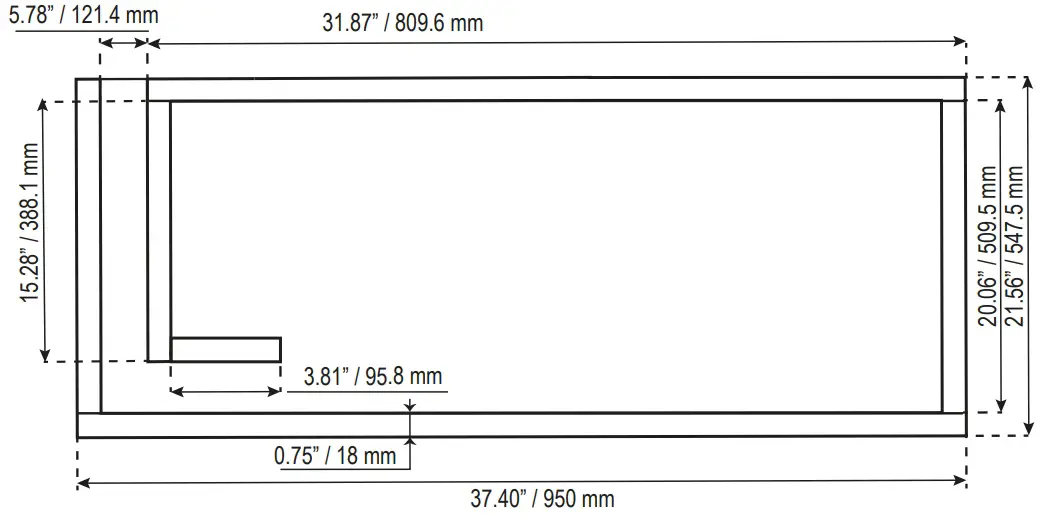

Double Subwoofer Ported Box
Parameters | Wood Cuts | Qty |
| Box External Dimensions | Top-Bottom | |
| (WxHxD): 37.40”x 17.72”x21.68” | (WxH): 30.00”x15.68” | 2 |
| Material Thickness: 0.75” (3/4) / 18mm | Front/26.59”x15” | 1 |
| Net Internal Volume: 5.00 ft3 | Rear/: 30.00”x15” | 1 |
| Tuning Frequency: 34 Hz | Left/ 26.59”x15” | 1 |
| Port Areao: 77.50 inch2 | Right/ 30.00”x15” | 1 |
| Port Inlet: 5.78×16.22” | Port/11.10”x15” | 1 |
| Port Length: 25.37” | Port/11.10”x15” |
Recommended Box Dimension
Single Subwoofer Ported Box

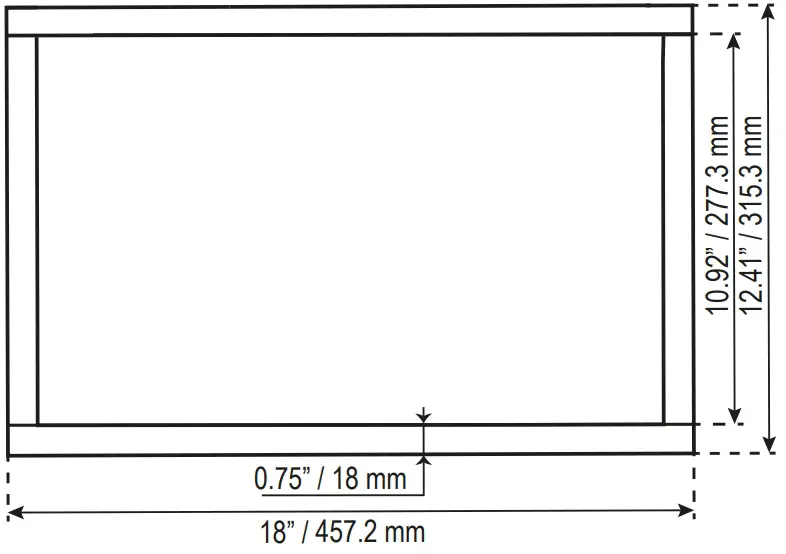

| Parameters | Wood Cuts | Qty |
| Box External Dimensions (WxHxD): 18”x 16”x12.41” | (WxH): 30.00”x15.68” | 2 |
| Material Thickness: : 0.75” / 18 mm | Front-Rear (WxH): 18.00”x14.50” | 2 |
| Net Internal Volume: 1.38 ft3 | Left-Right (WxH): 10.92”x14.50” | 2 |
