| Model No.: MOTO BUDS 100 Frequency Band: 2.402 – 2.480GHz Maximum RF power: 6 dBm | FCC ID: 2ARRB-VB100 IC: 20353-VB100 Working temperature: -10°C–45°C |
Quick Start Guide

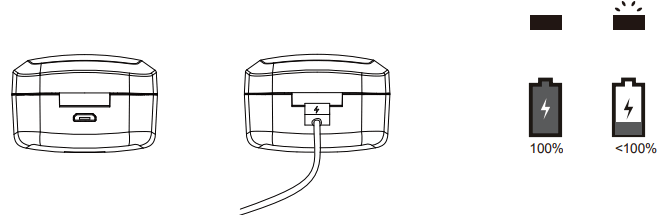

Charging:
Fully charge before use
The device can be powered through a micro USB from any
CE compliant power source that implements the European
interface as requested by EN 301 489-52.

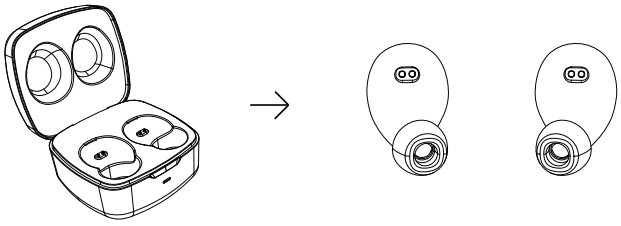

Pairing:
2.1 Ensure both buds are inside the charging case and take out both buds. The buds will flash blue and red.
2.2 Select “MOTO BUDS 100 from the smartphone Bluetooth menu.
Fitting:

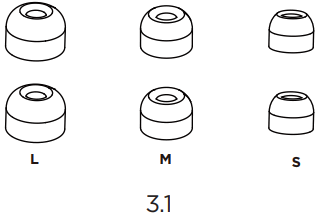

3.1 To optimize the best fit and audio experience, it is recommended to try different earbud sizes.

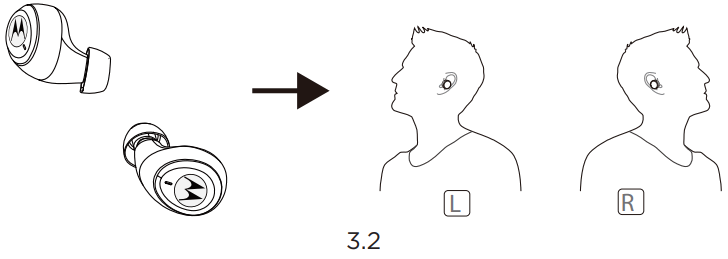

3.2 Insert the MOTO BUDS into your ear and rotate to fit comfortably.

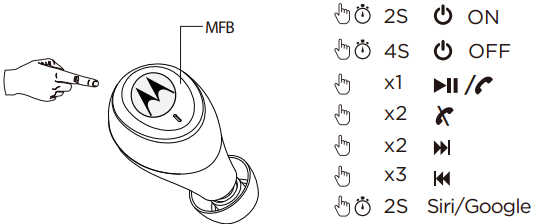

Basic Operation:
| Additional Operation | |
| Factory reset | 1. Ensure earbuds are not connected to the phone 2. Double press MFB and then hold MFB for 5 seconds until LED shows blue and red 3. Put both buds into the charging case |
| Reject a call | MFB 2sec |
| Receive incoming and on hold ongoing call | Single Press MFB |
| LED Indicator | |
| Pairing | Red-blue flash |
| Standby | Blue flash |
| Charging | Red steady |
| Fully charged | Off |
| Battery low | Red flash |
Global V13
