Hager Trm690g Radio Transmitter Receiver 2 Inputs 1 Output 200w User Manual

6LE001274C TRM690G

TRM690G Radio Transmitter Receiver 2 Inputs 1 Output 200W

Radio transmitter/receiver.
2 inputs + 1 output 200W

– This unit is to be installed by a qualified professional only according to the installation standard in force in the country.
– Cut off 230V power supply to the product before connection of or operation on the inputs.
– Do not remove the insulating sleeves on the unused input wires.
TRM690G is a power supplied radio transmitter/ receiver 2-wire, supplied in series with the 230 V load. It is used to control incandescent, LV and ULV halogen, and dimmable LED lights. It includes :
2 inputs for connection of pushbuttons, switches or other automatic control contacts.
One output to connect an electric load in ON/ OFF mode.
The inputs connected to the product are freely programmable. They can control the local output or other outputs.
This product is part of the tebis system and can be remotely controlled by radio transmitters input products, push-buttons, remote controls.

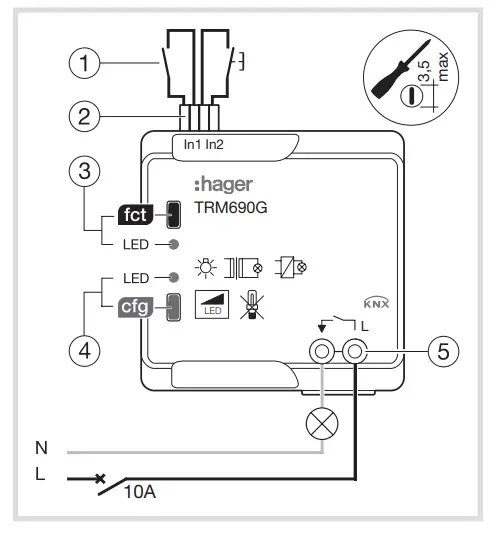

Caption

1. Pushbutton or standard switch
2. Wires for connecting the 2 inputs for a switch or pushbutton
3. Pushbutton and feature LED T of output.
4. Pushbutton and configuration LED R
5. Connector block :
   – L : Phase 230 Vv
   – : Output connection, 230 V
   Do not cut the input wires, even if they are not used.

Features

• 1 independent channel controlled by KNX radio. (output 200W AC1 230 V).
• 2 inputs for contact free of potential.
  In operation :
• Availability of output manual control by pushbutton T
• Display of output state on LED fct (red light ON = closed relay).
  The specific features of each product depend on configuration and set-up.

Learning the load type
The first time it is turned on, the product undertakes automatic learning of the connected lamp type. A brief flicker may be observed during this phase (duration 2 to 3 s) after which the lamp type is stored in the product.
After a power outage or change of lamp, the dimmer starts a new detection.
If the user notices unsatisfactory operation, the setting can be edited manually.
Manual setting of the load
Make 5 consecutive short presses on the dimmer pushbutton, until the lamp is observed to flash. The dimmer is now in manual setting mode.
Briefly press the dimmer pushbutton to select the desired setting: (see table below)
Note: Automatic departure from manual mode and setting validation occur after 10 s inactivity.

Protection against overheating and overload
The product is automatically protected againstoverloads, short circuits and overheating. In theevent of overheating or overload, the availablepower is automatically reduced.
Configuration
This transmitter/receiver can be configured in 3
different ways:

• : Configuration without tool, see
  Quicklink configuration instructions
• Tebis TX : Configuration»easy» with the Hager connection device
• ETS4 or > via Media coupler : Database and description of software application available from the Manufacturer.

In order to change the configuration mode, a product «factory reset» is required.
Factory set-up
By default, input 1 is configured to receive a pushbutton or a switch and to control the local output in toggle switch function. This link can be edited or deleted in configuration mode.
A factory reset of the product reinstalls this link (factory settings).
Input 2 is not pre-programmed.
Factory Reset
Maintain R pushbutton down until LED cfg flickers (>10s), then release. Cfg LED turns OFF to signal Factory Reset end. This operation removes the entire product configuration in any configuration mode.
After power switch-On or Factory Reset, wait for 15s before to do a new configuration.
These instructions for use form an integral part of the product and must be retained by the end user. www.hager.com

Load type

	230 V	Incandescent lamps	10 … 200  W
	230 V	alogen lamps	10 … 200  W
	230 V	Halogen ELV (12 or 24 V) via ferromagnetic transformer	10 … 175  VA
	230 V	Halogen ELV (12 or 24V) via electronic transformer	10 … 175  VA
LED	230 V	Dimmable LEDs	3 … 50  W

Non-dimmable LED and compact fluorescent lamps are not compatible with this product.

Technical characteristics

Receiver category 2 / Transmitter duty cycle 0,1%
Electric connection 0,5 mm —> 1,5 mm 20,5 mm —> 2,5 mm 2

Hager Controls S.A.S., 33 rue Saint-Nicolas, B.P. 10140, 67703
SAVERNE CEDEX, France – www.hager.com
