Ttieurope M8 Factory Automation Robotic & Collaborative Robotic User Guide

ttieurope.com
Factory Automation
Robotic & Collaborative Robotic
Application Guide
TTI, Inc., – A Berkshire Hathaway Company

The Specialist in Electronic Component Distribution

Global Distribution Centres with more than 195,000m 2 of automated warehousing in North America, Europe and Asia.

Why Choose TTI?
Founded in 1971, TTI has steadily grown to become a world-leading specialist distributor of electronic components. The company was founded on the premise that passive component purchasing could be made more efficient by offering product specialization, customer-driven service, and proprietary supply chain solutions.

Global Distribution Centres

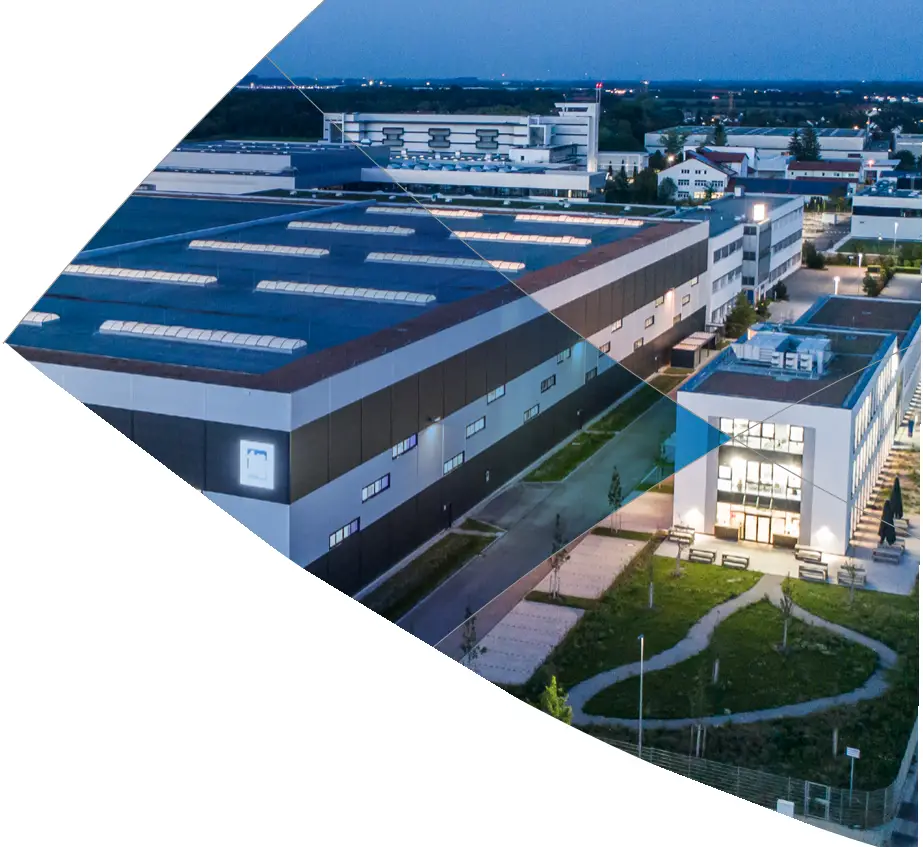

Our European headquarters is located just outside of Munich, Germany in Maisach-Gernlinden. In total, we have 42,600m² of dedicated warehouse space and local sales and technical support in over 40 locations across Europe. TTI has more than 195,000m² of automated warehousing in North America,  Europe, and Asia. All are linked to a global warehouse management system that provides superior customer service and overall business efficiencies. Wherever you are in the world, TTI can support you.

Year after year, customers rate our inventory availability, on-time delivery and accuracy among the very best in the industry – contact us today to find out what a true specialist has to offer.

Quality and Reliability
TTI is the first distributor to have all global warehouse locations ISO registered and certified to ISO 9001 and ISO 14001 Standards. TTI Europe is also certified to EN9120/EN9100, IECQ-CECC, and ISO/IEC 27001 Standards. Additionally, all of our European sales branches are ISO 9001 certified. TTI has one global documentation system that ensures that every TTI branch and warehouse in the world follows the same processes.

Factory Automation Applications

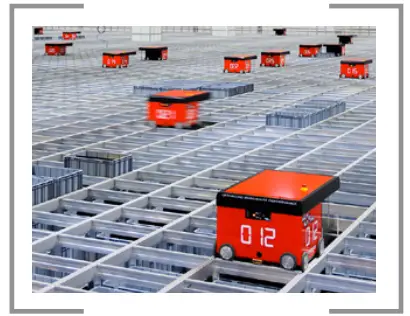

Robotic & Collaborative Robotic Applications Robots & Collaborative Robots • Machine tending • Material handling • Welding and gluing • Polishing • Screw driving • Assembly • InspectionAMR – Autonomous Mobile Robots • Autom. Storage and retrieval • Pick or sorting assist • Packaging robots • Quality inspectionService Robots • Cleaning robots • Health care robots • Home service robotsAssociated Devices • Vision systems • Tools and grippers • Navigation systems • HMI interface

Connectors

Round shielded cables	ix Industrial™ IP20 Connectors	Minitek® Pwr 3.0 Connectors	Rugged Circular Locking Connectors
• Twisted pairs reduce crosstalk • Dual shielding with aluminum film foil and copper braid	• 10mm pitch, 2-point metal latches with data performance for 10E Ethernet with PoE capability	• Available in 2 to 24 circuits, current ratings up to 8.5A per circuit and glow wire compliant	• IP67 sealed, available in 2, 3, 4 position power or signal connects with locking option

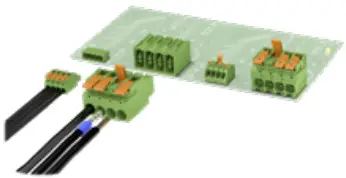

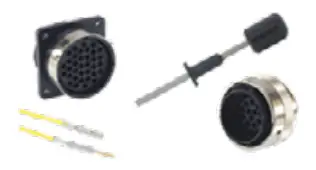

Anytek Terminal Blocks	signal|mate® C091 M16 Connectors	Ecomate® Rugged Metal Connector“	Contact B23
• Rising clamp system • Wire protector system • Spring clamp system • Screw pluggable system • Spring pluggable system	• Access to all pin layouts of C091 (3–8, 12&14) • Enhanced grip with improved locking ring from C091D+ • IP68	• IP68/69k in mated condition • Quick reliable mating – bayonet coupling • Mixed power and signal layouts	• Power supply and data in one single connector • Reducing time and costs for cabling • Each pin layout with min. 2 different codings

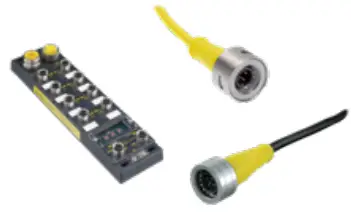

LTW X-LOK IP68	Toronto-12	M8/M12 Connectors	851 Series
• Push lock design • Excellent performance under harsh environmental conditions • Easy-grip design	• Saves more than 80% of installation time • Robust design with auditive sound • Supports A, B, D, L, K, S, T, X coding	• Wide range of M12 for Data Group (Profibus/DeviceNet, Profibus/Interbus, Ethernet) • Wide range of M12 power group (12A to 16A)	• Operating temperature range: -55°C to +125°C • Durability: 500 mating/ unmating mating cycles • Salt spray resistance: 500h

Trim Trio UTGX Series & UTS Series	M40 Series	D-Sub	Micros
• IP68/69K dynamic mated (& unmated for Hi-Seal versions) • Up to 500 mating cycles • UL & IEC certified • Operating temp.: -40° + 105°C • UV resistant with F1 material	• 1mm pitch SMT board to-board/cable-to-board connectors, up to 1A per contact, compact & lightweight	• Robust set of mixed power and signal layouts • Small-to-high pin count: from two, size 8 contacts to as many as 104	• Space-saving, weight-optimized design • Exceptional versatility • Positions: 9, 15, 21, 25, 31, 27, 51, 100

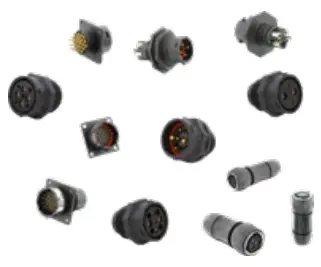

Trident	APD Connectors	AX01 Series	JL10 Series
• Metal, plastic, circular and rectangular variants • High voltage up to 500VAC • Mixed power (30A) and signal (13A up to 16A)	• Designed according to ISO 15170 • Full plastic, robust design • Bayonet locking with secondary locking feature	• 8Gbps + high-speed floating board to board connector • 0.635 mm pitch dual row, 30-140 pins	• Utilizes a one-touch bayonet lock style mating • IP67 waterproof and dustproof • Featuring new hybrid types – combining power supply and brake signals

CRC (Compact Robotic Connectors)	Contrinex Photoelectric & Inductive Sensors	Brad Ultra-Lock Connector Systems	PCB Connectors
• Compact size enables space saving • 7A/15A signal & power options • Front/Rear panel mount options	• Robust, self-contained sensors with an integrated IO-link • Compliant to IP67 and 69K for rugged applications	• Push to lock technology. • Rated to 250V AC/DC, up to 4.0A • Positive locking for reliable connections	• Intuitive operation • Tool-free lever principle • Distinct lever positions give a reliable feedback

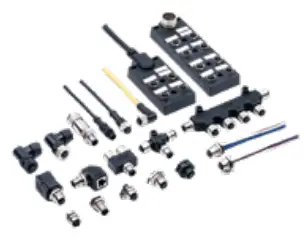

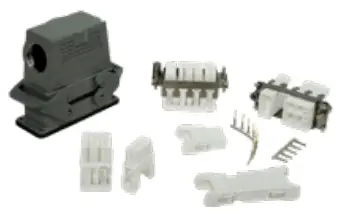

M8/M12	HDC Series	M8/M12	M8/M12
• Plug and produce: quick and reliable connection • Greater flexibility: one M12 device connection for screw and push-pull connectors	• Up to 650A and 5000V • Different signal types such as power, signal, and data, in a unique connector • Up to 1000M data transmission speed	• X-coded connectors for higher bandwidth up to 10Gb/s • A, B, D, X, S, T coding available • IP67 and IP68	• Mechanic solidity and highly shock and vibration resistant • Radial seal high IP protection class IP 67+ • Complete EMC shield connection

HDC	Dynamic	Industrial Mini I/O	Industrial RJ45
• Designed for harsh environment • Improved operational efficiency • Reliable & high-density contact	• Vibration resistant • Housings are keyed in preventing mismating and misalignment • Positive audible locking sound	• Type I and Type II I/F • LCP materials • Industrial temperature range	• Single piece common core • Cat. 6A plug with tool-less installation • Automatic wire cut-off function

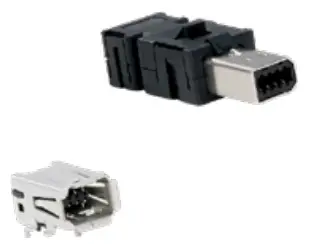

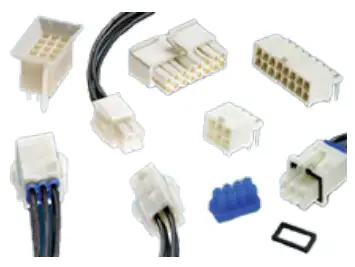

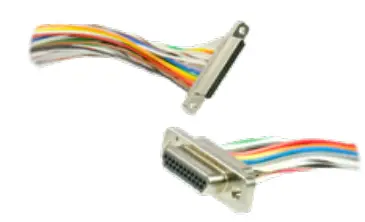

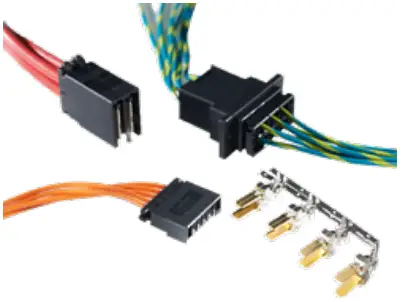

Industrial USB	Mate-N-Lok	CPC	D-Sub
• 4 contact positions – max. 1.5A	• .250 [6.35] centreline • 600VAC or VDC, 19A maximum • 30 – 10 AWG wire range	• Versatile, rugged, cost-effective design	• Right angle PCB • Vertical PCB • Cable mounted

Power Supplies & Sensors

cool 1800	RCB-1600 Series	TDR Series DIN Rail Power	RST-5000
• Modular power supply • Up to 1800W • Up to 12 outputs • All outputs isolated (1850VAC) • PMBus™ for digital communications and control	• Charger for lead-acid & Li-ion batteries • Built-in default 3-stage charging curves • Output voltage and current programmable	• Slim width • Built-in passive PFC function • Three-Phase 340 ~ 550VAC wide range input	• Built-in active PFC function • High efficiency up to 90.5% • Forced air cooling by built-in DC fan

UHP Series Fanless PSU	PQU650 Series	HSFPAR Series Force Sensors	SS360/460 Series Magnetic Position Sensors
• Slim and Low profile • Fanless and conduction-cooled design • Withstand 300VAC surge input for 5 seconds	• Voltage (+15%) adjustment of Main V1 Output • +5Aux/Standby and 12V Fan outputs • 4″ x 6″ industry standard footprint	• Small footprint with a low profile • Can sense force levels of 0.01N • High sensitivity • 1.5v or 3.6v supply voltage	• Fast response & high sensitivity • Latching digital hall sensor • Durable design • Wide operating voltage 3 – 24Vdc

FMA Series MicroForce Sensors	M3200 – Compact Industrial Pressure Sensors	FX29 Series: Compression Load Cell	RAMK060 Position Sensors
• Small form factor: 5 x 5mm • Accuracy: ±2% FSS typical • SPI or I2C-digital output • Internal diagnostic functions available	• One piece stainless steel construction • Digital or analog pressure & temperature output • Accuracy ±1,5% TEB • Pressure Range up to 700bar	• Compact design in robust packaging • Low power consumption • mV or amplified analog output • Optional I2C digital interface	• High resolution > 18 bits over 360° (0.001°) • Repeatability > 16 bits • Accuracy > 13 bits • Single or multi turns • Output Biss-C, SSI or SPI

Relays & Switches

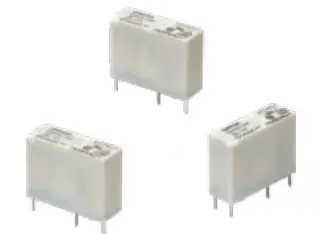

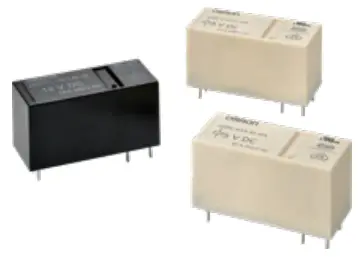

G5RL	G5NB-EL	SFM	SFY
• 15.7mm low-profile relay withvarious models (high inrush, low noise, TV8, bistable and AC coil)	• 7mm slim compact relay with 7A switching capacity • IEC/EN 60079-15 version available	• 1NO/1NC forcibly guided relay,EN 61810-3 • Extremely low height of 7.8mm • THR version available	• 4- and 6pole forcibly guided relays, EN 61810-3 • Low height of 14.5mm • Degree of protection RTIII

PCN	SRL7	KSC3	NGC

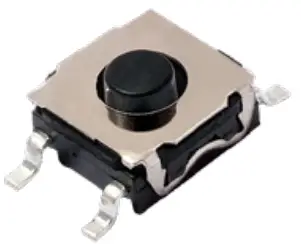

• 1NO and 5A relay with antiexplosive version which meetsANSI/ISA – 12.12.01 • Only 5mm wide	• Force-guided relay with • Seven poles – 2NC and 5NO reinforced • Insulation on all NO contacts	• KSC3 IP67 sealed tact switches for SMT have adaptable tactile feeling which is perfect for industrial applications	• Compact limit switch that allow the customer to choose SPDT or DPDT circuitry

Circuit Protection, E-Magnetics & Resistors

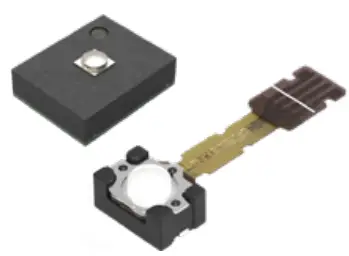

HE2G	HE3B	B3F-8000	ESB-30
• Two contacts are provided in a 3-position enabling switch	•• ø16mm rectangular three-position enabling switches	• Security-oriented tactile switch with protective cover	• Low profile, h=6.0mm • SMD type (embossed taping) available • 2-pole 2-throws are available

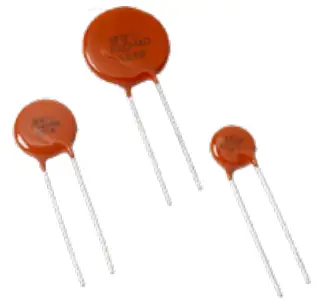

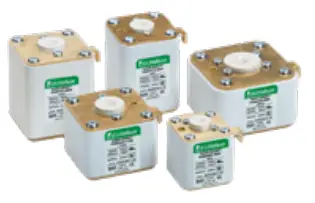

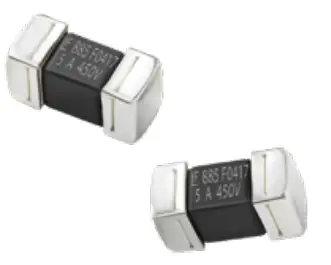

Slow Blow Fuses	Square Body Fuses	HMOV Varistors	Low Profile Inductors
• Slow Blow Fuse for overcurrent protection • 3216 (EIA 1206) miniature footprint • Wire core SMD design • cUL and TUV Certifications	• Best in class DC performance • Extremely current limiting • Superior cycling capability	• High operating temperature 125°C • High surge current withstanding capability up to 10kA • Complies with 1000 cycle, -55°C to 125°C	• Shielded construction • Metal alloy powder core • Very low profile: < 2mm

Circuit Protection, E-Magnetics & Resistors

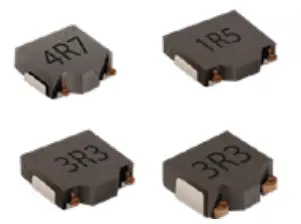

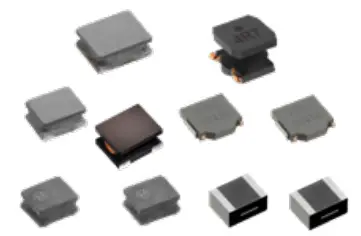

Power Inductors	Compact Crystal Unit	Short Range Antennas	Shunt Resistors
• 3 tech. (metal composite, thin-film, magnetic shield wound) • Wide current capability up to 38A • Temperature range up to 125°C	• Small size enabling higher mounting density • Economical & robust design • Ideal for communication clocks	• For Sub-GHz/Short-range, 169/315/433/870/915MHz • Linear polarization • Omni-directional	• 0.5mΩ to 20mΩ • 1W (0805 inch) to 5W (2512 inch) • Current ratings up to 100A

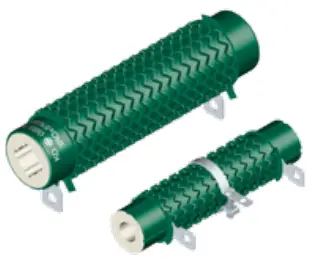

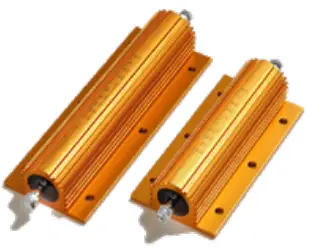

Metal Element Inverse	Shunts Welded Shunt Resistors	Vitreous Resistors	Aluminium Housed Resistors
• Inverse 1020 & 1225 SMD shunt, 0.1 to 3mOhms, down to 1% • Ultra-low ohmic values support high energy efficiency in the end product	• Low measurement error • Low ohmic values reduce power loss • Robust construction improves equipment reliability	• High power rating up to 1000W • Excellent pulse load capability • Low ohmic values < 1Ohm	• High power rating: 75W – 500W • Wirewound resistors, high power, aluminum housed, heatsink type • Resistance range: 0.1Ω 51KΩ

Capacitors

Supercap Modules	Screw Terminal Capacitors	T521 Polymer Capacitors	SMD Safety Capacitors
• Operating lifespan of up to 20 years • No monitoring or user control required • No chemical reaction	• Compact size with High CV • Long life, up to 20,000 hours • High ripple current	• Low ESR • Volumetrically efficient • Stable temperature characteristics	• High voltage MLCC capability • Safety-certified ranges • Safety capacitors with 4mm minimum creepage/clearance
Prizmacaps	Polymer Capacitors	Electrolytic Capacitors	SKU Hybrid Capacitors
• Capacitance: 3.5F to 15F • Widest temperature range: -55°C to +65°C at 2.1V -55°C to +90°C at 1.1V • Profile as low as 0.8mm & light weight	• Murata’s ECAS series of polymer capacitors – the low ESR with high & stable capacitance	• Wide temperature range (-55°C to +125°C) • Low ESR values (down to 80mΩ) • Long life (Up to 10,000 hours at 105°C)	• Less board space by reduction of necessary number and size of capacitors • 30g vibration-proof types available • Large capacitance

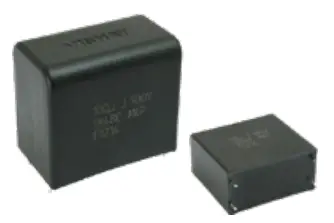

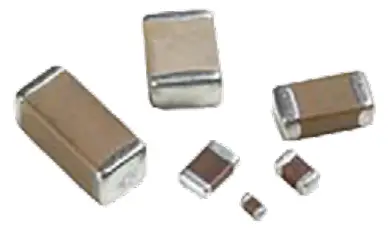

AC Output Caps	MKP1848C Capacitors	159 Snap In Capacitors	MLCC HVC Series
• Optimized AC voltage performance • High ripple current capability • THB: 60°C / 95% RH & / Vrac / 1000h	• Broad voltage and capacitance range • High-density design: more capacitance per mm3 • High RMS current capabilities up to 55ARMS	• 500V products with a useful life of 5000h at +105°C • High ripple current capability, robust design	• High capacitance and high voltage at once • Size: 0805-1812 • TC: X7R (-55°C – 125°C)

Discrete Semiconductors

TBU-RSxxx-300 High-Speed Protectors	656 Series High Intensity LED PMI	KPT-1608LVZGCK 0603 LED 525nm	IXA40PG1200DHGLB XPT IGBT
• Small DFN Package • Dual channel protector for RS-485 interfaces • Fast protection response time (1µs)	• Large variety of voltages 5 – 120VDC and 230VAC • Domed or flat let lens versions • Quick connect terminals or wire leads connections	• Low power consumption • Wide viewing angle • Ideal for backlight and indicator	• Low saturation voltage • Fast switching • Short tail current for optimized performance in resonant circuits
IXA40RG1200DHGLB XPT IGBT	DMA90U1800LB Standard Rectifier	OPB350 Series Tube Liquid Sensors	VSMA10 Series High power IR emitters
• Rectifier diode • Isolated back surface • Low coupling capacity between pins and heatsink • Enlarged creepage towards heatsink	• Low saturation voltage • Fast switching • Short tail current for optimized performance in resonant circuits	• Liquid identification in clear tubes • Opaque plastic housing enhances ambient light rejection • Through hole mounting or 24 (610 mm) 26AWG wires	• Liquid identification in clear tubes • Opaque plastic housing enhances ambient light rejection • Through hole mounting or 24 (610 mm) 26AWG wires

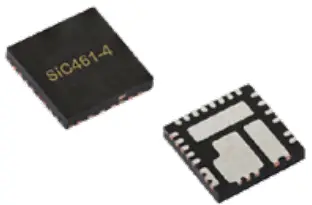

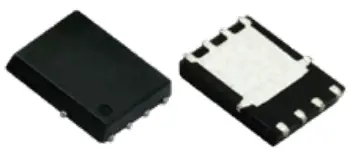

SIC46x microBUCK DC/DC Converters	TCUT1630X01 3-CH Transmissive Sensors	XMC7K24CA 7KW TVSDiode	SiR580DP N-Channel 80V (D-S) MOSFET
• 4.5V to 60V input voltage • 2A (SiC464), 4A (SiC463), 6A (SiC462), 10A (SiC461) • Highly efficient – 98% peak efficiency	• “Turn and Push” Encoding • SMD package • Gap (in mm): 3 • Phototransistor outputs • AEC-Q101 qualified	• 7KW snapback Bi-directional in DO-214AB (SMC) • Low clamping voltage with high surge current. • Extremely stable breakdown voltage (VBR)	• TrenchFET® Gen V power MOSFET • Excellent efficiency performance in power supplies • Optimized Qgd / Qgsratio • Ideal for 48V Motor drives

 Contact TTI today to see what a true specialist can offer.

Corporate Headquarters TTI, Inc.
2441 Northeast Parkway, Fort Worth, Texas 76106 U.S.A.
T: +1 817 740 9000
F: +1 817 740 9898
E: [email protected]

European Headquarters
TTI, Inc.
Ganghoferstr. 34, 82216 Maisach-Gernlinden Germany
T: +49 (0) 81 42 66 80 0
F: +49 (0) 81 42 66 80 490
E: [email protected]

European Sales Offices

TTI, Inc. Headquarters Europe
www.tuev-sued.de/ms-zert
Published November 2021
IECQ-P BSI 14.0013 (Germany)
IECQ-P BSI 14.0013-02 (Basildon)
www.iecq.orgTTI, Inc., – A Berkshire Hathaway Company
