ReliaGear ™ Pro-Stock ™
Lighting Panels
User Manual

Contents hide

1 ReliaGear Pro-Stock Lighting Panels

2 Select interior

3 Choose box

4 Add a front

5 Select main and/or sub-feed breaker kit

6 Select alternative main breakers

7 Select main lug kit and accessories

8 Select bolt-on branch breakers

9 Interior product number structure

10 Documents / Resources

10.1 References

11 Related Posts

ReliaGear Pro-Stock Lighting Panels

A lighting panelboard for projects with short turnaround

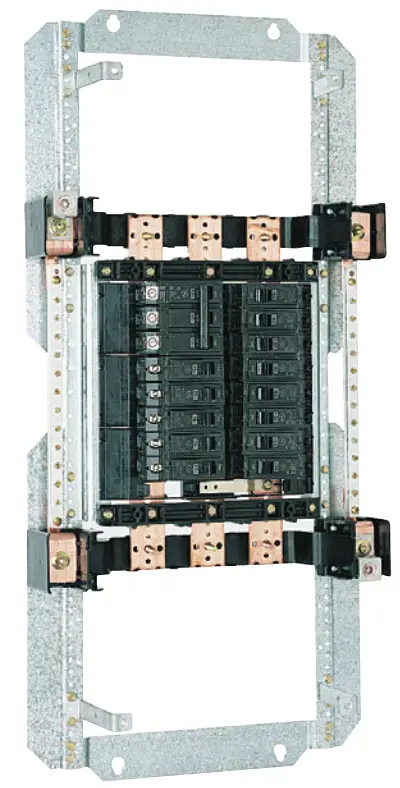

Select interior

Select the interior by bus type, panel rating and number of circuits.
Identify the box/front height for use in steps 2 and 3.

Copper Bus

Voltage	Amp Rating	No. of Circuits	Feed-thru Cat. No.¹	Box/Front Height	Non Feed-thru Cat. No.¹	Box/Front Height	TGL2 Ground Bars² ³
240 Vac, 1 Phase	100-250	18	AQU1182RCXAXT1B4	37.5″	AQU1182RCXAXB4	31.5″	2
		30	AQU13O2RCXAXT1B4	43.5″	AQU13O2RCXAXB4	37.5″	3
		42	AQU1422RCXAXT1B4	49.5″	AQU1422RCXAXB4	43.5″	4
	400	18	AQU1184RCXAXT1B4	64.5″	–	–	2
		42	AQU1424RCXAXT1B4	1 76.5″	I AQU1424RCXAXB4	64.5″	4
	600	18	AQU1186RCXAXT1B4	1 64.5″	–	–	2
		42	AQU1426RCXAXT1B4	1 76.5″	AQU1426RCXAXB4	64.5″	4
208/120 Vac, 3 Phase	100-250	18	AQU3182RCXAXT1B4	37.5″	AQU3182RCXAXB4	31.5″	2
		30	AQU33O2RCXAXT1B4	43.5″	AQU33O2RCXAXB4	37.5″	3
		42	AQU3422RCXAXT1B4	49.5″	AQU3422RCXAXB4	43.5″	4
	400	18	AQU3184RCXAXT1B4	I 64.5″	–	–	2
		42	AQU3424RCXAXT1B4	76.5″	AQU3424RCXAXB4	64.5″	4
	600	18	AQU3186RCXAXT1B4	64.5″	–	–	2
		42	AQU3426RCXAXTIB4	76.5″	AQU3426RCXAXB4	64.5″	4
480/277 Vac, 3 Phase	100-250	18	AEU3182RCXAXTIB4	37.5″	AEU3182RCXAXB4	31.5″	2
		30	AEU33O2RCXAXT1B4	43.5″	AEU33O2RCXAXB4	37.5″	3
		42	AEU3422RCXAXT1B4	49.5″	AEU3422RCXAXB4	43.5″	4
	400	18	AEU3184RCXAXT1B4	64.5″	–	–	2
		42	AEU3424RCXAXT1B4	76.5″	AEU3424RCXAXB4	64.5″	4
	600	18	AEU3186RCXAXT1B4	64.5″	–	–	2
		42	AEU3426RCXAXT1B4	76.5″	AEU3426RCXAXB4	64.5″	4

Aluminum Bus

Voltage	Amp Rating	No. of Circuits	Feed-thru Cat. No.¹	Box/Front Height	TGL2 Ground Bars
240 Vac, 1 Phase	100-250	18	AQU1182RCXAXT1	37.5″	2
		30	AQU1302RCXAXT1	43.5″	3
		42	AQU1422RCXAXT1	49.5″	4
208/120 Vac, 3 Phase	100-250	18	AQU3182RCXAXT1	37.5″	2
		30	AQU3302RCXAXT1	43.5″	3
		42	AQU3422RCXAXT1	49.5″	4
480/277 Vac, 3 Phase	100-250	18	AEU3182RCXAXT1	37.5″	2
		30	AEU3302RCXAXT1	43.5″	3
		42	AEU3422RCXAXT1	49.5″	4

TGL20 ground lug quantities

	No. of TGL20s Required by Panel Rating
Interior Type	100-250A	400A	600A
Main Lug Only	1	1	2
Main Lug & Feed-thru	2	2	4
Main Breaker Only	1	1	–
Main Breaker & Sub-feed	1	1	–
Main Breaker & Feed-thru	2	2	–

For TGL20 ground lug quantities, see TGL20 ground lug quantities table above.
For isolated ground, use EGS12. When using the EGS12, 3, 5 and 7 ground lugs (TGL20s) are required for 18, 30 and 42 circuits respectively.
Main bus rating of 250A for main breaker interiors and a bus rating of 225A for main lug interiors.

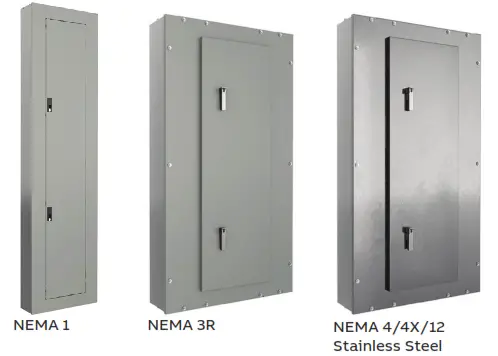

Choose box

Select a box of the correct height (see step 1). Boxes come with blank endwalls.
If endwalls with knockouts are required, also order knockout endwall kit AKEW2.

	NEMA 1	NEMA 3R	NEMA 4, 4X and 12 Painted Galvaneal	NEMA 4, 4X and 12 Stainless Steel
Box Height	20″ Wide	20″ Wide	20″ Wide	20″ Wide
25.5″	–	–	–	AB254S
31.5″	AB31B	AB313	AB314	AB314S
37.5″	AB37B	AB373	AB374	AB374S
43.5″	AB43B	AB433	AB434	AB434S
49.5″	AB49B	AB493	AB494	AB494S
64.5″	AB64B	AB643	AB644	AB644S
76.5″	AB76B	AB763	AB764	AB764S

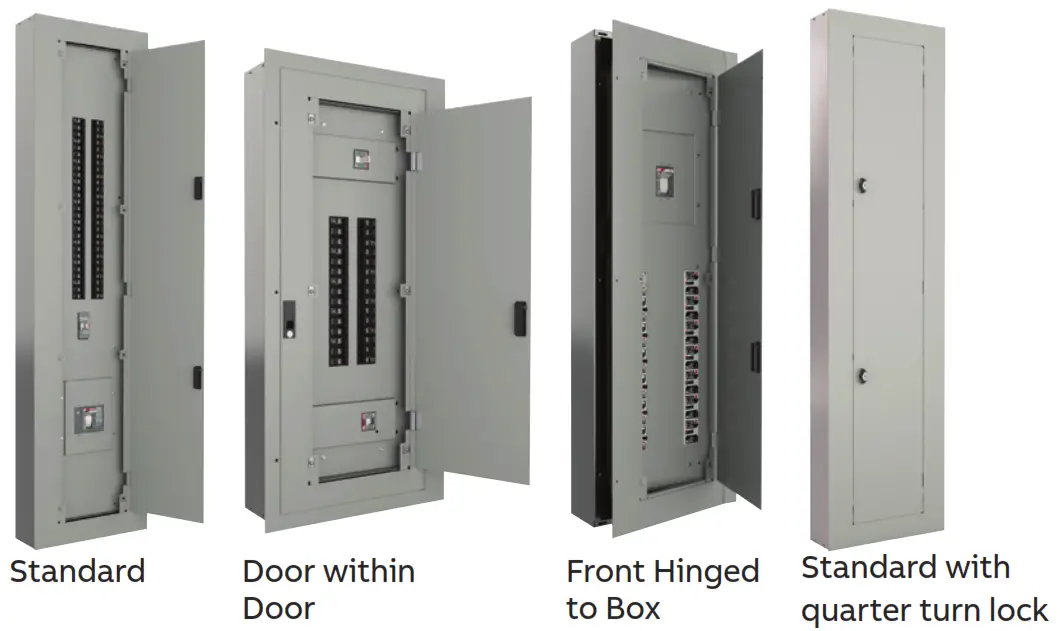

Add a front

Add a front of the correct height (available for NEMA 1 enclosures only) Standard fronts are equipped with concealed hinges and trim adjusting screws hinges, trim adjusting screws and quarter turn locks.
The door-in-door is convenient for contractors to gain easy access to equipment from the front of the panel. Door-in-door allows a contractor access to the gutters without removing the front.
Front hinged to box is similar to door-in-door for convenient access to gutters, but a contractor must remove four screws to access the outer door.

Front	Standard (20″ Wide)		Door Within Door (20″ Wide)		Front Hinged to Box (20” Wide)
Height	Flush¹	Surface¹	Flush¹	Surface¹	Flush¹	Surface¹
31.5″	AF31F	AF31S	AF31FP	AF31SP	AF31FD	AF31SD
37.5″	AF37F	AF37S	AF37FP	AF37SP	AF37FD	AF37SD
43.5″	AF43F	AF43S	AF43FP	AF43SP	AF43FD	AF43SD
49.5″	AF49F	AF49S	AF49FP	AF49SP	AF49FD	AF49SD
64.5″	AF64F (T)	AF64S (T)	AF64FP (T)	AF64SP (T)	AF64FD (T)	AF64SD (T)
76.5″	AF76F (T)	AF76S (T)	AF76FP (T)	AF76SP (T)	AF76FD (T)	AF76SD (T)

1 (*T) Fronts with quarter turn lock for applications with XT5 circuit breakers

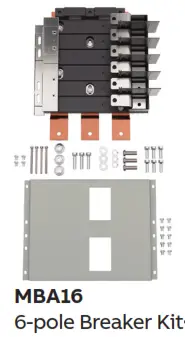

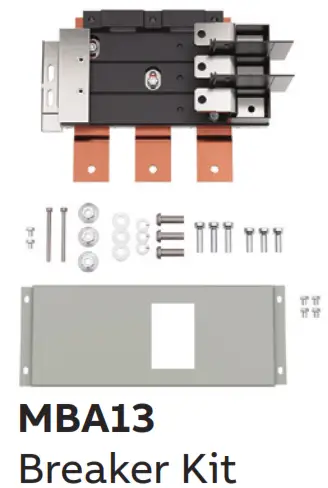

Select main and/or sub-feed breaker kit

Select the main breaker kit appropriate for your interior type (see step 1), amp rating and kAIC rating. If a sub-feed breaker is required, repeat the selection process. Some units come standard with a breaker.
Please see the list to the right.

Cat. No.	Breaker Description	Breaker Type
MBM124WB	XT5 TMA 400 AMPS 3P	XT5NU340ABFN000XXX
MBB13WB	XT4 TMF 225 AMPS 3P	XT4NU3225AFJ000XXX
MBB16WB	XT4 TMF 225 AMPS 3P	XT4NU3225AFJ000XXX (2)
MBM134WB	XT5 TMA 400 AMPS 3P	XT5NU340ABFN000XXX
MBC33WB	XT1 TMF 125 AMPS 3P	XT1HU3125AFD000XXX
MBB33WB	XT4 TMF 225 AMPS 3P	XT4HU3225AFJ000XXX
MBB36WB	XT4 TMF 225 AMPS 3P	XT4HU3200AFJ000XXX (2)
MBM334WB	XT5 TMA 400 AMPS 3P	XT5HU340ABFN000XXX
MBM324WB	XT5 TMA 400 AMPS 3P	XT5HU340ABFN000XXX

Interior Type	Cat. No.1	Max. Amp Rating	No. of Poles	10	14	22	25	35	50	65	100	150	200
AQU1: 240 VAC, 1 Phase	MB612	100	2	THQB
	MB614	100	4	(x2) THQB	THHQB
	MBA12	225	2	A2A	(x2) THHQB
	MBM324	400	2		A2N					XT5N	XT5S	XT5H	XT5L
	MBM124WB	400	2							XT5N
AQU3: 208/120 VAC, 3 Phase	MB613	100	3	THQB		THHQB
	MB616	100	6	(x2) THQB		(2) THHQB
	MBA13	225	3	A2A		A2N
	MBA16	400	6 2	(x2) A2A		(2) A2N
	MBB33	250	3							XT4N	XT4S	XT4H	XT4L
	MBB13WB	225	3							XT4N
	MBB36 5	400	6 5							(2) XT4N	(2) XT4S	(2) XT4H	(2) XT4L
	MBB16WB 5	400	6 5							XT4N
	MBM334	400	3							XT5N	XT5S	XT5H	XT5L
	MBM134WB	400	3							XT5N
	MBM124WB4	400	2 3							XT5N
AEU3: 480/277 Vac, 3 Phase	MB423	100	3		TEY
	MB426	100	6		(x2) TEY
	MBC33	125	3				XT1N	XT1S		XT1H
	MBC33WB	125	3							XT1H
	MBB33	250	3							XT4H
	MBB33WB	225	3							XT4H
	MBB365	400	6 5							(x2) XT4H
	MBB36WB5	400	6 5				(x2) XT4N	(x2) XT4S		(x2) XT4H
	MBM334	400	3					XT5N	XT5S	XT5H
	MBM334WB	400	3							XT5H
	MBM324WB4	400	23							XT5H

Breaker not included except for “WB” kits (where product number ends in “WB”).

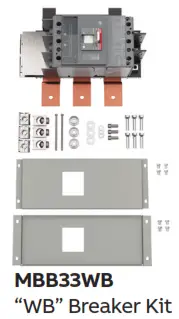

“WB” kits include a breaker, mounting kit and load-side lugs.
Actual breaker short circuit rating is 25 kAIC.
Use 2 outer poles for 3 pole applications.
For sub-feed application only.
6 poles of sub-feed applies only to 400 A and 600 A interiors.
Can use (2) 3 pole devices only, no 2 pole allowed.

Select alternative main breakers

Skip step 5 if you selected a main breaker kit ending in “WB” — no breaker is required.
To correlate breaker types with the kAIC rating in specific panelboards, see the table for step 4.
For more rating details, see ReliaGear lighting panels rating series labels (1TQC173100E0001).
Use 2 outer poles for 3 pole applications.
For TEY and THQB main breakers, see branch breakers tables in step 7.

Tmax XT breakers1 (3-pole) for use with appropriate main breaker kit (see step 4).

240V KAIC	480V KAIC	Breaker Description	US Product Number	Wire Range (Cu/Al)	Cables per Lug
65	65	XT1H 125 TMF 30 AMPS 3P	XT1HU3030AFD000XXX	Cu Al 1×14–2/0 AWG	1
65	65	XT1H 125 TMF 60 AMPS 3P	XT1HU3060AFD000XXX	Cu Al 1×14–2/0 AWG	1
65	65	XT1H 125 TMF 100 AMPS 3P	XT1HU3100AFD000XXX	Cu Al 1×14–2/0 AWG	1
65	65	XT1H 125 TMF 125 AMPS 3P	XT1HU3125AFD000XXX	Cu Al 1×14–2/0 AWG	1
65	35	XT1S 125 TMF 100 AMPS 3P	XT1SU3100AFD000XXX	Cu Al 1×14–2/0 AWG	1
65	65	XT4H 250 TMF 150 AMPS 3P	XT4HU3150AFJ000XXX	Cu Al 1×4 AWG–300 kcmil	1
65	65	XT4H 250 TMF 200 AMPS 3P	XT4HU3200AFJ000XXX	Cu Al 1×4 AWG–300 kcmil	1
65	65	XT4H 250 TMF 225 AMPS 3P	XT4HU3225AFJ000XXX	Cu Al 1×4 AWG–300 kcmil	1
65	35	XT4S 250 TMF 175 AMPS 3P	XT4SU3175AFJ000XXX	Cu Al 1×4 AWG–300 kcmil	1
65	35	XT4S 250 TMF 200 AMPS 3P	XT4SU3200AFJ000XXX	Cu Al 1×4 AWG–300 kcmil	1
65	35	XT4S 250 TMF 225 AMPS 3P	XT4SU3225AFJ000XXX	Cu Al 1×4 AWG–300 kcmil	1
65	35	XT4S 250 TMF 250 AMPS 3P	XT4SU3250AFL000XXX	Cu Al 1×4 AWG–300 kcmil	1
65	35	XT4N 250 ekip DIP 60-150 AMPS 3P	XT4NU3150FFL000XXX	Cu Al 1×4 AWG–300 kcmil	1
65	35	XT4S 250 ekip DIP 100-250 AMPS 3P	XT4SU3250FFL000XXX	Cu Al 1×4 AWG–300 kcmil	1
65	65	XT4H 250 ekip DIP 100-250 AMPS 3P	XT4HU3250FFL000XXX	Cu Al 1×4 AWG–300 kcmil	1
65	65	XT5H 400 TMA 400 AMPS 3P	XT5HU340ABFN000XXX	Cu Al 2×2/0 AWG–500 kcmi	2
65	50	XT5S 400 TMA 300 AMPS 3P	XT5SU330ABFN000XXX	Cu Al 2×2/0 AWG–500 kcmi	2
65	50	XT5S 400 TMA 400 AMPS 3P	XT5SU340ABFN000XXX	Cu Al 2×2/0 AWG–500 kcmi	2
65	35	XT5N 400 ekip DIP 16-400 AMPS 3P	XT5NU340AFFN000XXX	Cu Al 2×2/0 AWG–500 kcmi	2
65	65	XT5H 400 ekip DIP 16-400 AMPS 3P	XT5HU340AFFN000XXX	Cu Al 2×2/0 AWG–500 kcmi	2

1 Thermal Magnetic Fixed (TMF) – no adjustments possible. Thermal Magnetic Adjustable (TMA) – adjustable thermal (L) and magnetic (I).

Main or sub-feed breakers for use with RQ panels (208/120 V AC 3-phase or 240 V AC single-phase). See step 4.

		2-pole		3-pole
	10kAIC	22kAIC	10kAIC	22kAIC
Amp Rating	Cat. No.	Cat. No.	Cat. No.	Cat. No.
125	A2A125TL-2	A2N125TL-2	A2A125TT	A2N125TT
150	A2A150TL-2	A2N150TL-2	A2A150TT	A2N150TT
175	A2A175TL-2	A2N175TL-2	A2A175TT	A2N175TT
200	A2A200TL-2	A2N200TL-2	A2A200TT	A2N200TT
225	A2A225TL-2	A2N225TL-2	A2A225TT	A2N225TT

Select main lug kit and accessories

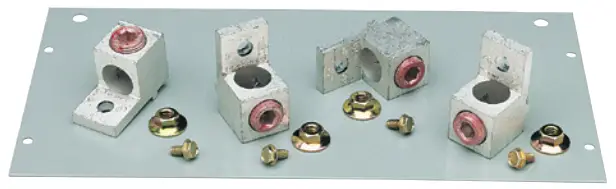

Main lug kits

Lug Type	Amp	Standard		Oversized	200%Neutral
Lug Type	Rating Cat. No.	I Wire Range	Cat. No.	Wire Range	Cat. No.
	225 MLA1	I 6-350 kcmil	MLA2	1-600 kcmil or (2)1/0-250 kcmil	NKA
	400 MLA41	?-600 MCM or (2)1/0-250 kcmil	MLA62	3/0-800 kcmil	NKA42
	600 MLA61	I (2) 2/0-500 kcmil	MLA62	3/0-800 kcmil	—
Copper	225 MLR1	4-450 kcmil	MLR2	1-600 kcmil	NKR
	400 MLR41	1-600 kcmil	MLR61	(2) 2/0-500 kcmil	NKR4
	600 MLR61	(2) 2/0-500 kcmil	—	—	—
Compression	225 MLT1	2/0-300 kcmil	M LT2	4/0-500 kcmil	NKT
Compression	400 M LT42	250-600 kc mil	MLT41	500-750 kcmil’	NKT4
Dual	225 MLA2	2-600 kcmil or (2)1/0-250 kcmil	—	—	—
Main	400 MLA61	L (2) 2/0-500 kcmil	—	—	—

500 kcmil Cu, 750 kcmil Al.
For 200% neutral feed-thru, order NKA4FT, (GO-101P). Wire range (2) 2/0–600 kcmil or (4) 4–250 kcmil.

Accessories

Service Entrance¹

Amp Rating	Cat. No.
225	BNDKT
400	BNDKT6
600	BNDKT6

Service entrance kit includes a bonding strap with hardware and a service entrance label

Scan to find out more about ReliaGear™ Pro-Stock™

https://electrification.us.abb.com/products/panelboards/reliagear-pro-stock-panelboard

Select bolt-on branch breakers

The tables below show standard branch breakers.
Branch circuit breakers for use with RQ panels (208/120 V AC 3-phase or 240 V AC single-phase)

Amp Rating			10 kAIC			22 kAIC
	1-pole	2-pole	3-pole	1-pole	1 2-pole	3-pole
	Cat. No.	Cat. No.	Cat. No.	Cat. No.	Cat. No.	Cat. No.
15	THQB1115	THQB2115	THQB32015	THHQB1115	THHQB2115	THHQB32015
20	THQB1120	THQB2120	THQB32020	THHQB1120	THHQB2120	THHQB32020
25	THQB1125	THQB2125	THQB32025	THHQB1125	THHQB2125	THHQB32025
30	THQB1130	THQB2130	THQB32030	THHQB1130	THHQB2130	THHQB32030
35	THQB1135	THQB2135	THQB32035	THHQB1135	THHQB2135	THHQB32035
40	THQB1140	THQB2140	THQB32040	THHQB1140	THHQB2140	THHQB32040
45	THQB1145	THQB2145	THQB32045	THHQB1145	THHQB2145	THHQB32045
50	THQB1150	THQB2150	THQB32050	THHQB1150	THHQB2150	THHQB32050
60	THQB1160	THQB2160	THQB32060	THHQB1160	THHQB2160	THHQB32060
70	THQB1170	THQB2170	THQB32070	THHQB1170	THHQB2170	THHQB32070
80	–	THQB2180	THQB32080	–	THHQB2180	THHQB32080
90	–	THQB2190	THQB32090	–	THHQB2190	THHQB32090
100	–	THQB21100	THQB32100	–	THHQB21100	THHQB32100

Branch circuit breakers for use with RE panels (480/277 V AC 3-phase)

Amp Rating			14 kAIC
	1-pole	2-pole	3-pole
	Cat. No.	Cat. No.	Cat. No.
15	TEY115	TEY215	TEY315
20	TEY120	TEY220	TEY320
30	TEY130	TEY230	TEY330
40	TEY140	TEY240	TEY340
50	TEY150	TEY250	TEY350
60	TEY160	TEY260	TEY360
70	TEY170	TEY270	TEY370
80	TEY180	TEY280	TEY380
90	TEY190	TEY290	TEY390
100	T EY1100	TEY2100	TEY3100

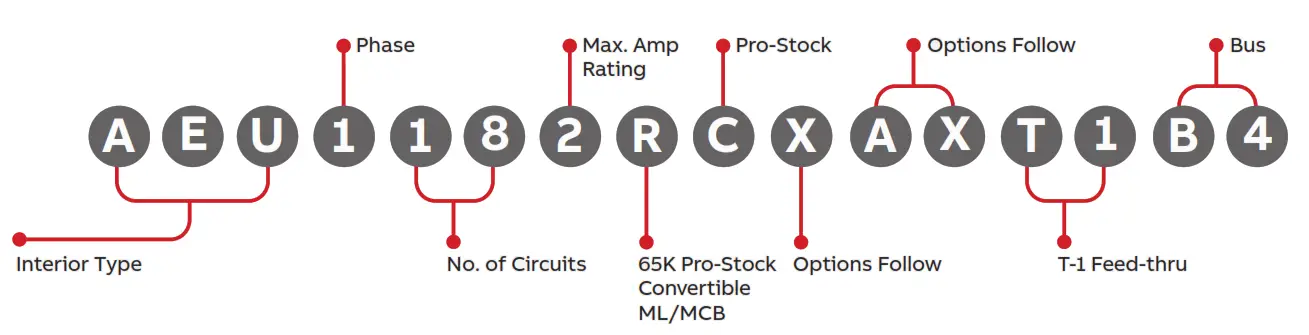

Interior product number structure

Interior Type	Phase	No. of Circuits	Max. Amp Rating	Ti Feed-thru	Bus
AQU = 240 Vac	1 = 1-Phase	18 = 18 Circuits 1	2 = 250A MB/ 225A MLO	Blank Non Feed-thru* (required copper bus [B4])	B4 = Copper
AEU = 480Y/277 Vac	3 = 3-Phase	I 30 = 30 Circuits	4 = 400A		Blank = aluminum
		42 = 42 Circuits	6 = 600A

Customer Service: [email protected]
Technical Support: 1-800-431-7867 #4 or [email protected]
Warranty Support: 1-888-437-3765

ABB Inc
305 Gregson Drive
Cary, NC 27511
electrification.us.abb.com

© Copyright 2021 ABB. All rights reserved.
Information provided is subject to change without notice. Please verify all details with ABB. All values are design or typical values when measured under laboratory conditions, and ABB makes no warranty or guarantee, express or implied that such performance will be obtained under end-use conditions.
GE is a trademark of GE. Manufactured under trademark license.
1TQC214100E0001 DEN455B 10.2021
